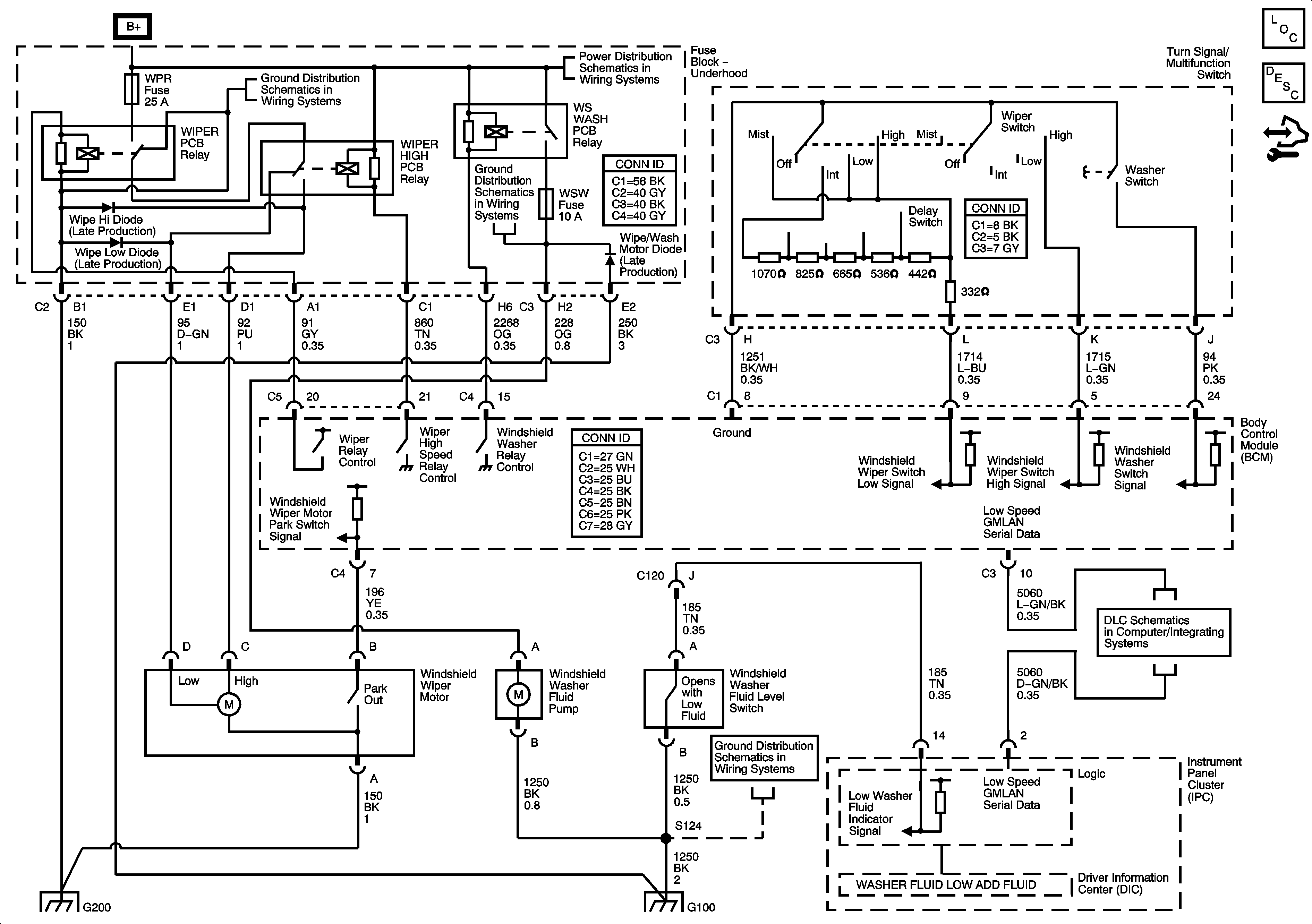

Wiper/Washer Schematics for Chevrolet Monte Carlo 2006
Master Electrical Component List
Wiper/Washer System Description and Operation
Control Module References
Fuse Block - Underhood Bussing
Fuse Block - Underhood Bussing
G200
G100
Power, Ground, and Low Speed GMLAN Serial Data
G100
G200
G100
