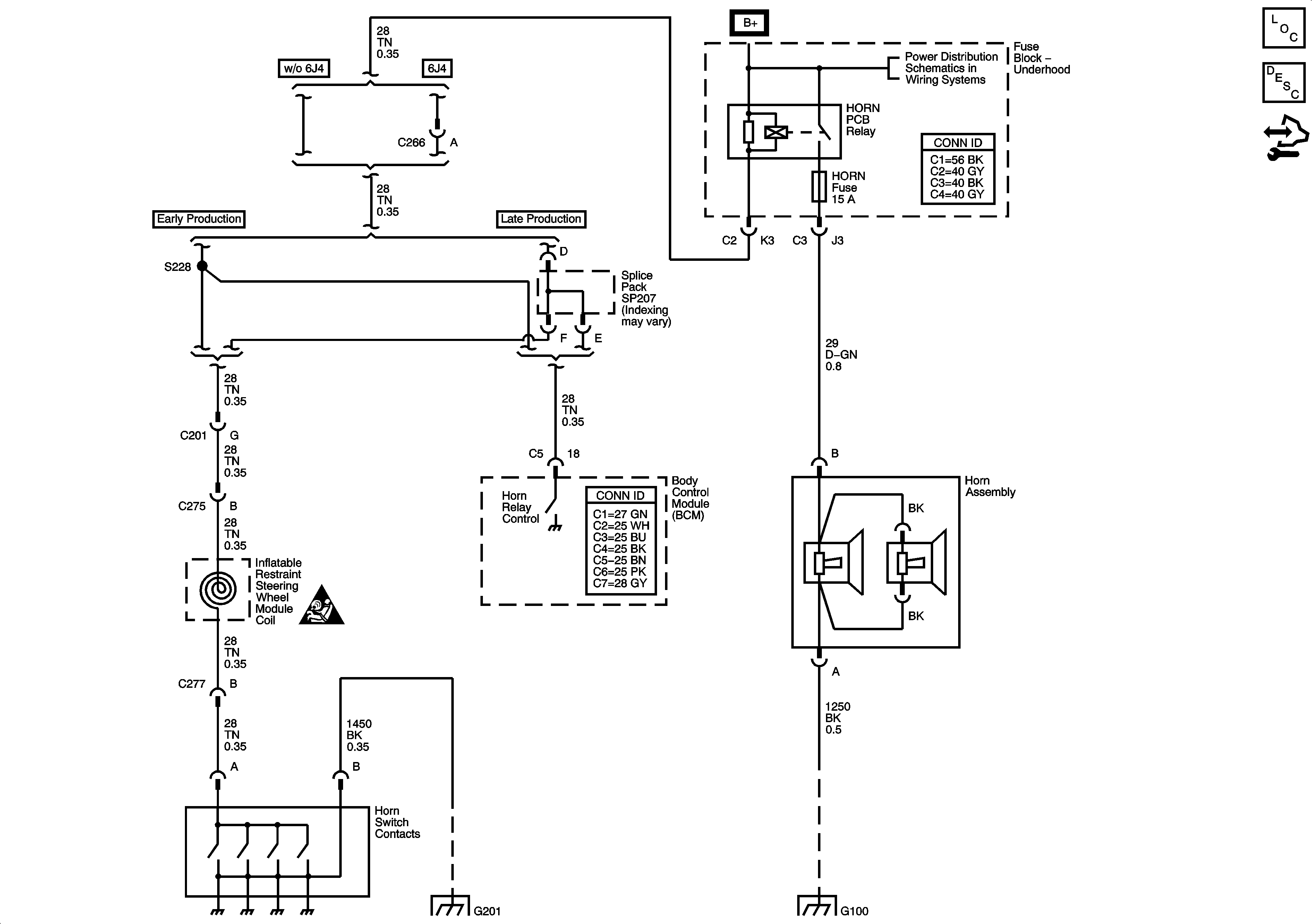

Horns Schematics for Chevrolet Monte Carlo 2006
Master Electrical Component List
Horns System Description and Operation
Control Module References
Fuse Block - Underhood Bussing
Fuse Block - Underhood Bussing
Horn Schematic Icons
G201
G100
