HVAC Component Views. Chevrolet S10 Pickup

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 S10 Pickup - 2WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E 🢒 HVAC Component Views

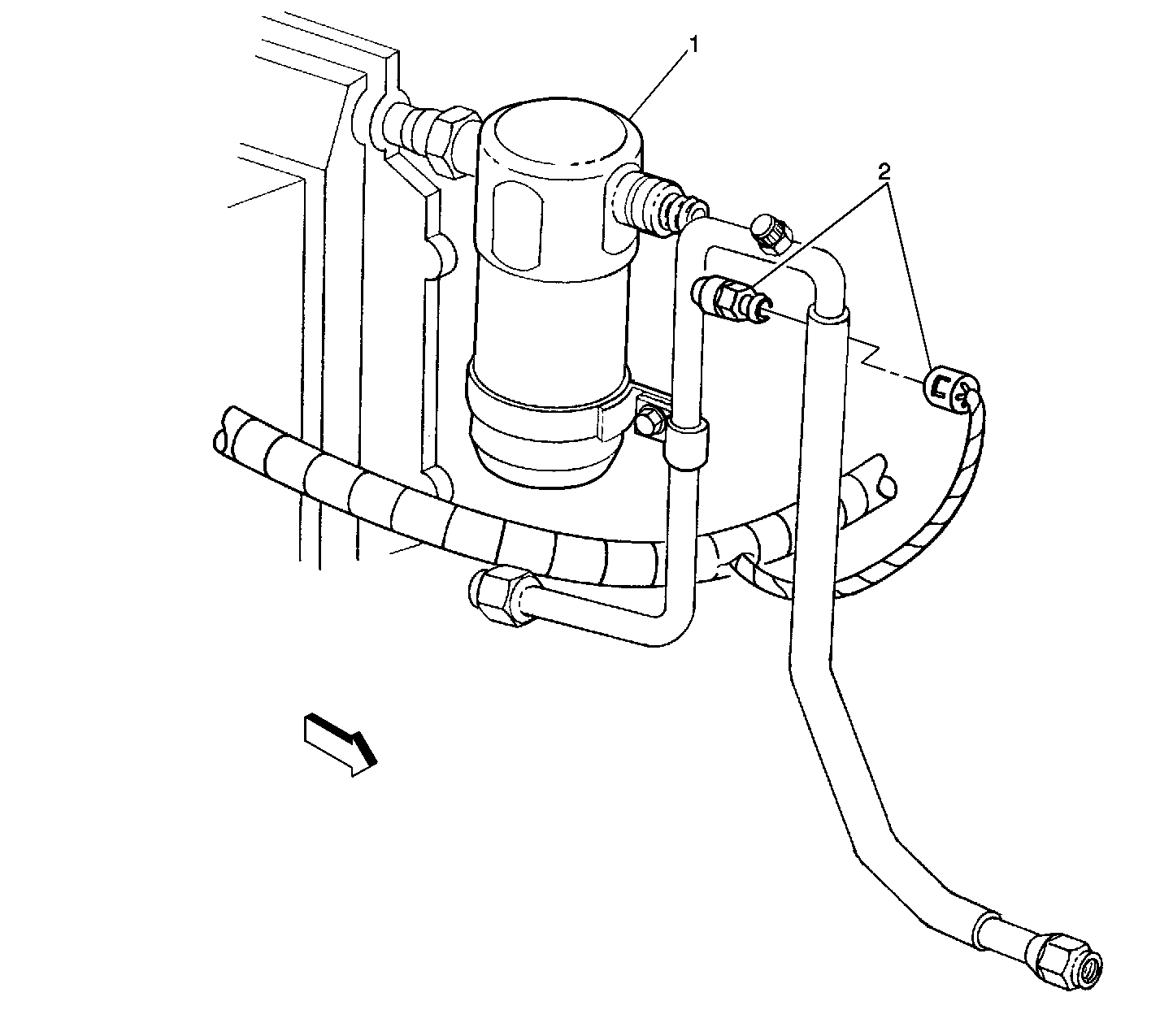

Figure 1:


(1)	A/C Accumulator
(2)	A/C Refrigerant Pressure Sensor

Figure 2:

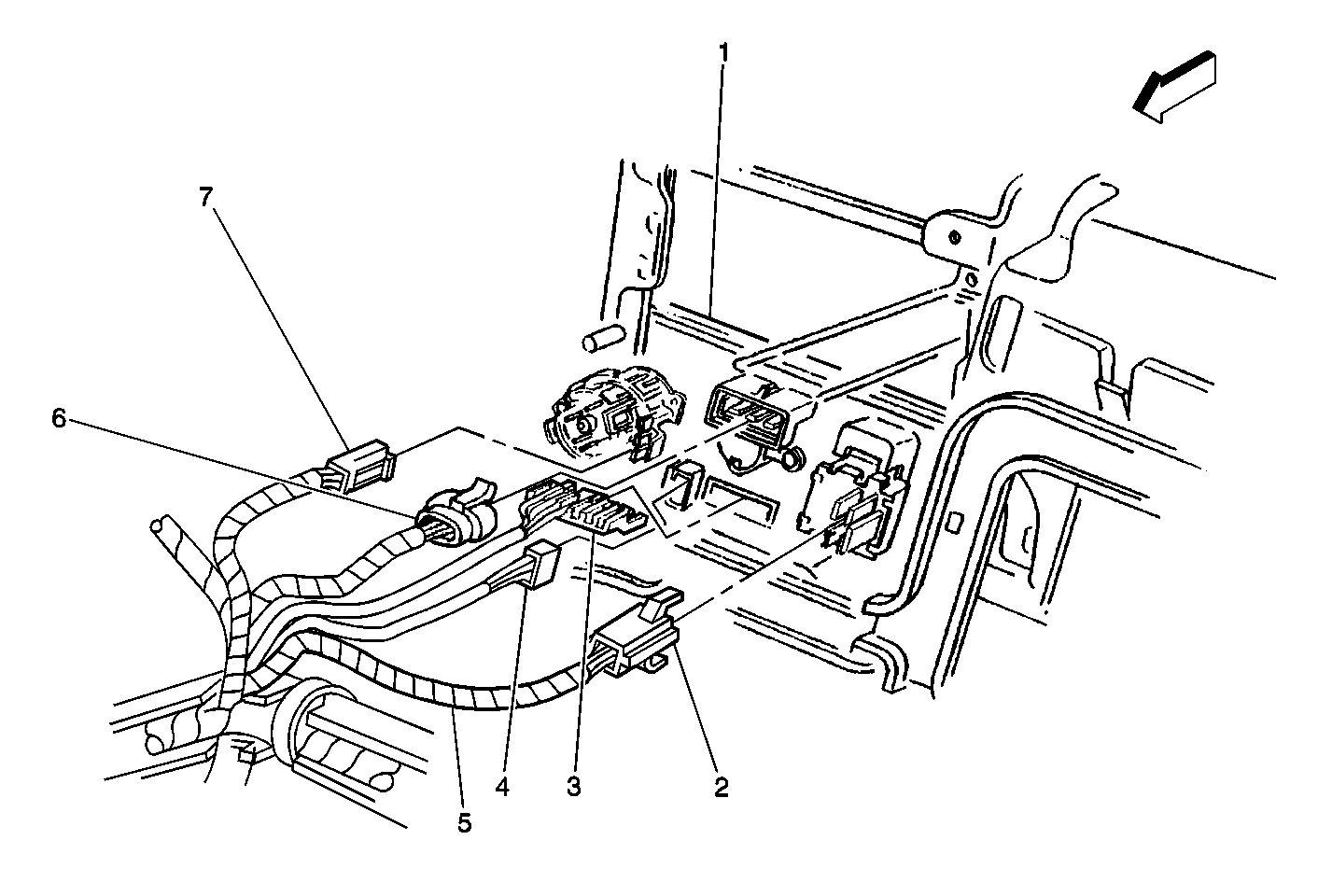

Figure 3:


(1)	Vehicle Control Module (VCM)
(2)	Vehicle Control Module (VCM) Connector C3
(3)	Vehicle Control Module (VCM) Connector C1
(4)	C101
(5)	A/C Cycling Switch and Connector
(6)	Vehicle Control Module (VCM) Connector C2
(7)	Vehicle Control Module (VCM) Connector C4

Figure 4:


(1)	S118
(2)	G117

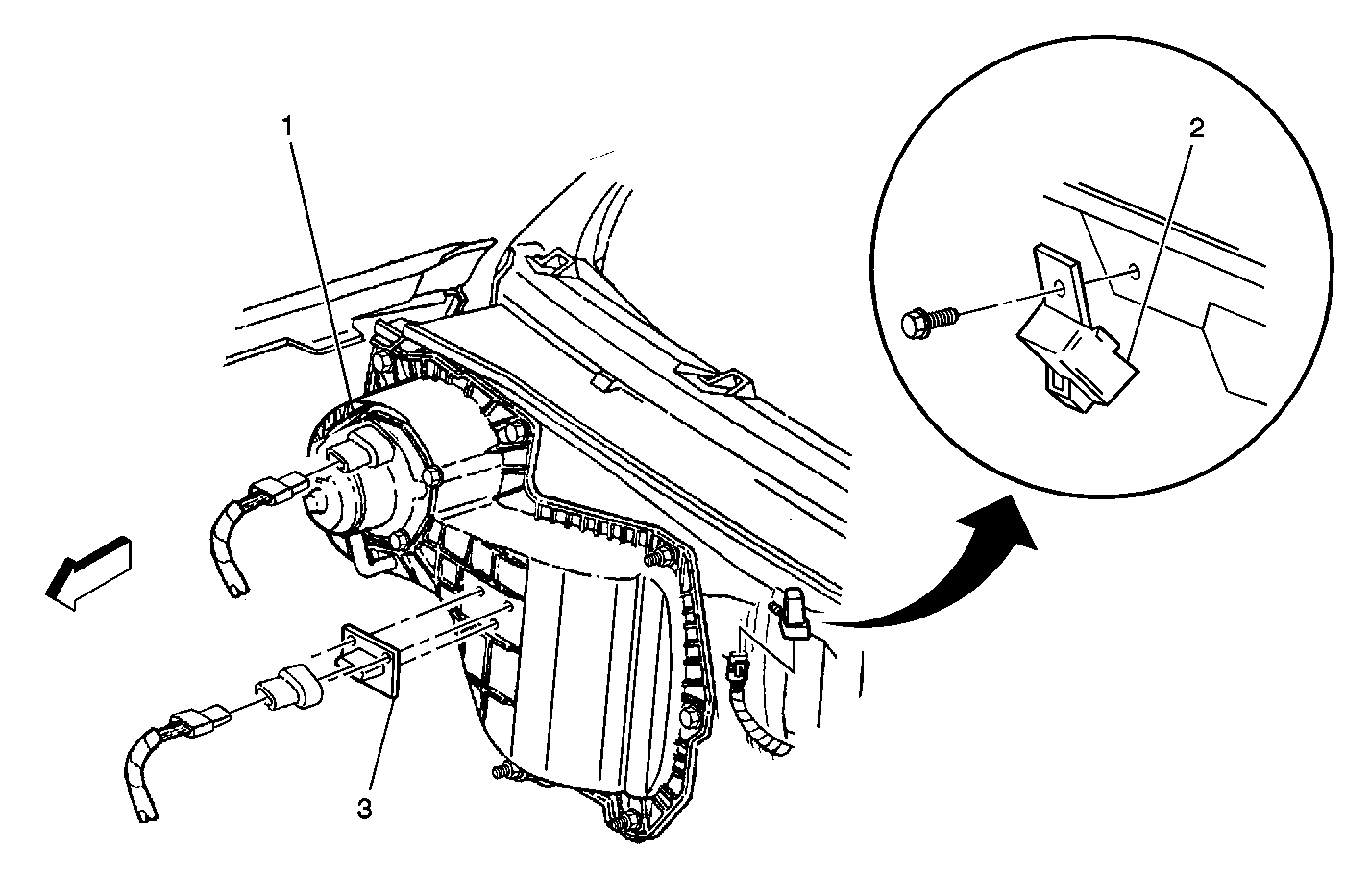

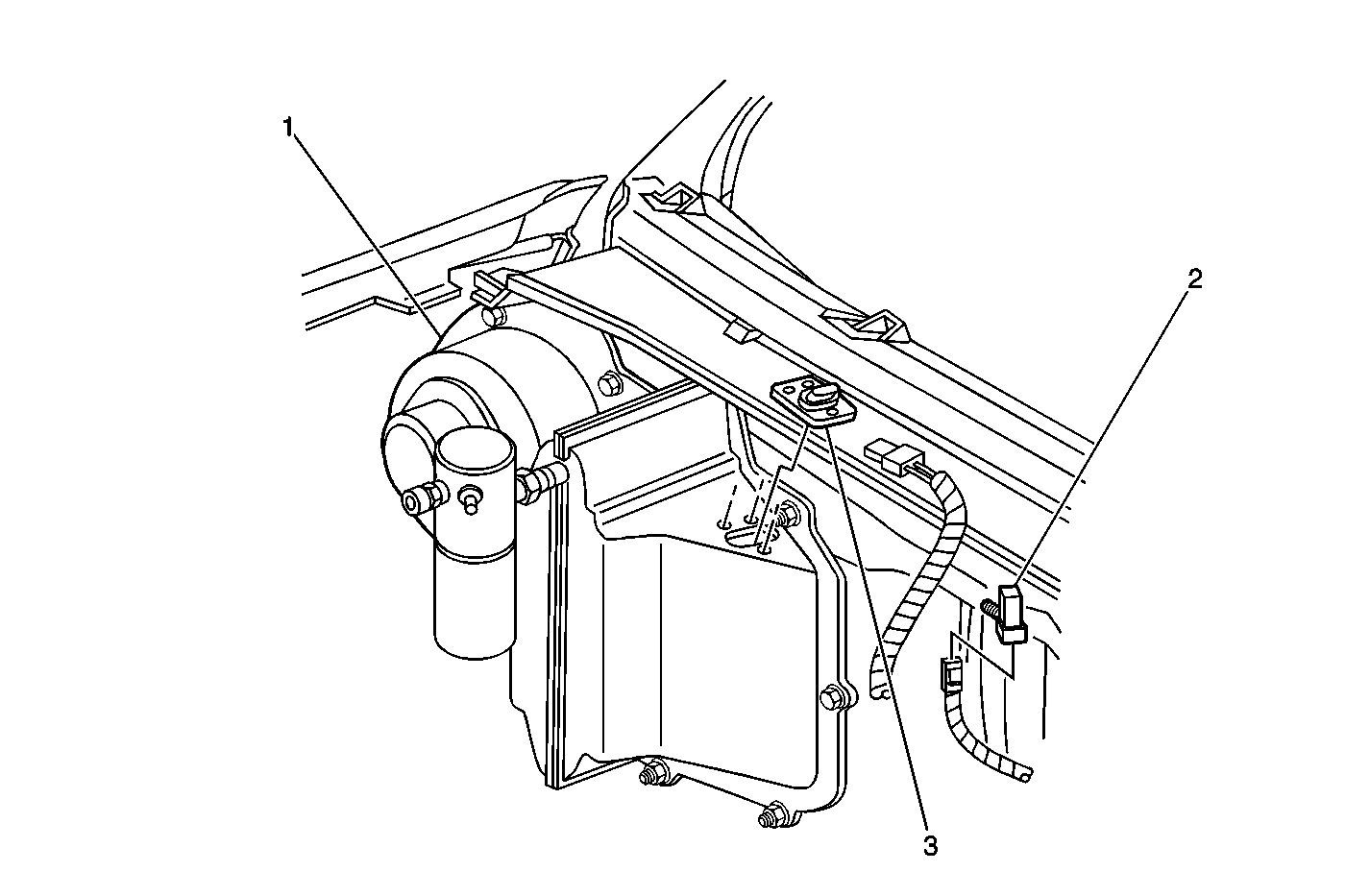

Figure 5:


(1)	Blower Motor and Connector
(2)	Blower Motor Relay
(3)	Blower Motor Resistor and Connector

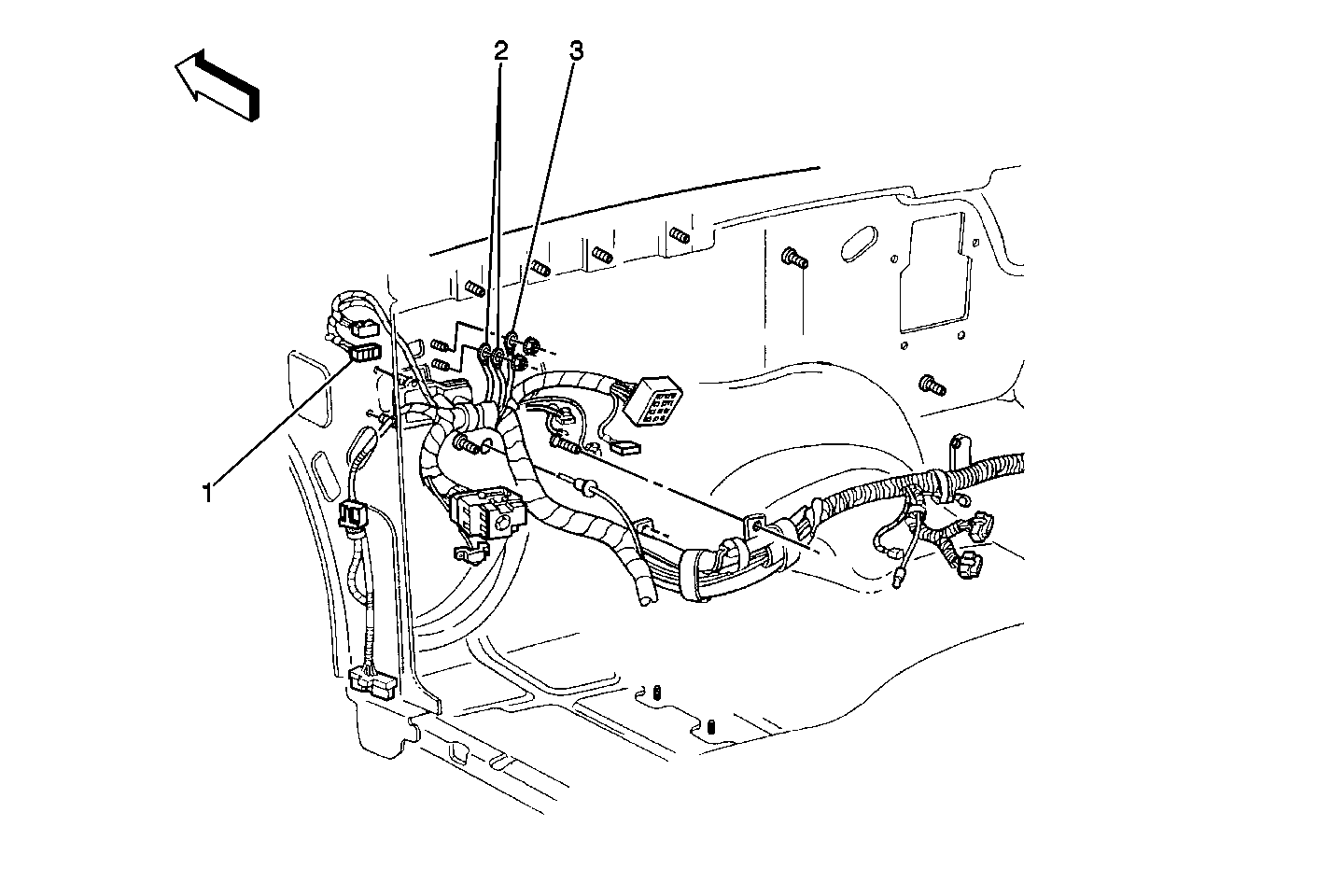

Figure 6:


(1)	Blower Motor and Connector
(2)	Blower Motor Relay
(3)	Blower Motor Resistor and Connector

Figure 7:


(1)	Underhood Fuse Block Connector C2
(2)	A/C Compressor Clutch Diode, S103 and S104

Figure 8:


(1)	A/C Compressor Clutch Coil Connector
(2)	A/C Compressor High Pressure Switch Connector
(3)	A/C Compressor Clutch Diode, S103 and S104
(4)	Underhood Fuse Block Connector C2
(5)	A/C Compressor

Figure 9:

Figure 10:

Figure 11:

Figure 12:


(1)	Heater and A/C Controller
(2)	Heater and A/C Controller Connector C4
(3)	Heater and A/C Controller Connector C1
(4)	Heater and A/C Controller Connector C5
(5)	S215
(6)	Heater and A/C Controller Connector C3
(7)	Heater and A/C Controller Connector C2
