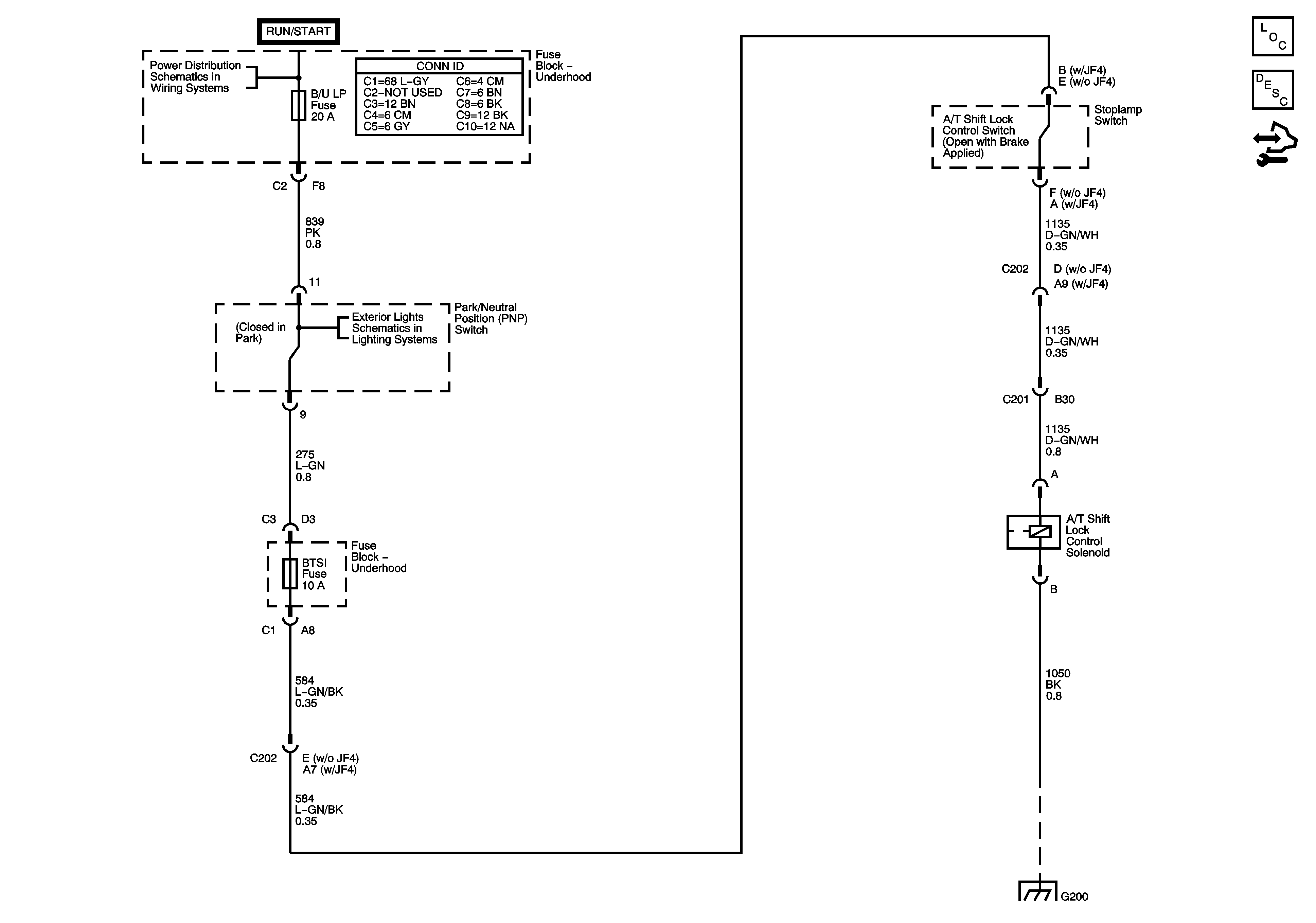

Shift Lock Control Schematics for Chevrolet Tahoe - 4WD 2005
Master Electrical Component List
Automatic Transmission Shift Lock Control Description and Operation
Control Module References
Ignition Switch - ACCY/RUN and RUN/START Busses, and IGN B Fuse
Backup Lamps
G200 - 1 of 3
