Makes 🢒 Chevrolet 🢒 1999 🢒 Tracker - 2WD 🢒 Engine 🢒 Engine Mechanical - 1.6L 🢒 Disassembled Views

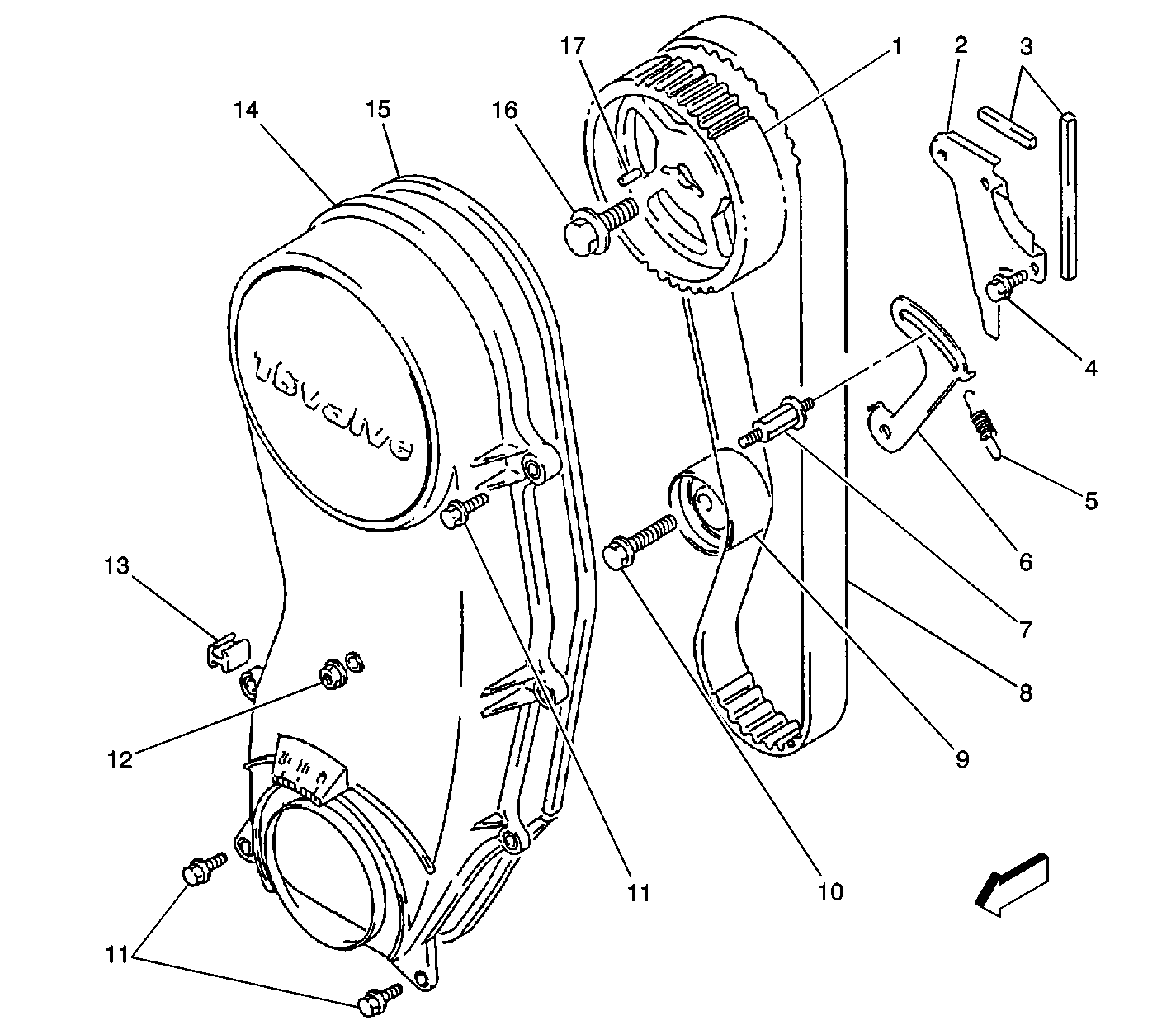

Figure 1:

Timing Belt
Object Number: 585090 Size: LF
(1)Crankshaft Timing Belt Gear
(2)Bracket
(3)Seal
(4)Bolt
(5)Timing Belt Tension Spring
(6)Timing Belt Tension Plate
(7)Stud
(8)Timing Belt
(9)Timing Belt Tensioner
(10)Bolt
(11)Bolt
(12)Nut and Washer
(13)Grommet
(14)Timing Belt Cover
(15)Timing Belt Cover Gasket
(16)Bolt
(17)Key Way
Figure 2:

Cylinder Head
Object Number: 585107 Size: LF
(1)Cylinder Head Cover
(2)Cylinder Head Cover Bolts
(3)Cylinder Head Cover Gasket
(4)O-Ring
(5)Spark Plug
(6)Camshaft Sensor Case
(7)Camshaft Sensor Case Gasket
(8)Bolt
(9)Cylinder Head Bolt
(10)Cylinder Head Gasket
(11)Dowl
(12)Oil Jet
(13)Camshaft Bearing
(14)Rocker Arm Shaft Plug
(15)Dowl
(16)Bolt
(17)Valve Guide Bushings
(18)Valve Seal
(19)Cap
(20)Oil Filler Cap
(21)Clamp
(22)Hose
(23)Clamp
Figure 3:

Camshaft and Valve Mechanism
Object Number: 585103 Size: LF
(1)Camshaft
(2)Rockershaft
(3)Bolt
(4)Spacer
(5)Rocker Arm Spring
(6)Nut
(7)Adjusting Screw
(8)Valve Lock
(9)Valve Retainer
(10)Valve Spring
(11)Valve Seal
(12)Shim
(13)Intake Valve
(14)Exhaust Valve
(15)Bolt
(16)Followers
(17)Adjustment Clip
(18)Nut
(19)Rocker Arm
(20)Rocker Arm
(21)Camshaft Bearing

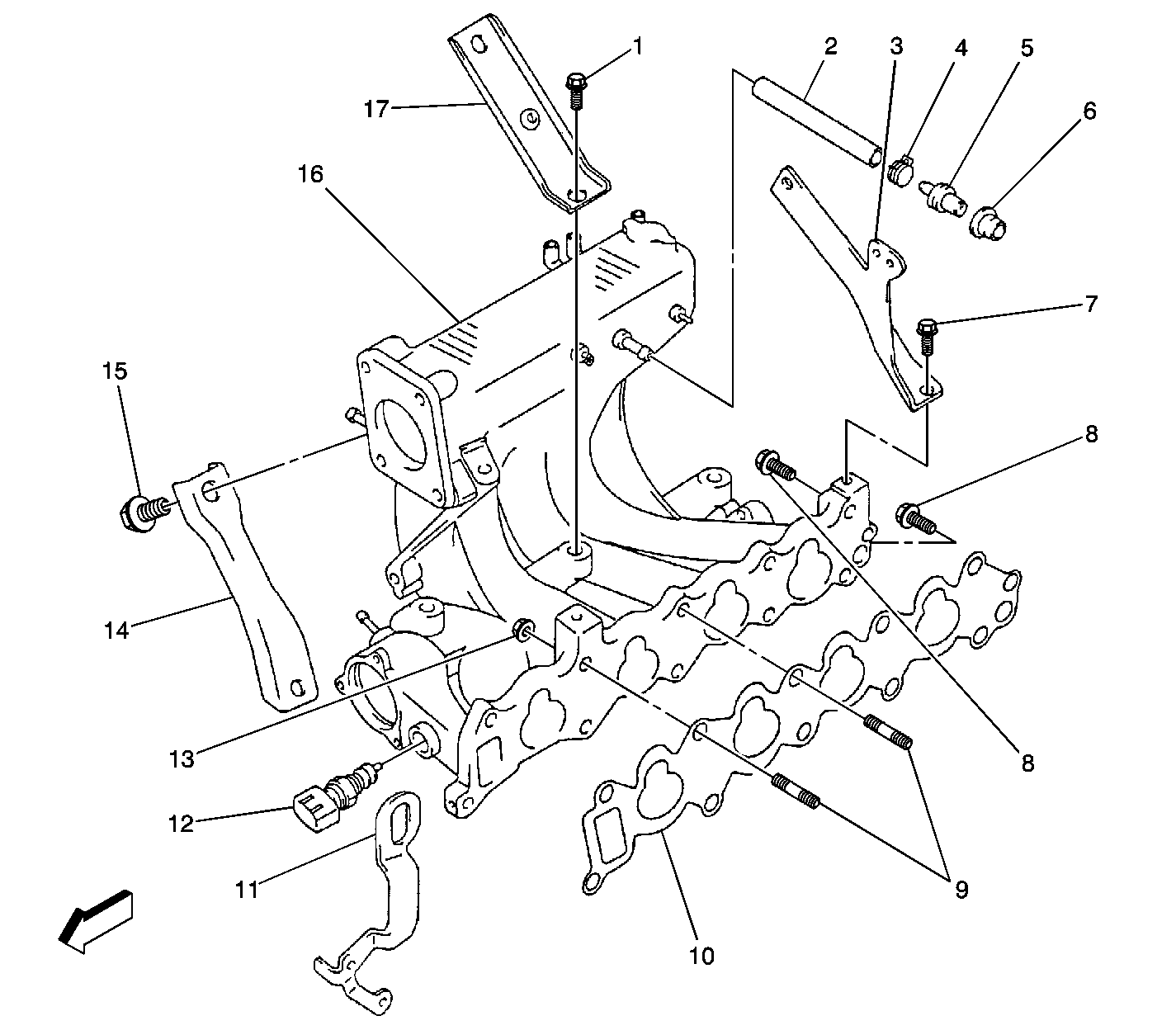

Figure 4:

Intake Manifold and Gasket
Object Number: 585087 Size: LF
(1)Bolt
(2)Hose
(3)Stiffener
(4)Clamp
(5)PVC Valve
(6)PVC Valve Seal
(7)Bolt
(8)Bolts
(9)Stud
(10)Manifold Gasket
(11)Engine Hook
(12)Water Temperature Sensor
(13)Nut
(14)Stiffener
(15)Bolt
(16)Intake Manifold
(17)Stiffener

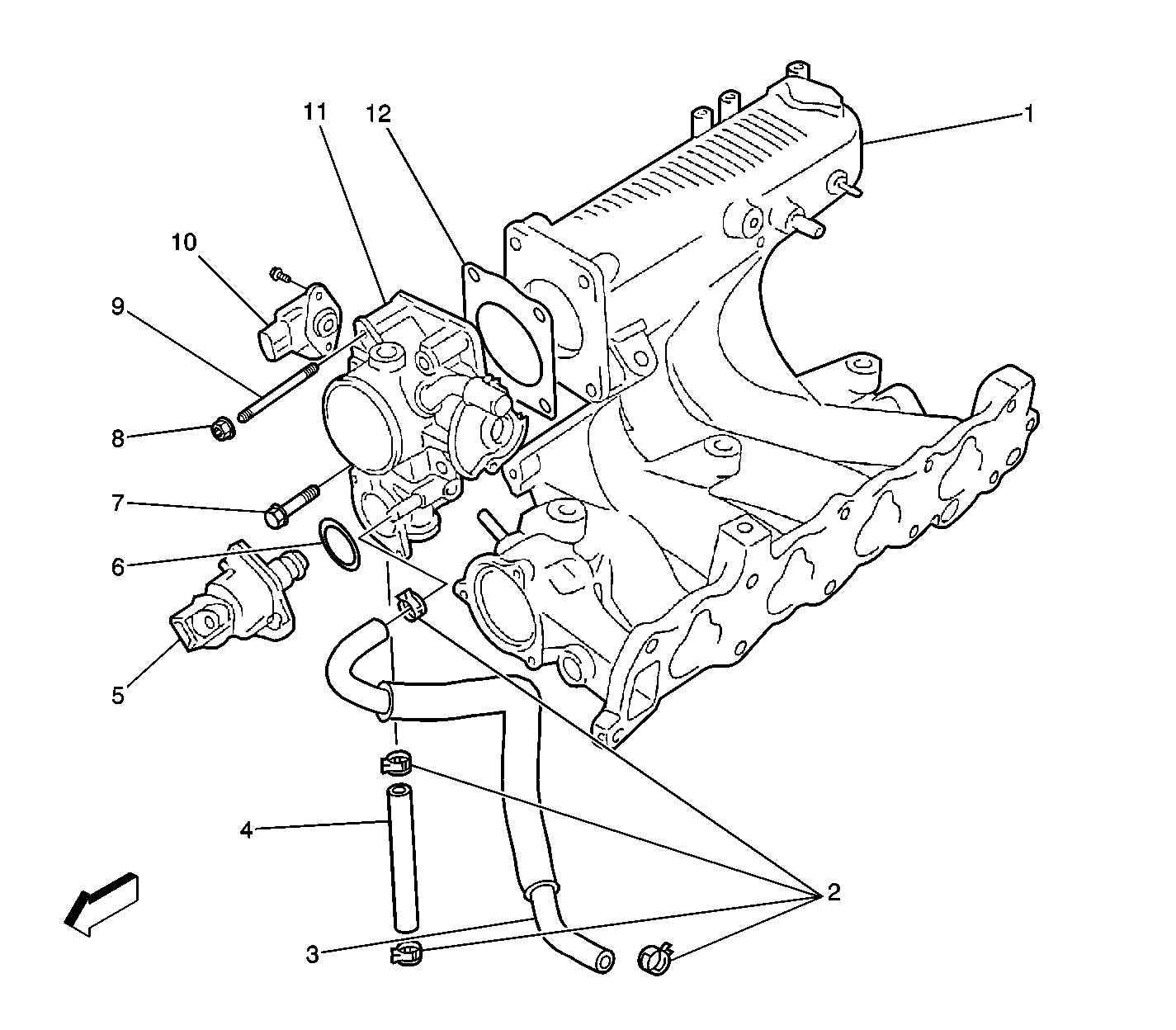

Figure 5:

Throttle Body Intake Manifold
Object Number: 585085 Size: LF
(1)Intake Manifold
(2)Clamps
(3)Hose
(4)Pipe
(5)IAC Valve
(6)IAC Gasket
(7)Bolt
(8)Nut
(9)Stud
(10)TP Sensor
(11)Throttle Body
(12)Throttle Body Gasket
Figure 6:

Cylinder Block and Oil Filter
Object Number: 585100 Size: LF
(1)Cylinder Block
(2)Cylinder Block Plate Gasket
(3)Cylinder Block Plate
(4)Bolt
(5)Clutch Housing Upper Plate
(6)Clutch Housing Lower Plate
(7)Bolt
(8)Oil Filter
(9)Plug
(10)Oil Pressure Switch Assembly
(11)Oil Filter Stand
(12)Breather Front Plate
(13)Bolt
(14)Oil Gallery Inner Plug
(15)Oil gallery Outer Plug
(16)Oil Gallery Plug
(17)Breather Rear Plate
(18)Bolt
(19)Crank Bearing Cap Bolt
(20)Oil Plug
(21)Bolt

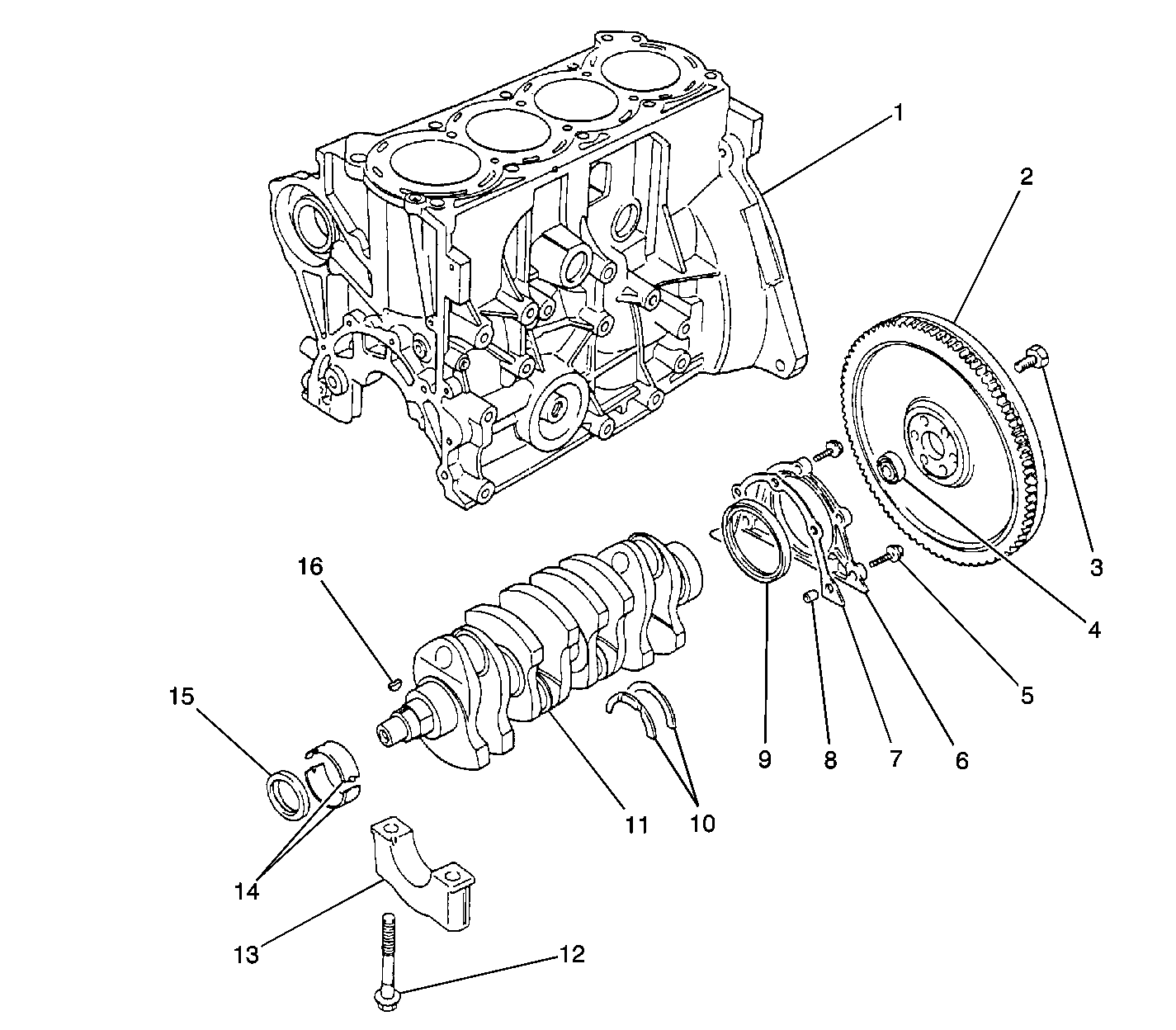

Figure 7:

Cylinder Block and Crankshaft
Object Number: 585094 Size: LF
(1)Cylinder Block
(2)Flywheel
(3)Bolt
(4)Pilot Bearing
(5)Bolt
(6)Crankshaft Rear Housing
(7)Crankshaft Rear Housing Gasket
(8)Dowl
(9)Rear Main Seal
(10)Thrust Bearing
(11)Crankshaft
(12)Main Bearing Cap Bolt
(13)Main bearing Cap
(14)Main Bearing
(15)Crankshaft Bearing
(16)Key Way

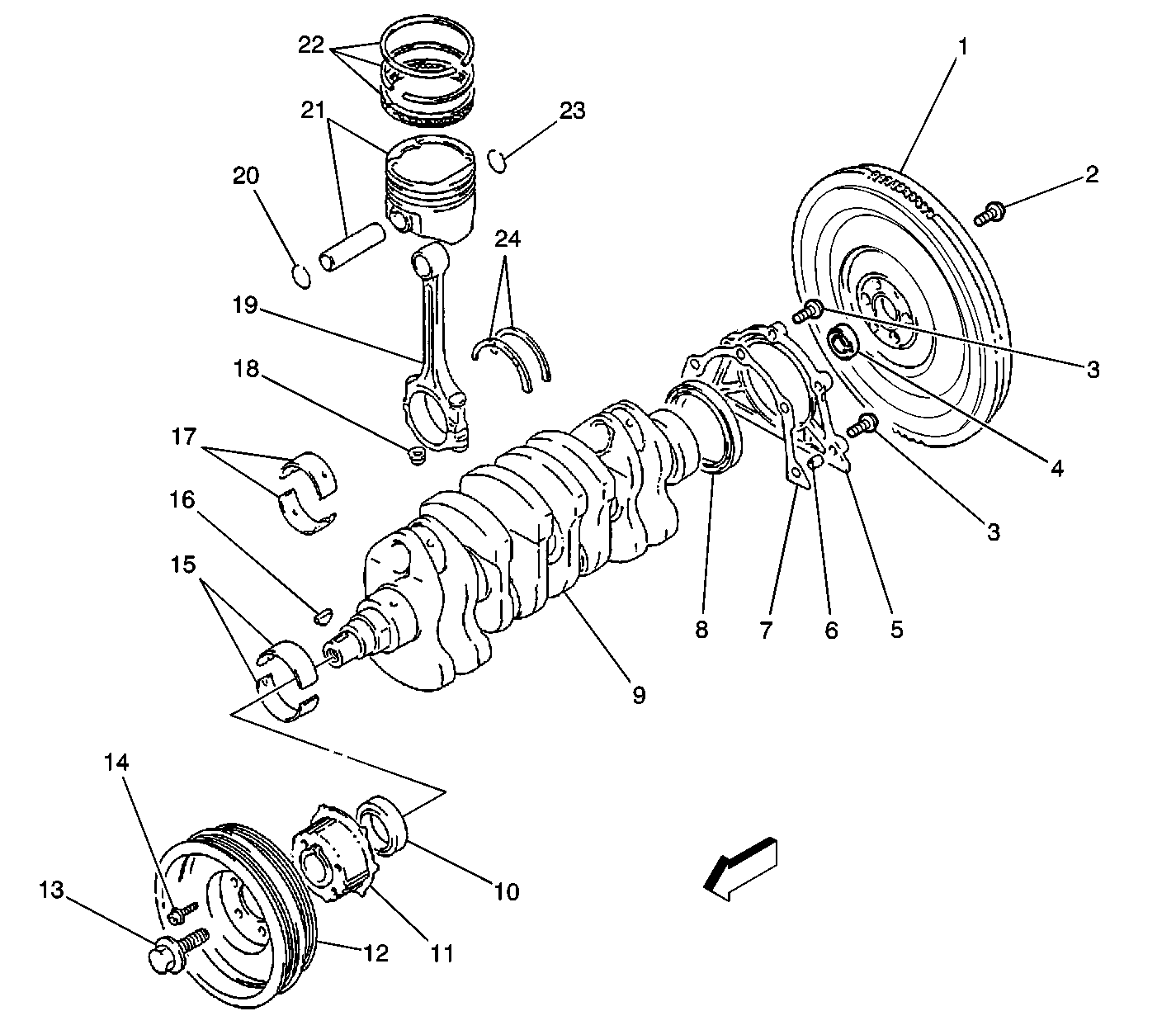

Figure 8:

Flywheel and Crankshaft
Object Number: 585092 Size: LF
(1)Flywheel
(2)Bolt
(3)Main Bearing Cap Bolt
(4)Pilot Bushing
(5)Crankshaft Rear Housing
(6)Dowl
(7)Gasket
(8)Rear Main Seal
(9)Crankshaft
(10)Bearing
(11)Spacer
(12)Crankshaft Pulley
(13)Bolt
(14)Bolt
(15)Main Bearing
(16)Key Way
(17)Main Bearing
(18)Connecting Nut
(19)Connecting Rod
(20)Snap Ring
(21)Piston/Rist Pin Assembly
(22)Ring Set
(23)Snap Ring
(24)Thrust Bearing
