Makes 🢒 Chevrolet 🢒 2001 🢒 Tracker - 4WD 🢒 Brakes 🢒 Antilock Brake System 🢒 Antilock Brake System Component Views
Figure 1:

Four Wheel Drive Switch Component View
Object Number: 419240 Size: LF
(1)Four Wheel Drive Switch
(2)Transfer Case
Figure 2:

Front Wheel Speed Sensor Component View
Object Number: 419248 Size: MF
(1)Steering Knuckle
(2)Front Wheel Speed Sensor
(3)Front Brake Rotor

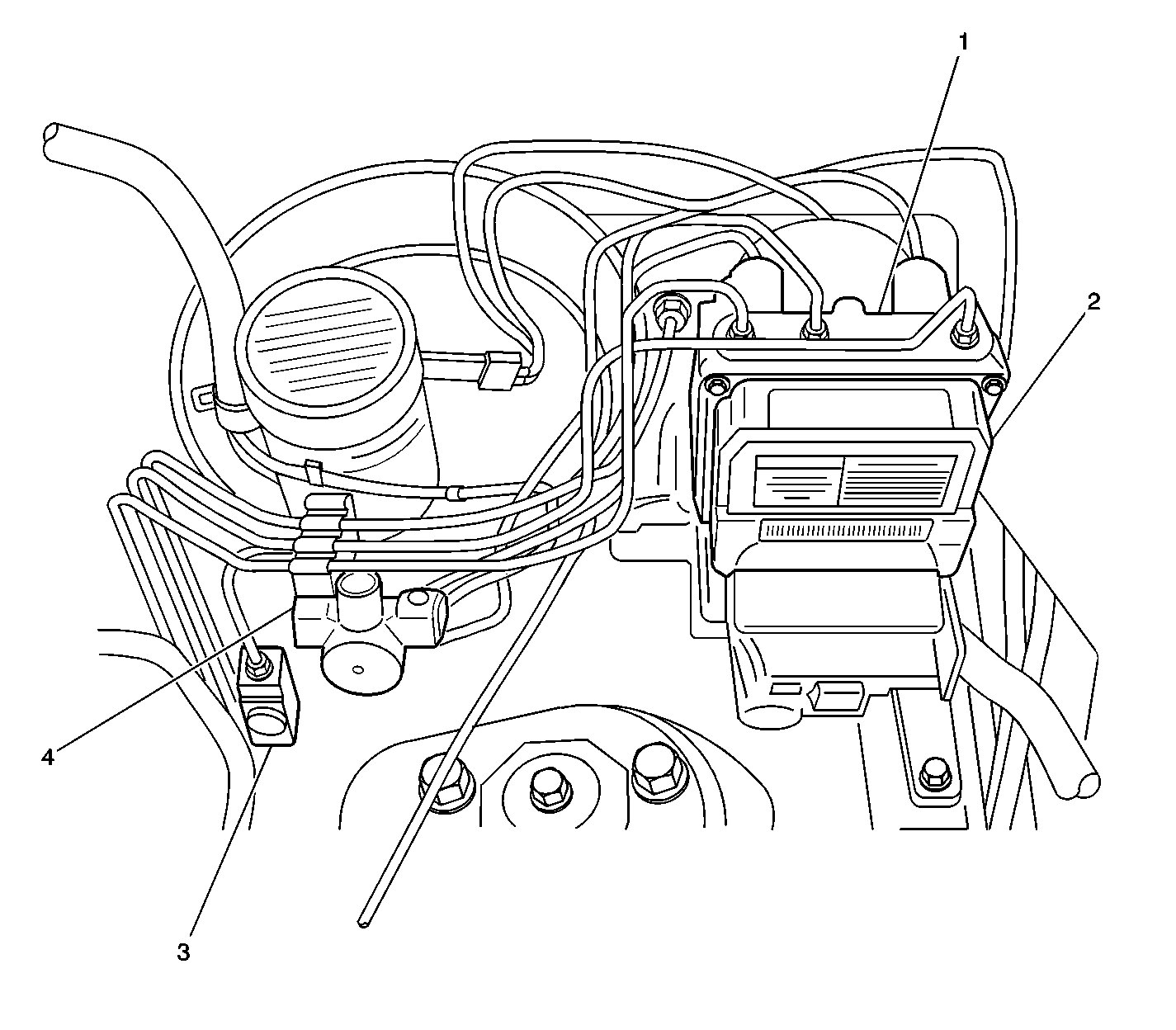

Figure 3:

EBCM/BPMV Assembly Component View
Object Number: 622806 Size: LF
(1)Brake Pressure Modulator Valve (BPMV)
(2)Electronic Brake Control Module (EBCM)
(3)Proportioning Valve
(4)Master Cylinder

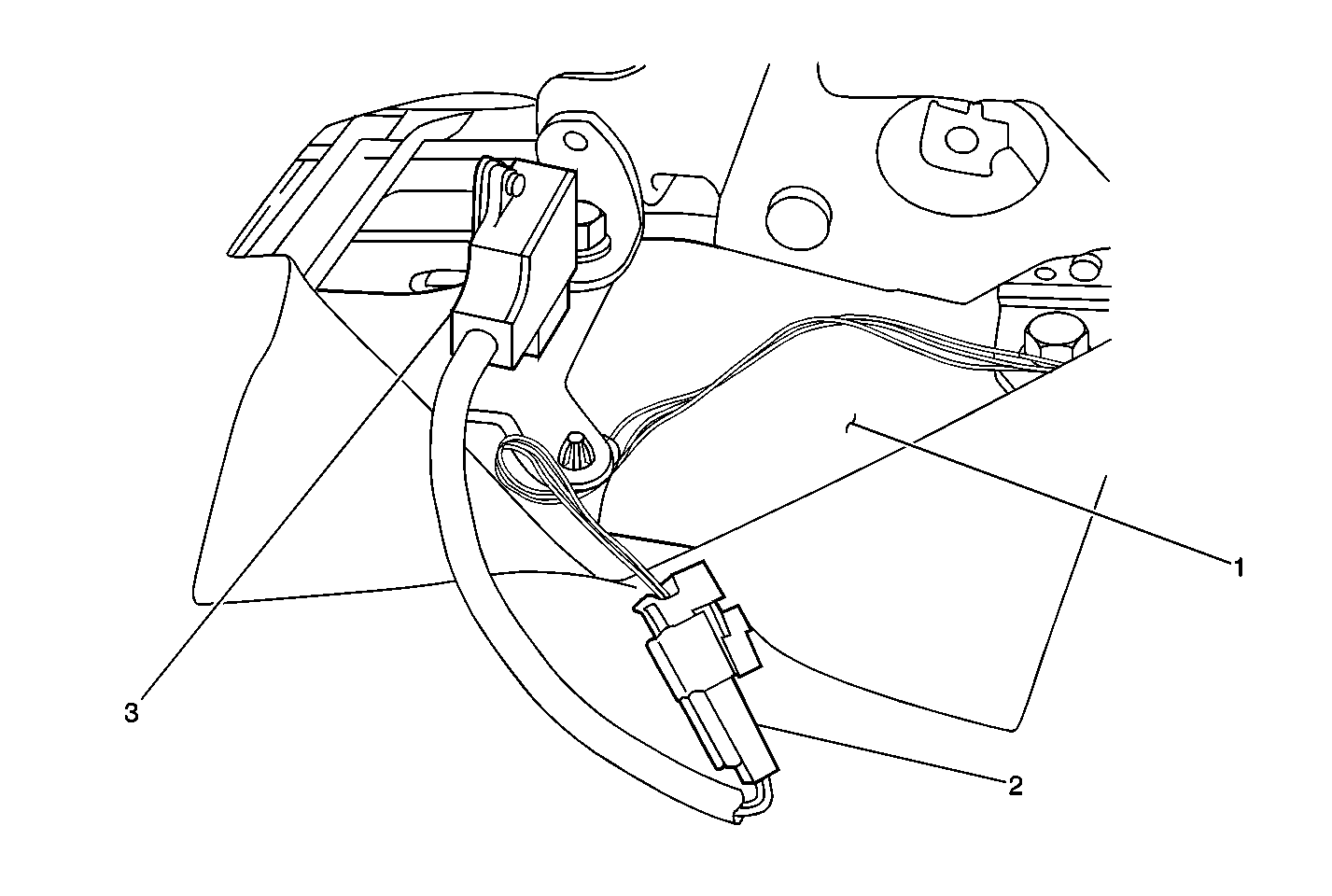

Figure 4:

Accelerometer Component View
Object Number: 419256 Size: MF
(1)Transmission Tunnel
(2)Accelerometer Connector
(3)Accelerometer
Figure 5:

Rear Wheel Speed Sensor Component View
Object Number: 419258 Size: MF
(1)Rear Brake Drum
(2)Rear Wheel Speed Sensor
(3)Rear Axle Housing
