Makes 🢒 GMC_Truck 🢒 2009 🢒 Acadia - AWD 🢒 Engine 🢒 Engine Mechanical - 2.8L, 3.0L, 3.2L, or 3.6L 🢒 Crankshaft Balancer Removal

Tools Required

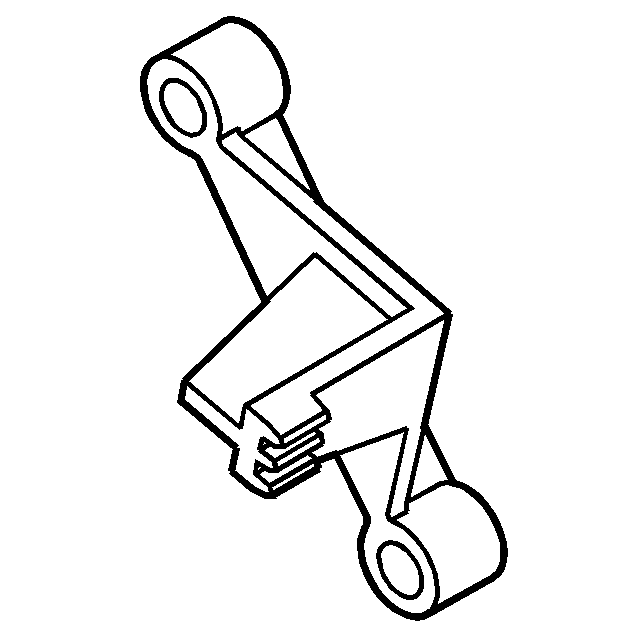

    • EN 46106 Flywheel Holding Tool
    • J 38416-2 Crankshaft Button
    • J 41816 Crankshaft Balancer Remover

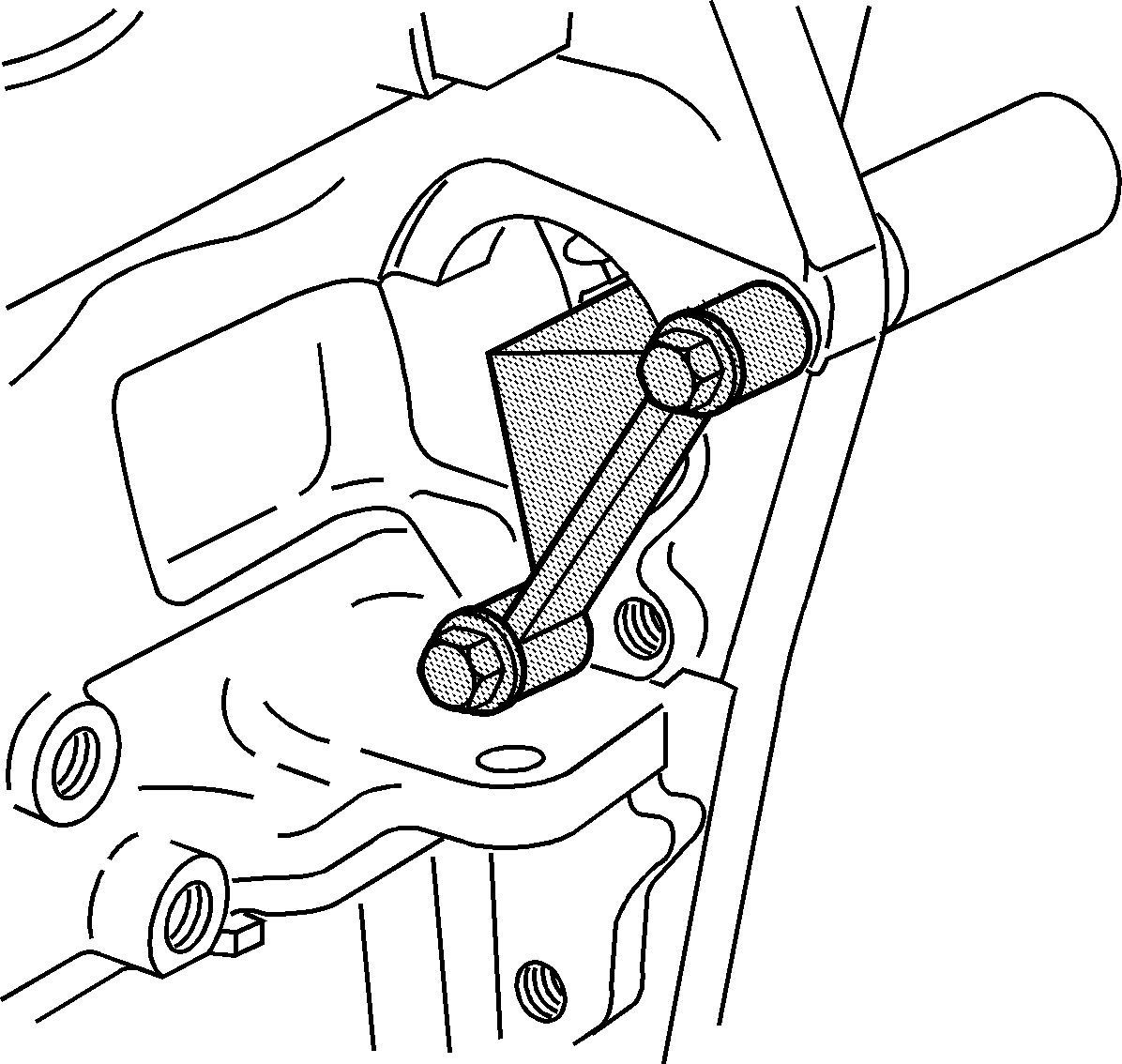

    Object Number: 945978 Size: SH
  1. Install the EN 46106 through the starter mounting hole.

    2. Object Number: 1864410 Size: SH
  2. Remove the crankshaft balancer bolt.

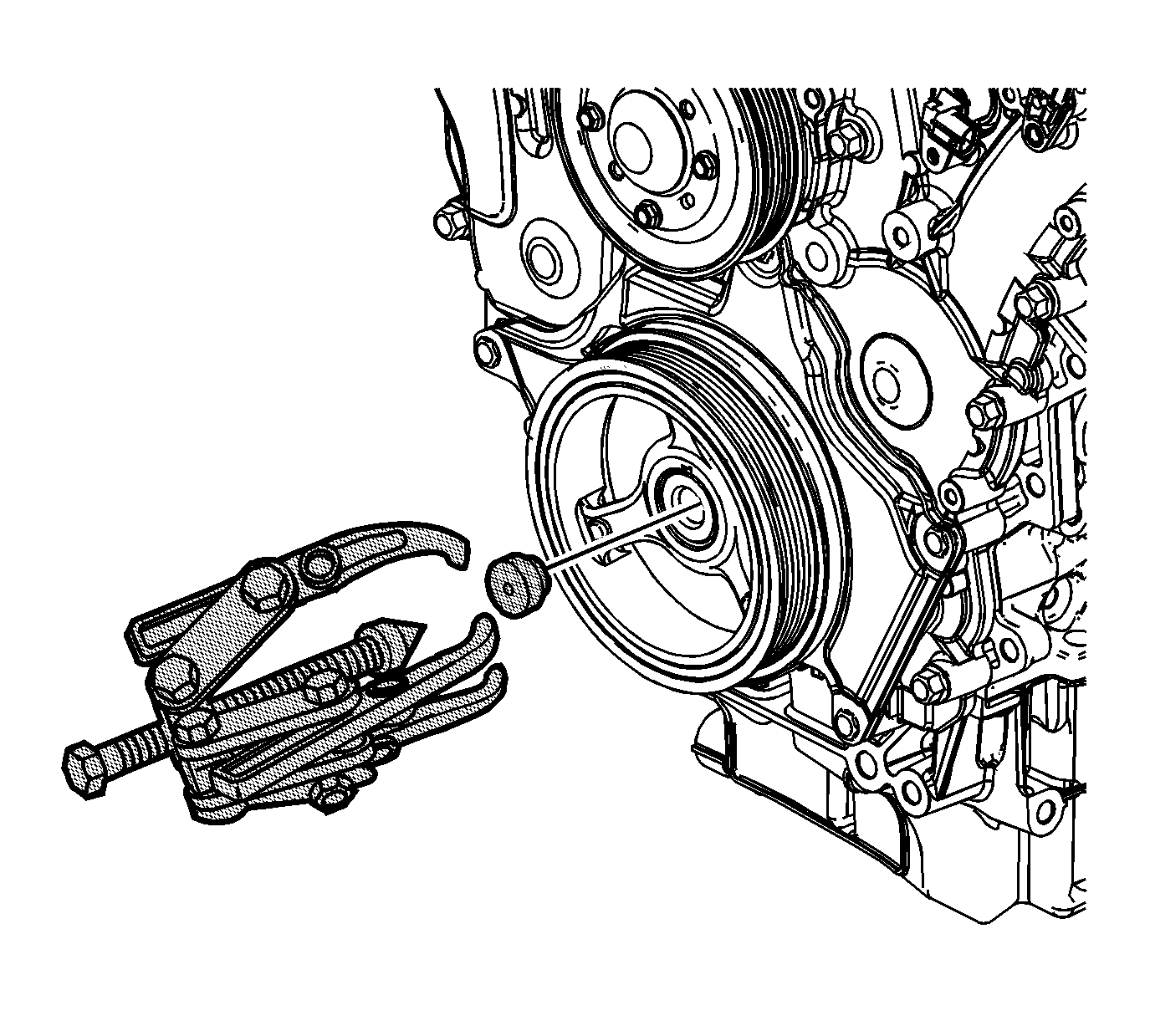

    3. Object Number: 1864555 Size: SH
  3. Install the J 38416-2 in the nose of the crankshaft.
  4. Install the J 41816 in order to remove the crankshaft balancer.
  5. Tighten the center bolt of the J 41816 in order to pull the crankshaft balancer off of the crankshaft.
  6. Remove the J 41816 from the crankshaft balancer.

    7. Object Number: 945978 Size: SH
  7. Remove the EN 46106 .
