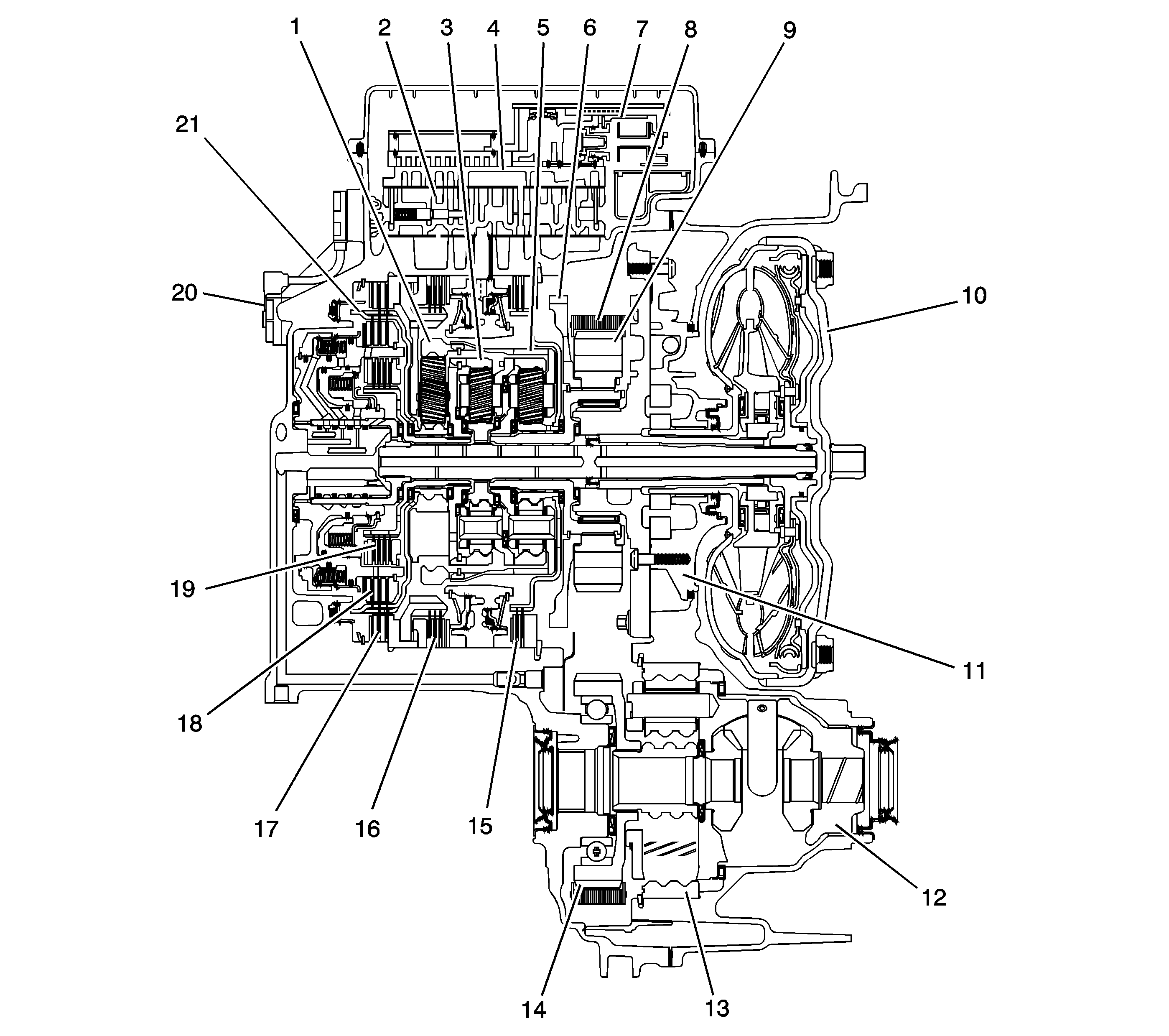

| (1) | Reaction Carrier Assembly |
| (2) | Control Valve Body Assembly |
| (3) | Input Carrier Assembly |
| (4) | Valve Channel Plate |
| (5) | Output Carrier Assembly |
| (6) | Park Gear |
| (7) | Control Solenoid (w/Body and TCM) Valve Assembly |
| (8) | Drive Link Assembly |
| (9) | Drive Sprocket |
| (10) | Torque Converter Assembly |
| (11) | A/Trans Fluid Pump Assembly |
| (12) | Differential Carrier Assembly |
| (13) | Front Differential Ring Gear |
| (14) | Driven Sprocket |
| (15) | 1-2-3-4 Clutch Assembly |
| (16) | Low and Reverse Clutch Assembly |
| (17) | 2-6 Clutch Assembly |
| (18) | 3-5 Reverse Clutch Assembly |
| (19) | 4-5-6 Clutch Assembly |
| (20) | A/Trans Input Speed Sensor Assembly |
| (21) | Reaction Sun Gear Assembly |
