Table 1: Ambient Light/Sunload Sensor Assembly
Table 2: Backup Lamp-Left
Table 3: Backup Lamp-Right
Table 4: Center High Mounted Stop Lamp (CHMSL)
Table 5: Clearance Lamp-LF
Table 6: Clearance Lamp - LR
Table 7: Clearance Lamp-RF
Table 8: Clearance Lamp - RR
Table 9: Courtesy Lamp-Left B Pillar
Table 10: Courtesy Lamp-Left Footwell
Table 11: Courtesy Lamp-Left Front Door
Table 12: Courtesy Lamp-Left Rear Door
Table 13: Courtesy Lamp-Right B Pillar
Table 14: Courtesy Lamp-Right Footwell
Table 15: Courtesy Lamp-Right Front Door
Table 16: Courtesy Lamp-Right Rear Door
Table 17: Courtesy/Reading Lamp-Center
Table 18: Courtesy/Reading Lamps-Left Front
Table 19: Courtesy/Reading Lamps-Right Front
Table 20: Courtesy/Reading Lamp-Rear
Table 21: Daytime Running Lamp (DRL) - Left
Table 22: Daytime Running Lamp (DRL) - Right
Table 23: Door Latch Assemby-Driver
Table 24: Door Latch Assembly-Front Passenger
Table 25: Door Latch Assembly-LR
Table 26: Door Latch Assembly-RR
Table 27: Driver Door Module (DDM)-C2
Table 28: Front Passenger Door Module (FPDM)-C2
Table 29: Headlamp and Panel Dimmer Switch
Table 30: Headlamp-Left
Table 31: Headlamp-Right
Table 32: I/P Compartment Lamp/Switch
Table 33: Junction Block-Rear-C1
Table 34: Junction Block-Rear-C2
Table 35: Junction Block-Rear-C3
Table 36: License Lamp-Left
Table 37: License Lamp-Right
Table 38: Liftgate Ajar Switch-Left
Table 39: Liftgate Ajar Switch-Right
Table 40: Marker Lamp-LF
Table 41: Marker Lamp-RF
Table 42: Marker Lamp-LR
Table 43: Marker Lamp-RR
Table 44: Off-Road Lamps-Grille Guard
Table 45: Off-Road Lamps-Roof Inner
Table 46: Off-Road Lamps-Roof Outer
Table 47: PRNDL Lamp (2 Lamps)
Table 48: Park/Neutral Position (PNP) Switch-C2
Table 49: Park/Turn Signal Lamp-LF
Table 50: Park/Turn Signal Lamp-RF
Table 51: Roof Lamps-Center Front ( 3 )
Table 52: Roof Lamps-Center Rear
Table 53: Stop Lamp Switch
Table 54: Tail Lamp Assembly-Left (Junction Block-Rear-C2)
Table 55: Tail Lamp Assembly-Right (Junction Block-Rear-C3)
Table 56: Tail/Stop Lamp-Left
Table 57: Tail/Stop Lamp-Right
Table 58: Turn Signal Lamp-LR
Table 59: Turn Signal Lamp-RR
Table 60: Trailer Connector
Table 61: Turn Signal/Multifunction Switch-C1
Table 62: Turn Signal/Multifunction Switch-C3
Table 63: Underhood Lamp (If Equipped)
Table 64: Vanity Mirror Lamp-Left
Table 65: Vanity Mirror Lamp-Right

Ambient Light/Sunload Sensor Assembly


Object Number: 130637 Size: CH

Connector Part Information
    • 12064760
    • 4-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT BLU/BLK

590

Driver Sunload Sensor Signal

B

GRY

1548

Passenger Sunload Sensor Signal

C

BLK

279

Ambient Light Sensor Low Reference

D

WHT

278

Ambient Light Sensor Signal

Backup Lamp-Left

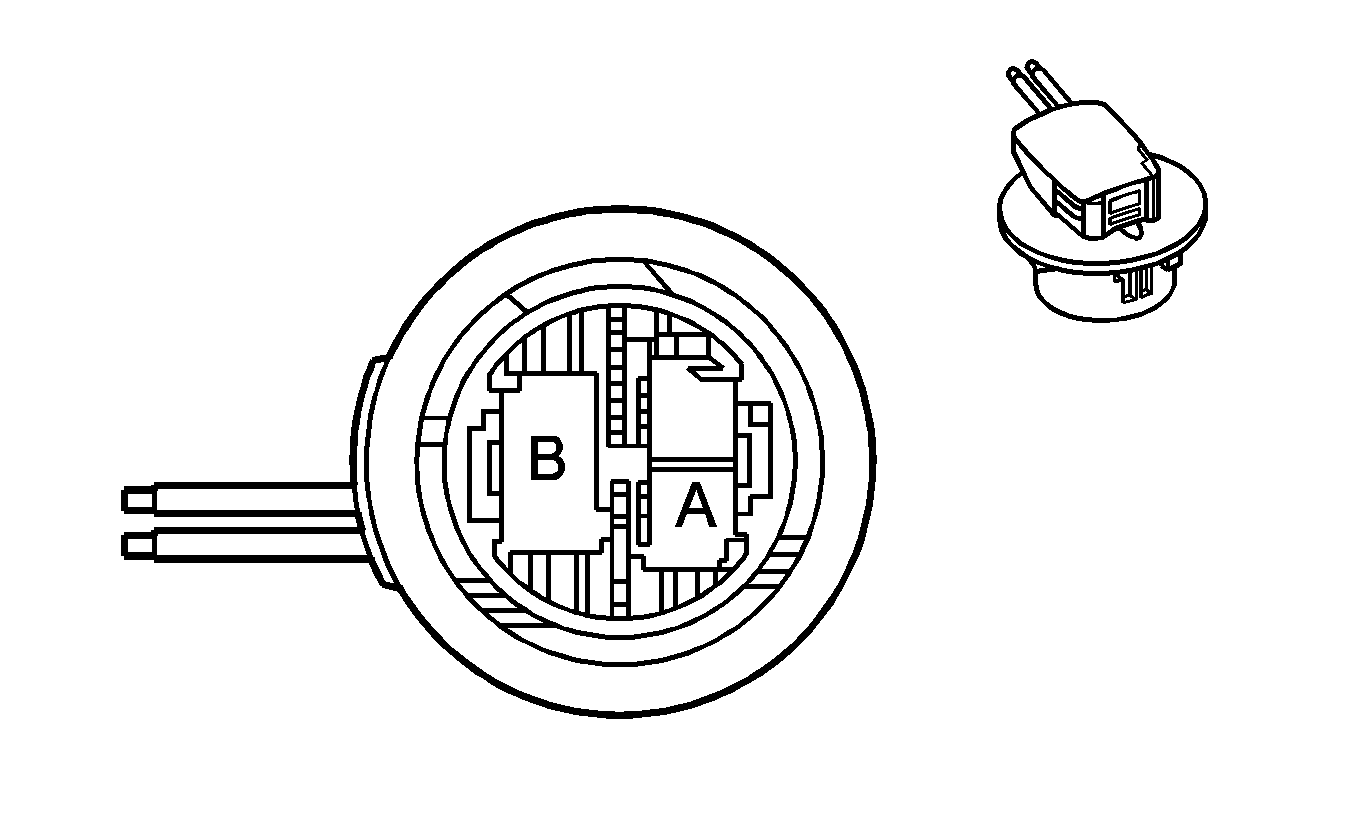

Object Number: 882584 Size: CH

Connector Part Information
    • 0001035
    • 2-Way F CE-F29.14-5A Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

24

Backup Lamp Supply Voltage

B

GRY/BLK

1750

Ground

Backup Lamp-Right


Object Number: 882584 Size: CH

Connector Part Information
    • 0001035
    • 2-Way F CE-F29.14-5A Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

24

Backup Lamp Supply Voltage

B

GRY/BLK

1750

Ground

Center High Mounted Stop Lamp (CHMSL)


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

1620

Trailer CHMSL Supply Voltage

B

BLK

1450

Ground

Clearance Lamp-LF


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2409

Interior Park Lamps Supply Voltage

B

BLK

1050

Ground

Clearance Lamp - LR


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2409

Interior Park Lamps Supply Voltage

B

BLK

1450

Ground

Clearance Lamp-RF


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2409

Interior Park Lamps Supply Voltage

B

BLK

1050

Ground

Clearance Lamp - RR


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2409

Interior Park Lamps Supply Voltage

B

BLK

1450

Ground

Courtesy Lamp-Left B Pillar

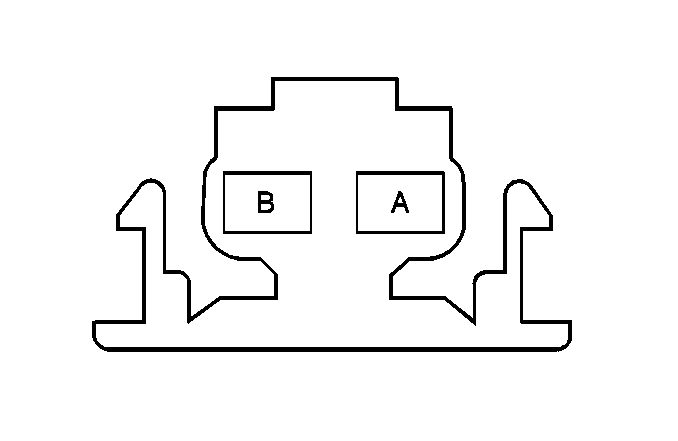

Object Number: 258620 Size: CH

Connector Part Information
    • 12162222
    • 2-Way Metri-Pack 150.2 Series Sealed Pull To Seat (WHT)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1150

Ground

Courtesy Lamp-Left Footwell


Object Number: 365949 Size: CH

Connector Part Information
    • 12084388
    • 2-Way Lamp Socket Bulb Base Type W-2 (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage -

B

BLK

1050

Ground

Courtesy Lamp-Left Front Door


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

B

DK BLU

660

Left Courtesy Lamp Control

Courtesy Lamp-Left Rear Door


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1150

Ground

Courtesy Lamp-Right B Pillar


Object Number: 258620 Size: CH

Connector Part Information
    • 12162222
    • 2-Way Metri-Pack 150.2 Series Sealed Pull To Seat (WHT)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1250

Ground

Courtesy Lamp-Right Footwell


Object Number: 365949 Size: CH

Connector Part Information
    • 12084388
    • 2-Way Lamp Socket Bulb Base Type W-2 (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1050

Ground

Courtesy Lamp-Right Front Door


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

WHT

156

Courtesy Lamp Supply Voltage

B

LT BLU

661

Right Courtesy Lamp Control

Courtesy Lamp-Right Rear Door


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1250

Ground

Courtesy/Reading Lamp-Center


Object Number: 333035 Size: CH

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1050

Ground

C

ORN

1732

Inadvertent Load Control Courtesy Lamps Supply Voltage

Courtesy/Reading Lamps-Left Front


Object Number: 333035 Size: CH

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1050

Ground

C

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

Courtesy/Reading Lamps-Right Front


Object Number: 333035 Size: CH

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1050

Ground

C

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

Courtesy/Reading Lamp-Rear


Object Number: 333035 Size: CH

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY/BLK

690

Courtesy Lamp Supply Voltage

B

BLK

1050

Ground

C

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

Daytime Running Lamp (DRL) - Left

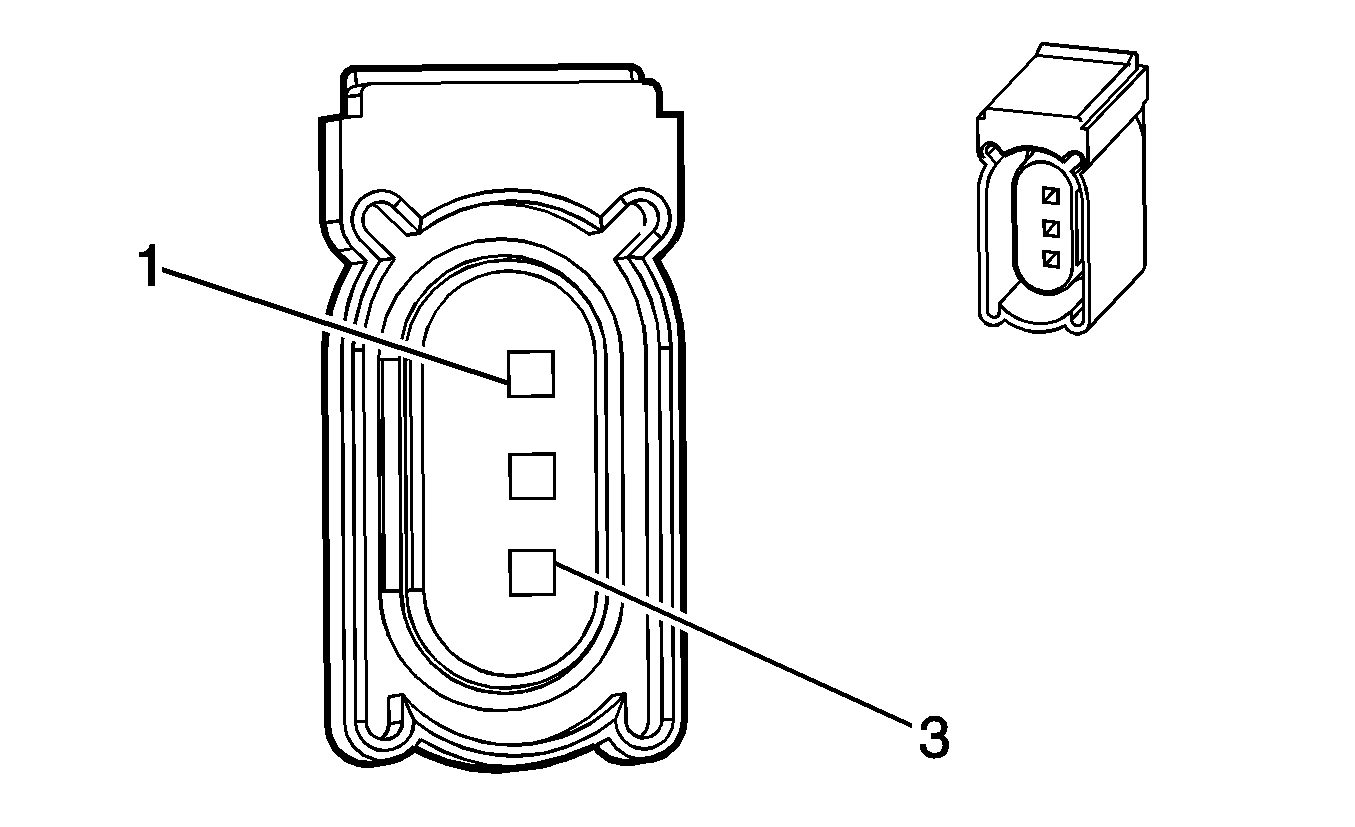

Object Number: 845635 Size: CH

Connector Part Information
    • 15409404
    • 3-Way F SLD Delphi Packard (BLK)

Pin

Wire Color

Circuit No.

Function

1

BLK

150

Ground

2

--

--

Plugged

3

DK BLU

545

DRL Supply Voltage

Daytime Running Lamp (DRL) - Right


Object Number: 845635 Size: CH

Connector Part Information
    • 15409404
    • 3-Way SLD Delphi Packard (BLK)

Pin

Wire Color

Circuit No.

Function

1

BLK

150

Ground

2

--

--

Plugged

3

DK BLU

545

DRL Supply Voltage

Door Latch Assemby-Driver


Object Number: 845631 Size: CH

Connector Part Information
    • 10768367
    • 10-Way F AMP SLD (BLK)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

TAN

294

Door Lock Actuator Unlock Control

3

GRY

295

Door Lock Actuator Lock Control

4-5

--

--

Not Used

6

GRY/BLK

745

Left Front Door Ajar Switch Signal

7

--

--

Not Used

8

BRN

1183

Left Front Door Switch Low Reference

9

LT GRN

262

Driver Door Key Switch Signal

10

--

--

Not Used

Door Latch Assembly-Front Passenger


Object Number: 845631 Size: CH

Connector Part Information
    • 10768367
    • 10-Way F AMP SLD (BLK)

Pin

Wire Color

Circuit No.

Function

1

BLK/WHT

746

Right Front Door Ajar Switch Signal

2

--

--

Not Used

3

DK GRN

1178

Right Front Door Switch Low Reference

4

LT GRN

265

Passenger Door Key Switch Signal

5-6

--

--

Not Used

7

TAN

294

Door Lock Actuator Unlock Control

8

GRY

295

Door Lock Actuator Lock Control

9-10

--

--

Not Used

Door Latch Assembly-LR


Object Number: 845632 Size: CH

Connector Part Information
    • 10768369
    • 6-Way F AMP SLD (BLK)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

TAN

294

Door Lock Actuator Unlock Control

3

GRY

295

Door Lock Actuator Lock Control

4

LT BLU/BLK

747

Left Rear Door Ajar Switch Signal

5

--

--

Not Used

6

BLK

1150

Ground

Door Latch Assembly-RR


Object Number: 845632 Size: CH

Connector Part Information
    • 10768369
    • 6-Way F AMP SLD (BLK)

Pin

Wire Color

Circuit No.

Function

1

LT GRN/BLK

748

Right Rear Door Ajar Switch Signal

2

--

--

Not Used

3

BLK

1250

Ground

4

--

--

Not Used

5

TAN

294

Door Lock Actuator Unlock Control

6

GRY

295

Door Lock Actuator Lock Control

Driver Door Module (DDM)-C2


Object Number: 845629 Size: CH

Connector Part Information
    • 15398841
    • 26-Way F AMP Lever Assist (BLK)

Pin

Wire Color

Circuit No.

Function

1-2

--

--

Not Used

3

BRN

1183

Left Front Door Switch Low Reference

4

DK BLU

660

Left Courtesy Lamp Control

5-9

--

--

Not Used

10

GRY

1690

Automatic Day/Night Mirror Signal

11

--

--

Not Used

12

PNK

1691

Automatic Day/Night Mirror Low Reference

13

DK BLU/WHT

149

Courtesy Lamp-Left Front Door Supply Voltage

14

ORN

4140

Battery Positive Voltage

15

LT GRN

262

Driver Door Key Switch Signal

16-17

--

--

Not Used

18

GRY/BLK

745

Left Front Door Ajar Switch Signal

19

--

--

Not Used

20

TAN

294

Door Lock Actuator Unlock Control

21

GRY

295

Door Lock Actuator Lock Control

22

BRN

1046

DDM Class 2 Serial Data

23-26

--

--

Not Used

Front Passenger Door Module (FPDM)-C2


Object Number: 845629 Size: CH

Connector Part Information
    • 15398841
    • 26-Way F AMP Lever Assist (BLK)

Pin

Wire Color

Circuit No.

Function

1-4

--

--

Not Used

5

BLK/WHT

746

Right Front Door Ajar Switch Signal

6-7

--

--

Not Used

8

WHT

156

Courtesy Lamp-Right Front Door Supply Voltage

9

--

--

Not Used

10

GRY

295

Door Lock Actuator Lock Control

11

TAN

294

Door Lock Actuator Unlock Control

12-13

--

--

Not Used

14

ORN

4240

Battery Positive Voltage

15-18

--

--

Not Used

19

LT BLU

661

Right Courtesy Lamp Control

20

DK GRN

1178

Right Front Door Switch Low Reference

21

--

--

Not Used

22

TAN

1047

PDM Class 2 Serial Data

23

--

--

Not Used

24

LT GRN

265

Passenger Door Key Switch Signal

25-26

--

--

Not Used

Headlamp and Panel Dimmer Switch


Object Number: 845611 Size: CH

Connector Part Information
    • 15393872
    • 14-Way F (GRN)

Pin

Wire Color

Circuit No.

Function

1

PPL

328

Interior Lamp Defeat Switch Signal

2

GRY/BLK

308

Park Lamp Switch On Signal

3

BLK/WHT

1851

Ground

4

WHT

103

Headlamp Switch On Signal

5

DK GRN

588

DRL Switch Signal

6

BLK

1050

Ground

7

PNK

1348

Headlamp On Indicator Control

8

PPL

359

DRL Off Indicator Switch

9

PPL/WHT

1382

LED Dimming Signal

10

DK BLU/WHT

1495

Courtesy Lamps On Signal

11

ORN/BLK

2090

Dimmer Potentiometer Signal

12

GRY/BLK

2226

Dimmer Switch Low Reference

13

GRY

1056

Dimming Potentiometer 5 volt Reference

14

BRN/WHT

230

Instrument Panel Lamps Dimming Control

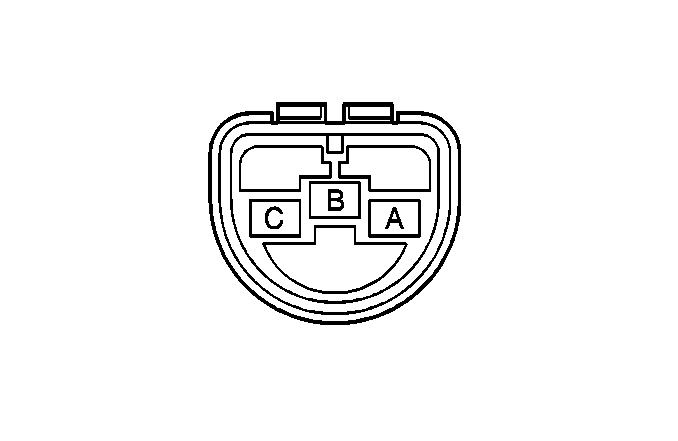

Headlamp-Left


Object Number: 295492 Size: CH

Connector Part Information
    • 12048369
    • 3-Way F Metri-Pack 280 Series Sealed (BLU)

Pin

Wire Color

Circuit No.

Function

A

YEL

712

Left Headlamp Low Beam Supply Voltage

B

BLK

550

Ground

C

DK GRN/WHT

711

Left Headlamp High Beam Supply Voltage

Headlamp-Right


Object Number: 295492 Size: CH

Connector Part Information
    • 12048369
    • 3-Way F Metri-Pack 280 Series Sealed (BLU)

Pin

Wire Color

Circuit No.

Function

A

TAN/WHT

312

Right Headlamp Low Beam Supply Voltage

B

BLK

150

Ground

C

LT GRN/BLK

311

Right Headlamp High Beam Supply Voltage

I/P Compartment Lamp/Switch


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

B

BLK

1050

Ground

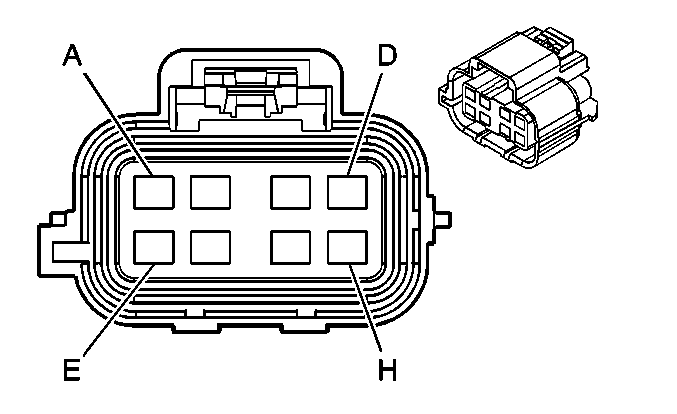

Junction Block-Rear-C1


Object Number: 524408 Size: CH

Connector Part Information
    • 15317304
    • 8-Way F GT 280 Sealed (BLU)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

2114

Left Turn Signal Lamps Supply Voltage

B

LT BLU

1320

Stop Lamp Supply Voltage

C

LT GRN

24

Backup Lamp Supply Voltage

D

BRN/WHT

2609

Right Rear Park Lamps Supply Voltage

E

BLK

1750

Ground

F

--

--

Not Used

G

BRN

2509

Left Rear Park Lamps Supply Voltage

H

DK BLU

2115

Right Turn Signal Lamps Supply Voltage

Junction Block-Rear-C2


Object Number: 814663 Size: CH

Connector Part Information
    • 15317305
    • 7-Way F GT 280 SLD (MD GRY)

Pin

Wire Color

Circuit No.

Function

A

GRN/BLK

1750

Ground

B

GRY/BLK

1750

Ground

C

BLK

1750

Ground

D

RED

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

E

BLU

2509

Left Rear Park Lamps Supply Voltage

F

GRY

24

Backup Lamp Supply Voltage

G

--

--

Not Used

H

ORN

2114

Left Turn Signal Lamps Supply Voltage

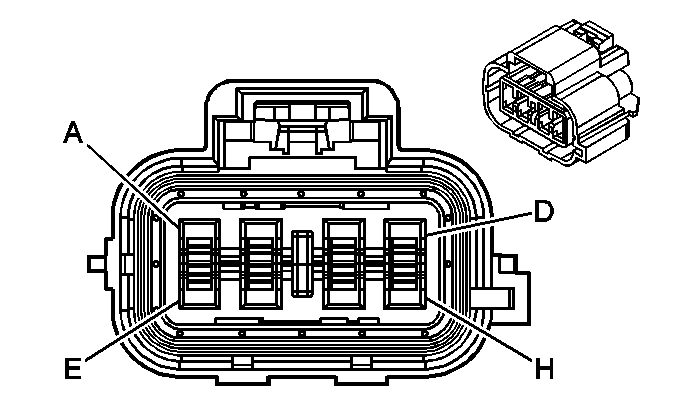

Junction Block-Rear-C3


Object Number: 814663 Size: CH

Connector Part Information
    • 15317306
    • 7-Way F GT 280 SLD (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

B

BLU

2609

Right Rear Park Lamps Supply Voltage

C

GRN/BLK

1750

Ground

D

BLK

1750

Ground

E

GRY

24

Backup Lamp Supply Voltage

F

ORN

2115

Right Turn Signal Lamps Supply Voltage

H

GRY/BLK

1750

Ground

License Lamp-Left


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN/WHT

2509

Left License Lamp Supply Voltage

B

BLK

1450

Ground

License Lamp-Right


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2609

Right License Lamp Supply Voltage

B

BLK

1450

Ground

Liftgate Ajar Switch-Left


Object Number: 537107 Size: CH

Connector Part Information
    • 12052644
    • 2-Way F Metri-Pack 150 Series Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

A

BLK

1450

Ground

B

PNK/BLK

1303

Liftgate Ajar Switch Signal

Liftgate Ajar Switch-Right


Object Number: 537107 Size: CH

Connector Part Information
    • 12052644
    • 2-Way F Metri-Pack 150 Series Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

A

BLK

1450

Ground

B

PNK/BLK

1303

Liftgate Ajar Switch Signal

Marker Lamp-LF


Object Number: 333041 Size: CH

Connector Part Information
    • 12162000
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2309

Front Park Lamps Supply Voltage

B

LT BLU

2114

Left Turn Signal Lamps Supply Voltage

Marker Lamp-RF


Object Number: 333041 Size: CH

Connector Part Information
    • 12162000
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2309

Front Park Lamps Supply Voltage

B

DK BLU

2115

Right Turn Signal Lamps Supply Voltage

Marker Lamp-LR


Object Number: 635009 Size: CH

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2509

Left Rear Marker Lamp Supply Voltage

B

LT BLU

2114

Left Turn Signal Lamps Supply Voltage

Marker Lamp-RR


Object Number: 635009 Size: CH

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN/WHT

2609

Right Rear Marker Lamp Supply Voltage

B

DK BLU

2115

Right Turn Signal Lamps Supply Voltage

Off-Road Lamps-Grille Guard


Object Number: 635009 Size: CH

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PPL

2234

Front Off-Road Lamps Supply Voltage

B

BLK

1050

Ground

Off-Road Lamps-Roof Inner


Object Number: 635009 Size: CH

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

122

Roof Off-Road Lamps Supply Voltage 1

B

BLK

1050

Ground

Off-Road Lamps-Roof Outer


Object Number: 635009 Size: CH

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PPL

34

Roof Off-Road Lamps Supply Voltage 2

B

BLK

1050

Ground

PRNDL Lamp (2 Lamps)


Object Number: 407137 Size: CH

Connector Part Information
    • 12162711
    • 2-Way W-2 Axial (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN/WHT

230

Instrument Panel Lamps Dimming Control

B

BLK

1050

Ground

Park/Neutral Position (PNP) Switch-C2


Object Number: 535900 Size: CH

Connector Part Information
    • 12129840
    • 7-Way F Metri-Pack 150 280 (MD GRY)

Pin

Wire Color

Circuit No.

Function

A

--

--

Not Used

B

LT GRN

275

Park Neutral Position Switch Park Signal

C

PNK

839

Ignition 1 Voltage

D

BLK/WHT

451

Ground

E

PNK

639

Ignition 1 Voltage

F

GRY

1524

Backup Lamp Supply Voltage

G

DK GRN

1433

Clutch Start Switch Signal

Park/Turn Signal Lamp-LF


Object Number: 845637 Size: CH

Connector Part Information
    • 15409405
    • 3-Way F 3W SLD (BLK)

Pin

Wire Color

Circuit No.

Function

1

BLK

150

Ground

2

BRN

2309

Front Park Lamps Supply Voltage

3

LT BLU

2114

Left Turn Signal Lamps Supply Voltage

Park/Turn Signal Lamp-RF


Object Number: 845637 Size: CH

Connector Part Information
    • 15409405
    • 3-Way F 3W SLD (BLK)

Pin

Wire Color

Circuit No.

Function

1

BLK

150

Ground

2

BRN

2309

Front Park Lamps Supply Voltage

3

DK BLU

2115

Right Turn Signal Lamps Supply Voltage

Roof Lamps-Center Front ( 3 )


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2409

Interior Park Lamps Supply Voltage

B

BLK

1050

Ground

Roof Lamps-Center Rear


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

2409

Interior Park Lamps Supply Voltage

B

BLK

1450

Ground

Stop Lamp Switch


Object Number: 62424 Size: CH

Connector Part Information
    • 12040551
    • 6-Way F Metri-Pack 480 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

WHT

17

Stop Lamp Switch Signal

B

ORN

1540

Battery Positive Voltage

C

BRN

441

Ignition 3 Voltage

D

PPL

420

TCC Brake Switch/Cruise Control Release Signal

E

LT GRN/BLK

584

A/T Shift Lock Control Switch Supply Voltage

F

DK GRN/WHT

1135

A/T Shift Lock Control Solenoid Supply Voltage

Tail Lamp Assembly-Left (Junction Block-Rear-C2)


Object Number: 814663 Size: CH

Connector Part Information
    • 15317305
    • 7-Way F GT 280 SLD (MD GRY)

Pin

Wire Color

Circuit No.

Function

A

GRN/BLK

1750

Ground

B

GRY/BLK

1750

Ground

C

BLK

1750

Ground

D

RED

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

E

LT BLU

2509

Left Rear Tail Lamps Supply Voltage

F

GRY

24

Backup Lamp Supply Voltage

G

--

--

Not Used

H

ORN

2114

Left Turn Signal Lamps Supply Voltage

Tail Lamp Assembly-Right (Junction Block-Rear-C3)


Object Number: 814663 Size: CH

Connector Part Information
    • 15317306
    • 7-Way F GT 280 SLD (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

B

LT BLU

2609

Right Rear Tail Lamps Supply Voltage

C

GRN/BLK

1750

Ground

D

BLK

1750

Ground

E

GRY

24

Backup Lamp Supply Voltage

F

ORN

2115

Right Turn Signal Lamps Supply Voltage

G

--

--

Not Used

H

GRY/BLK

1750

Ground

Tail/Stop Lamp-Left

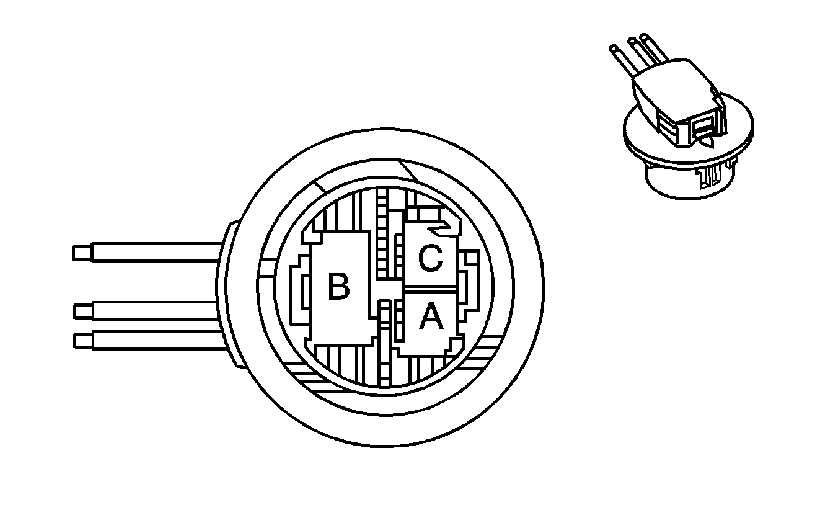

Object Number: 882587 Size: CH

Connector Part Information
    • 0001036
    • 3-Way F CE-F29.14-6A Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

1320

Stop Lamp Supply Voltage

B

GRN/BLK

1750

Ground

C

BLU

2509

Left Rear Park Lamps Supply Voltage

Tail/Stop Lamp-Right


Object Number: 882587 Size: CH

Connector Part Information
    • 0001036
    • 3-Way F CE-F29.14-6A Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

1320

Stop Lamp Supply Voltage

B

GRN/BLK

1750

Ground

C

BLU

2609

Right Rear Park Lamps Supply Voltage

Turn Signal Lamp-LR


Object Number: 882584 Size: CH

Connector Part Information
    • 0001035
    • 2-Way F CE-F29.14-5A Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

2114

Left Turn Signal Lamps Supply Voltage

B

BLK

1750

Ground

Turn Signal Lamp-RR


Object Number: 882584 Size: CH

Connector Part Information
    • 0001035
    • 2-Way F CE-F29.14-5A Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

2115

Right Turn Signal Lamps Supply Voltage

B

BLK

1750

Ground

Trailer Connector


Object Number: 525095 Size: CH

Connector Part Information
    • 15354653
    • 7-Way F Metri-Pack 280 Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT GRN

1624

Trailer Backup Lamps Supply Voltage

B

BLK

1750

Ground

C

DK BLU

47

Trailer Auxiliary Supply Voltage

D

DK GRN

1619

Trailer Right Rear Turn/Stop Lamp Supply Voltage

E

RED

742

Battery Positive Voltage

F

BRN

2109

Trailer Park Lamps Supply Voltage

G

YEL

1618

Trailer Left Rear Turn/Stop Lamp Supply Voltage

Turn Signal/Multifunction Switch-C1


Object Number: 39746 Size: CH

Connector Part Information
    • 12064862
    • 8-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT GRN

1427

Right Turn Signal Switch Signal

B

PNK

639

Ignition 1 Voltage

C

DK GRN

1428

Left Turn Signal Switch Signal

D-F

--

--

Not Used

G

BLK/YEL

28

Horn Relay Control

H

WHT

111

Hazard Switch Signal

Turn Signal/Multifunction Switch-C3


Object Number: 130718 Size: CH

Connector Part Information
    • 12059800
    • 5-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

1851

Ground

B

YEL/BLK

307

Headlamp Switch Flash to Pass Signal

C

LT GRN

11

Headlamp Dimmer Switch Signal

D-E

--

--

Not Used

Underhood Lamp (If Equipped)


Object Number: 635009 Size: CH

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

B

BLK

1050

Ground

Vanity Mirror Lamp-Left


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

B

BLK

1050

Ground

Vanity Mirror Lamp-Right


Object Number: 35441 Size: CH

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1732

Inadvertent Power Courtesy Lamps Supply Voltage

B

BLK

1050

Ground
