Makes 🢒 HUMMER 🢒 2003 🢒 H2 🢒 Body and Accessories 🢒 Wiring Systems 🢒 SIR Connector End Views
Table 1: Inflatable Restraint Front End Discriminating Sensor-Left
Table 2: Inflatable Restraint Front End Discriminating Sensor - Right
Table 3: Inflatable Restraint I/P Module Disable Switch
Table 4: Inflatable Restraint I/P Module
Table 5: Inflatable Restraint Sensing and Diagnostic Module (SDM)
Table 6: Inflatable Restraint Steering Wheel Module

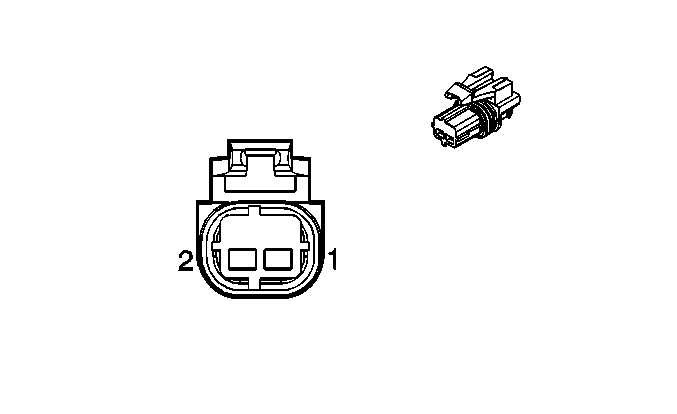

Inflatable Restraint Front End Discriminating Sensor-Left


Object Number: 698674 Size: CH

Connector Part Information
    • 15356718
    • 2-Way F GT 150 Sealed 4.0 (YEL)

Pin

Wire Color

Circuit No.

Function

1

GRY

349

Discriminating Sensor - Left - Signal

2

YEL

354

Discriminating Sensor - Left-Low Reference

Inflatable Restraint Front End Discriminating Sensor - Right


Object Number: 698674 Size: CH

Connector Part Information
    • 15356718
    • 2-Way F GT 150 Sealed 4.0 (YEL)

Pin

Wire Color

Circuit No.

Function

1

WHT/BLK

2611

Discriminating Sensor - Right - Signal

2

PPL

2612

Discriminating Sensor - Right-Low Reference

Inflatable Restraint I/P Module Disable Switch


Object Number: 362753 Size: CH

Connector Part Information
    • 15305286
    • 6-Way F Metri-Pack 150 Series (YEL)

Pin

Wire Color

Circuit No.

Function

A

TAN/BLK

371

I/P Module Disable Switch - Signal

B

YEL

1139

Ignition 1 Voltage

C

BRN

2409

Interior Park Lamps Supply Voltage

D

BRN/WHT

230

Instrument Panel Lamps Dimming Control

E

PNK

353

I/P Module Suppression Indicator Control

F

BLK

1050

Ground

Inflatable Restraint I/P Module


Object Number: 647932 Size: CH

Connector Part Information
    • 12186989
    • 2-Way M Metri-Pack 280 Pull To Seat (YEL)

Pin

Wire Color

Circuit No.

Function

A

WHT/BLK

1403

I/P Module - High Control

B

DK GRN/

WHT

1404

I/P Module - LowControl

Inflatable Restraint Sensing and Diagnostic Module (SDM)


Object Number: 697020 Size: CH

Connector Part Information
    • 15356922
    • 42-Way F Micro-Pack 100 W (YEL)

Pin

Wire Color

Circuit No.

Function

1

YEL

1139

Ignition 1 Voltage

2

TAN/BLK

371

I/P Module Disable Switch - Signal

3

BLK/WHT

238

Seat Belt Switch - Left

4

PNK

353

I/P Module Suppression Indicator Control

5

GRY

349

Discriminating Sensor - Left - Signal

6

WHT/BLK

2611

Discriminating Sensor - Right - Signal

7-8

--

--

Not Used

9

WHT/BLK

1403

I/P Module - High Control

10

DK GRN/

WHT

1404

I/P Module - LowControl

11

DK BLU

1363

Seat Belt Switch - Left - Low Reference

12

DK GRN

348

Steering Wheel Module - Low Control

13

WHT

347

Steering Wheel Module - High Control

14-21

--

--

Not Used

22

DK BLU

1128

SDM Class 2 Serial Data

23-25

--

--

Not Used

26

YEL

354

Discriminating Sensor - Leftl-Low Reference

27

PPL

2612

Discriminating Sensor - Right-Low Reference

28-31

--

--

Not Used

32

BLK

2351

Ground

33-42

--

--

Not Used

Inflatable Restraint Steering Wheel Module


Object Number: 966360 Size: CH

Connector Part Information
    • 54560210
    • 2-Way F Framatone ABX-3 Code C (YEL)

Pin

Wire Color

Circuit No.

Function

A

WHT

347

Steering Wheel Module - High Control

B

DK GRN

348

Steering Wheel Module - Low Control
