Removal Procedure

    Warning: Refer to Battery Disconnect Warning in the Preface section.


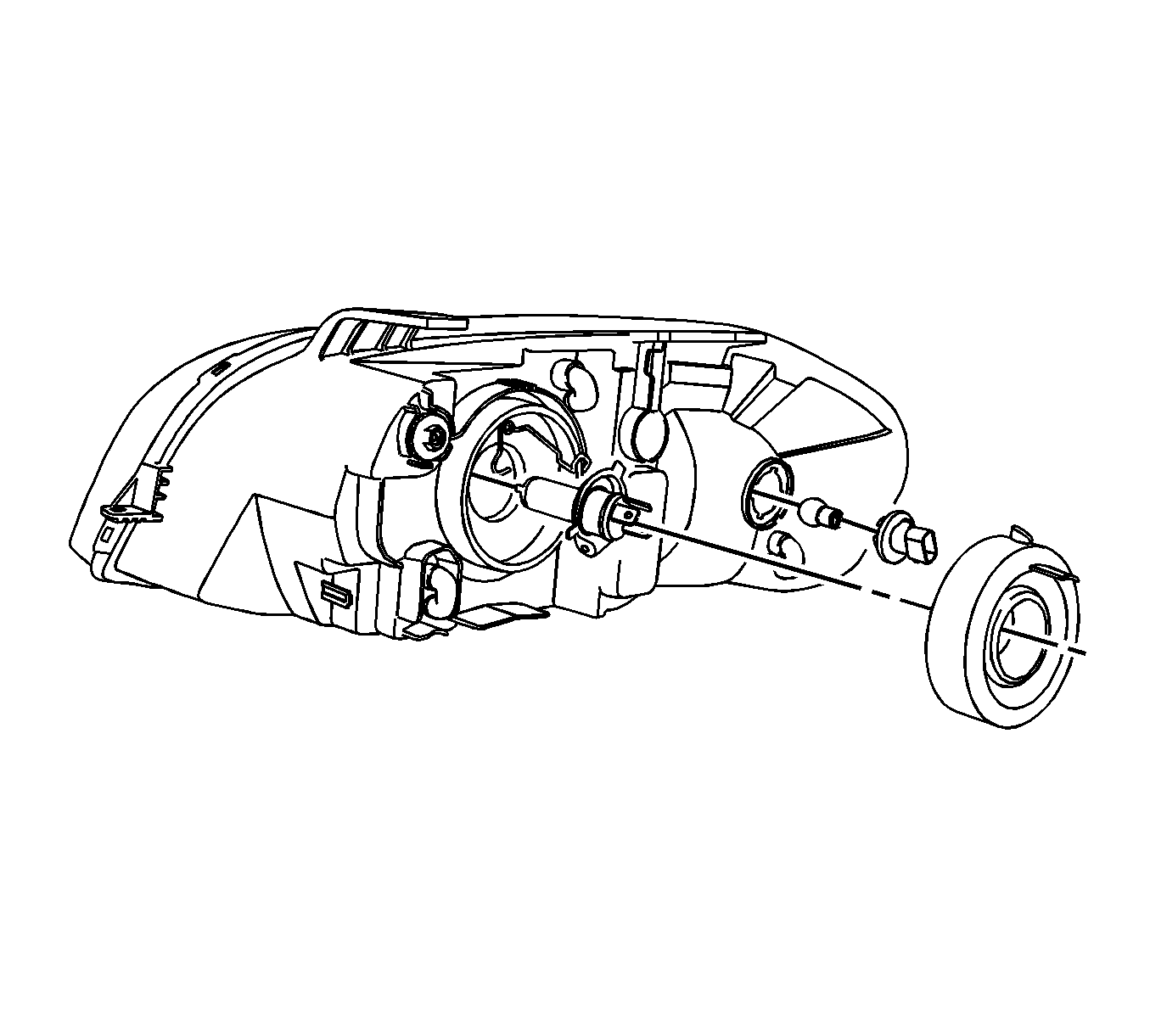

    Object Number: 1722976 Size: SH
  1. Disconnect the negative battery cable.
  2. Remove the headlamps. Refer to Headlamp Replacement.
  3. Disconnect the electrical connector.
  4. Remove the side marker bulb from the headlamp assembly.
  5. Remove the side marker bulb from the socket.

Installation Procedure

    Object Number: 1722976 Size: SH
  1. Install the side marker bulb to the socket.
  2. Install the side marker bulb into the headlamp assembly.
  3. Connect the electrical connector.
  4. Install the headlamp. Refer to Headlamp Replacement.
  5. Connect the negative battery cable.
