Lighting Systems Component Views. Isuzu Ascender

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 2003 🢒 Ascender - 2WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Lighting Systems Component Views

Figure 1:

Figure 2:


(1)	Fog Lamp
(2)	Cornering Lamp

Figure 3:

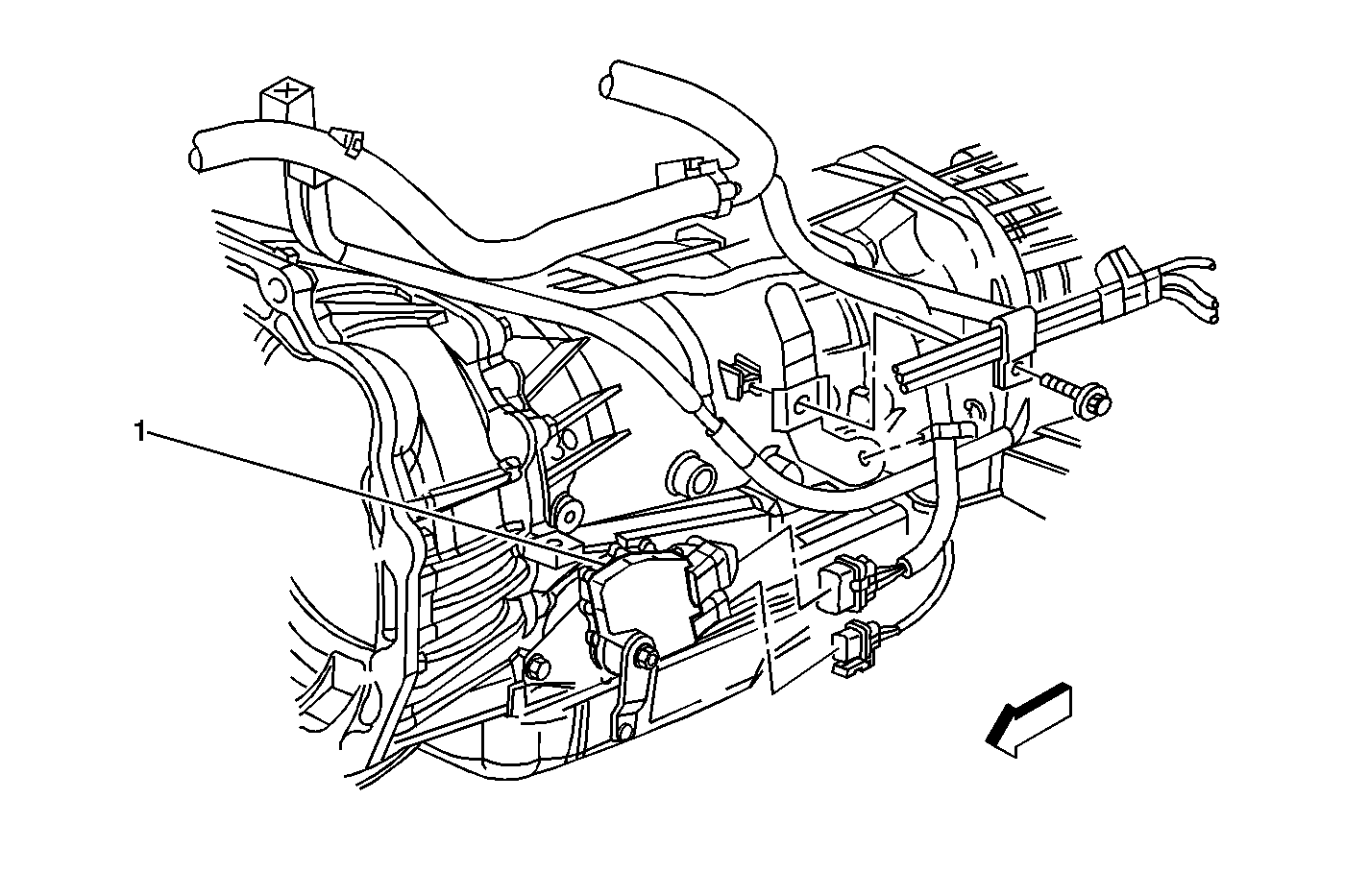

(1)	Backup Switch

Figure 4:

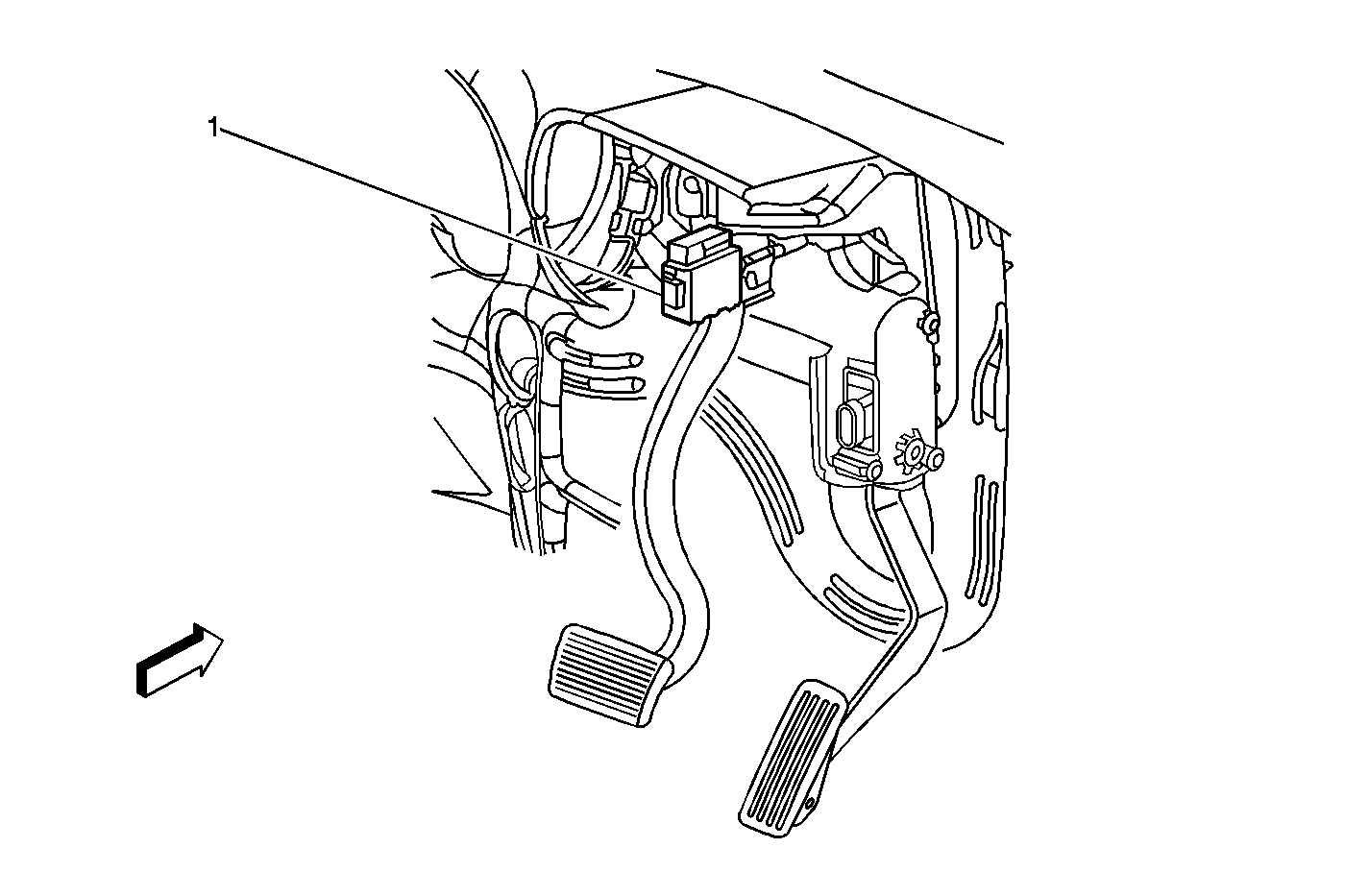

(1)	TCC/Brake Lamp Switch

Figure 5:


(1)	Multifunction Switch

Figure 6:

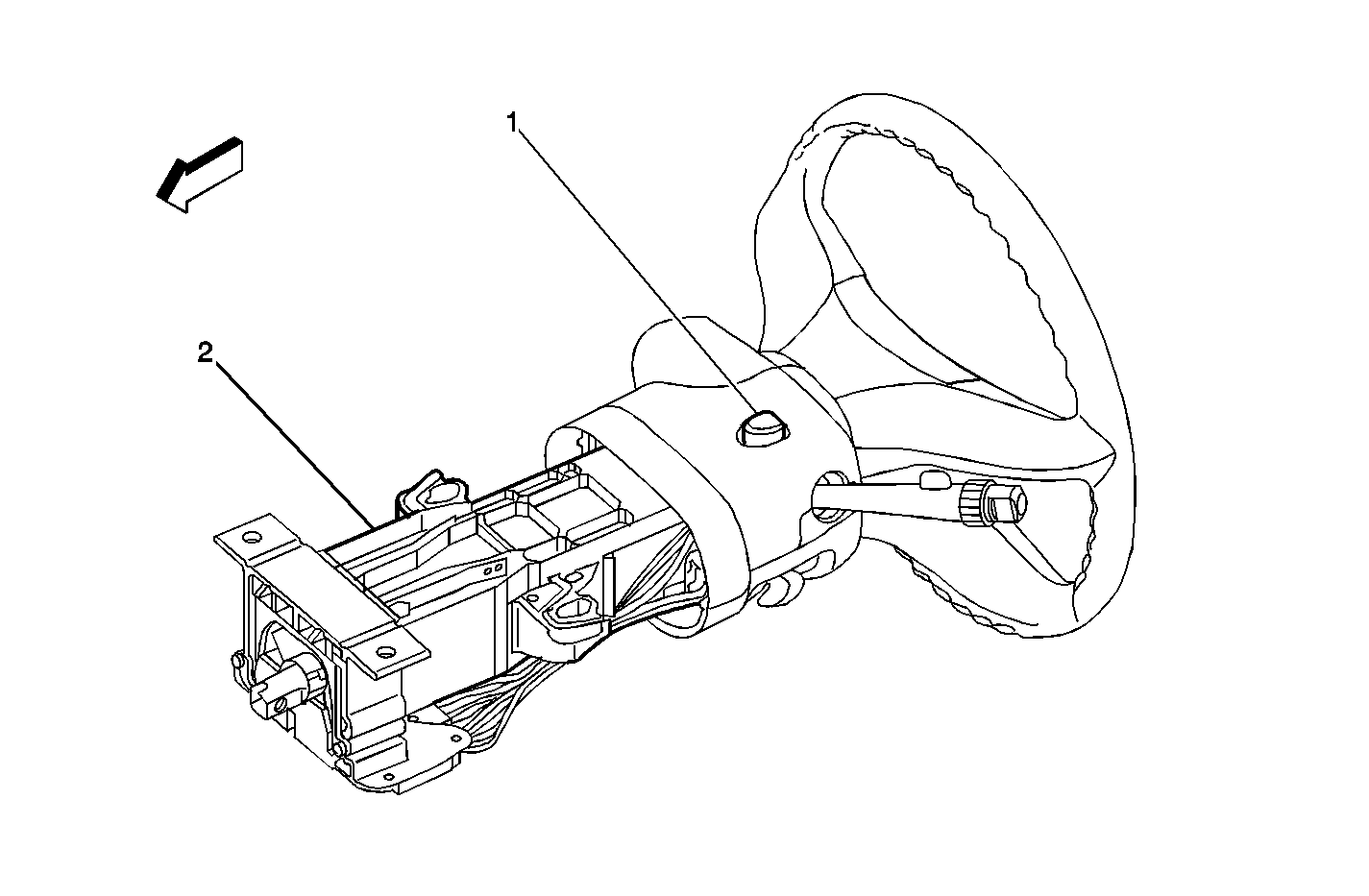

(1)	Hazard Switch
(2)	Steering Column

Figure 7:

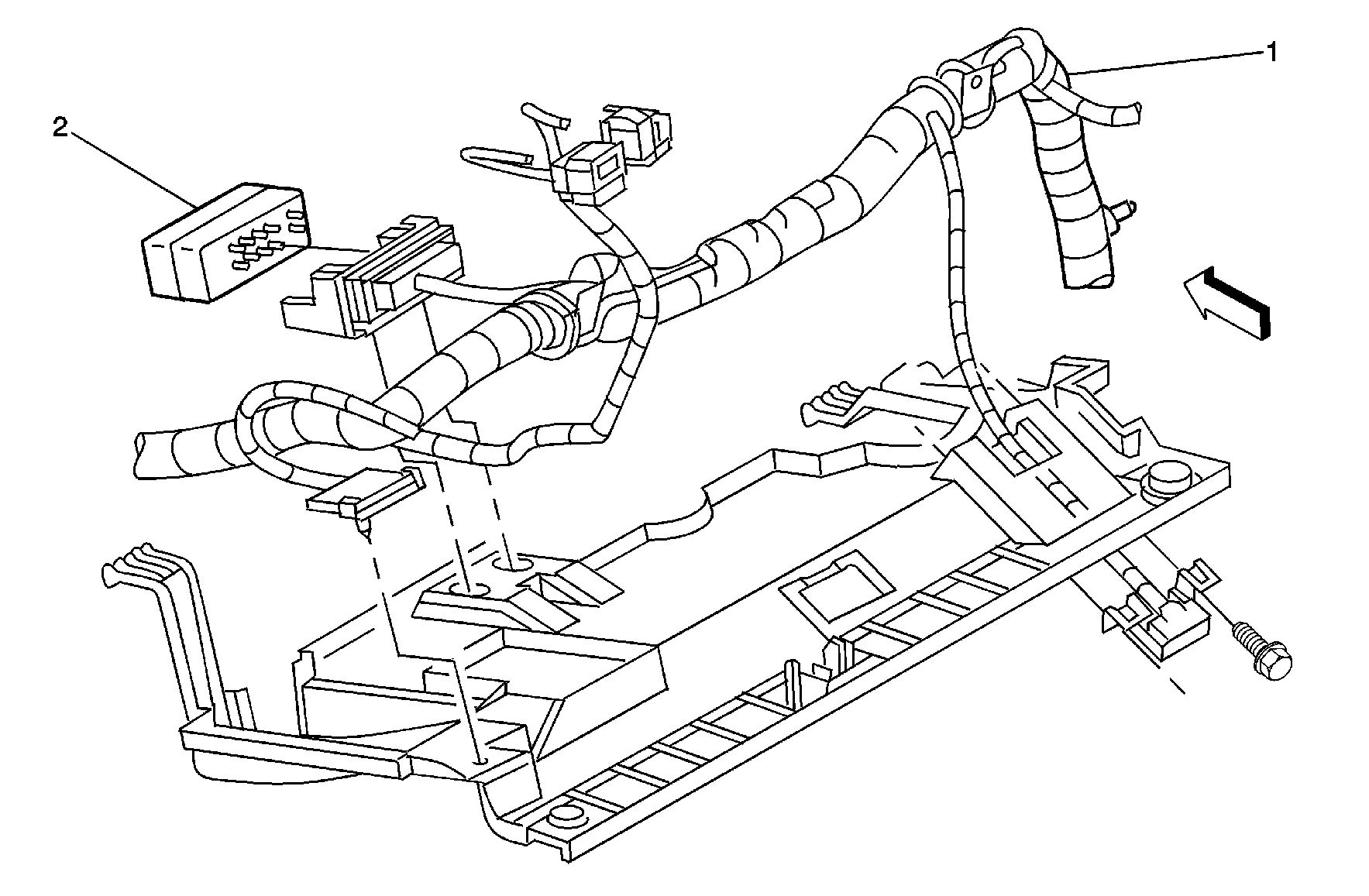

(1)	Left I/P Harness
(2)	Turn Signal/Hazard Flasher Module

Figure 8:

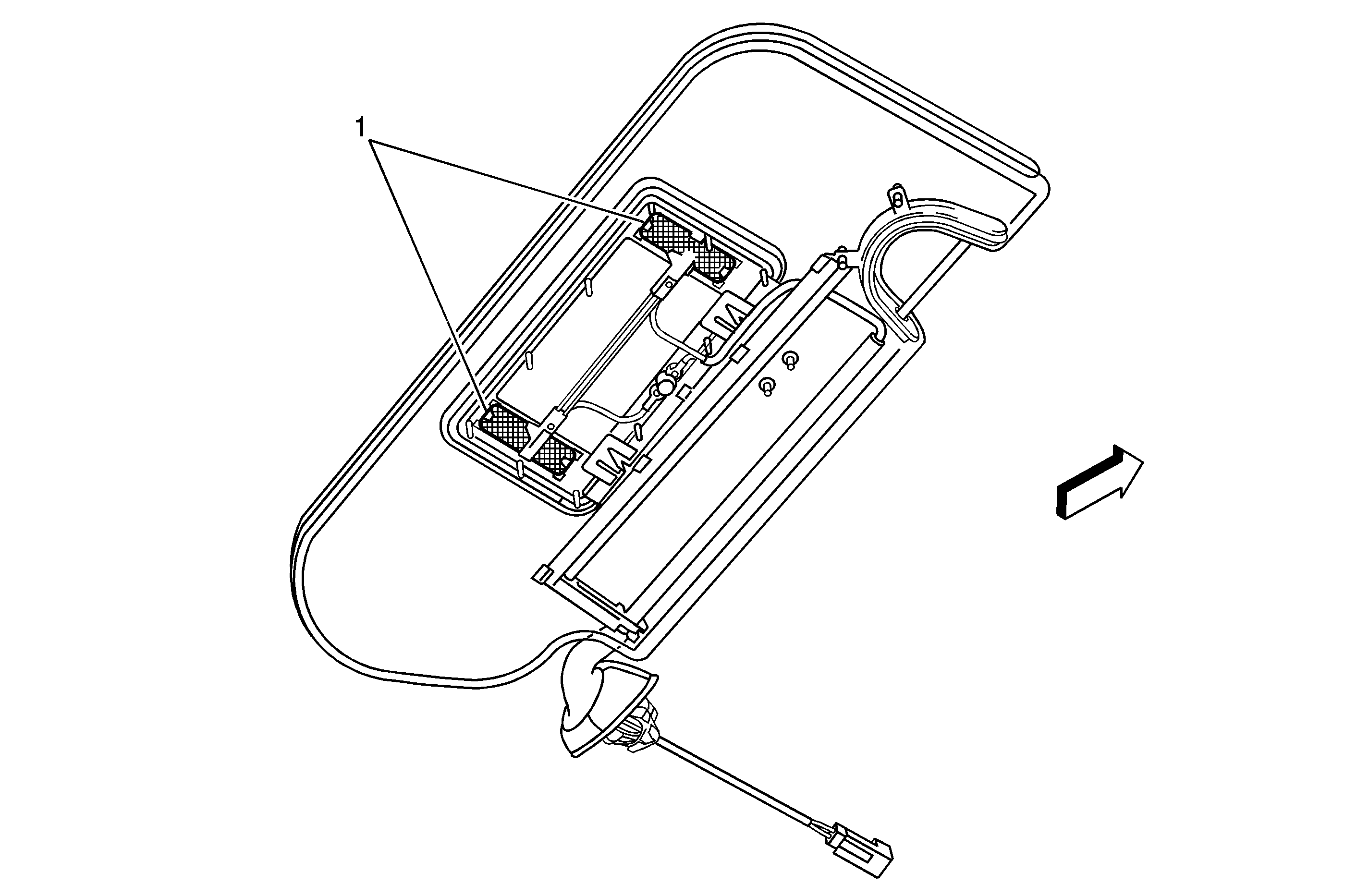

(1)	Vanity Mirror Lamps, LF

Figure 9:

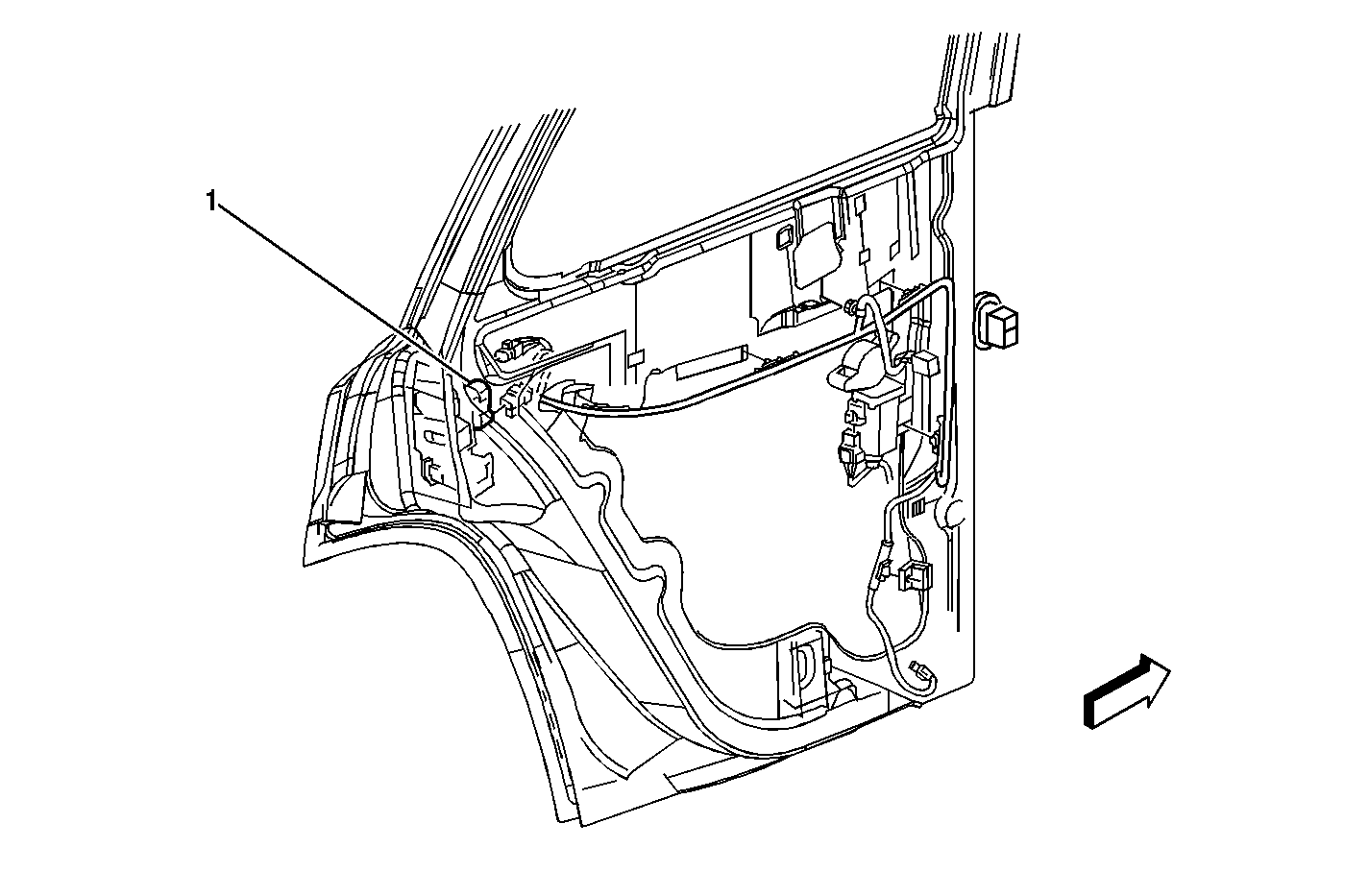

(1)	Door Jamb Switch, Miniwedge-Left Rear

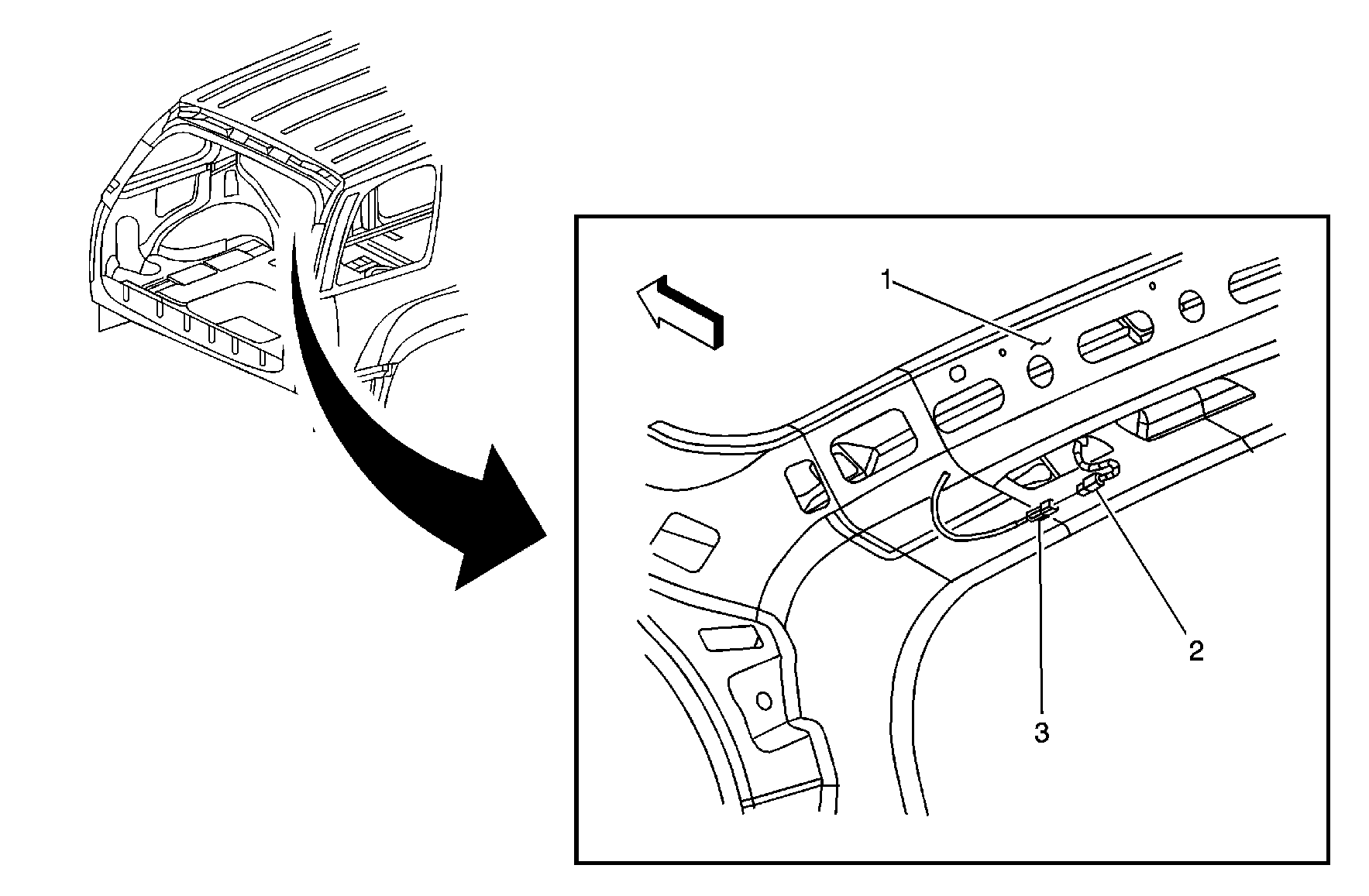

Figure 10:

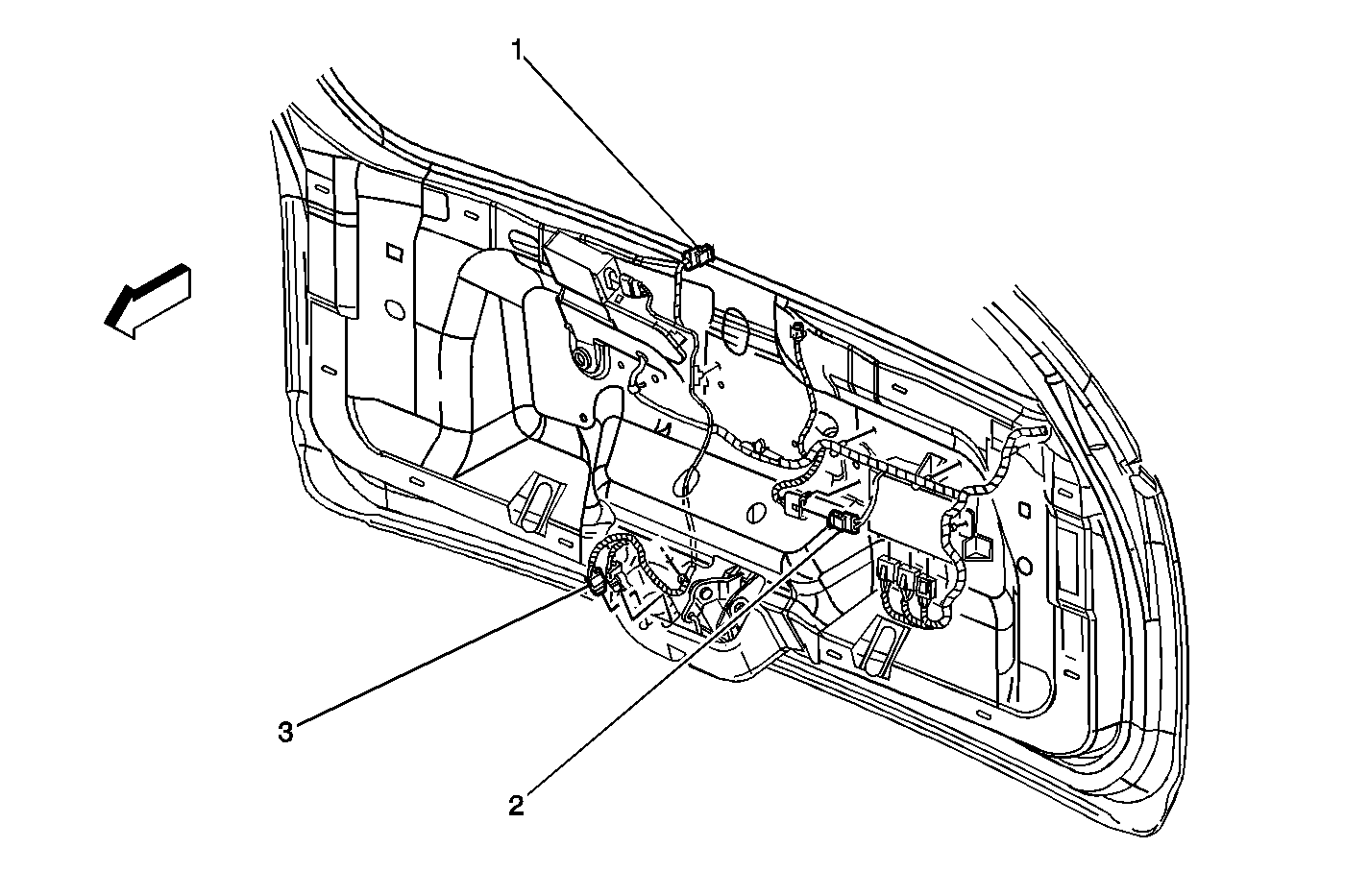

(1)	Liftglass Ajar Switch
(2)	License Plate Lamp Connector
(3)	Liftgate Ajar Switch

Figure 11:

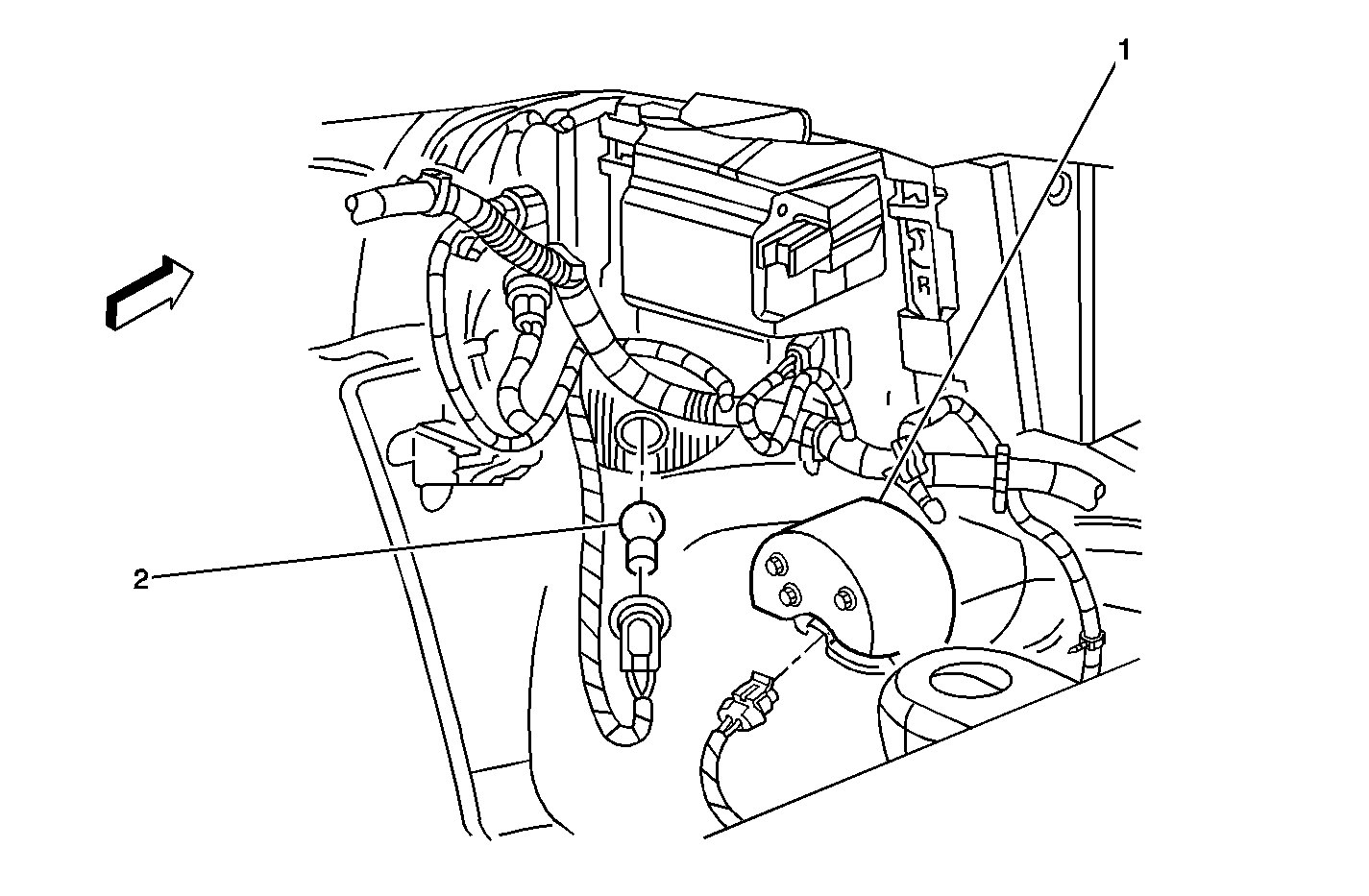

Figure 12:


(1)	Backup Lamps

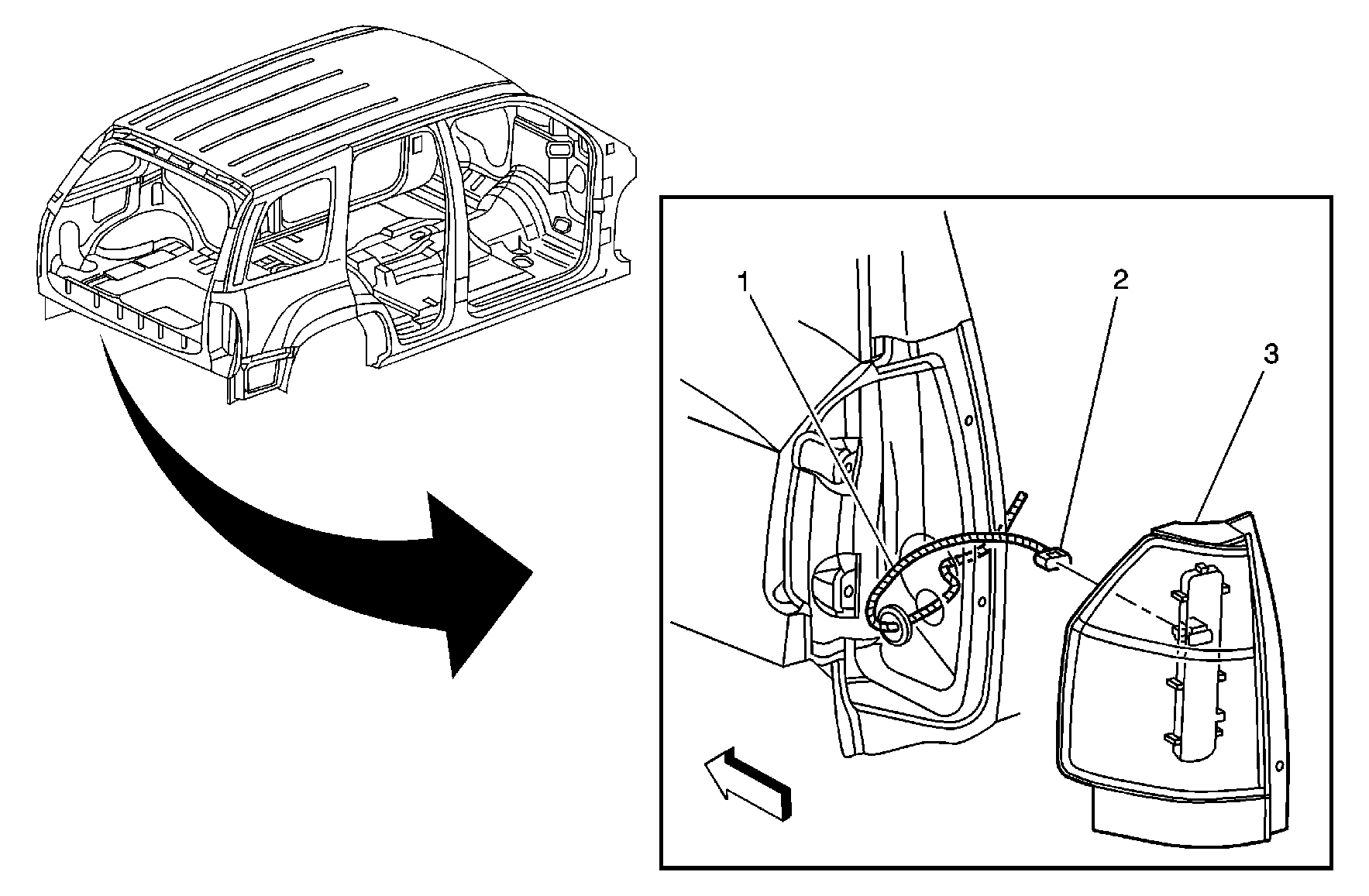

Figure 13:


(1)	Frame Above Body Back Opening
(2)	Tail Lamp Connector
(3)	Tail Lamp

Figure 14:

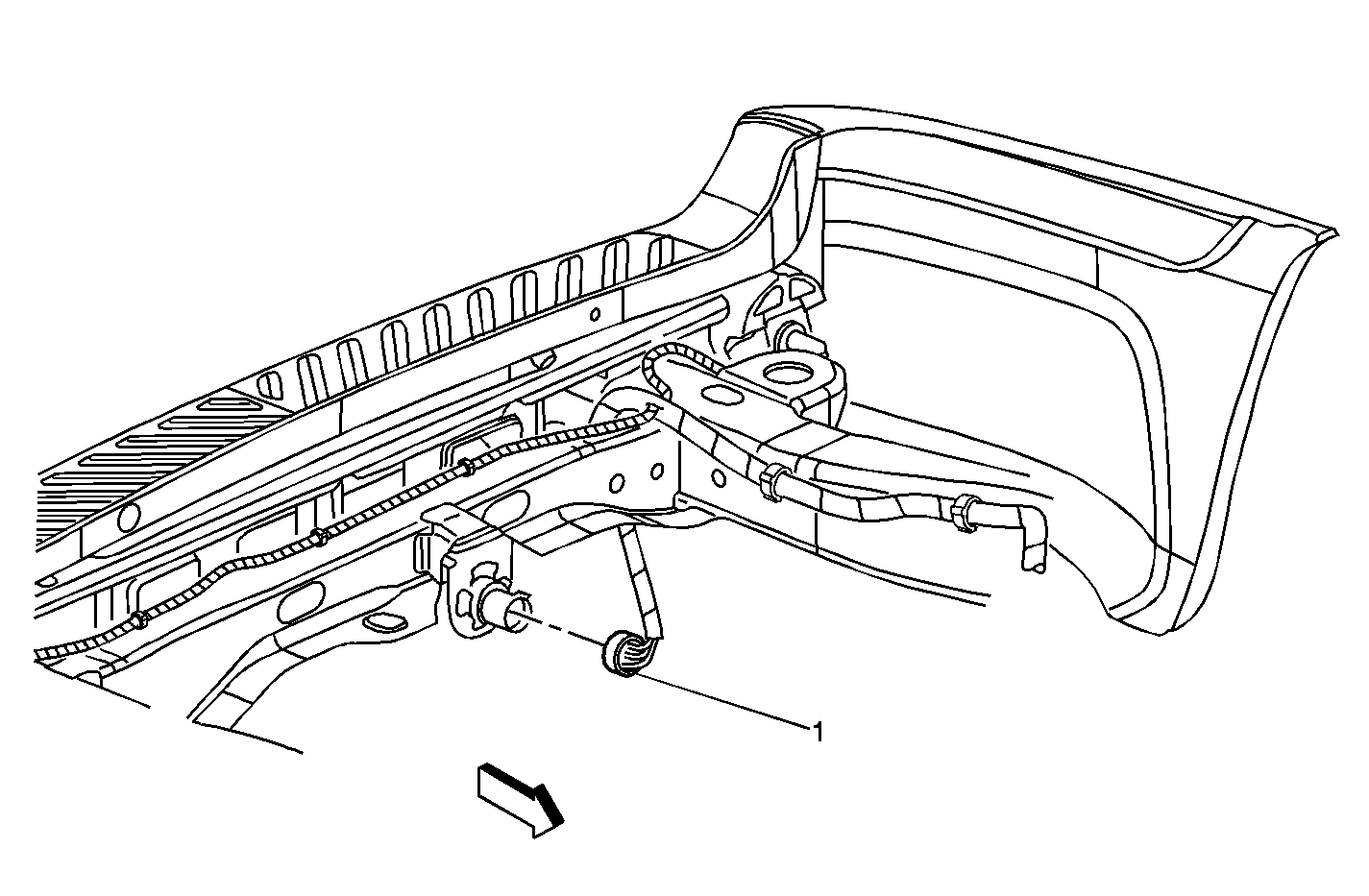

(1)	Trailer Connector
