Wiper/Washer Component Views. Isuzu Ascender

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 2003 🢒 Ascender - 4WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Wiper/Washer Component Views

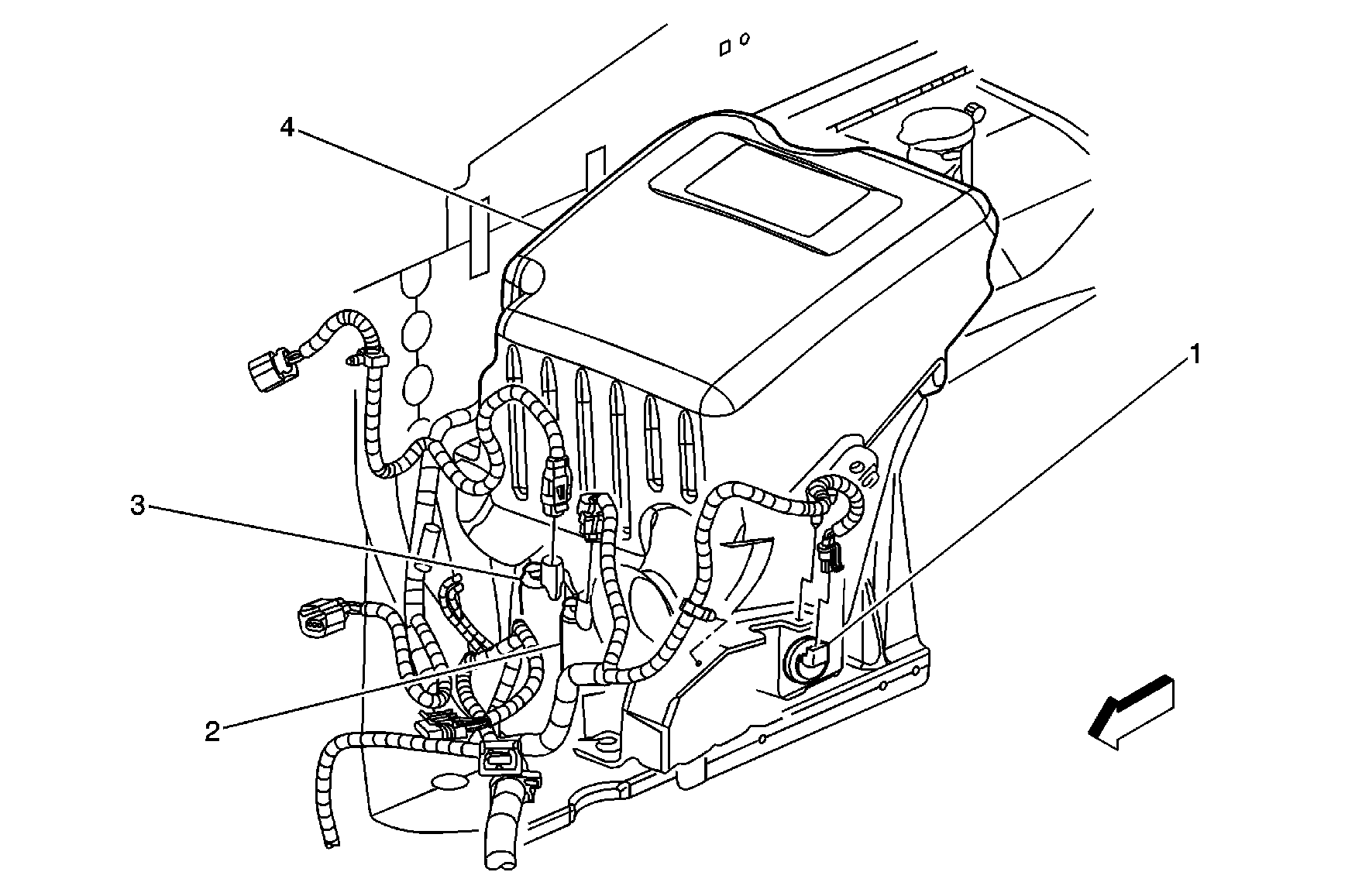

Figure 1:


(1)	Windshield Washer Fluid Level Switch
(2)	Windshield Washer Fluid Pump
(3)	Rear Window Washer Fluid Pump
(4)	Air Cleaner Housing

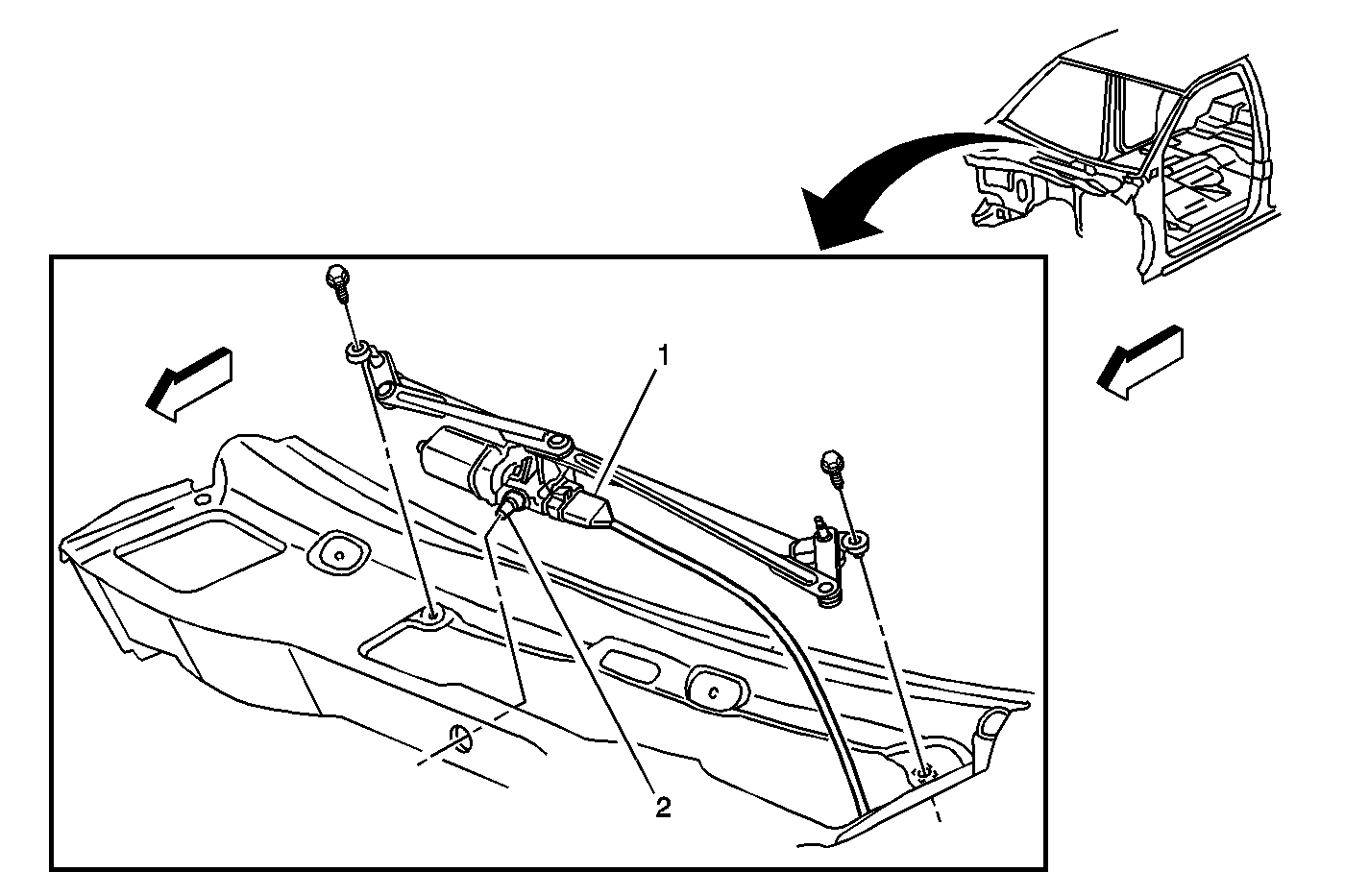

Figure 2:


(1)	Instrument Panel Harness
(2)	Windshield Wiper Motor

Figure 3:

Figure 4:


(1)	Windshield Wiper Switch
(2)	C201

Figure 5:


(1)	Trim Panel
(2)	Rear Window Wiper/Washer Switch

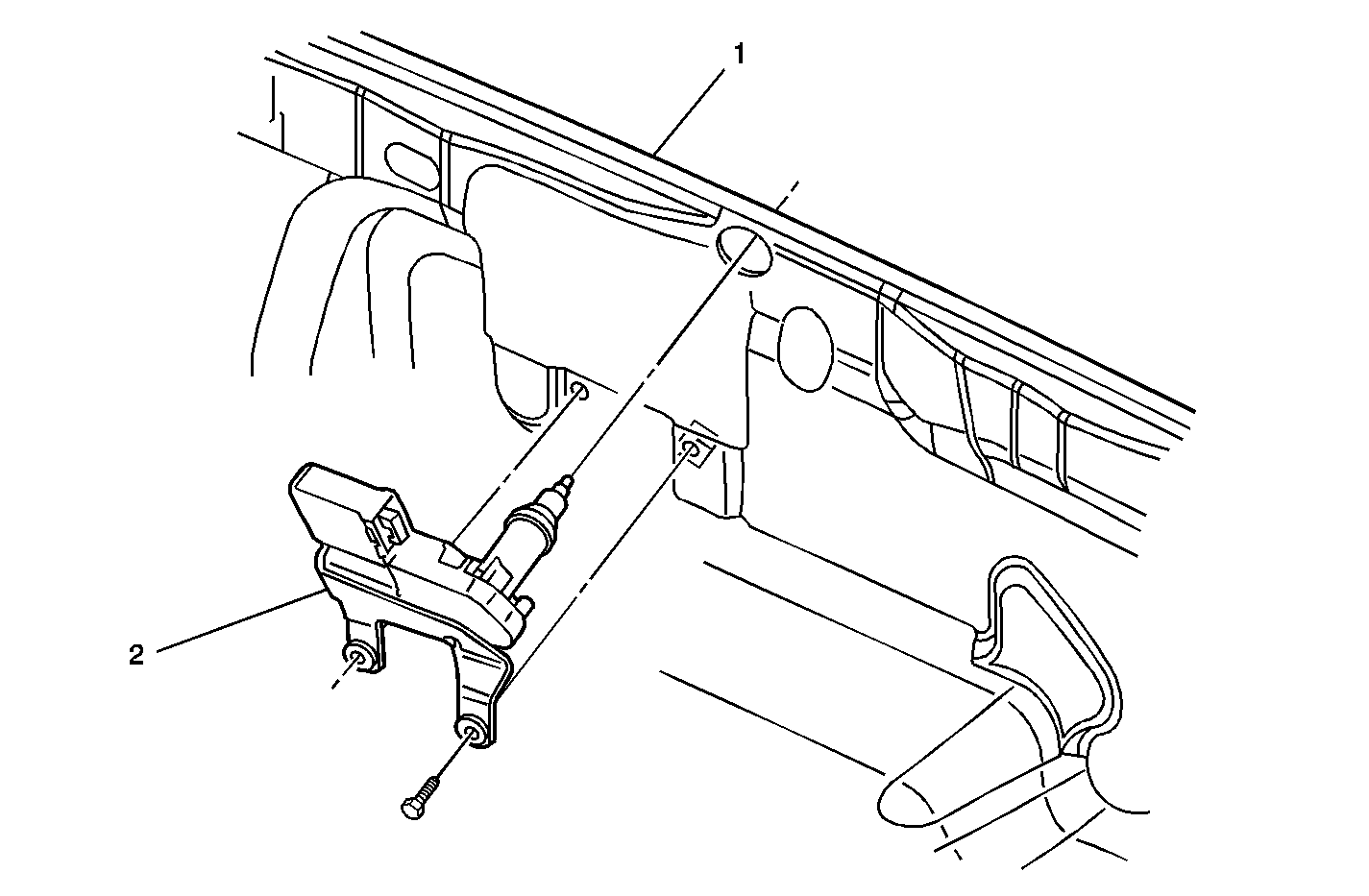

Figure 6:


(1)	Liftgate
(2)	Rear Wiper Motor
