Lighting Systems Component Views. Isuzu S/T Isuzu

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 2000 🢒 S/T Isuzu - 2WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E 🢒 Lighting Systems Component Views

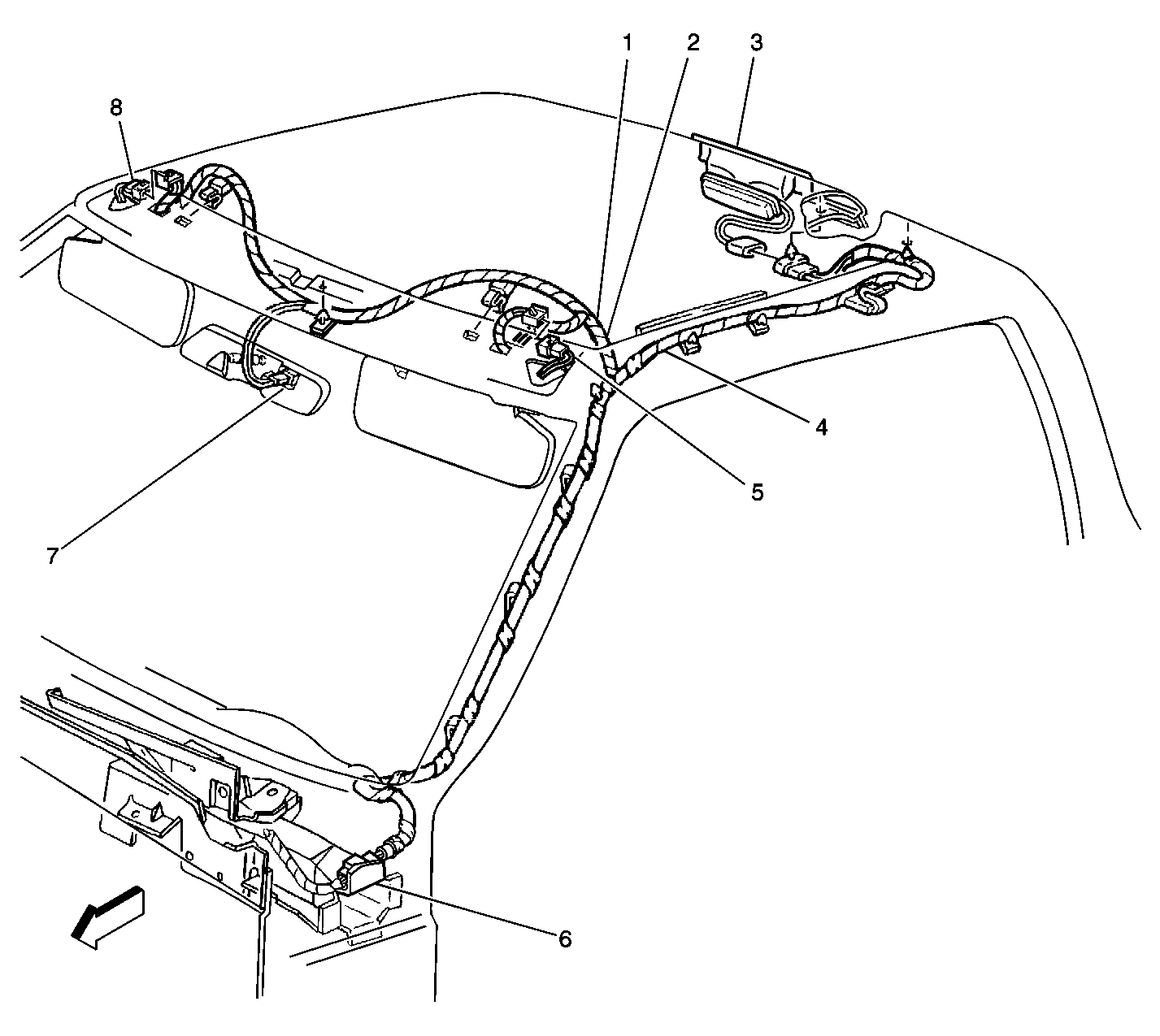

Figure 1:

Figure 2:


(1)	Door Lock Cylinder Switch Connector, RH
(2)	Door Handle Switch Connector, RH
(3)	Door Lock Actuator Connector, RH
(4)	Door Lock Actuator, RH
(5)	Side Window Regulator Motor and Connector, RH
(6)	Splice S502 (LH)
(7)	Splice S601 (RH), S501 (LH)
(8)	Door Speaker Connector, RH
(9)	C601 (RH), C500 (LH)
(10)	C501 (LH)
(11)	P600 (RH), P500 (LH)
(12)	Outside Rear View Mirror Connector, RH

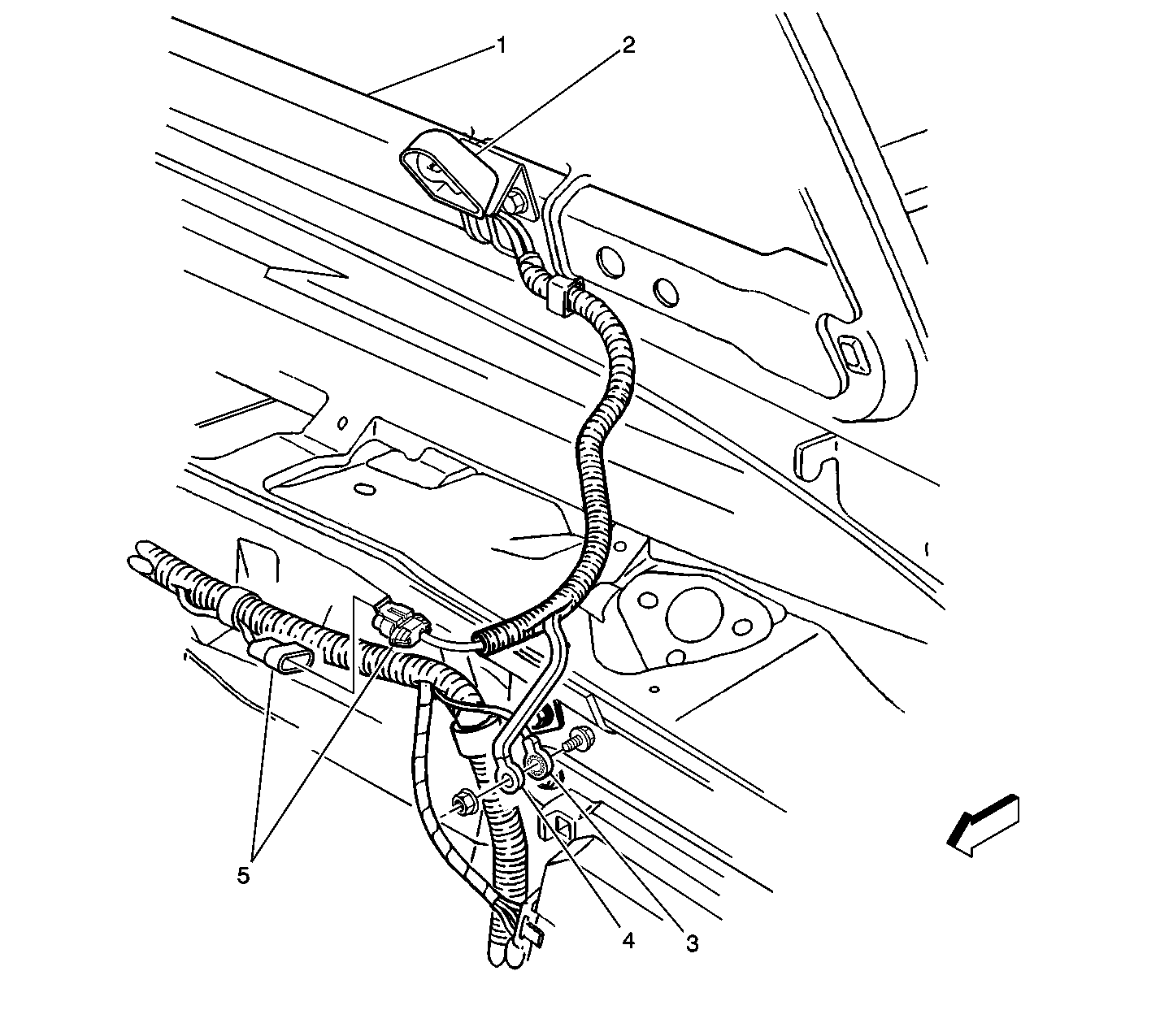

Figure 3:


(1)	Dash Panel
(2)	Stoplamp Switch
(3)	Brake Pedal
(4)	Clutch Pedal Position Switch, (Manual Transmission)
(5)	Clutch Pedal, (Manual Transmission)

Figure 4:


(1)	Automatic Transmission Controller and Connector
(2)	Automatic Transmission Preference Switch Connector
(3)	Splice S336
(4)	Floor Shifter
(5)	Automatic Transmission Indicator Lamp
(6)	Splice S335

Figure 5:

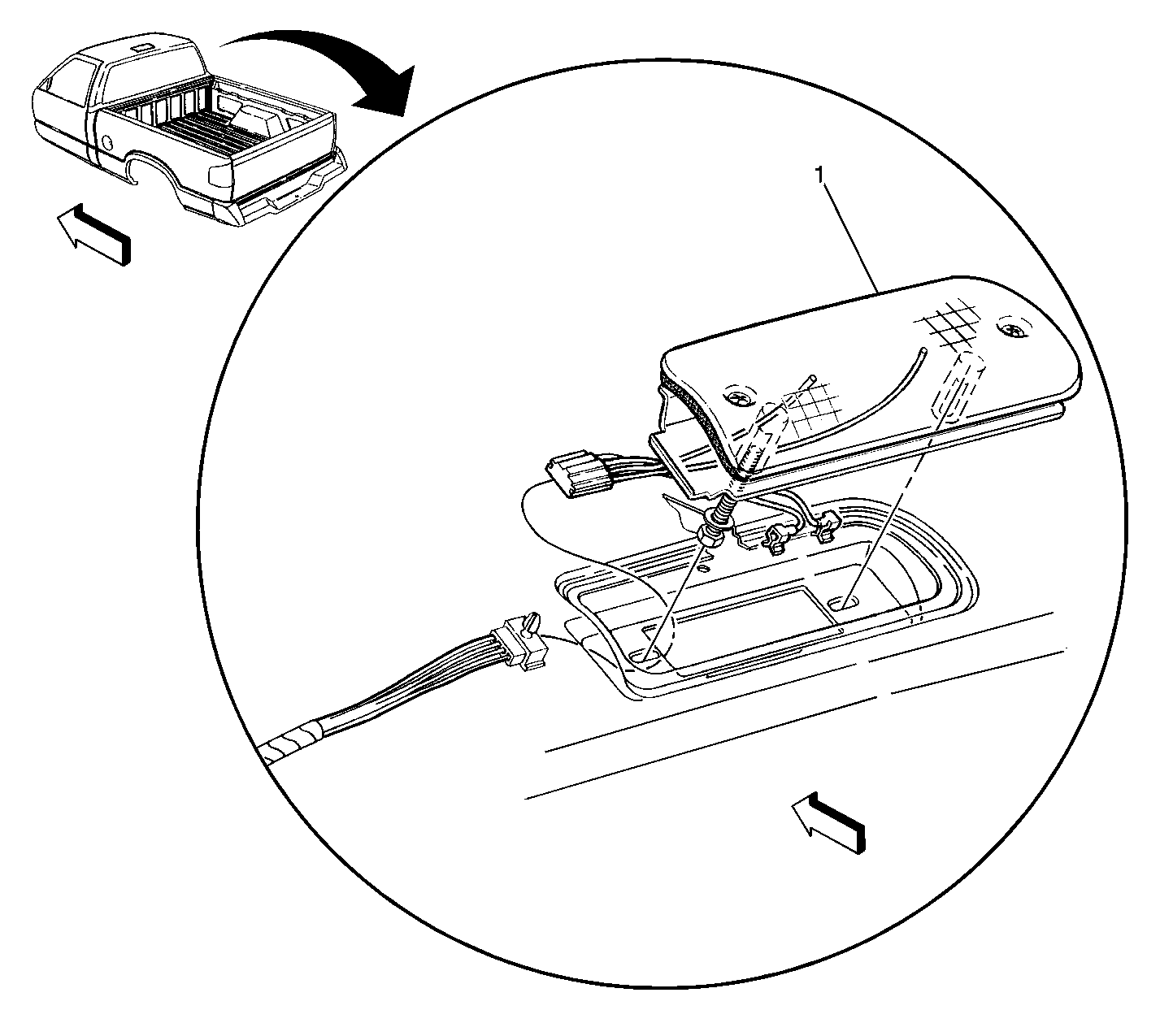

Figure 6:


(1)	High Mount Stoplamp

Figure 7:


(1)	C102
(2)	C203
(3)	Instrument Panel (IP)
(4)	Recirculation Door Motor
(5)	Turn Signal Lamp 2/4 Flasher
(6)	C601
(7)	C600
(8)	Transfer Case Shift Control Module Connector
(9)	Splice Pack SP200
(10)	Splice Pack SP204
(11)	G203, G204 and G205
(12)	HVAC Solenoid Assembly Connector (w/ Auto A/C)
(13)	Air Temperature Valve Sensor and Motor

Figure 8:


(1)	Supplemental Restraint IP Module Switch Connector
(2)	Radio Connector
(3)	Not Used
(4)	Transfer Case Shift Control Switch
(5)	Heater and A/C Controller
(6)	Instrument Cluster Connector
(7)	Instrument Panel (IP)
(8)	Not Used
(9)	Courtesy Lamp, LF Console
(10)	S240
(11)	Body Control Module (BCM) Connector C3
(12)	C224
(13)	S275
(14)	S205
(15)	S283
(16)	S208
(17)	Splice Pack SP203
(18)	S272
(19)	S274
(20)	S273
(21)	S280
(22)	S223
(23)	Courtesy Lamp, RF Console
(24)	C102
(25)	C203
(26)	Door Jamb Switch, RH Front
(27)	IP Compartment Lamp
(28)	Headlamp Ambient Light Sensor
(29)	IP Speaker, RH

Figure 9:


(1)	Supplemental Restraint System (SRS) IP Module
(2)	C201
(3)	IP Compartment Lamp
(4)	Door Jamb Switch, RF

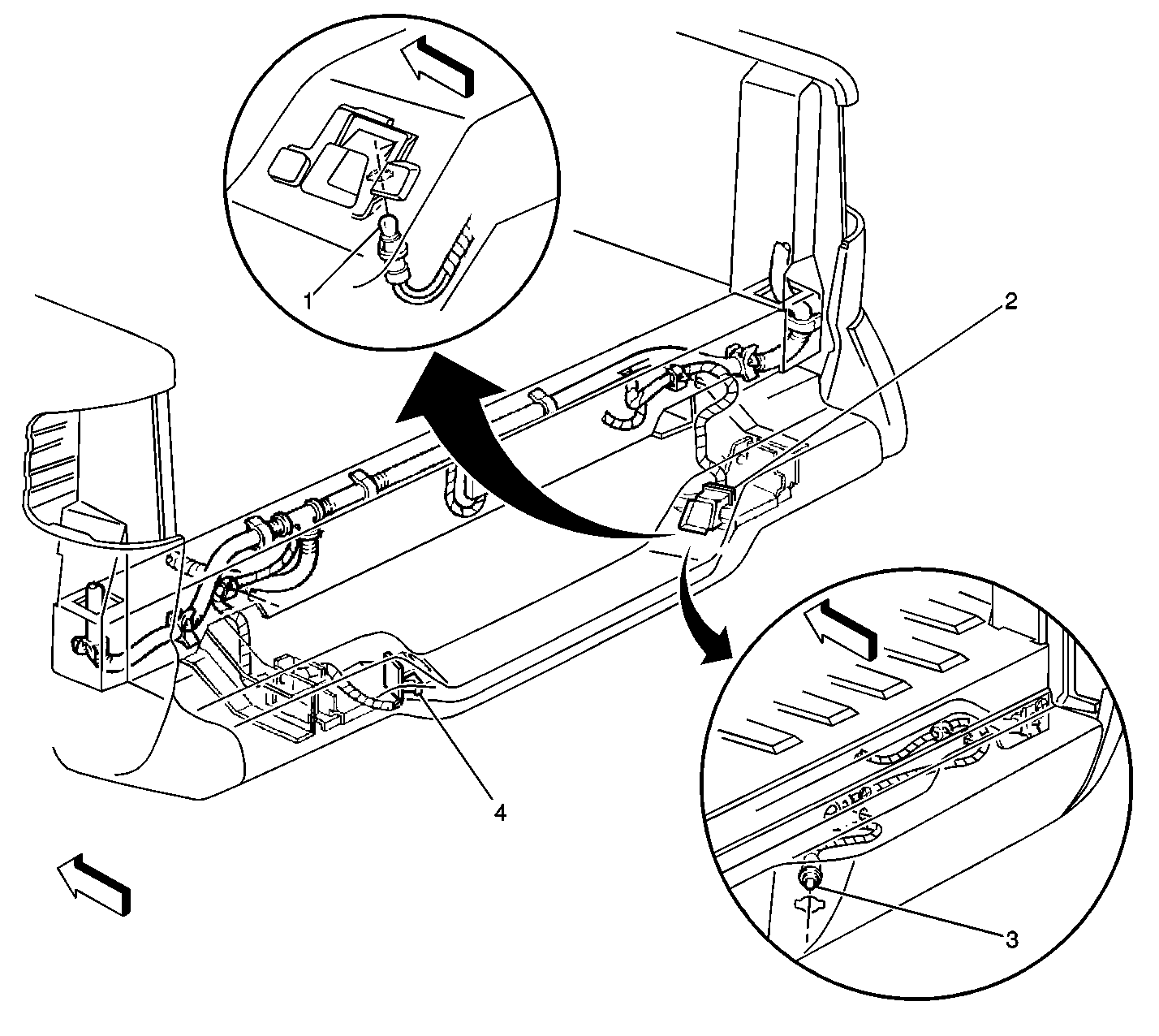

Figure 10:


(1)	Rear License Plate Lamp Bulb, RH
(2)	Rear License Plate Lamp, RH
(3)	Rear License Plate Lamp Bulb, LH
(4)	Rear License Plate Lamp, LH

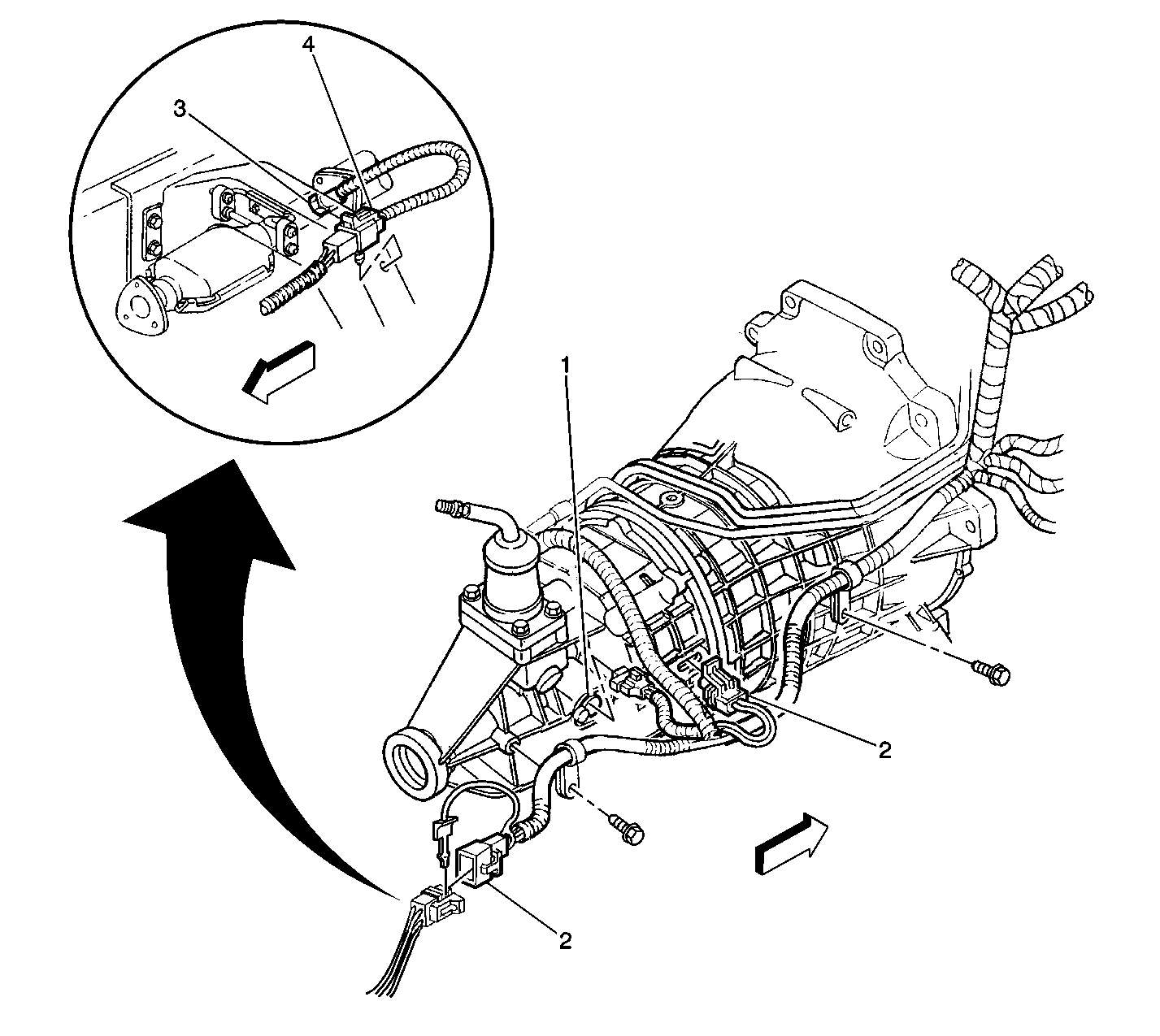

Figure 11:


(1)	Vehicle Speed Sensor
(2)	Backup Lamp Switch
(2)	Backup Lamp Switch
(3)	Heated Oxygen Sensor (HO2S, Bank 1, Sensor 1)
(4)	C117

Figure 12:


(1)	Side Marker Lamp, RH Rear
(2)	Park and Turn Signal Lamp, RH Rear
(3)	Backup Lamp, RH
(4)	Splice Pack SP400
(5)	Backup Lamp, LH
(6)	Side Marker Lamp, LH Rear
(7)	Park and Turn Signal Lamp, LH Rear

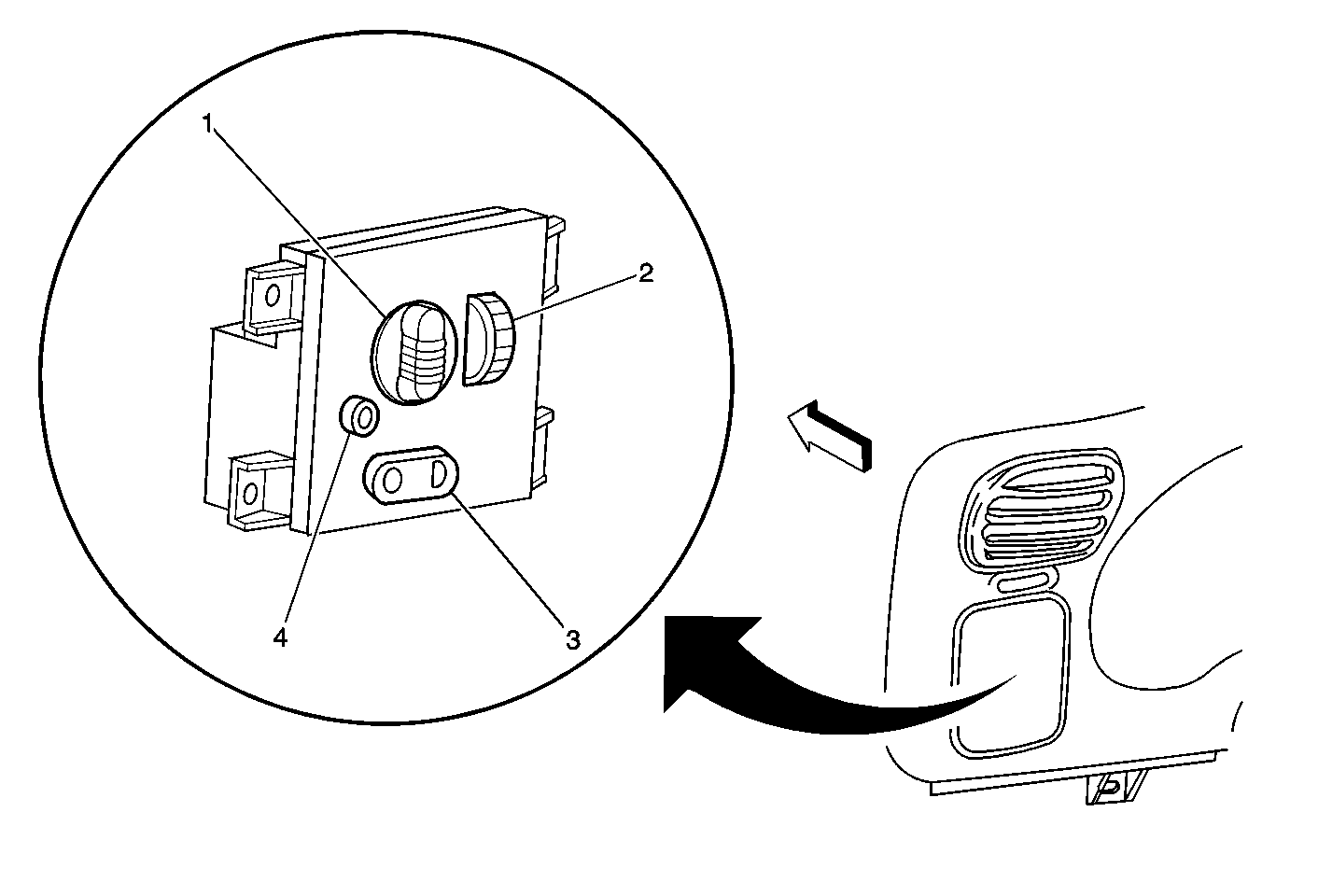

Figure 13:
