Makes 🢒 Isuzu 🢒 2000 🢒 S/T Isuzu - 2WD 🢒 Body and Accessories 🢒 Body Control System 🢒 Inline Harness Connector End Views
Table 1: C100 (Engine Harness to Heated Oxygen Sensor Harness 4.3L Engine, 6 Cavities)
Table 2: C101 (Engine Harness to Body Harness 2.2L Engine, 16 Cavities)
Table 3: C101 (Engine Harness to Body Harness 4.3L Engine, 10 Cavities)
Table 4: C104 (Chassis to 2.2L Engine Harness, 6 Cavities)
Table 5: C104 (Chassis to 4.3L Engine Harness, 6 Cavities)
Table 6: C106 (Forward Lamp Harness to Body Harness)
Table 7: C108 (Electric Shift Transfer Case Extension Harness to Body Harness)
Table 8: C109 (Body Harness to 4WAL/SRS Harness (6 Cavities)
Table 9: C111 (Engine Harness to Fuel Injector Harness, 2.2L Engine)
Table 10: C114 (w/4WD Body Harness to Front Axle Switch Extension Harness)
Table 11: C116 (Engine Harness To Active Transfer Case Harness)
Table 12: C117 (Engine Harness to AIR Harness, w/ California Emissions)
Table 13: C119 (4WAL/SRS Harness To AIR Jumper Harness)
Table 14: C200 (IP Harness to Body Harness)
Table 15: C203 (IP Harness to Body Harness)
Table 16: C211 (Body Harness to Steering Column Harness)
Table 17: C214 (Body Harness to Steering Column Harness)
Table 18: C217 (Body Harness to IP Harness)
Table 19: C223 (IP Harness to Auxiliary Power Tray) (Extended Cab)
Table 20: C224 (Body Harness to Ashtray Insert)
Table 21: C317 (Body Harness to Driver's Seat Assembly Pigtail Connector)
Table 22: C401 (Chassis Harness to Tail Lamp Harness)
Table 23: C500 (Body Harness to LF Door Harness) (w/o Power Locks/Windows)
Table 24: C500 (Body Harness to LF Door Harness) (w/ Power Locks/Windows)
Table 25: C601 (Body Harness to Door Harness, RH Front) (w/o Power Locks/Windows)
Table 26: C601 (Body Harness to Door Harness, RH Front) (w/ Power Locks/Windows)

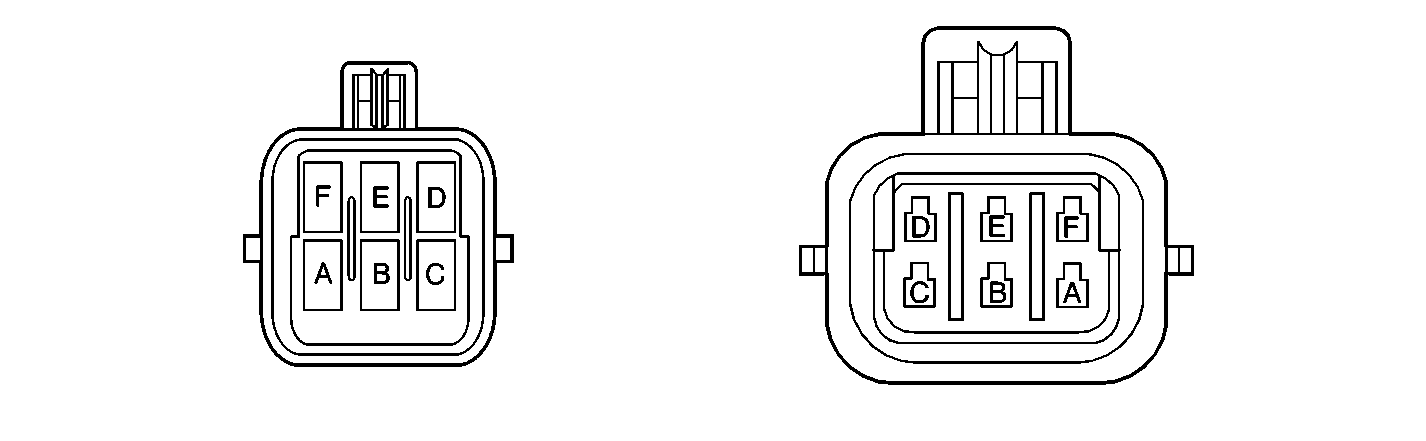

C100 (Engine Harness to Heated Oxygen Sensor Harness 4.3L Engine, 6 Cavities)


Object Number: 283872 Size: CF

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PPL

1666

Oxygen Sensor Signal - Right Forward of Catalytic Converter

A

PPL

1666

Oxygen Sensor Signal - Right Forward of Catalytic Converter

B

TAN

1667

Oxygen Sensor Return - Right Forward of Catalytic Converter

B

TAN

1667

Oxygen Sensor Return - Right Forward of Catalytic Converter

C

PPL/WHT

1668

Oxygen Sensor Signal - Left Rear of Catalytic Converter

C

PPL/WHT

1668

Oxygen Sensor Signal - Left Rear of Catalytic Converter

D

TAN/WHT

1669

Oxygen Sensor Return - Left Rear of Catalytic Converter

D

TAN/WHT

1669

Oxygen Sensor Return - Left Rear of Catalytic Converter

E

PNK

539

Fuse - Output Ignition 1

E

PNK

539

Fuse - Output Ignition 1

F

BLK

350

Ground

F

BLK

350

Ground

C101 (Engine Harness to Body Harness 2.2L Engine, 16 Cavities)


Object Number: 366120 Size: CF

Connector Part Information
    • 15326084
    • 16-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 15326085
    • 16-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

121

Tachometer Signal

A

WHT

121

Tachometer Signal

B

--

--

Not Used (w/o A/C)

B

--

--

Not Used (w/o A/C)

B

LT BLU

203

Air Conditioning High Pressure (w/ A/C)

B

LT BLU

203

Air Conditioning High Pressure (w/ A/C)

C

TAN/WHT

331

Oil Pressure Sensor Signal

C

TAN/WHT

331

Oil Pressure Sensor Signal

D

LT GRN/BLK

584

Fuse Output - Automatic Transmission Shift Lock

D

LT GRN/BLK

584

Fuse Output - Automatic Transmission Shift Lock (Auto Trans Only)

E

PPL

420

Brake Pedal Switch Output - Torque Converter

E

PPL

420

Brake Pedal Switch Output - Torque Converter (Auto Trans Only)

F

YEL/BLK

1827

Vehicle Speed Sensor - 128000 Pulses Per Mile

F

YEL/BLK

1827

Vehicle Speed Sensor - 128000 Pulses Per Mile

G

PNK

1020

Fuse Output - Off/Run/Crank - Type III Fuse

G

PNK

1020

Fuse Output - Off/Run/Crank - Type III Fuse

H

YEL

710

Serial Data Signal - Class 2 - 10400 Baud-Second

H

YEL

710

Serial Data Signal - Class 2 - 10400 Baud-Second

J

--

--

Not Used (Man Trans)

J

BRN/WHT

379

Not Used (Man Trans)

J

PPL

420

Brake Pedal Switch Output - Torque Converter (Auto Trans)

J

BRN/WHT

379

Cruise Control Clutch Pedal Switch Output (Auto Trans)

K

--

--

Not Used (Man Trans)

K

BRN/WHT

379

Not Used (Man Trans)

K

BRN/WHT

379

Cruise Control Clutch Pedal Switch Output (Auto Trans)

K

BRN/WHT

379

Cruise Control Clutch Pedal Switch Output (Auto Trans)

L

BRN/WHT

419

Brake Pedal Switch Output - Torque Converter

L

BRN/WHT

419

Brake Pedal Switch Output - Torque Converter

M

DK GRN/WHT

817

Vehicle Speed Signal - 4000 Pulses Per Mile

M

DK GRN/WHT

817

Vehicle Speed Signal - 4000 Pulses Per Mile

N

DK GRN

389

Vehicle Speed Signal - 4000 Pulses Per Mile

N

DK GRN

389

Vehicle Speed Signal - 4000 Pulses Per Mile

P

--

--

Not Used (Man Trans)

P

--

--

Not Used (Man Trans)

P

LT BLU/BLK

396

Cruise Control Signal Engaged (Auto Trans)

P

LT BLU/BLK

396

Cruise Control Signal Engaged (Auto Trans)

R

DK GRN

1049

Serial Data Signal - Class 2 - 10400 Baud Daignostic to PCM/VCM

R

DK GRN

1049

Serial Data Signal - Class 2 - 10400 Baud Daignostic to PCM/VCM

S

--

--

Not Used

S

--

--

Not Used

C101 (Engine Harness to Body Harness 4.3L Engine, 10 Cavities)


Object Number: 288213 Size: CF

Connector Part Information
    • 12177081
    • 10-Way F Global Technology, 150 Series, Sealed (BLK)

Connector Part Information
    • 12052606
    • 10-Way M Metri-Pack, 150 Series, Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

121

Tachometer Signal

A

WHT

121

Tachometer Signal

B

LT BLU

203

Air Conditioning Refrigerant High Pressure Cut - Out Switch Feed

B

LT BLU

203

Air Conditioning Refrigerant High Pressure Cut - Out Switch Feed

B

LT BLU

203

Air Conditioning Refrigerant High Pressure Cut - Out Switch Feed

B

--

--

Not Used (Non-A/C)

C

TAN/WHT

331

Oil Pressure Sensor Signal

C

TAN/WHT

331

Oil Pressure Sensor Signal

D

LT GRN/BLK

584

Fuse Output - Brake Transmission Shift Interlock (Auto Trans Only)

D

LT GRN/BLK

584

Fuse Output - Brake Transmission Shift Interlock (Auto Trans Only)

E

RED

1676

Exhaust Gas Recirculation Solenoid Feed

E

RED

1676

Exhaust Gas Recirculation Solenoid Feed

F

YEL/BLK

1827

Vehicle Speed Signal - 128000 Pulses Per Mile

F

YEL/BLK

1827

Vehicle Speed Signal - 128000 Pulses Per Mile

G

PNK

1020

Fuse Output - Off/Run/Crank - Type III Fuse

G

PNK

1020

Fuse Output - Off/Run/Crank - Type III Fuse

H

WHT

257

Exhaust Gas Recirculation Solenoid Control

H

WHT

257

Exhaust Gas Recirculation Solenoid Control

J

PPL

420

Brake Pedal Switch Output - Torque Converter Clutch

J

BRN/WHT

379

Cruise Control Clutch Pedal Switch Output

K

BRN/WHT

379

Cruise Control Clutch Pedal Switch Output

K

BRN/WHT

379

Cruise Control Clutch Pedal Switch Output

C104 (Chassis to 2.2L Engine Harness, 6 Cavities)


Object Number: 62447 Size: CF

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 150 Series, Sealed, Self Locking (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 150 Series, Sealed, Self Locking (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

1310

Canister Vent Valve Solenoid Control

A

WHT

1310

Canister Vent Valve Solenoid Control

B

DK GRN

890

Fuel Tank Pressure Sensor Signal

B

DK GRN

890

Fuel Tank Pressure Sensor Signal

C

GRY

705

Reference Voltage Feed - 5 Volt Reference

C

GRY

705

Reference Voltage Feed - 5 Volt Reference

D

ORN/BLK

510

Fuel Sender Return

D

ORN/BLK

510

Fuel Sender Return

E

PPL

1589

Fuel Gauge Sensor Signal

E

PPL

1589

Fuel Gauge Sensor Signal

F

--

--

Not Used

F

--

--

Not Used

C104 (Chassis to 4.3L Engine Harness, 6 Cavities)


Object Number: 62447 Size: CF

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 150 Series, Sealed, Self Locking (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 150 Series, Sealed, Self Locking (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

1310

Canister Vent Valve Solenoid Output

A

WHT

1310

Canister Vent Valve Solenoid Output

B

DK GRN

890

Fuel Tank Pressure Sensor Signal

B

DK GRN

890

Fuel Tank Pressure Sensor Signal

C

GRY

474

Reference Voltage Feed - 5 Volt Reference

C

GRY

474

Reference Voltage Feed - 5 Volt Reference

D

BLK/WHT

470

Fuel Sender Return

D

BLK

470

Fuel Sender Return

E

PPL

1589

Fuel Gauge Sensor Signal

E

PPL

1589

Fuel Gauge Sensor Signal

F

--

--

Not Used

F

--

--

Not Used

C106 (Forward Lamp Harness to Body Harness)


Object Number: 283872 Size: CF

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 150 Series, Sealed (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 150 Series, Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A-D

--

--

Not Used

A-D

--

--

Not Used

E

BLK/WHT

1851

Ground

E

BLK/WHT

1851

Ground

F

--

--

Not Used

F

--

--

Not Used

C108 (Electric Shift Transfer Case Extension Harness to Body Harness)


Object Number: 95815 Size: CF

Connector Part Information
    • 12059472
    • 7-Way F Metri-Pack 150, 480  Series Sealed (BLK)

Connector Part Information
    • 12052200
    • 7-Way M Metri-Pack 150, 480  Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN/WHT

1555

Transfer Case Position Switch Encoder Signal - Channel P

A

BRN/WHT

1555

Transfer Case Position Switch Encoder Signal - Channel P

B

BLK/WHT

1554

Transfer Case Encoder Signal Return

B

BLK/WHT

1554

Transfer Case Encoder Signal Return

C

DK BLU/WHT

1557

Transfer Case Position Switch Encoder Signal - Channel A

C

DK BLU/WHT

1557

Transfer Case Position Switch Encoder Signal - Channel A

D

YEL/BLK

1558

Transfer Case Position Switch Encoder Signal - Channel B

D

YEL/BLK

1558

Transfer Case Position Switch Encoder Signal - Channel B

E

BLK

1552

Transfer Case Motor Feed - Clockwise

E

BLK

1552

Transfer Case Motor Feed - Clockwise

F

RED/WHT

1556

Transfer Case Position Switch Encoder Signal - Channel C

F

RED/WHT

1556

Transfer Case Position Switch Encoder Signal - Channel C

G

RED

1553

Transfer Case Motor Feed - CounterClockwise

G

RED

1553

Transfer Case Motor Feed - CounterClockwise

C109 (Body Harness to 4WAL/SRS Harness (6 Cavities)


Object Number: 283872 Size: CF

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 280 Series, Sealed (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 280 Series, Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

YEL

2160

SRS Forward Sensor Signal

A

YEL

2160

SRS Forward Sensor Signal

B

BLK/WHT

2151

SRS Ground

B

BLK/WHT

2151

SRS Ground

C

LT BLU

830

Wheel Speed Sensor Signal - Left Front

C

LT BLU

830

Wheel Speed Sensor Signal - Left Front

D

DK GRN

872

Wheel Speed Sensor Signal - Right Front

D

DK GRN

872

Wheel Speed Sensor Signal - Right Front

E

YEL

873

Wheel Speed Sensor Return - Left Front

E

YEL

873

Wheel Speed Sensor Return - Left Front

F

TAN

833

Wheel Speed Sensor Return - Right Front

F

TAN

833

Wheel Speed Sensor Return - Right Front

C111 (Engine Harness to Fuel Injector Harness, 2.2L Engine)


Object Number: 280747 Size: CF

Connector Part Information
    • 12146045
    • 5-Way F Metri-Pack 150 Series, Sealed (NAT)

Connector Part Information
    • 12103974
    • 5-Way M Metri-Pack 150 Series, Sealed (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PNK

439

Fuse Output - Ignition 1

A

GRY

120

Fuel Injecor Feed

B

BLK

1744

Fuel Injector 1 Output

B

BLK

1744

Fuel Injector 1 Output

C

LT GRN/BLK

1745

Fuel Injector 2 Output

C

LT GRN/BLK

1745

Fuel Injector 2 Output

D

PNK/BLK

1746

Fuel Injector 3 Output

D

PNK/BLK

1746

Fuel Injector 3 Output

E

LT BLU/BLK

844

Fuel Injector 4 Output

E

LT BLU/BLK

844

Fuel Injector 4 Output

C114 (w/4WD Body Harness to Front Axle Switch Extension Harness)


Object Number: 302000 Size: CF

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series, Sealed, (BLK)

Connector Part Information
    • 12162000
    • 2-Way Metri-Pack 150 Series, Sealed, (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN

241

Fuse Output - Ignition 3 - Type III Fuse

A

BRN

241

Fuse Output - Ignition 3 - Type III Fuse

B

BLK/WHT

1695

Four Wheel Drive Front Wheel Lock Telltale Feed

B

BLK/WHT

1695

Four Wheel Drive Front Wheel Lock Telltale Feed

C116 (Engine Harness To Active Transfer Case Harness)


Object Number: 232831 Size: CH

Object Number: 598698 Size: CH

Connector Part Information
    • 12162194
    • 2 Way F Metri-Pack 150.2 Series, Sealed Pull-to-Seat (BLK)

Connector Part Information
    • 12160435
    • 2 Way M Metri-Pack 150 Series, Insert, Molded (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PPL/WHT

821

Vehicle Speed Sensor Signal

A

PPL/WHT

821

Vehicle Speed Sensor Signal

B

LT GRN/BLK

822

Vehicle Speed Sensor Return

B

LT GRN/BLK

822

Vehicle Speed Sensor Return

C117 (Engine Harness to AIR Harness, w/ California Emissions)


Object Number: 302000 Size: CF

Connector Part Information
    • 12052641
    • 2-Way F Metri-Pack 150 Series, Sealed (BLK)

Connector Part Information
    • 12162000
    • 2-Way M Metri-Pack 150 Series, Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PNK

639

Fuse Output - Ignition 1 - Type III Fuse

A

PNK

639

Fuse Output - Ignition 1 - Type III Fuse

B

BRN

436

Air Injection Reactor Pump Motor Relay Output

B

BRN

436

Air Injection Reactor Pump Motor Relay Output

C119 (4WAL/SRS Harness To AIR Jumper Harness)


Object Number: 283873 Size: CF

Connector Part Information
    • 12077988
    • 2-Way F Metri-Pack 280 Series, Sealed (YEL)

Connector Part Information
    • 12084180
    • 2-Way M Metri-Pack 280 Series, Sealed (YEL)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

YEL

1834

SRS Forward Sensor Signal

A

YEL

1834

SRS Forward Sensor Signal

B

BLK/WHT

1851

Ground

B

BLK/WHT

1851

Ground

C200 (IP Harness to Body Harness)


Object Number: 362727 Size: CF

Connector Part Information
    • 12186991
    • 2-Way F Metri-Pack 280 Series, (YEL)

Connector Part Information
    • 12186989
    • 2-Way M Metri-Pack 280 Series, (YEL)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT/BLK

1403

SRS Inflator Feed - Passenger

A

WHT/BLK

1403

SRS Inflator Feed - Passenger

B

DK GRN/WHT

1404

SRS Inflator Output - Passenger

B

DK GRN/WHT

1404

SRS Inflator Output - Passenger

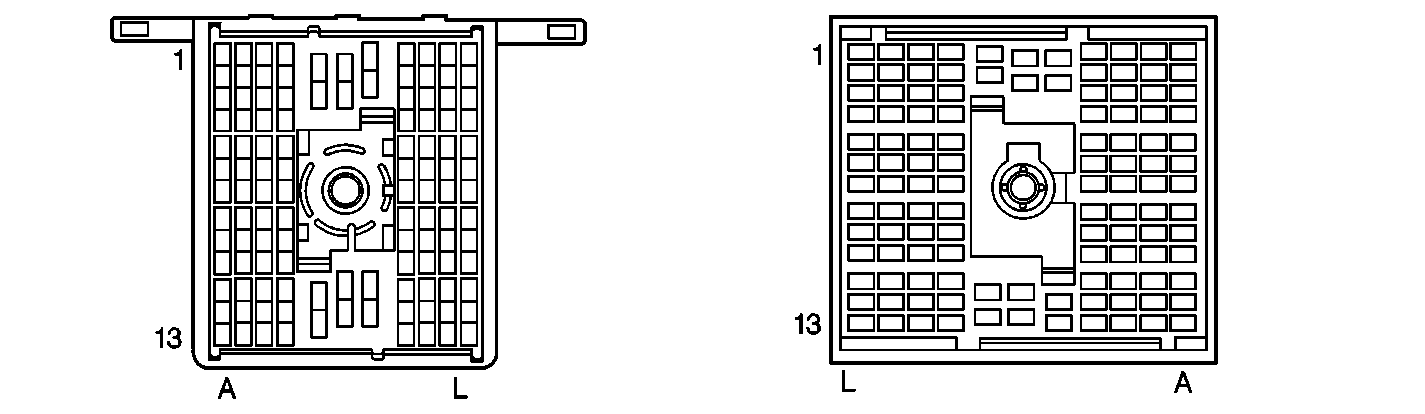

C203 (IP Harness to Body Harness)


Object Number: 362729 Size: CF

Connector Part Information
    • 15318195
    • 116-Way F Metri-Pack 150,280 Series (BLK)

Connector Part Information
    • 12162463
    • 116-Way M Metri-Pack 150,280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

LT BLU

115

Speaker Return - Right Rear

A1

LT BLU

115

Speaker Return - Right Rear

A2

DK BLU

46

Speaker Feed - Right Rear

A2

DK BLU

46

Speaker Feed - Right Rear

A3

YEL

116

Speaker Feed - Left Rear

A3

YEL

116

Speaker Feed - Left Rear

A4

BRN

199

Speaker Feed - Left Rear

A4

BRN

199

Speaker Feed - Left Rear

A5

GRY

118

Speaker Return - Left Front

A5

GRY

118

Speaker Return - Left Front

A6

TAN

201

Speaker Feed - Left Front

A6

TAN

201

Speaker Feed - Left Front

A7-A13

--

--

Not Used

A7-A13

--

--

Not Used

B1

BRN

41

Fuse Output - Ignition 3

B1

BRN

41

Fuse Output - Ignition 3

B2

--

--

Not Used

B2

--

--

Not Used

B3

--

--

Not Used (w/o Power Locks)

B3

--

--

Not Used (w/o Power Locks)

B3

LT GRN

262

Door Key Lock Cylinder Switch Signal - Driver (w/ Power Locks)

B3

LT GRN

262

Door Key Lock Cylinder Switch Signal - Driver (w/ Power Locks)

B4-B5

--

--

Not Used

B4-B5

--

--

Not Used

B6

WHT

193

Rear Defogger Relay Output - Coil (w/ A/C)

B6

WHT

193

Rear Defogger Relay Output - Coil (w/ A/C)

B7

WHT

1390

Ignition Switch Output - Off/Run/Crank

B7

WHT

1390

Ignition Switch Output - Off/Run/Crank

B8

ORN

1740

Fuse Output - Battery (w/ A/C)

B8

ORN

1740

Fuse Output - Battery (w/ A/C)

B9

ORN

640

Fuse Output - Battery

B9

ORN

640

Fuse Output - Battery

B10

ORN

240

Fuse Output - Battery

B10

ORN

240

Fuse Output - Battery

B11

ORN

40

Fuse Output - Battery

B11

ORN

40

Fuse Output - Battery

B12

PPL

34

Fog Lamp Feed (w/ Fog Lamps)

B12

PPL

34

Fog Lamp Feed (w/ Fog Lamps)

B13-C3

--

--

Not Used

B13-C3

--

--

Not Used

C4

ORN

52

Blower Switch Output - High (w/ Man A/C)

C4

ORN

52

Blower Switch Output - High (w/ Man A/C)

C5

TAN

63

Blower Switch Output - Med (w/ Man A/C)

C5

TAN

63

Blower Switch Output - Med (w/ Man A/C)

C6

BRN

64

High Speed Blower Relay Feed -Coil (w/ Man A/C)

C6

BRN

64

High Speed Blower Relay Feed -Coil (w/ Man A/C)

C7

LT BLU

72

Blower Switch Output - Medium 2 (w/ Man A/C)

C7

LT BLU

72

Blower Switch Output - Medium 2 (w/ Man A/C)

C8

LT BLU

203

Air Conditioning Refrigerant High Pressure Cut - Out Switch Feed

C8

LT BLU

203

Air Conditioning Refrigerant High Pressure Cut - Out Switch Feed

C9-D4

--

--

Not Used

C9-D4

--

--

Not Used

D5

LT BLU

733

Air Temperature Valve Position Sensor Signal

D5

LT BLU

733

Air Temperature Valve Position Sensor Signal

D6-DE1

--

--

Not Used

D6-E1

--

--

Not Used

E2

BLK

1050

Ground

E2

BLK

1050

Ground

E11

DK GRN

389

Vehicle Speed Signal - 4000 Pulses Per Mile

E11

DK GRN

389

Vehicle Speed Signal - 4000 Pulses Per Mile

E12

WHT

352

Headlamp Relay Feed - Coil

E12

WHT

352

Headlamp Relay Feed - Coil

F1

PNK

3

Ignition Switch Output - Ignition 1

F1

PNK

3

Ignition Switch Output - Ignition 1

F2

YEL

143

Fuse Output - Accessory

F2

YEL

143

Fuse Output - Accessory

F11

--

--

Not Used (w/o Power Locks/Windows)

F11

--

--

Not Used (w/o Power Locks/Windows)

F11

BRN

2409

Fuse Output - Interior Park Lamps (w/ Power Locks/Windows)

F11

BRN

2409

Fuse Output - Interior Park Lamps (w/ Power Locks/Windows)

F12

BLK

1050

Ground

F12

BLK

1050

Ground

G1

PPL/WHT

1382

Led Dimming Signal

G1

PPL/WHT

1382

Led Dimming Signal

G2

GRY

1220

Fuse Output - Instrument Panel Lamps

G2

--

--

Not Used

G11

--

--

Not Used (w/o Power Locks)

G11

--

--

Not Used (w/o Power Locks)

G11

ORN

54

Door Jamb Switch Signal - Passenger (w/ Power Locks)

G11

ORN

54

Door Jamb Switch Signal - Passenger (w/ Power Locks)

G12

WHT

156

Courtesy Lamp Output

G12

WHT

156

Courtesy Lamp Output

H1-H2

--

--

Not Used

H1-H2

--

--

Not Used

H3

--

--

Not Used (w/o 4WD)

H3

--

--

Not Used (w/o 4WD)

H3

DK GRN/WHT

1559

4 LO Select Switch Output (w/ 4WD)

H3

DK GRN/WHT

1559

4 LO Select Switch Output (w/ 4WD)

H4

--

--

Not Used (w/o 4WD)

H4

--

--

Not Used (w/o 4WD)

H4

DK GRN/WHT

1562

4 HI Select Switch Output (w/ 4WD)

H4

DK GRN/WHT

1562

4 HI Select Switch Output (w/ 4WD)

H5

--

--

Not Used (w/o 4WD)

H5

--

--

Not Used (w/o 4WD)

H5

LT GRN/BLK

1563

2 HI Indicator Lamp Output (w/ 4WD)

H5

LT GRN/BLK

1563

2 HI Indicator Lamp Output (w/ 4WD)

H6

--

--

Not Used (w/o 4WD)

H6

--

--

Not Used (w/o 4WD)

H6

GRY/BLK

1564

4 HI Select Switch Output (w/ 4WD)

H6

GRY/BLK

1564

4 HI Select Switch Output (w/ 4WD)

H7

--

--

Not Used (w/o 4WD)

H7

--

--

Not Used (w/o 4WD)

H7

PPL/WHT

1565

4 LO Indicator Lamp Output (w/ 4WD)

H7

PPL/WHT

1565

4 LO Indicator Lamp Output (w/ 4WD)

H8

--

--

Not Used (w/o 4WD)

H8

--

--

Not Used (w/o 4WD)

H8

TAN/BLK

1566

4 HI Indicator Lamp Output (w/ 4WD)

H8

TAN/BLK

1566

4 HI Indicator Lamp Output (w/ 4WD)

H9

BRN

2409

Fuse Output - Interior Park Lamps

H9

BRN

2409

Fuse Output - Interior Park Lamps

H10-12

--

--

Not Used

H10-12

--

--

Not Used

H13

BLK/WHT

451

Ground

H13

BLK/WHT

451

Ground

J1

PNK

39

Fuse Output - Ignition 1

J1

PNK

39

Fuse Output - Ignition 1

J2

PNK

139

Fuse Output - Ignition 1

J2

PNK

139

Fuse Output - Ignition 1

J3

YEL

1139

Fuse Output - Ignition 1 - SRS

J3

YEL

1139

Fuse Output - Ignition 1 - SRS

J4-5

--

--

Not Used

J4-5

--

--

Not Used

J6

LT BLU/WHT

1414

Turn Signal Switch Output - Left Front

J6

LT BLU/WHT

1414

Turn Signal Switch Output - Left Front

J7

DK BLU/WHT

1415

Turn Signal Switch Output - Right Front

J7

DK BLU/WHT

1415

Turn Signal Switch Output - Right Front

J8

--

--

Not Used

J8

--

--

Not Used

J9

BRN

1356

Flash To Pass Switch Signal

J9

BRN

1356

Flash To Pass Switch Signal

J10-13

--

--

Not Used

J10-13

--

--

Not Used

K1

BRN

341

Fuse Output - Ignition 3

K1

BRN

341

Fuse Output - Ignition 3

K2

--

--

Not Used (w/ 2.2L)

K2

--

--

Not Used (w/ 2.2L)

K2

BRN

241

Fuse Output - Ignition 3 (w/ 4.3L)

K2

BRN

241

Fuse Output - Ignition 3 (w/ 4.3L)

K3

BRN

441

Fuse Output - Ignition 3

K3

BRN

441

Fuse Output - Ignition 3

K4

PNK

1020

Fuse Output - Off/Run/Crank

K4

PNK

1020

Fuse Output - Off/Run/Crank

K5

--

--

Not Used

K5

--

--

Not Used

K6

ORN

1732

Electronic Control Unit Ouput - 12 Volt - Inadvertant

K6

ORN

1732

Electronic Control Unit Ouput - 12 Volt - Inadvertant

K7

DK GRN

117

Speaker Return - Right Front

K7

LT BLU

117

Speaker Return - Right Front

K8

LT GRN

200

Speaker Feed - Right Front

K8

DK BLU

200

Speaker Feed - Right Front

K9-K10

--

--

Not Used

K9-K10

--

--

Not Used

K11

LT BLU

74

Park Lamp Switch Output

K11

LT BLU

74

Park Lamp Switch Output

K12

PNK

353

SRS Defeat Indicator Lamp Output -

K12

PNK

353

SRS Defeat Indicator Lamp Output - Passenger

K13

TAN/BLK

371

SRS Defeat Switch Signal - Passenger

K13

TAN/BLK

371

SRS Defeat Switch Signal - Passenger

L1

--

--

Not Used

L1

--

--

Not Used

L2

BRN/WHT

419

Check Engine Indicator Lamp Output

L2

BRN/WHT

419

Check Engine Indicator Lamp Output

L3

--

--

Not Used

L3

--

--

Not Used

L4

ORN/BLK

1786

Transmission Park/Neutral Signal

L4

ORN/BLK

1786

Transmission Park/Neutral Signal

L5

TAN/WHT

331

Oil Pressure Sensor Signal

L5

TAN/WHT

331

Oil Pressure Sensor Signal

L6

WHT

121

Tachometer Signal

L6

WHT

121

Tachometer Signal

L7

GRY

1036

Serial Data Signal - Class 2 - 10400 Baud - Diagnostic

L7

GRY

1036

Serial Data Signal - Class 2 - 10400 Baud - Diagnostic

L8-L13

--

--

Not Used

L8-L13

--

--

Not Used

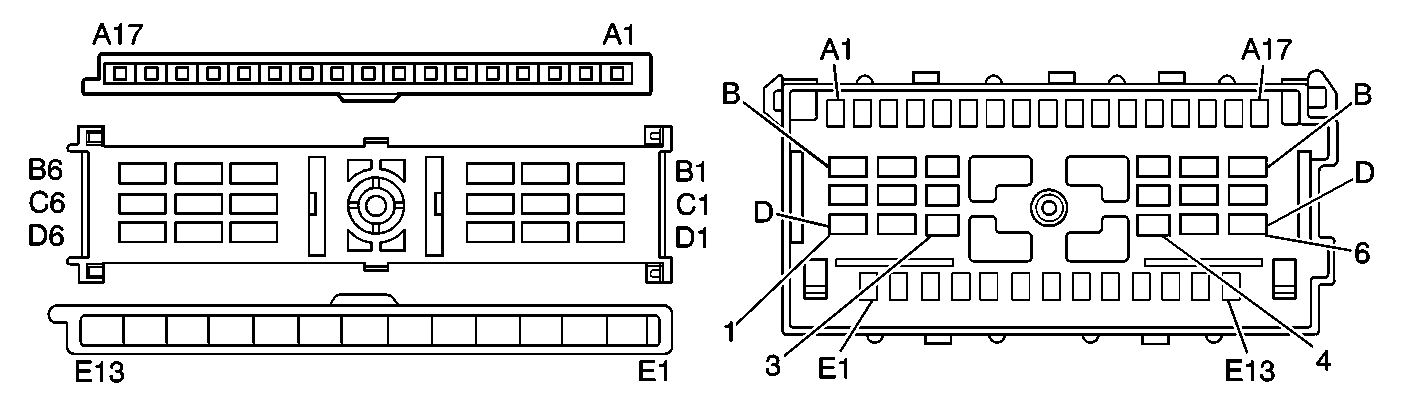

C211 (Body Harness to Steering Column Harness)


Object Number: 588847 Size: CF

Connector Part Information
    • 12047842
    • 17-Way F Metri-Pack 150 Series (BLK)
    • 12084183
    • 18-Way F Metri-Pack 280, 630 Series (BLK)
    • 12047840
    • 13-Way F Metri-Pack 280 Series (GRY)

Connector Part Information
    • 12077822
    • 48-Way M Metri-Pack 150, 280, 630 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

WHT

17

Stoplamp Switch Output

A1

WHT

17

Stoplamp Switch Output

A2

PNK

139

Fuse Output - Ignition 1

A2

PNK

139

Fuse Output - Ignition 1

A3

LT BLU

1508

Turn/Hazard Module Feed

A3

LT BLU

1508

Turn/Hazard Module Feed

A4

ORN

140

Fuse Output - Battery

A4

ORN

140

Fuse Output - Battery

A5

PPL

1697

Turn/Hazard Module Output

A5

PPL

1697

Turn/Hazard Module Output

A6

DK BLU

1415

Turn Signal Switch Output - Right Front

A6

DK BLU/WHT

1415

Turn Signal Switch Output - Right Front

A7

LT BLU

1414

Turn Signal Switch Output - Left Front

A7

LT BLU/WHT

1414

Turn Signal Switch Output - Left Front

A8

WHT

1356

Flash-to-Pass Switch Signal

A8

BRN

1356

Flash-to-Pass Switch Signal

A9

DK GRN/WHT

1786

Transmission Park/Neutral Signal

A9

ORN/BLK

1786

Transmission Park/Neutral Signal

A10

LT BLU

895

HMSL Relay Output-Common Contact

A10

YEL/BLK

895

HMSL Relay Output-Common Contact

A11

BLK

28

Horn Relay Output - Coil

A11

BLK

28

Horn Relay Output - Coil

A12

GRY

397

Cruise Control On Switch Output (w/ Cruise)

A12

GRY

397

Cruise Control On Switch Output (w/ Cruise)

A13

BRN

41

Fuse Output - Ignition 3 (w/ Cruise)

A13

BRN

41

Fuse Output - Ignition 3 (w/ Cruise)

A14

DK BLU

84

Cruise Control Set/Coast Switch Signal (w/ Cruise)

A14

DK BLU

84

Cruise Control Set/Coast Switch Signal (w/ Cruise)

A15

GRY/BLK

87

Cruise Control Resume/Accel Switch Signal (w/ Cruise)

A15

GRY/BLK

87

Cruise Control Resume/Accel Switch Signal (w/ Cruise)

A16

BLK

1850

Ground

A16

BLK

1850

Ground

A17

DK GRN/WHT

1135

Automatic Transmission Shift Lock Solenoid Feed

A17

DK GRN/WHT

1135

Automatic Transmission Shift Lock Solenoid Feed

B1

RED

242

Fuse Output - Battery

B1

RED

242

Fuse Output - Battery

B2

--

--

Not Used

B2

--

--

Not Used

B3

LT GRN

80

Key Reminder Switch Signal

B3

LT GRN

80

Key Reminder Switch Signal

B4

TAN

159

Ignition Key Alarm Switch Return

B4

BLK

1850

Ignition Key Alarm Switch Return

B5-B6

--

--

Not Used

B5-B6

--

--

Not Used

C1

WHT

1390

Ignition Switch Output - Off/Run/Crank

C1

WHT

1390

Ignition Switch Output - Off/Run/Crank

C2

RED/WHT

812

Reference Voltage Feed - 12 Volt Reference

C2

RED/WHT

812

Reference Voltage Feed - 12 Volt Reference

C3

--

--

Not Used

C3

--

--

Not Used

C4

ORN/BLK

1057

Sensor Return

C4

ORN/BLK

1057

Sensor Return

C5

PNK

3

Ignition Switch Output - Ignition 1

C5

PNK

3

Ignition Switch Output - Ignition 1 (Qty 2)

C6

ORN

300

Ignition Switch Output - Ignition 3

C6

ORN

300

Ignition Switch Output - Ignition 3

D1

YEL

5

Ignition Switch Output - Crank

D1

YEL

5

Ignition Switch Output - Crank

D2

RED/WHT

342

Ignition Switch Output - Off/Run/Crank

D2

RED

342

Ignition Switch Output - Off/Run/Crank

D3

YEL

1836

Magnetic Rotation Detection Sensor Signal

D3

YEL

1836

Magnetic Rotation Detection Sensor Signal

D4

--

--

Not Used

D4

--

--

Not Used

D5

RED

740

Fuse Output - Battery - Type III Fuse

D5

ORN

740

Fuse Output - Battery - Type III Fuse

D6

BRN

4

Ignition Switch Output - Accessory

D6

BRN

4

Ignition Switch Output - Accessory

E1

GRY

1696

Turn/Hazard Module Feed - Secondary

E1

GRY

1696

Turn/Hazard Module Feed - Secondary

E2

BLK

1850

Ground

E2

BLK

1850

Ground

E3

PPL

92

Windshield Wiper Motor Feed - High Speed

E3

PPL

92

Windshield Wiper Motor Feed - High Speed

E4

YEL

143

Fuse Output - Accessory - Type III Fuse

E4

YEL

143

Fuse Output - Accessory - Type III Fuse

E5

GRY

112

Windshield Wiper Switch Signal - Low/Pulse

E5

GRY

112

Windshield Wiper Switch Signal - Low/Pulse

E6

DK GRN

1419

Turn Signal Switch Output - Right Rear

E6

DK GRN/WHT

1419

Turn Signal Switch Output - Right Rear

E7

YEL

1418

Turn Signal Switch Output - Left Rear

E7

YEL/BLK

1418

Turn Signal Switch Output - Left Rear

E8

DK GRN

113

Windshield Wiper Switch Signal - On

E8

DK GRN

113

Windshield Wiper Switch Signal - On

E9

RED

228

Windshield Washer Pump Motor Feed

E9

RED

228

Windshield Washer Pump Motor Feed

E10

ORN

1140

Fuse Output - Battery

E10

ORN

1140

Fuse Output - Battery

E11

PPL

524

Headlamp Dimmer Switch Output - High Beam

E11

PPL

524

Headlamp Dimmer Switch Output - High Beam

E12

TAN

525

Headlamp Dimmer Switch Output - Low Beam

E12

YEL

525

Headlamp Dimmer Switch Output - Low Beam

E13

YEL/RED

10

Headlamp Switch Output

E13

YEL

10

Headlamp Switch Output

C214 (Body Harness to Steering Column Harness)


Object Number: 40382 Size: CF

Connector Part Information
    • 12186989
    • 2-Way F Metri-Pack 280 Series (YEL)

Connector Part Information
    • 15358601
    • 2-Way M Metri-Pack 280 Series (YEL)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

347

SRS Inflator Feed - Driver

A

WHT

347

SRS Inflator Feed - Driver

B

DK GRN

348

SRS Inflator Output - Return

B

DK GRN

348

SRS Inflator Output - Return

C217 (Body Harness to IP Harness)


Object Number: 73196 Size: CF

Connector Part Information
    • 12015664
    • 4-Way F Metri-Pack 630 Series (BLK)

Connector Part Information
    • 15317729
    • 4-Way M Metri-Pack 630 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN

4

Ignition Switch Output - Accessory

A

BRN

4

Ignition Switch Output - Accessory

B

DK BLU

75

Delayed Accessory Bus Relay Output - Common Contact

B

DK BLU

75

Delayed Accessory Bus Relay Output - Common Contact

C

ORN

300

Ignition Switch Output - Ignition 3

C

ORN

300

Ignition Switch Output - Ignition 3

D

RED

642

Fuse Output - Battery

D

RED

642

Fuse Output - Battery

C223 (IP Harness to Auxiliary Power Tray) (Extended Cab)


Object Number: 73244 Size: CF

Connector Part Information
    • 12015199
    • 2-Way F Metri-Pack 280 Series (NAT)

Connector Part Information
    • 12015271
    • 2-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Fuse Output - Battery

A

ORN

1040

Fuse Output - Battery

B

BLK

1050

Ground

B

BLK

1050

Ground

C224 (Body Harness to Ashtray Insert)


Object Number: 40395 Size: CF

Connector Part Information
    • 12092162
    • 4-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12162477
    • 4-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

640

Fuse Output - Battery

A

ORN

640

Fuse Output - Battery

B

BLK

1050

Ground

B

BLK

1050

Ground

C

BRN

2409

Fuse Output - Interior Park Lamps

C

BRN

2409

Fuse Output - Interior Park Lamps

D

BLK

1050

Ground

D

BLK

1050

Ground

C317 (Body Harness to Driver's Seat Assembly Pigtail Connector)


Object Number: 62455 Size: CF

Connector Part Information
    • 12064752
    • 6-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12064754
    • 6-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

--

--

Not Used

A

--

--

Not Used

B

BLK

1850

Ground

B

BLK

1850

Ground

C-D

--

--

Not Used

C-D

--

--

Not Used

E

BLK/WHT

238

Seat Belt Switch Signal

E

BLK/WHT

238

Seat Belt Switch Signal

F

--

--

Not Used

F

--

--

Not Used

C401 (Chassis Harness to Tail Lamp Harness)


Object Number: 362733 Size: CF

Connector Part Information
    • 12146045
    • 5-Way F Metri-Pack, Sealed 150 Series (NAT)

Connector Part Information
    • 12103974
    • 5-Way M Metri-Pack, Sealed 150 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN

2509

Fuse Output - Park Lamp - Left Rear

A

BRN

2509

Fuse Output - Park Lamp - Left Rear

B

LT GRN

1324

Fuse Output - Backup Lamps

B

LT GRN

1324

Fuse Output - Backup Lamps

C

DK GRN

619

Fuse Output - Turn/Stop Lamp - Right Rear

C

DK GRN

619

Fuse Output - Turn/Stop Lamp - Right Rear

D

YEL

618

Fuse Output - Turn/Stop Lamp - Left Rear

D

YEL

618

Fuse Output - Turn/Stop Lamp - Left Rear

E

BRN/WHT

2609

Fuse Output - Park Lamp - Right Rear

E

BRN/WHT

2609

Fuse Output - Park Lamp - Right Rear

C500 (Body Harness to LF Door Harness) (w/o Power Locks/Windows)


Object Number: 40392 Size: CF

Connector Part Information
    • 12047785
    • 4-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12066498
    • 4-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A-B

--

--

Not Used

A-B

--

--

Not Used

C

GRY

118

Speaker Return - Left Front

C

GRY

118

Speaker Return - Left Front

D

TAN

201

Speaker Feed - Left Front

D

TAN

201

Speaker Feed - Left Front

C500 (Body Harness to LF Door Harness) (w/ Power Locks/Windows)


Object Number: 362735 Size: CF

Connector Part Information
    • 15317325
    • 22-Way F Global Technology 150, 280 Series (BLK)

Connector Part Information
    • 15317322
    • 22-Way M Global Technology 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1-A2

--

--

Not Used

A1-A2

--

--

Not Used

A3

YEL

1496

Power Mirror Motor Feed

A3

YEL

1496

Power Mirror Motor Feed

A4

BLK

1850

Ground

A4

BLK

1850

Ground

A5

DK GRN

1001

Fuse Output - Retained Accessory Power

A5

DK GRN

1001

Fuse Output - Retained Accessory Power

A6

LT BLU

166

Power Window Master Switch Output - Right Front Window - Up

A6

LT BLU

166

Power Window Master Switch Output - Right Front Window - Up

A7

TAN

167

Power Window Master Switch Output - Right Front Window - Down

A7

TAN

167

Power Window Master Switch Output - Right Front Window - Down

A8

ORN

2267

Fuse Output - Heated Mirror Element

A8

ORN

2267

Fuse Output - Heated Mirror Element

A9

ORN

54

Door Jamb Switch Signal - Passenger

A9

--

--

Not Used

A10

LT GRN

262

Door Key Lock Cylinder Switch Signal - Driver

A10

--

--

Not Used

A11

PPL/WHT

889

Power Mirror Motor Feed - Right Vertical Motor - DOWN

A11

PPL/WHT

889

Power Mirror Motor Feed - Right Vertical Motor - DOWN

B1

YEL

116

Speaker Return - Left Front

B1

GRY

118

Speaker Return - Left Front

B2

BRN

199

Speaker Feed - Left Front

B2

TAN

201

Speaker Feed - Left Front

B3

RED/WHT

881

Power Mirror Motor Feed - Right horizontal Motor - RIGHT

B3

RED/WHT

881

Power Mirror Motor Feed - Right horizontal Motor - RIGHT

B4

ORN

840

Fuse Output - Battery

B4

ORN

840

Fuse Output - Battery

B5

TAN

694

Power Door Lock Motor Feed - Driver Door Unlock

B5

TAN

694

Power Door Lock Motor Feed - Driver Door Unlock

B6

--

--

Not Used

B6

--

--

Not Used

B7

GRY

295

Power Door Lock Motor Feed - Lock

B7

GRY

295

Power Door Lock Motor Feed - Lock

B8

--

--

Not Used

B8

--

--

Not Used

B9

WHT

194

Power Door Lock Relay Feed Unlock Coil

B9

WHT

194

Power Door Lock Relay Feed Unlock Coil

B10

LT BLU

195

Power Door Lock Relay Feed Lock Coil

B10

LT BLU

195

Power Door Lock Relay Feed Lock Coil

B11

BRN

2409

Fuse Output - Interior Park Lamps

B11

BRN

2409

Fuse Output - Interior Park Lamps

C601 (Body Harness to Door Harness, RH Front) (w/o Power Locks/Windows)


Object Number: 40392 Size: CF

Connector Part Information
    • 12047785
    • 4-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12066498
    • 4-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A-B

--

--

Not Used

A-B

--

--

Not Used

C

GRY

117

Speaker Return - Right Front

C

GRY

117

Speaker Return - Right Front

D

TAN

200

Speaker Feed - Right Front

D

TAN

200

Speaker Feed - Right Front

C601 (Body Harness to Door Harness, RH Front) (w/ Power Locks/Windows)


Object Number: 362735 Size: CF

Connector Part Information
    • 15317325
    • 22-Way F Global Technology 150, 280 Series (BLK)

Connector Part Information
    • 15317322
    • 22-Way M Global Technology 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

YEL

1496

Power Mirror Motor Feed - Common

A1

YEL

1496

Power Mirror Motor Feed - Common

A2

TAN

294

Power Door Lock Motor Feed - Unlock

A2

TAN

294

Power Door Lock Motor Feed - Unlock

A3

BRN

2409

Fuse Output - Interior Park Lamps

A3

BRN

2409

Fuse Output - Interior Park Lamps

A4

BLK

1050

Ground

A4

BLK

1050

Ground

A5

ORN

2267

Fuse Output - Heated Mirror Element

A5

ORN

2267

Fuse Output - Heated Mirror Element

A6

LT BLU

166

Power window Master Switch Output - Right Front Window - Up

A6

LT BLU

166

Power window Master Switch Output - Right Front Window - Up

A7

TAN

167

Power Window Master Switch Output - Right Front Window - Down

A7

TAN

167

Power Window Master Switch Output - Right Front Window - Down

A8

LT GRN

262

Door Key Lock Cylinder Switch Signal - Driver

A8

--

--

Not Used

A9

ORN

54

Door Jamb Switch Signal - Passenger

A9

--

--

Not Used

A10

RED/WHT

881

Power Mirror Motor Feed - Right Horizontal Motor - Right Direction

A10

RED/WHT

881

Power Mirror Motor Feed - Right Horizontal Motor - Right Direction

A11

PPL/WHT

889

Power Mirror Motor Feed - Right Vertical Motor - Down Direction

A11

PPL/WHT

889

Power Mirror Motor Feed - Right Vertical Motor - Down Direction

B1

DK GRN

117

Speaker Return - Right Rear

B1

LT BLU

115

Speaker Return - Right Rear

B2

LT GRN

200

Speaker Feed - Right Front

B2

DK BLU

46

Speaker Feed - Right Front

B3

ORN

840

Fuse Output - Battery

B3

ORN

840

Fuse Output - Battery

B4-B5

--

--

Not Used

B4-B5

--

--

Not Used

B6

DK GRN

1001

Fuse Output - Retained Accessory Power

B6

DK GRN

1001

Fuse Output - Retained Accessory Power

B7

DK BLU/WHT

727

Door Latch Switch Signal - Secondary (w/ Power Locks/Windows)

B7

DK BLU/WHT

727

Door Latch Switch Signal - Secondary (w/ Power Locks/Windows)

B8

--

--

Not Used

B8

--

--

Not Used

B9

WHT

194

Power Door Lock Relay Feed - Unlock Coil

B9

WHT

194

Power Door Lock Relay Feed - Unlock Coil

B10

LT BLU

195

Power Door Lock Relay Feed - Lock Coil

B10

LT BLU

195

Power Door Lock Relay Feed - Lock Coil

B11

GRY

295

Power Door Lock Motor Feed - Lock

B11

GRY

295

Power Door Lock Motor Feed - Lock
