Sunroof Schematics for Oldsmobile Alero 2003

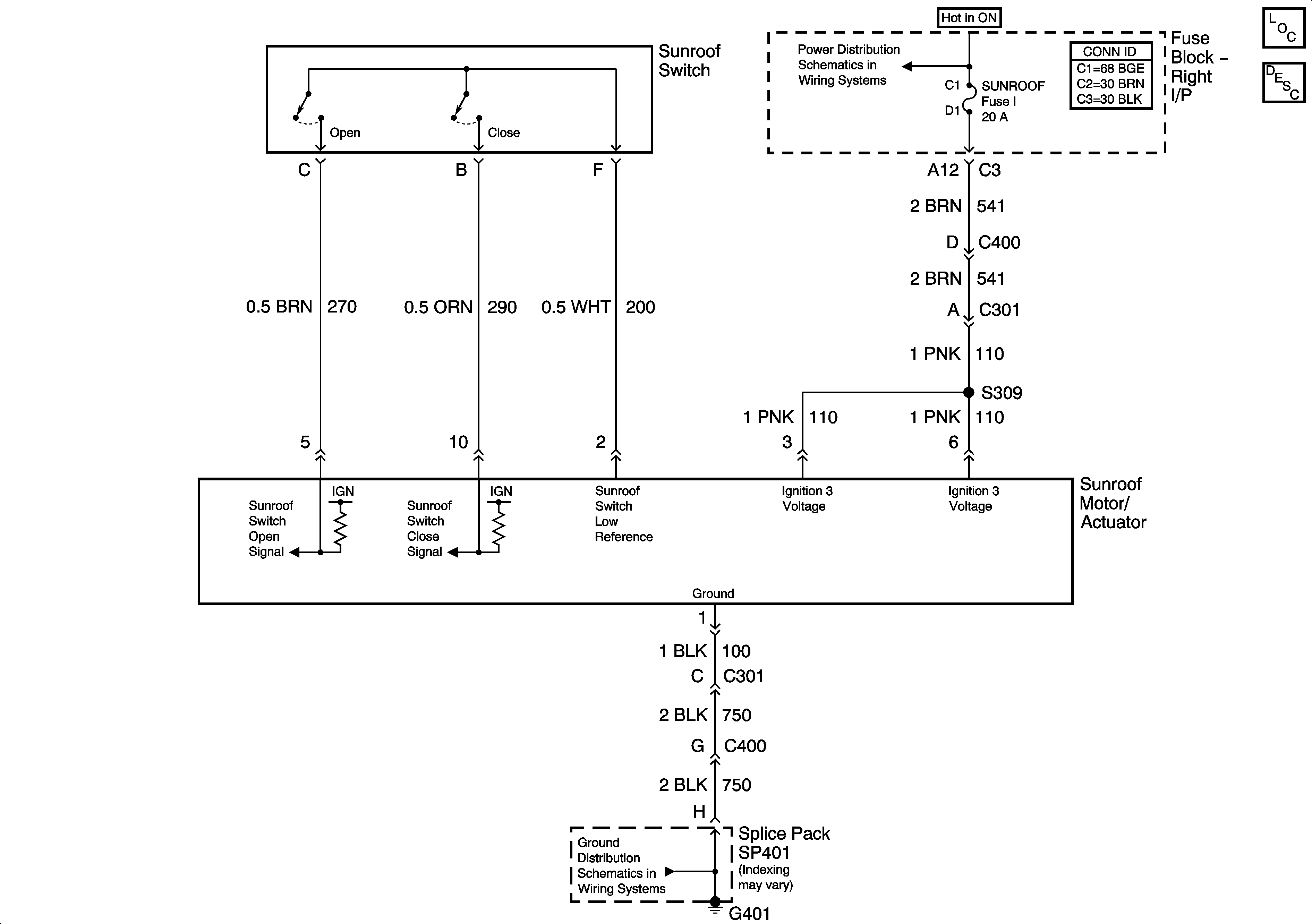

Figure
1:
Early Production
Master Electrical Component List
Sunroof Description and Operation
PWR WNDW, Circuit Breaker, CRUISE SW, CRUISE, SUNROOF, HVAC BLOWER Fuses
G401

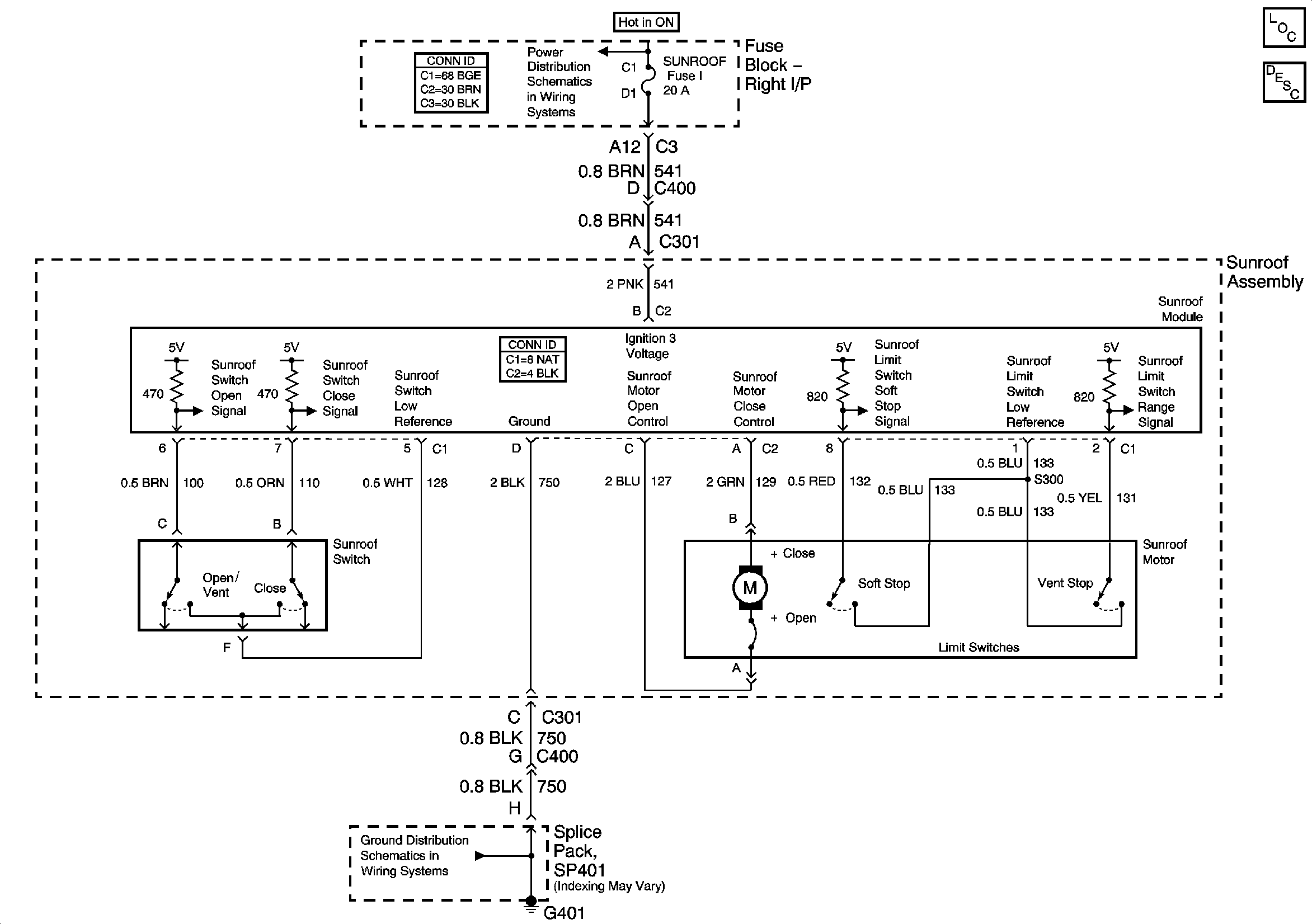

Figure
2:
Late Production
Master Electrical Component List
Sunroof Description and Operation
PWR WNDW, Circuit Breaker, CRUISE SW, CRUISE, SUNROOF, HVAC BLOWER Fuses
G401
