For 1990-2009 cars only
| Figure 1: |
Module Power, Ground, Serial Data and MIL
|
| Figure 2: |
Engine Data Sensors -- 5 Volt and Low Reference
|
| Figure 3: |
Engine Data Sensors -- Pressure and Temperature
|
| Figure 4: |
Engine Data Sensors -- MAF, VSS, and Extended Brake Travel Switch
|
| Figure 5: |
Engine Data Sensors -- O2S and/or HO2S
|
| Figure 6: |
Ignition Controls -- Ignition System
|
| Figure 7: |
Ignition Controls -- Sensors
|
| Figure 8: |
Fuel Controls -- Fuel Pump Controls
|

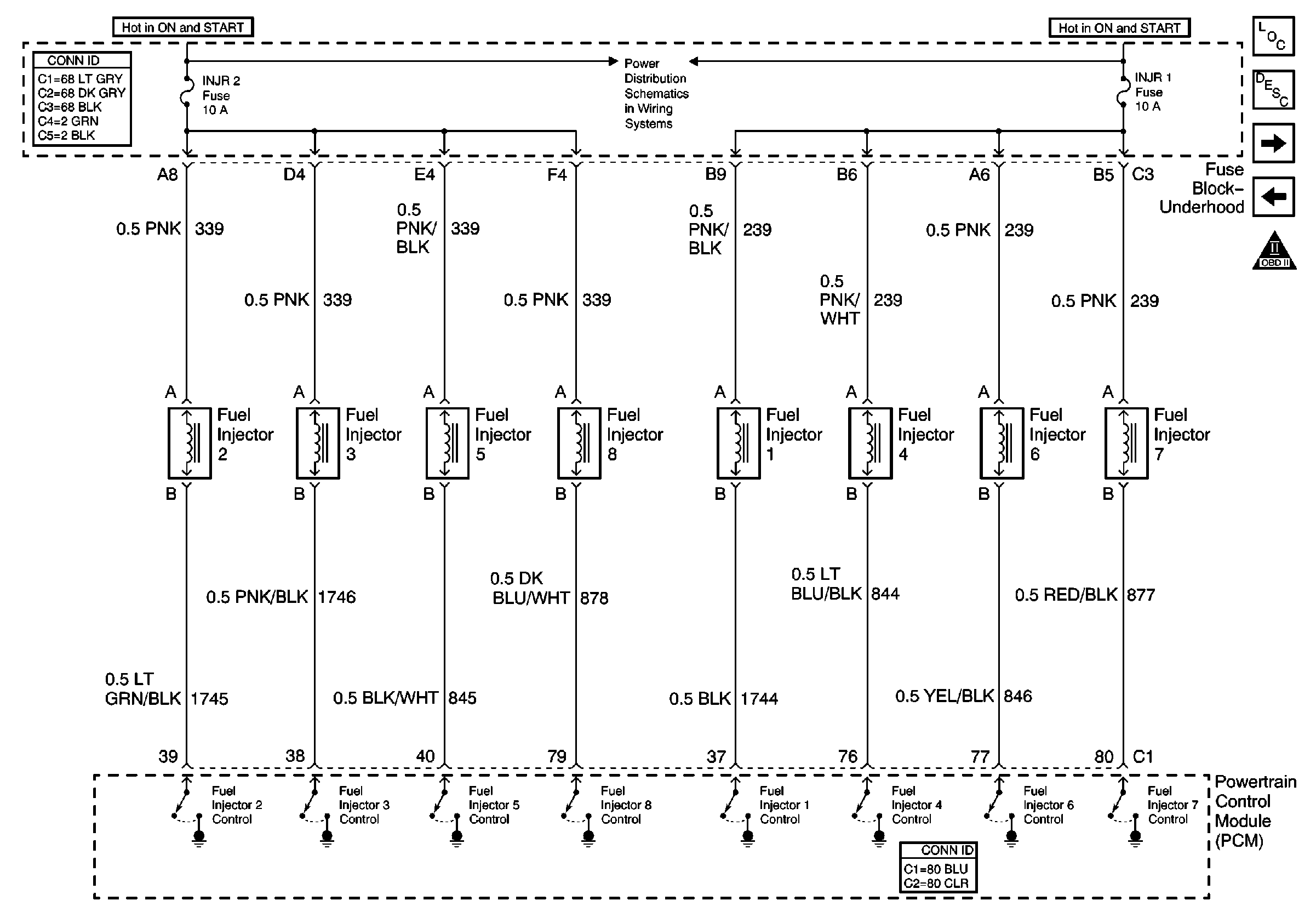

| Figure 9: |
Fuel Controls -- Fuel Injectors
|

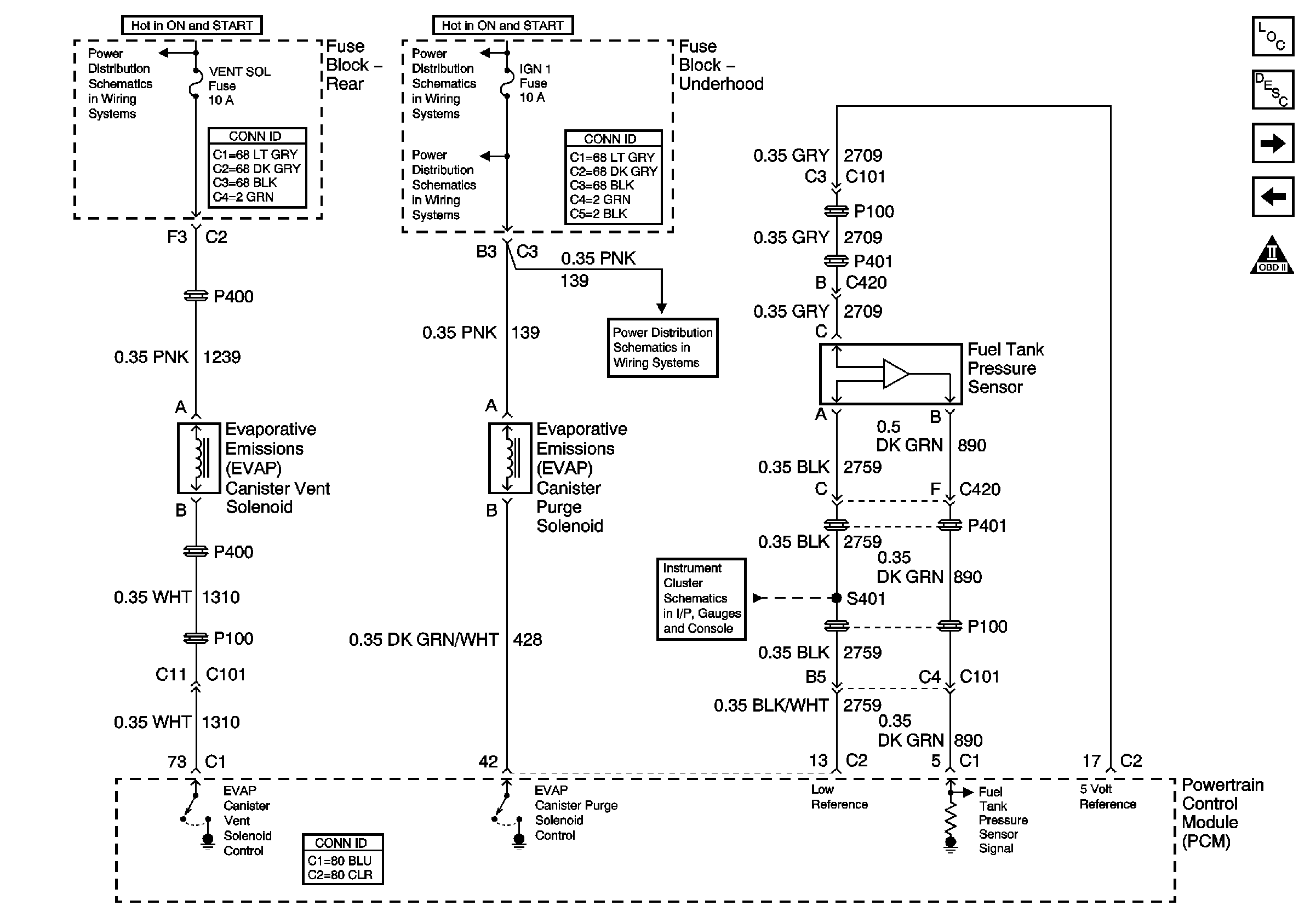

| Figure 10: |
Fuel Controls -- EVAP Controls
|
| Figure 11: |
Device Controls (Single Secondary Air Injection)
|

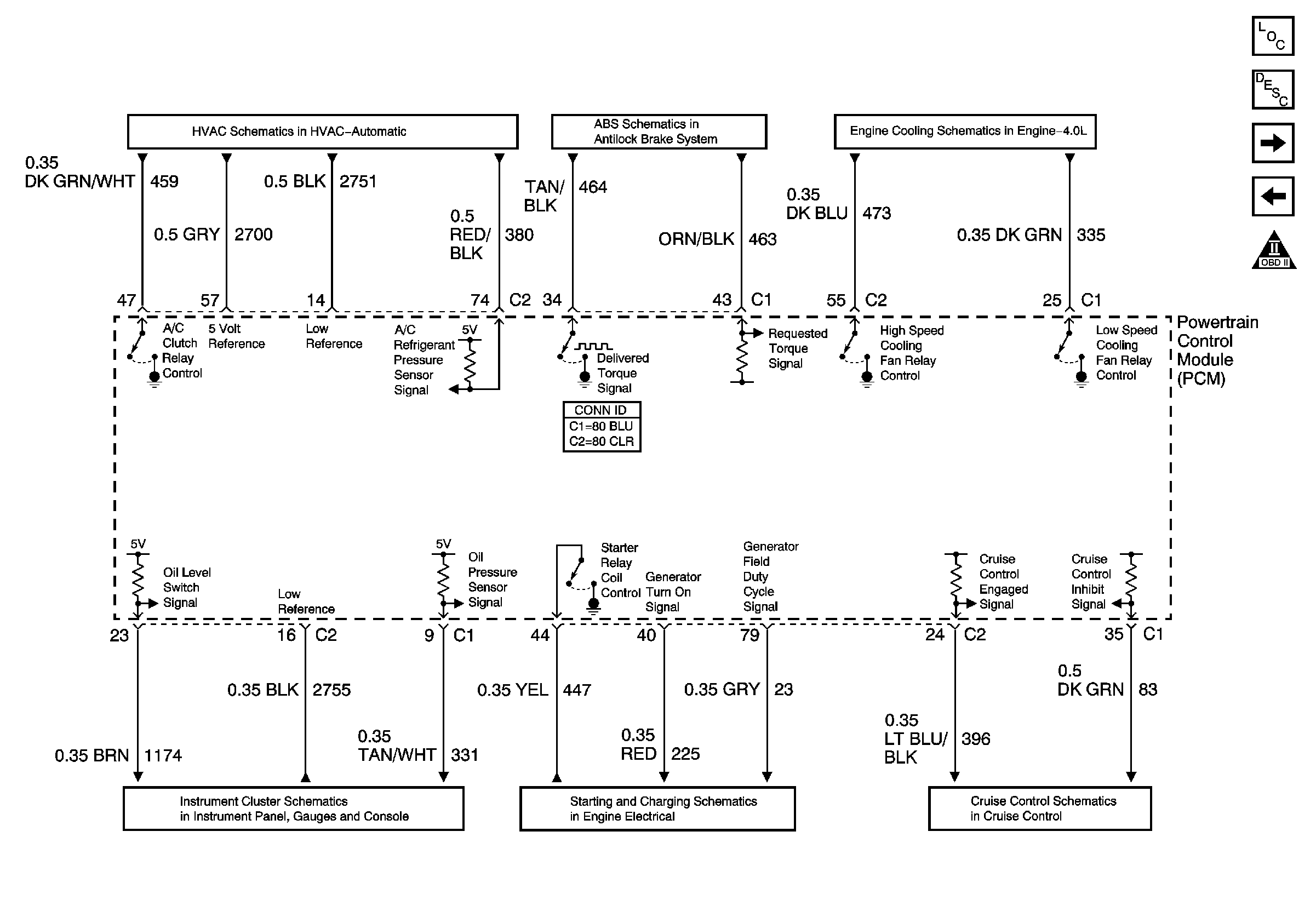

| Figure 12: |
Controlled/Monitored Subsystem References
|
| Figure 13: |
Transmission Controls -- A/T
|
