Body Control System Schematics. Oldsmobile Aurora 2002

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 2002 🢒 Aurora 🢒 Body and Accessories 🢒 Body Control System 🢒 Body Control System Schematics

Figure 1:	DIM Power and Grounds Master Electrical Component List Body Control System Description and Operation DIM Ignition Inputs IGN SW Fuse (Fuse Block-Rear) Serial Data Class 2 G200 Battery Feed to the Fuse Block-Rear IGN SW Fuse (Fuse Block-Rear) Battery Feed to the Fuse Block-Rear

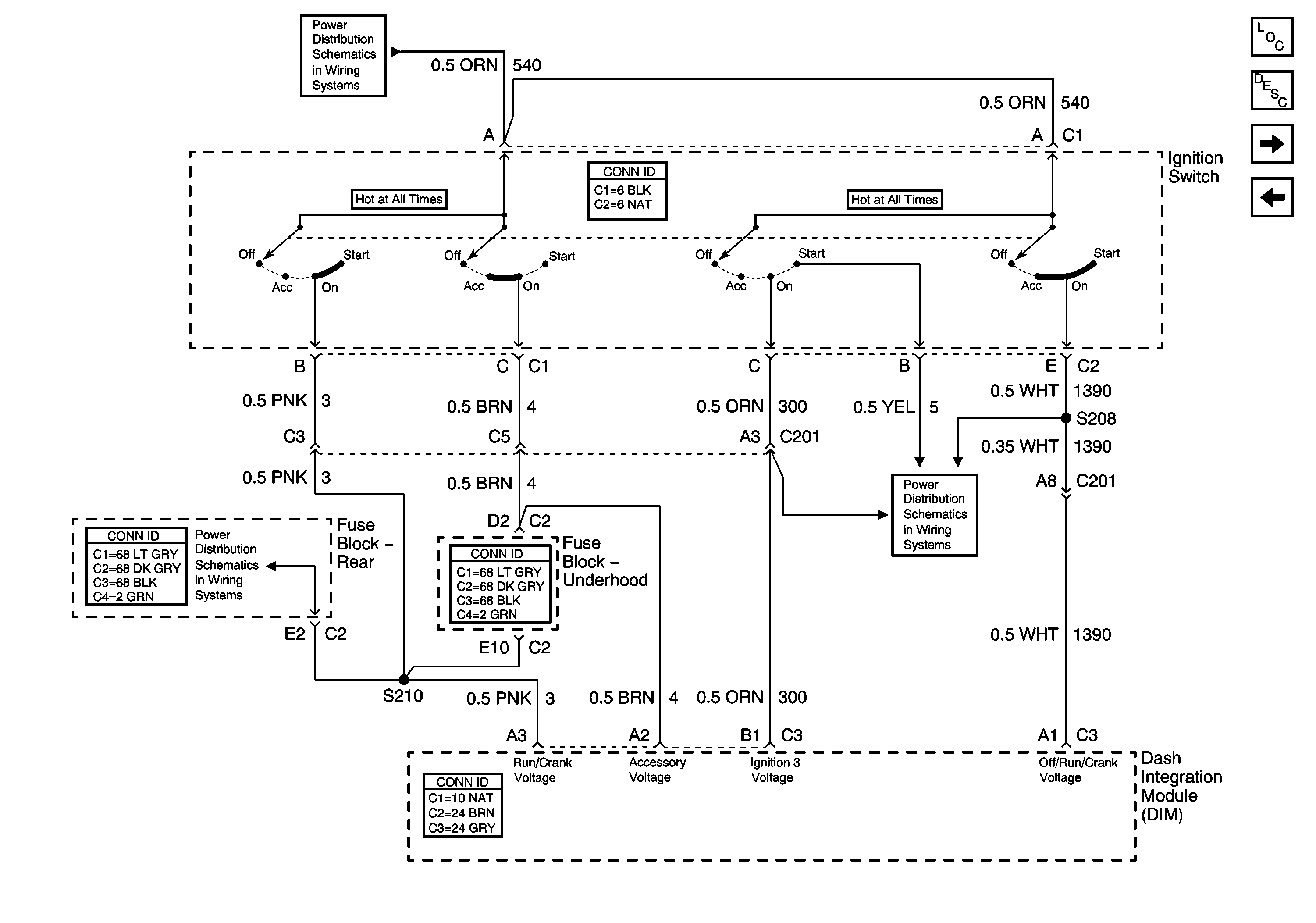

Figure 2:	DIM Ignition Inputs Master Electrical Component List Body Control System Description and Operation DIM Input/Output (1 of 2) DIM Power and Grounds IGN SW (Fuse Block-Rear) IGN SW (Fuse Block-Rear) IGN SW (Fuse Block-Rear)
Figure 3:	DIM Input/Output (1 of 2) Master Electrical Component List Body Control System Description and Operation DIM Input/Output (2 of 2) DIM Ignition Inputs Headlamp Switch and Sunload Sensor Assembly DRL, High Beam Headlamps, Headlamp Dimmer Switch Headlamp Switch and Sunload Sensor Assembly License Plate Lamps, Park Lamp Relay Low Beam Headlamps DRL, High Beam Headlamps, Headlamp Dimmer Switch Fog Lamps-Front A/C Orifice Solenoid

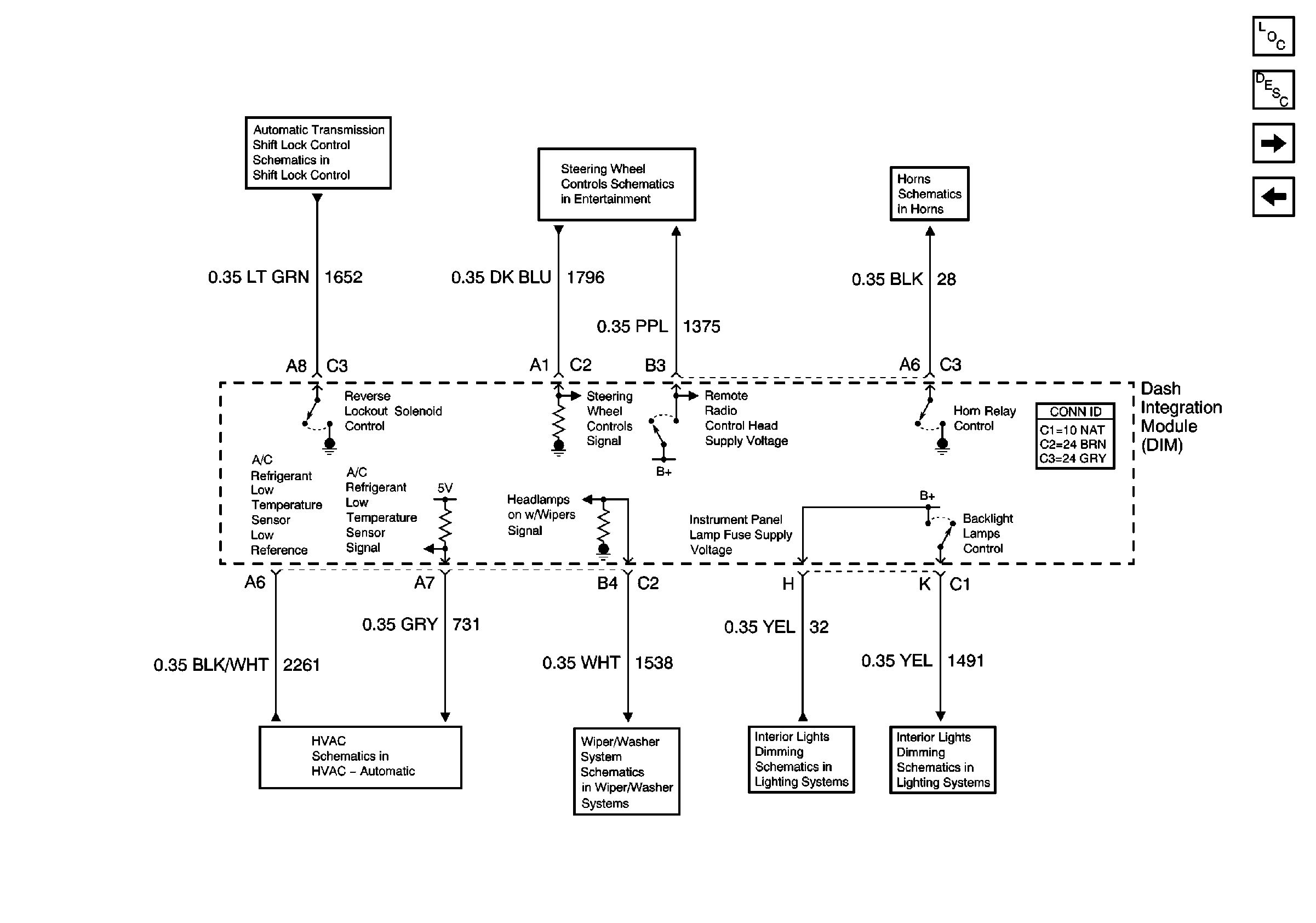

Figure 4:	DIM Input/Output (2 of 2) Master Electrical Component List Body Control System Description and Operation IPM Power and Grounds DIM Input/Output (1 of 2) Reverse Lockout Control Steering Wheel Controls Horns Compressor Control W/LX5 (V6) Windshield Wiper Switch and Fuse Dimming Control Instrument Panel/Console Dimming
Figure 5:	IPM Power and Grounds Master Electrical Component List Body Control System Description and Operation IPM Input/Output (1 of 2) DIM Input/Output (2 of 2) Battery Feed to the Fuse Block-Rear IGN 3 RR, ABS, HVAC Fuses (Fuse Block-Rear) Serial Data Class 2 G201 (2 of 2) G201 (2 of 2)

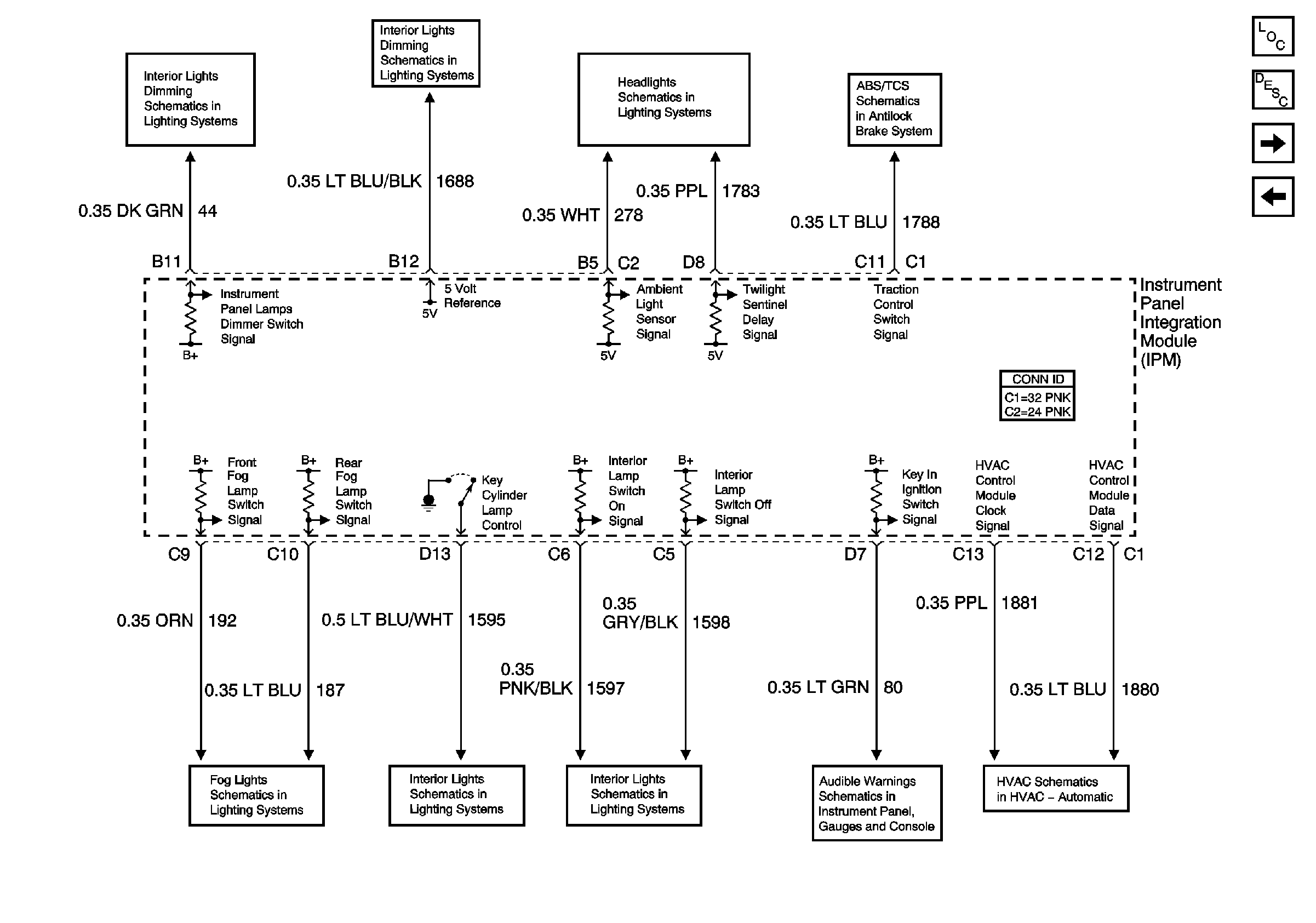

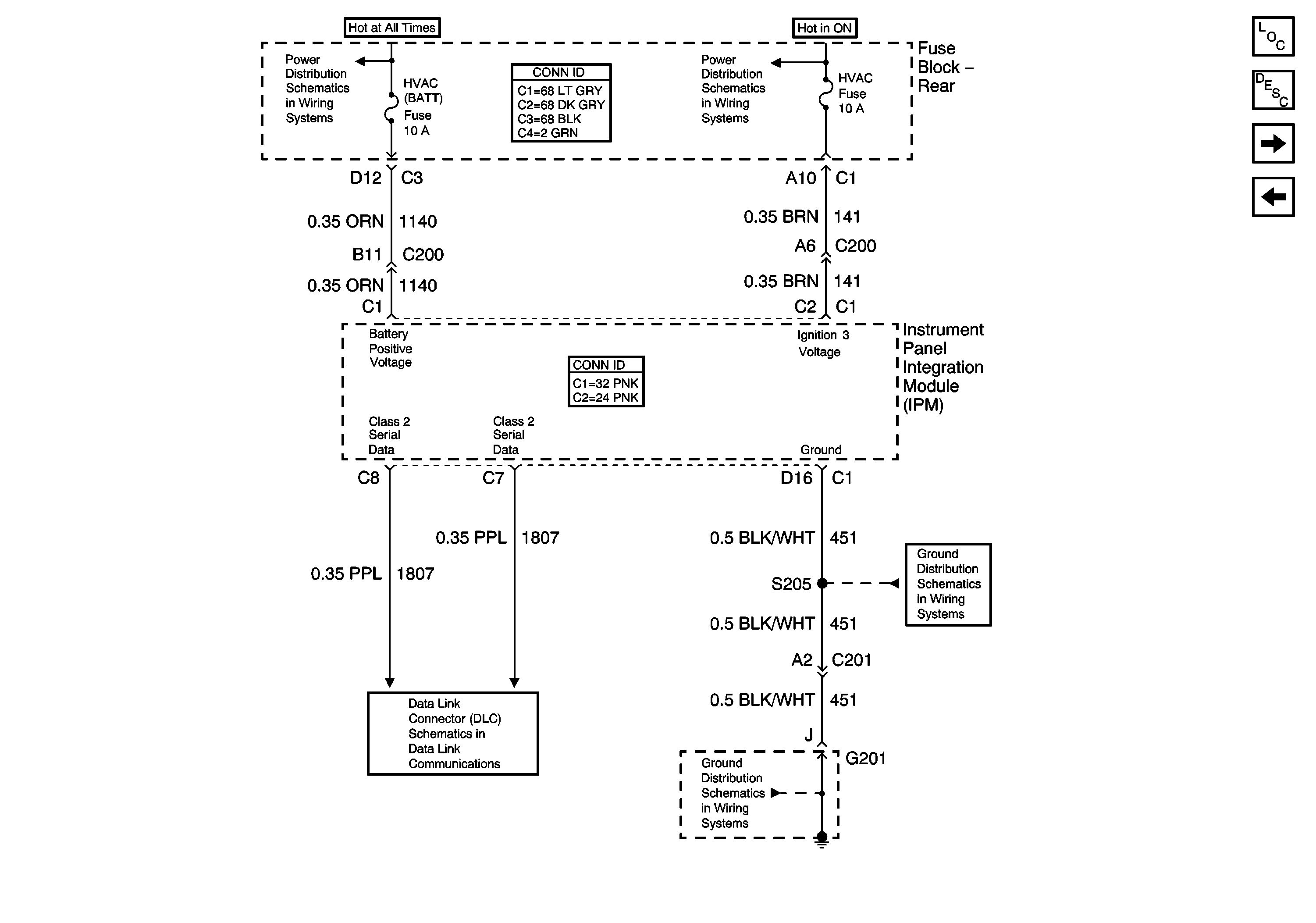

Figure 6:	IPM Input/Output (1 of 2) Master Electrical Component List Body Control System Description and Operation IPM Input/Output (2 of 2) IPM Power and Grounds Dimming Control Dimming Control Headlamp Switch and Sunload Sensor Assembly Indicators and Traction Control Switch Fog Lamps-Front Courtesy Lamps-Right Overhead Reading, Courtesy, and Vanity Mirror Lamps Audible Warnings HVAC Control Module

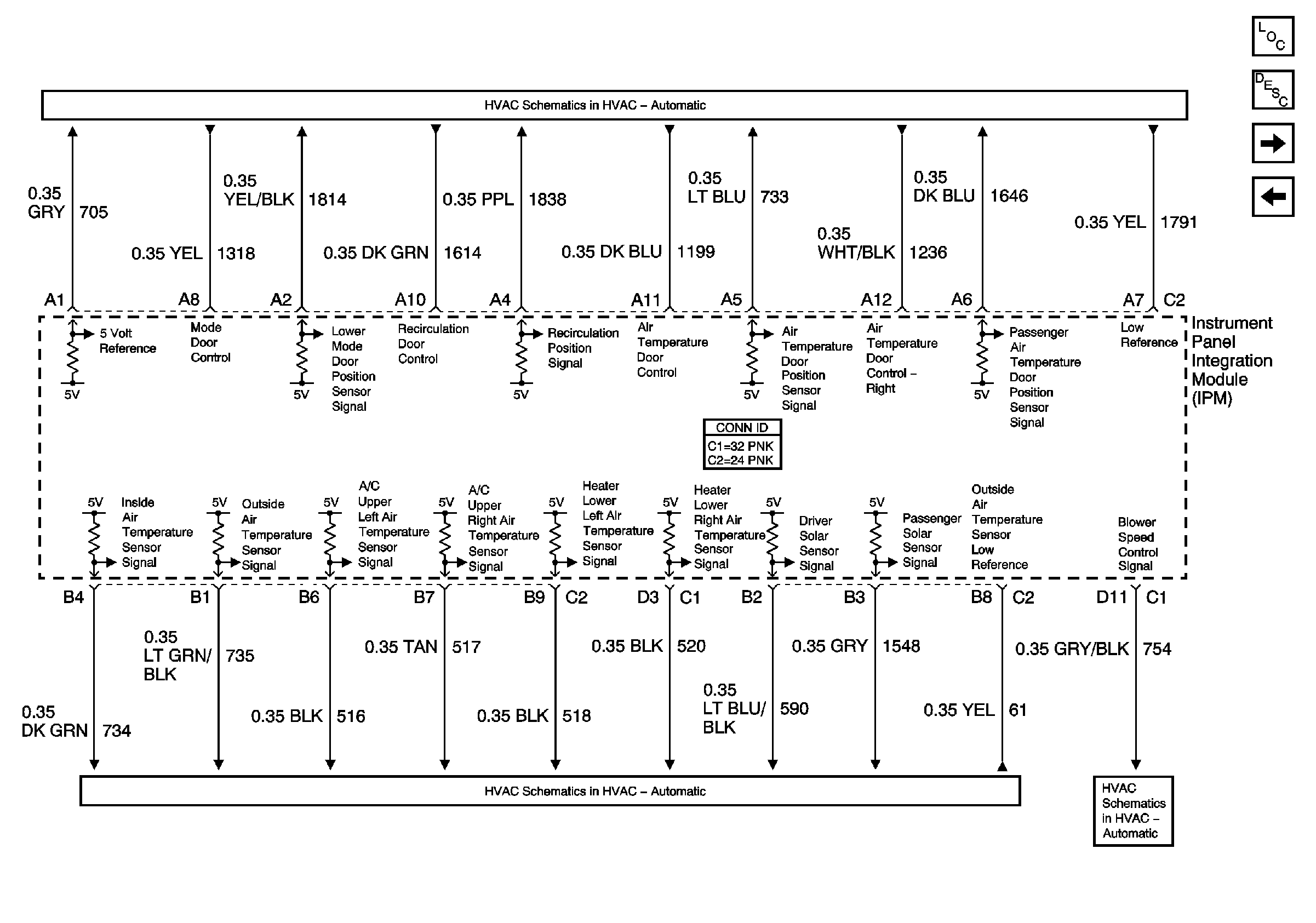

Figure 7:	IPM Input/Output (2 of 2) Master Electrical Component List Body Control System Description and Operation RIM Power and Grounds IPM Input/Output (1 of 2) Air Delivery Air Temperature Sensors Blower Control
Figure 8:	RIM Power and Grounds Master Electrical Component List Body Control System Description and Operation Rim Input/Output (1 of 2) IPM Input/Output (2 of 2) IGN SW Fuse (Fuse Block-Rear) IGN SW Fuse (Fuse Block-Rear) Serial Data Class 2 G302 IGN-1, VENT SOL, SIR Fuses and IGN 1 Relay (Fuse Block-Rear) IGN SW (Fuse Block-Rear) Battery Feed to the Fuse Block-Rear G402

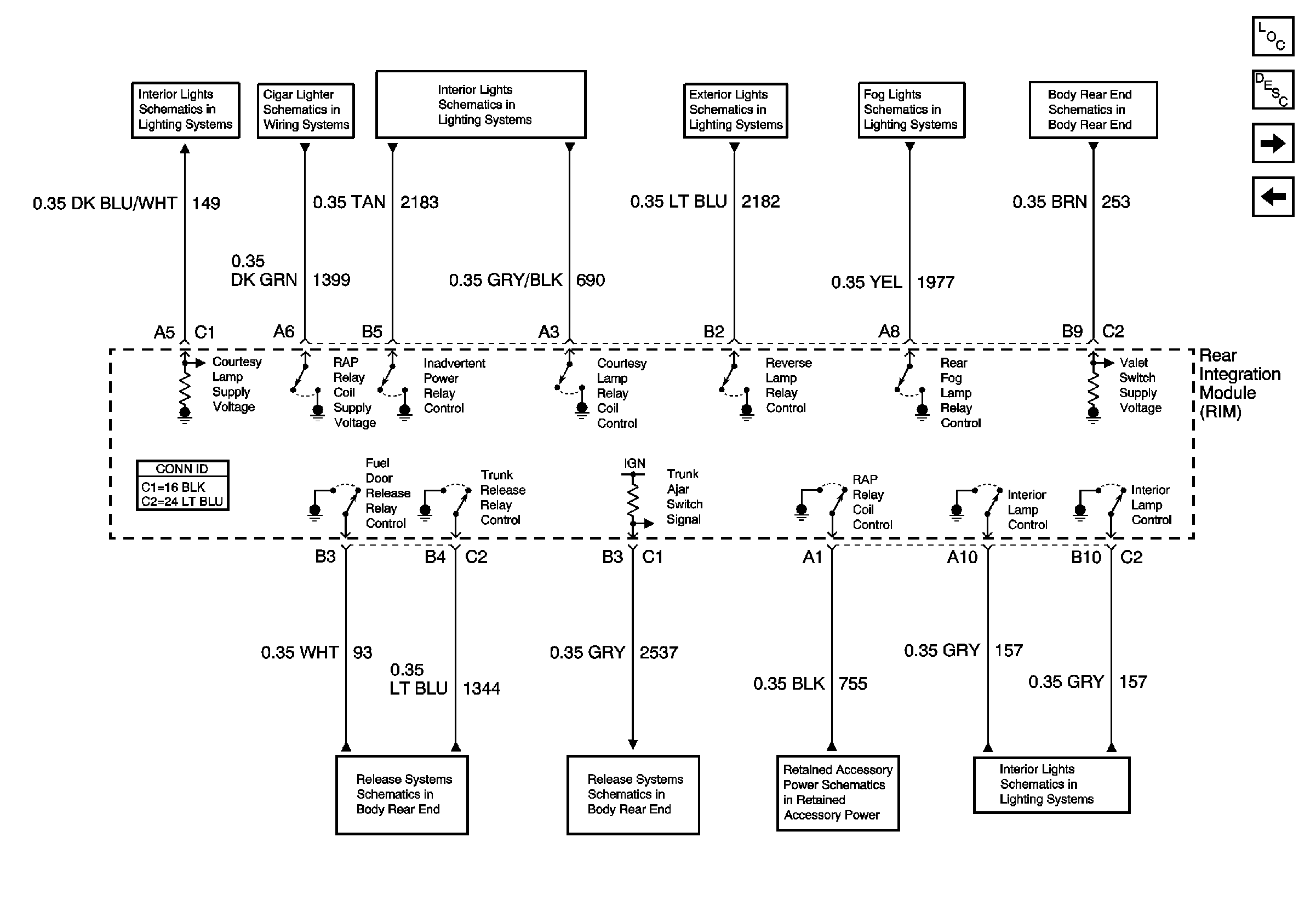

Figure 9:	Rim Input/Output (1 of 2) Master Electrical Component List Body Control System Description and Operation RIM Input/Output (2 of 2) RIM Power and Grounds Courtesy Lamps-Right Cigar Lighter/Auxiliary Outlets Interior and Front Courtesy Lamp Relays Backup Lamps Fog Lamps-Rear Fuel Door, Decklid Release and Rear Compartment Lamp (1 of 2) Fuel Door, Decklid Release and Rear Compartment Lamp (1 of 2) Retained Accessory Power (RAP) Courtesy Lamps-Right Fuel Door, Decklid Release and Rear Compartment Lamp (2 of 3)w/ Rear Compartment Entrapment Protection
Figure 10:	RIM Input/Output (2 of 2) Master Electrical Component List Body Control System Description and Operation Rim Input/Output (1 of 2) Front Heated Seats (Partial) Defogger Automatic Level Control Suspension Schematics Power and Grounds
