Removal Procedure

    Object Number: 176352 Size: SH
  1. Remove the seat back. Refer to Rear Seat Back Replacement .
  2. Remove the rear seat back from the frame.
  3. Remove the J-hook retainer at the bottom of the seat.
  4. If seat with armrest, remove the seat back armrest. Refer to Rear Seat Armrest Replacement .

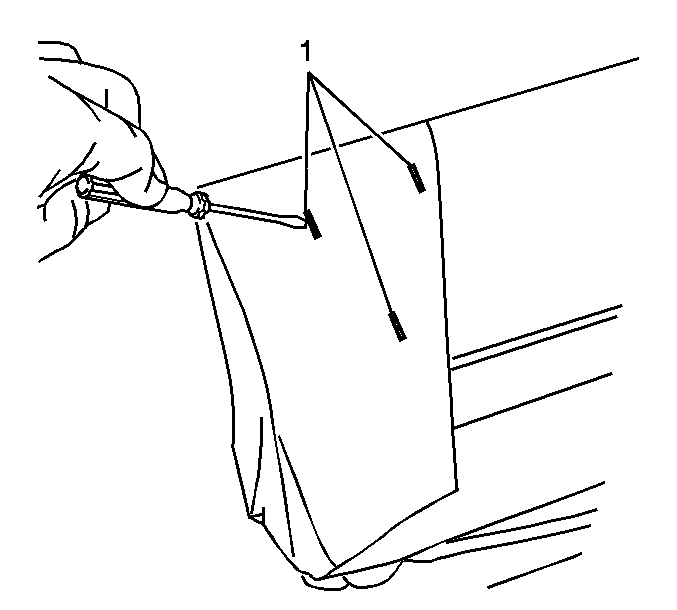

    5. Object Number: 815411 Size: SH
  5. Remove the trim staples from the seat back cover.

    6. Object Number: 815408 Size: SH
  6. Carefully separate the hook and loop retainers securing the seat back cover to the seat back pad.

    7. Object Number: 530908 Size: SH
  7. Pull the seat back cover up and off the seat back.

Installation Procedure

    Object Number: 530908 Size: SH
  1. Pull the seat back cover down over the seat back.

    2. Object Number: 815408 Size: SH
  2. Firmly press the seat back cover to the seat back pad to secure the hook and loop retainers.
  3. Install the trim staples to the seat back cover.
  4. Install the J-hook retainer at the bottom of the seat back.
  5. If equipped, install the seat back armrest. Refer to Rear Seat Armrest Replacement .
  6. Install the rear seat back to the frame.
  7. Install the seat back. Refer to Rear Seat Back Replacement .
