Lighting Systems Component Views. Pontiac Aztek

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2001 🢒 Aztek - AWD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Lighting Systems Component Views

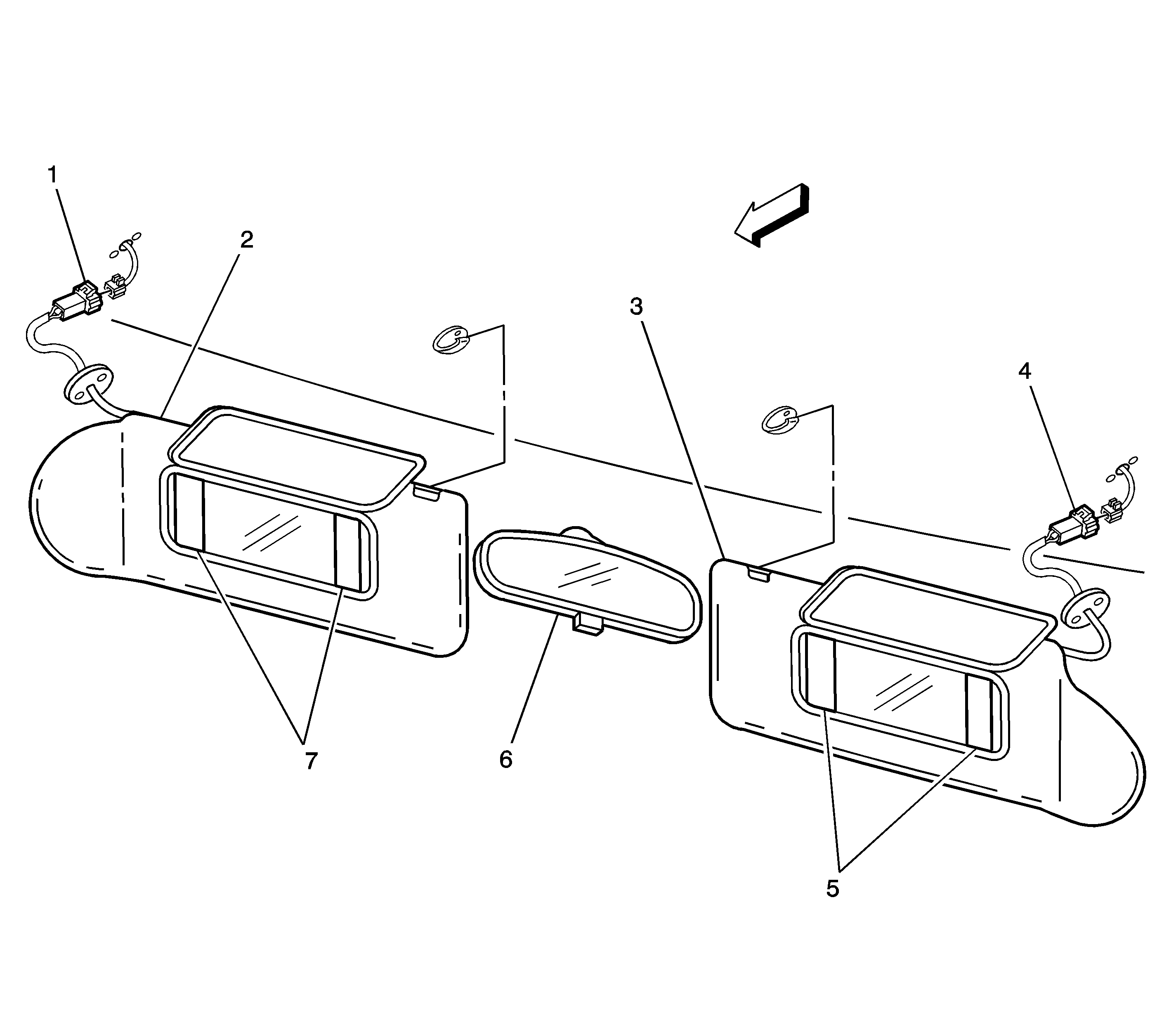

Figure 1:


(1)	Vanity Mirror Lamp - Left Connector
(2)	Left Sunshade
(3)	Right Sunshade
(4)	Vanity Mirror Lamp - Right Connector
(5)	Vanity Mirror Lamp - Right
(6)	Inside Rearview Mirror
(7)	Vanity Mirror Lamp - Left

Figure 2:


(1)	Cruise Control Release Switch Connector (LA1)
(2)	Stop Lamp Switch
(3)	Stop Lamp Switch Connector C2
(4)	Stop Lamp Switch Connector C1
(5)	Cruise Control Release Switch (LA1)

Figure 3:


(1)	Park/Turn Signal Lamp - RF (LF Similar)
(2)	Low Beam/High Beam Headlamp Assembly - LF (RF Similar)
(3)	Fog Lamp - LF (RF Similar)

Figure 4:


(1)	Instrument Cluster
(2)	Driver's Information/HUD Switches
(3)	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
(4)	Security Indicator Lamp
(5)	Inflatable Restraint I/P Module
(6)	HVAC Control Module
(7)	Fuse Block-Center Console
(8)	Cigar Lighter
(9)	Auxiliary Power Outlet-Center Console Lower (2002 and earlier)
(10)	Auxiliary Power Outlet-Center Console Upper
(11)	Radio
(12)	Ignition Switch
(13)	Turn Signal, Wiper, Washer, Cruise and High Beam Switch

Figure 5:


(1)	Center High Mount Stop Lamp (CHMSL)
(2)	Rear Window Defogger Grid
(3)	Outside Rear View Mirror-Passenger
(4)	Tail, Brake, and Signal Lamp Assembly-RR (LR Similar)
(5)	Back--Up Lamp
(6)	Cargo Lamp

Figure 6:


(1)	Park/Turn Signal Lamp - RF (LF Similar)
(2)	Cellular Antenna
(3)	Low Beam/High Beam Headlamp Assembly - LF (RF Similar)
(4)	Front Marker Lamp - LF (RF Similar)
(5)	Fog Lamp - LF (RF Similar)

Figure 7:


(1)	Headlamp Switch
(2)	Turn Signal Switch/Multifunction Switch
(3)	Hazard Switch
(4)	Instrument Panel Cluster (IPC)
(5)	Automatic Transmission Shift Lever
(6)	Radio
(7)	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
(8)	Alarm LED
(9)	Fuse Block - Center Console
(10)	Center Console Switchbank
(11)	HVAC Control Module
(12)	Steering Wheel Controls - Right
(13)	Ignition Switch
(14)	Head Up Display (HUD) Switch and Driver Information Center (DIC) Switch
(15)	Steering Wheel Controls - Left

Figure 8:


(1)	Center High Mount Stop Lamp (CHMSL)
(2)	Rear Window Defogger Grid
(3)	Stop, Signal and Park Lamps-RR (LR Similar)
(4)	Rear Wiper Arm
(5)	Backup Lamps
(6)	Object Sensor RT Outer
(7)	Object Sensor RT Center
(8)	Object Sensor LT Center
(9)	Object Sensor LT Outer
(10)	End Gate Release Handle
(11)	Tail Lamp-Left (Right Similar)
(12)	License Lamp
(13)	Cargo Lamp

Figure 9:
