Removal Procedure
  1. Remove the throttle body air inlet duct. Refer to Air Cleaner Inlet Duct Replacement in Engine Controls-3.4L.

    2. Object Number: 161164 Size: SH
  2. Use a flat-bladed tool in order to remove the retaining clip from the automatic transaxle range selector cable.

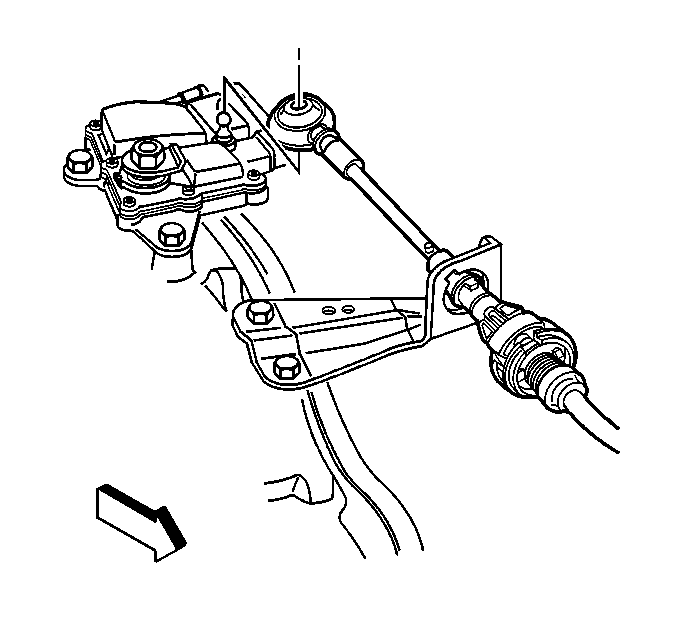

    3. Object Number: 368792 Size: SH
  3. Use a large flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever.
  4. Use pliers in order to depress the cable retainers.
  5. Remove the automatic transaxle range selector cable from the automatic transaxle range selector cable bracket.
  6. Remove the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.

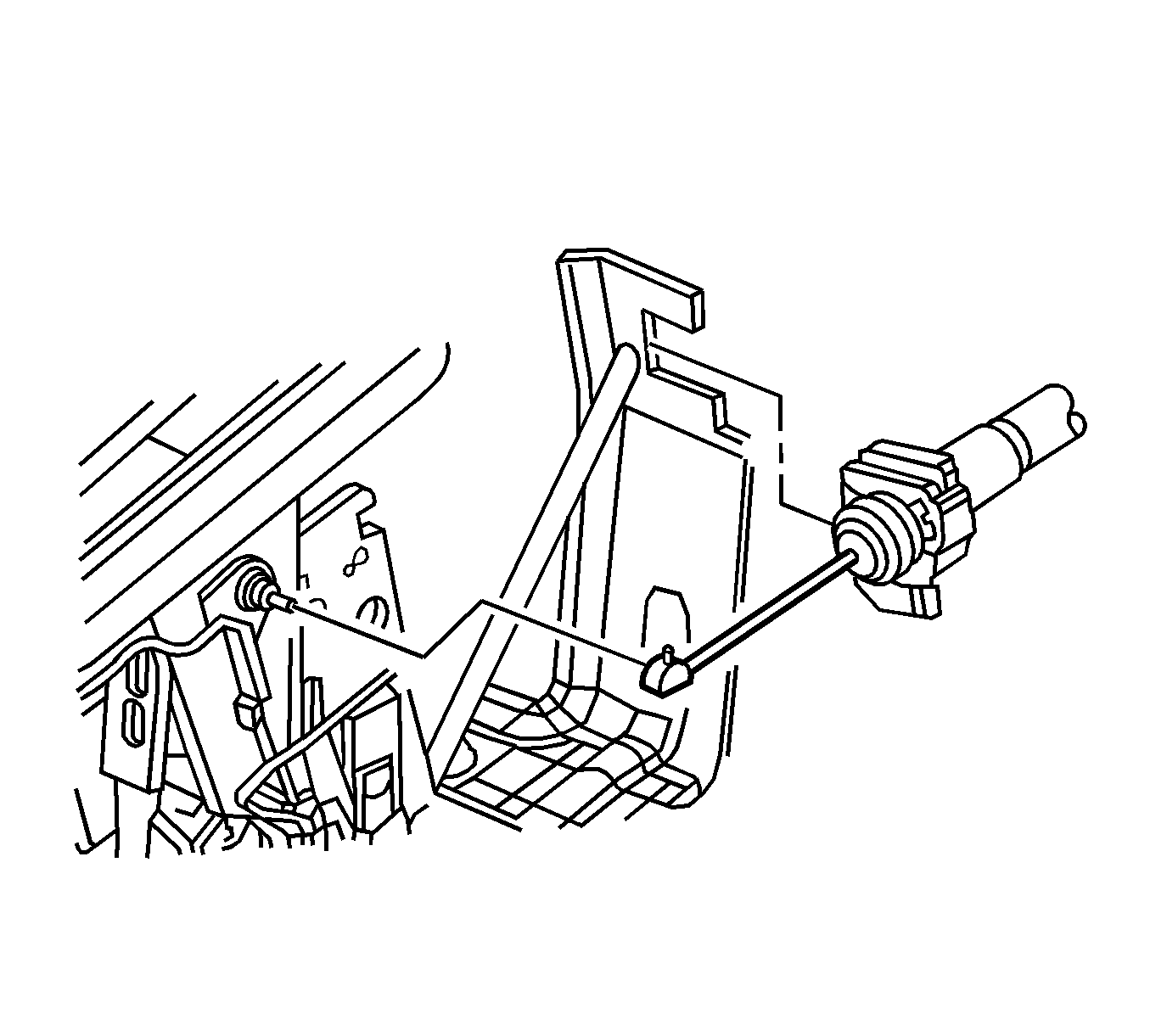

    7. Object Number: 1236459 Size: SH
  7. If the vehicle is equipped with a console shift, perform the following steps:
    8. 7.1. Remove the console trim plate. Refer to Front Floor Console Trim Plate Replacement in Instrument Panel, Gages and Console.
    7.2. Remove the transaxle shift cable from the floor shift control.

    Object Number: 161141 Size: SH
  8. If the vehicle is equipped with a column shift, perform the following steps:
    9. 8.1. Remove the retaining clip from the automatic transaxle range selector cable.
    8.2. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the column control lever.
    8.3. Remove the automatic transaxle range selector cable from the steering column bracket.

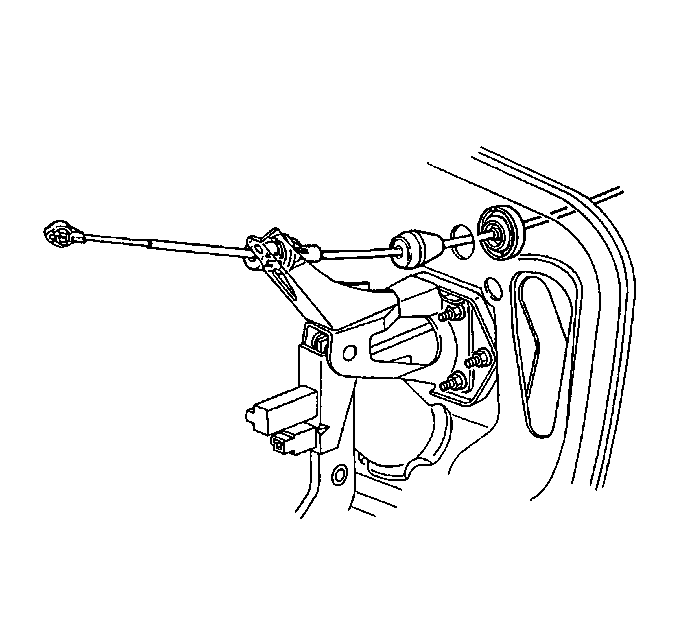

    Object Number: 161138 Size: SH
  9. Remove the automatic transaxle range selector cable through the cowl.

Installation Procedure

    Object Number: 161144 Size: SH
  1. Properly route the automatic transaxle range selector cable through the engine compartment.

    2. Object Number: 161138 Size: SH
  2. Install the automatic transaxle range selector cable through the cowl.

    3. Object Number: 161141 Size: SH
  3. If the vehicle is equipped with a column shift, perform the following steps:
    4. 3.1. Install the automatic transaxle range selector cable to the steering column bracket.
    3.2. Install the retaining clip to the automatic transaxle range selector cable.
    3.3. Install the automatic transaxle range selector cable to the column control lever.

    Object Number: 1236459 Size: SH
  4. If the vehicle is equipped with a console shift, perform the following steps:
    5. 4.1. Install the transaxle shift cable to the floor shift control.
    4.2. Install the console trim plate. Refer to Front Floor Console Trim Plate Replacement in Instrument Panel, Gages and Console
  5. Install the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.

    6. Object Number: 368792 Size: SH
  6. Install the automatic transaxle range selector cable to the automatic transaxle range selector cable bracket.
  7. Install the automatic transaxle range selector cable to the automatic transaxle range selector lever.

    8. Object Number: 161164 Size: SH
  8. Install the retaining clip to the automatic transaxle range selector cable.
  9. Adjust the automatic transaxle range selector cable. Refer to Range Selector Lever Cable Adjustment .
  10. Install the throttle body air inlet duct. Refer to Air Cleaner Inlet Duct Replacement in Engine Controls-3.4L.
