Lighting Systems Component Views. Pontiac Grand Prix 2002

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2002 🢒 Grand Prix 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T65-E 🢒 Lighting Systems Component Views

Figure 1:

Floor Console


(1)	Automatic Transmission Shift Lock Actuator, Connector
(2)	Automatic Transmission Shift Lock Actuator
(3)	C325
(4)	Automatic Transaxle Shift Lever Position Indicator
(5)	S374
(6)	A/T Shift Lock Control Solenoid, Connector
(7)	C240
(8)	Heated Seat Switch - Driver, Connector
(9)	Auxiliary Power Outlet - Console, Connector

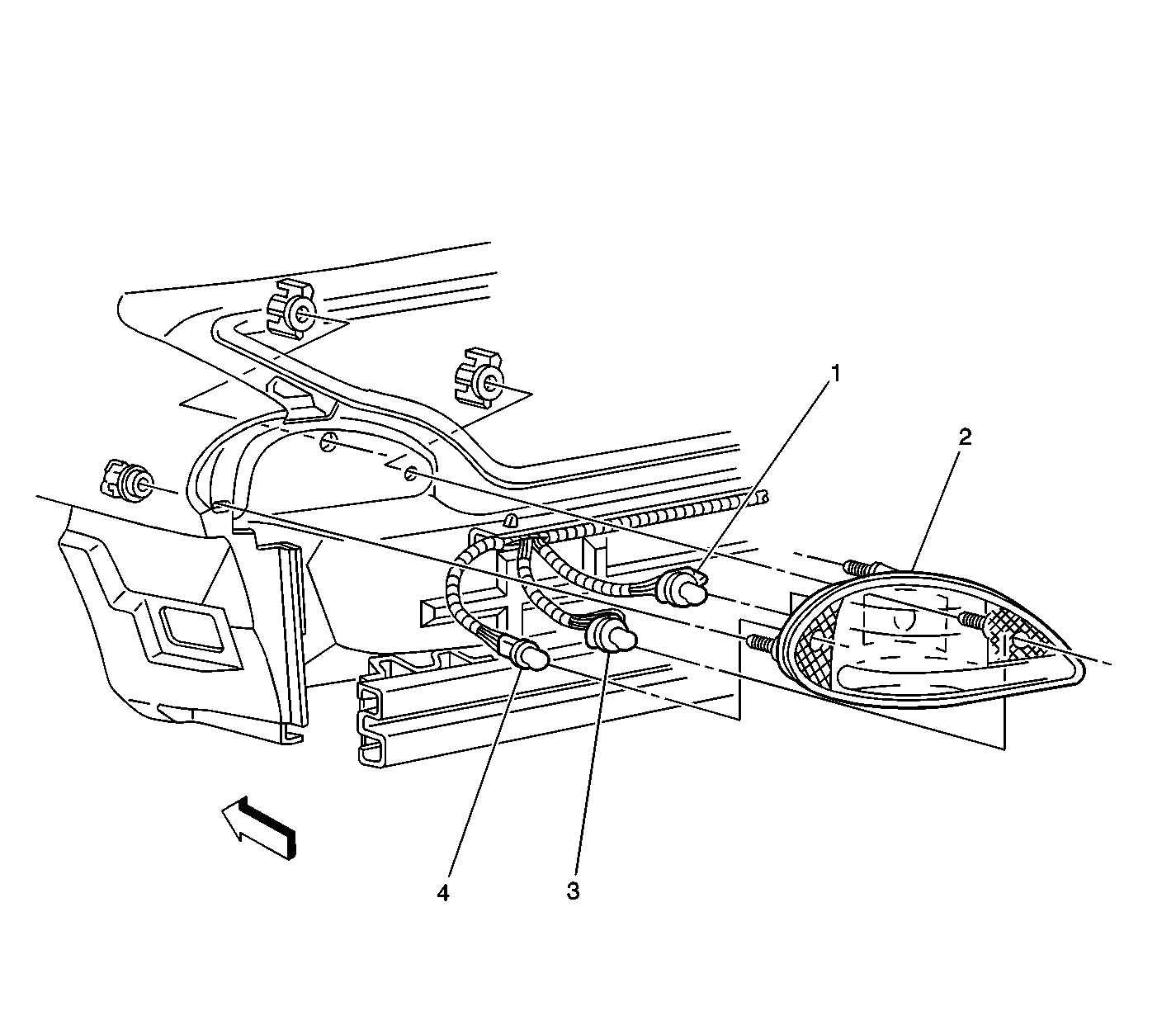

Figure 2:

Tail Lamp Assembly - Left (Right Similar)


(1)	Backup Lamp - Left
(2)	Tail Lamp Assembly
(3)	Tail/Stop and Turn Signal Lamp - Left
(4)	Marker Lamp - LR

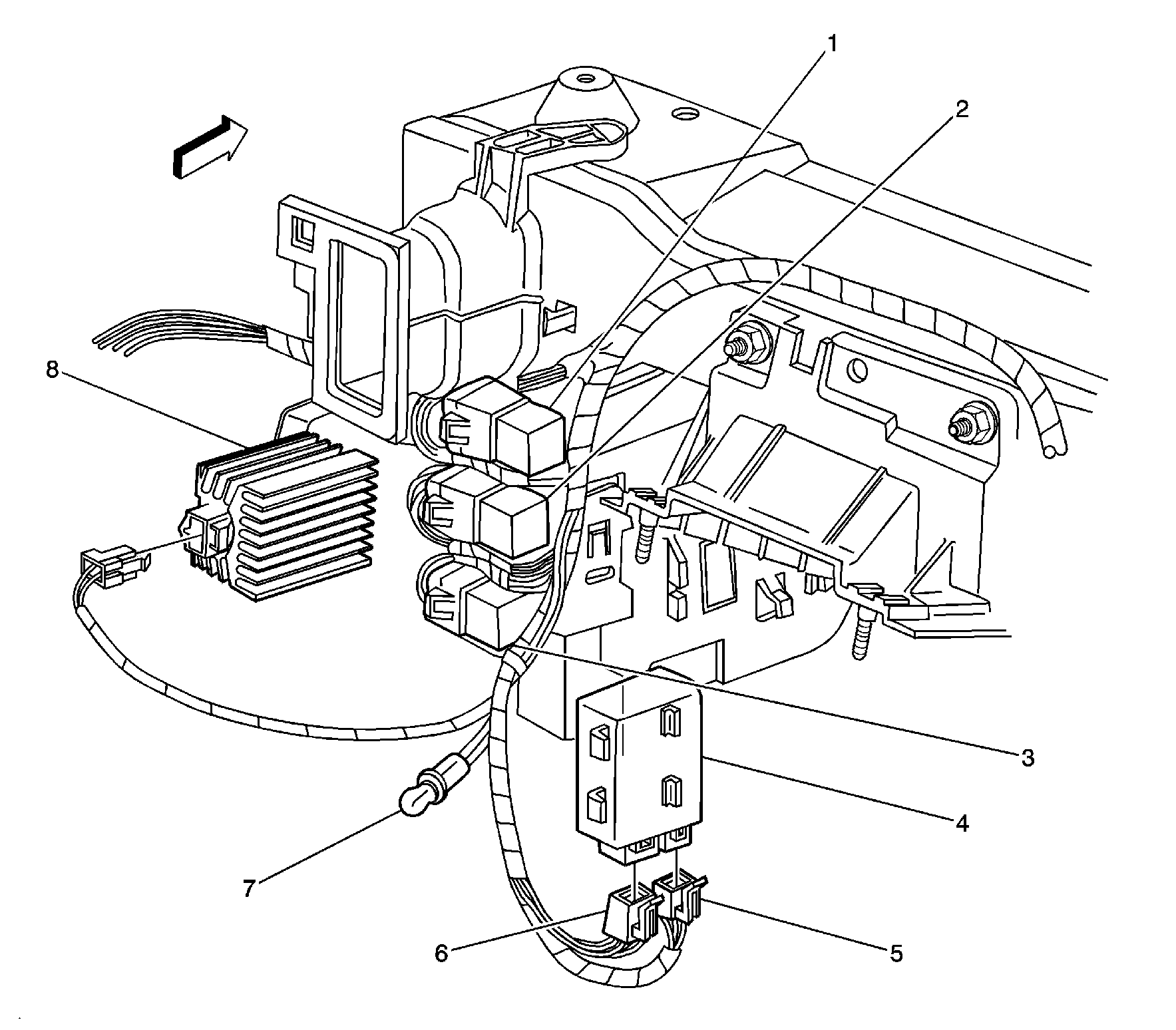

Figure 3:

LH Lower Side of I/P


(1)	Turn Signal/Hazard Flasher Module
(2)	Theft Deterrent Relay
(3)	Rear Compartment Lid Release Relay
(4)	Daytime Running Lamps (DRL) Control Module
(5)	Daytime Running Lamps (DRL) Control Module, C1
(6)	Daytime Running Lamps (DRL) Control Module, C2
(7)	I/P Courtesy Lamp -- Left
(8)	Daytime Running Lamps (DRL) Diode

Figure 4:

Inside I/P Compartment


(1)	I/P Compartment Lamp Switch

Figure 5:

RH Side of I/P


(1)	I/P Compartment Lamp

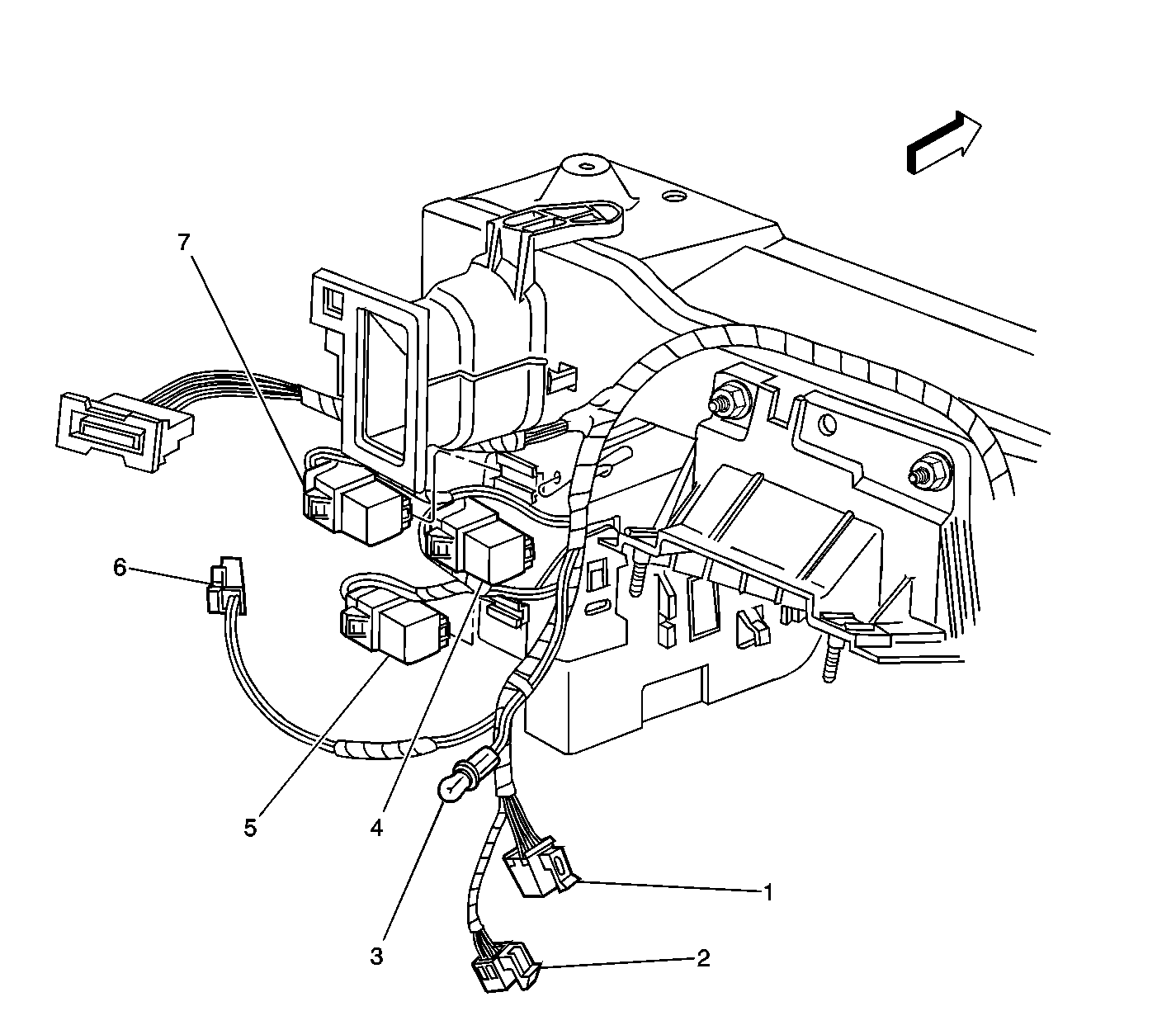

Figure 6:

LH Side of I/P


(1)	Daytime Running Lamps (DRL) Control Module, C2
(2)	Daytime Running Lamps (DRL) Control Module, C1
(3)	Footwell Courtesy Lamp - Left
(4)	Theft Deterrent Relay
(5)	Rear Compartment Lid Release Relay
(6)	Headlamp Switch, Connector
(7)	Turn Signal/Hazard Flasher Module

Figure 7:

Top of Rear Window Deck


(1)	Center High Mounted Stop Lamp (CHMSL)
(2)	Center High Mounted Stop Lamp (CHMSL), Bulbs

Figure 8:

Top Center of Instrument Panel


(1)	Instrument Panel (IP) Upper Trim Pad
(2)	Theft LED
(3)	Daytime Running Lamps (DRL) Ambient Light Sensor

Figure 9:

LH Side of I/P


(1)	Daytime Running Lamps (DRL) Diode

Figure 10:

Inside Left Front Door, Right Similar


(1)	Door Lock - Driver, C1
(2)	Door Lock - Driver, C2

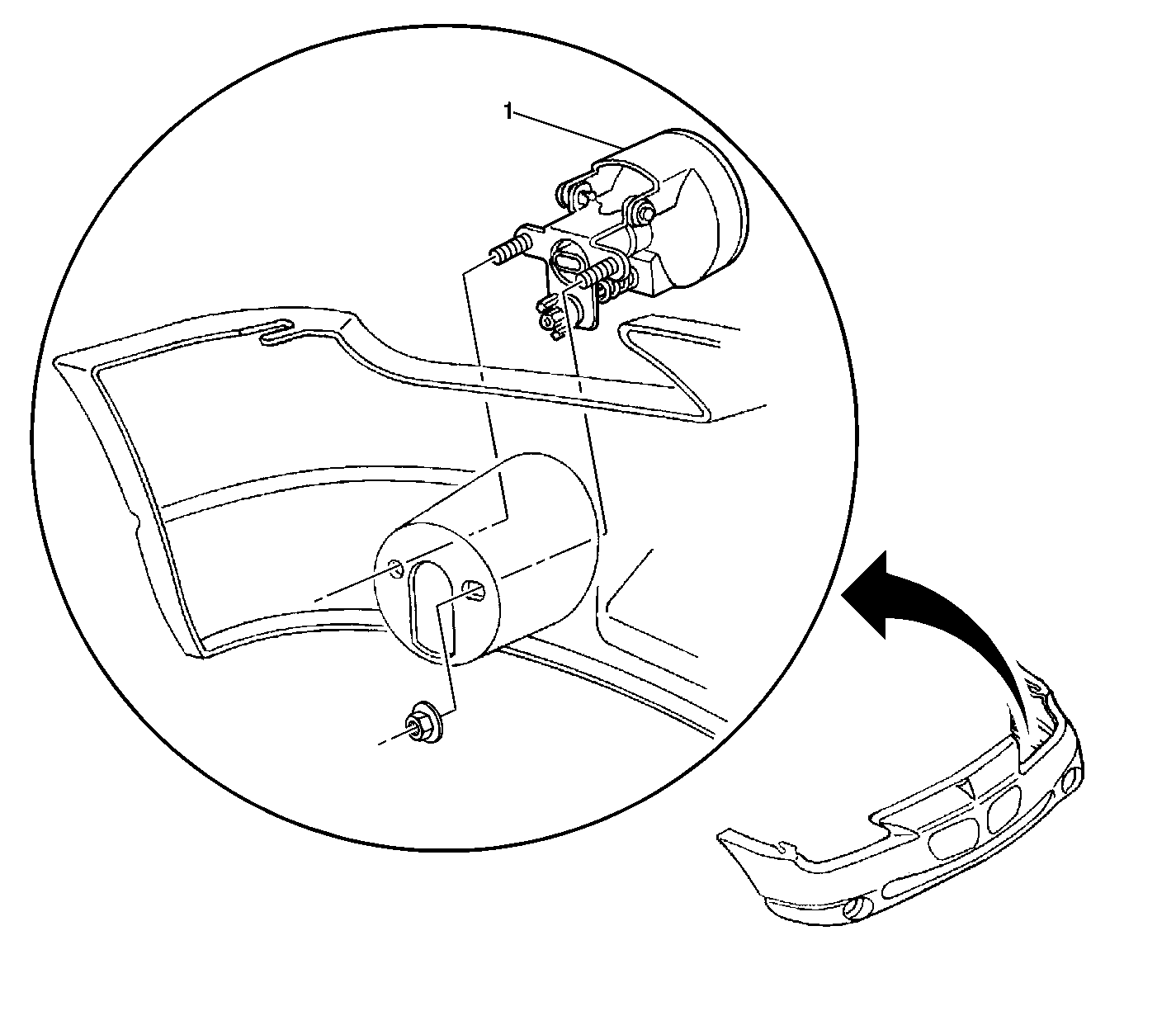

Figure 11:

Front Fascia


(1)	Fog Lamp - LF (Fog Lamp - RF Similar)

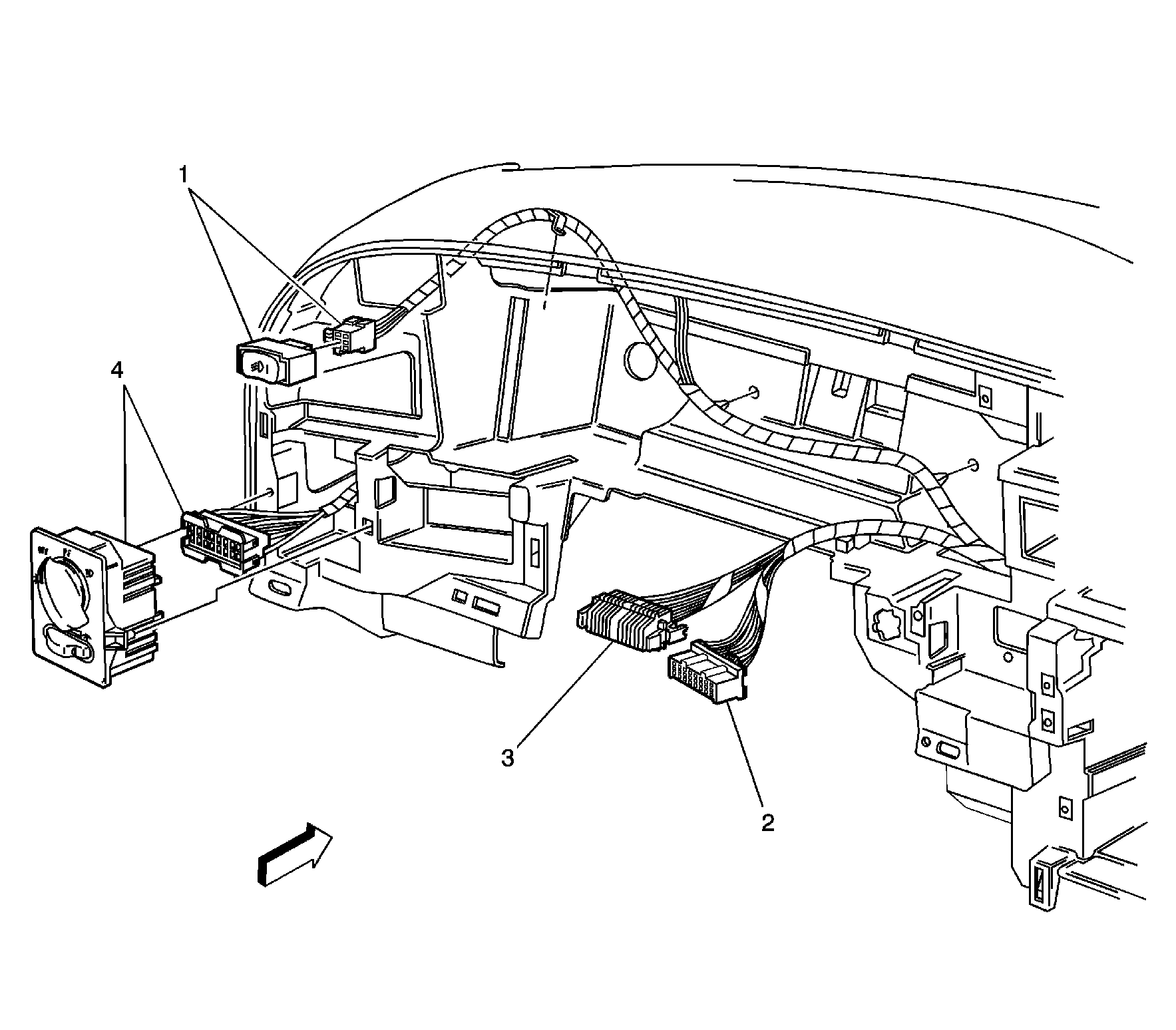

Figure 12:

LH Upper Side of I/P


(1)	Fog Lamp Switch
(2)	Instrument Panel Cluster (IPC), C1
(3)	Instrument Panel Cluster (IPC), C2
(4)	Headlamp Switch

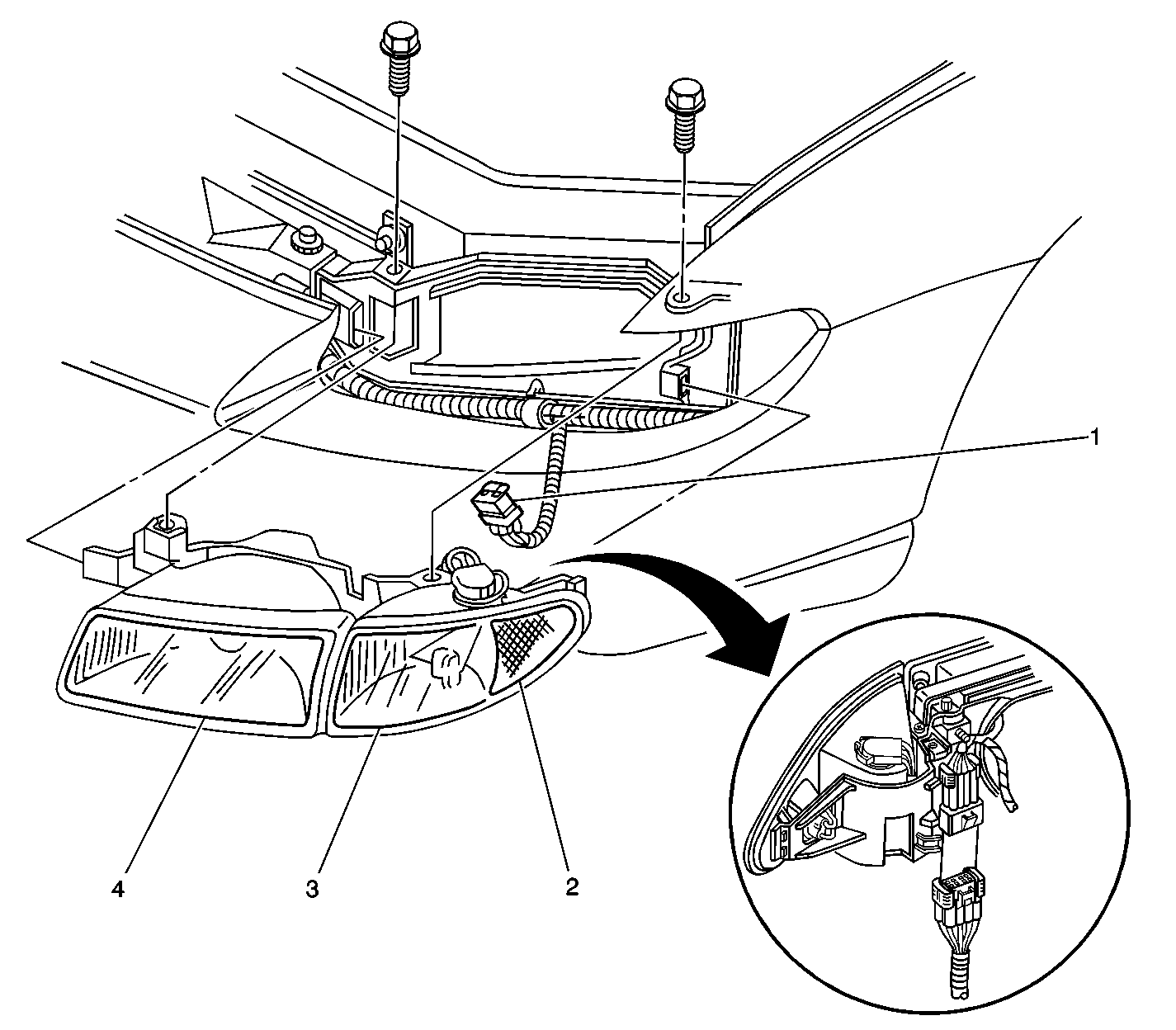

Figure 13:

Front LH Side of Vehicle (Right Front Similar)


(1)	C141 (Left Front), C142 (Right Front)
(2)	Marker Lamp - LF, (Marker Lamp - RF Similar)
(3)	Park/Turn Signal Lamp - LF (Park/Turn Signal Lamp - RF Similar)
(4)	Headlamp - Left (Headlamp - Right Similar)

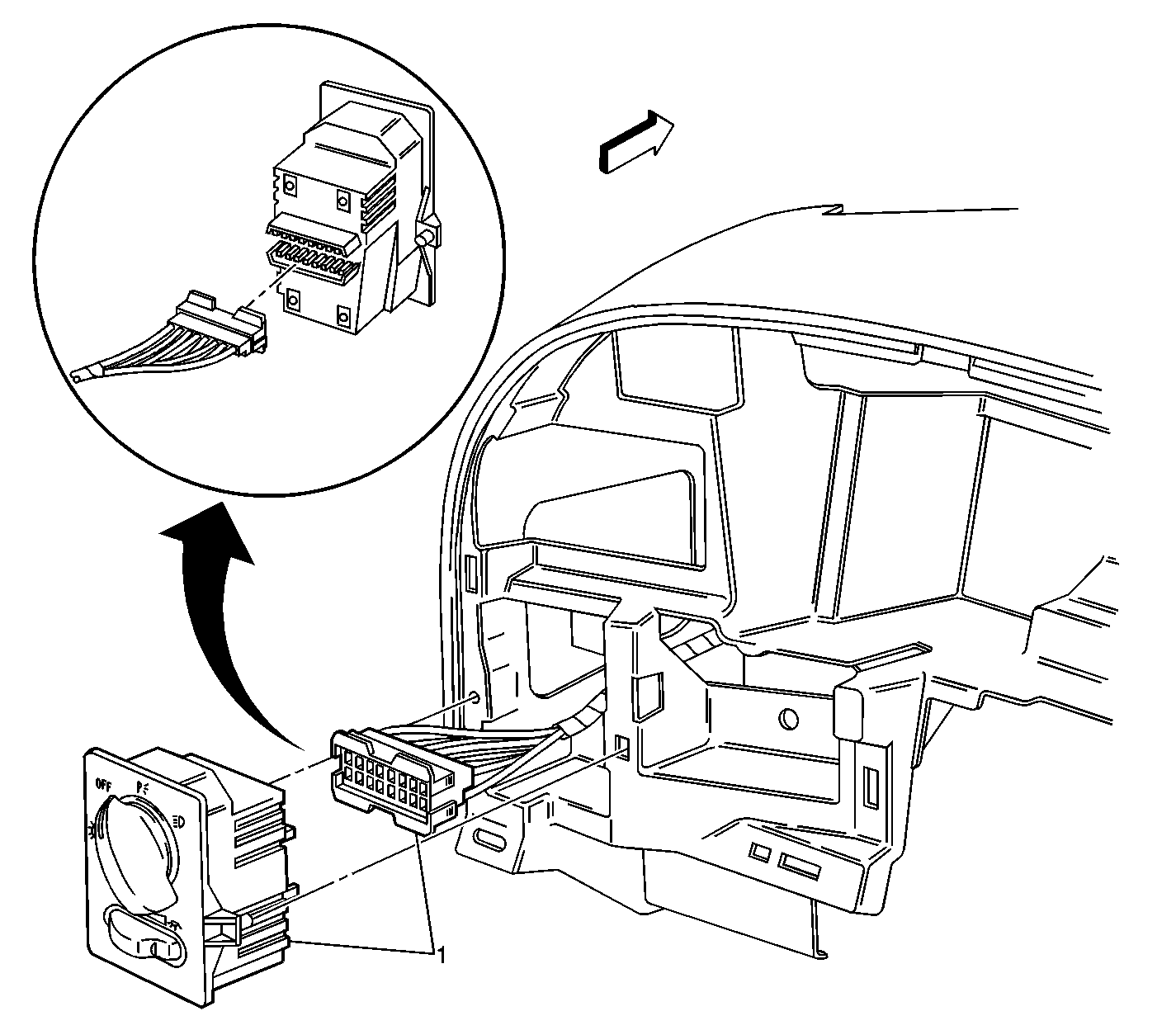

Figure 14:

LH Side of I/P


(1)	Headlamp Switch

Figure 15:

Below IP Compartment


(1)	Footwell Courtesy Lamp - Right

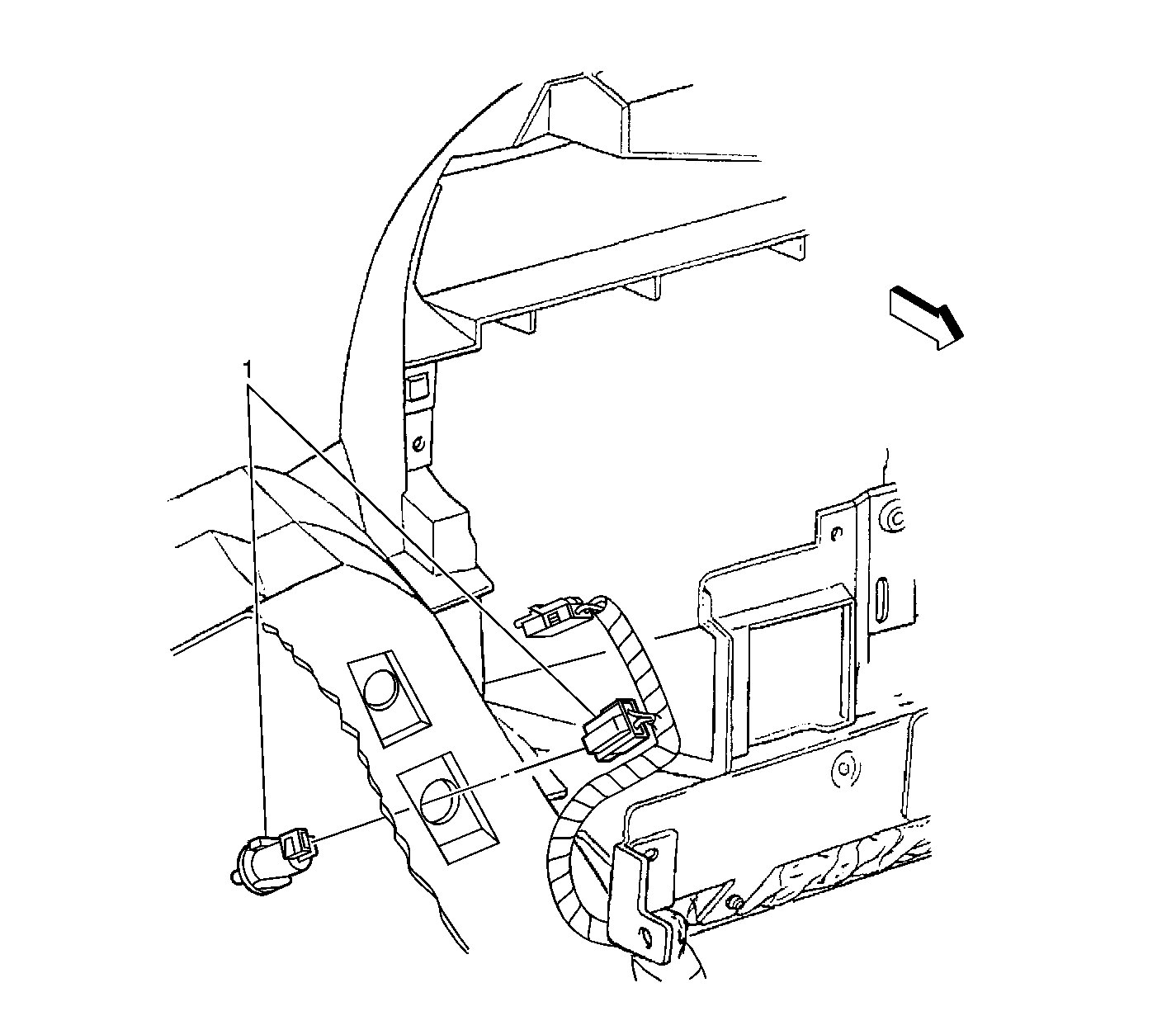

Figure 16:

Below Steering Column


(1)	Footwell Courtesy Lamp - Left

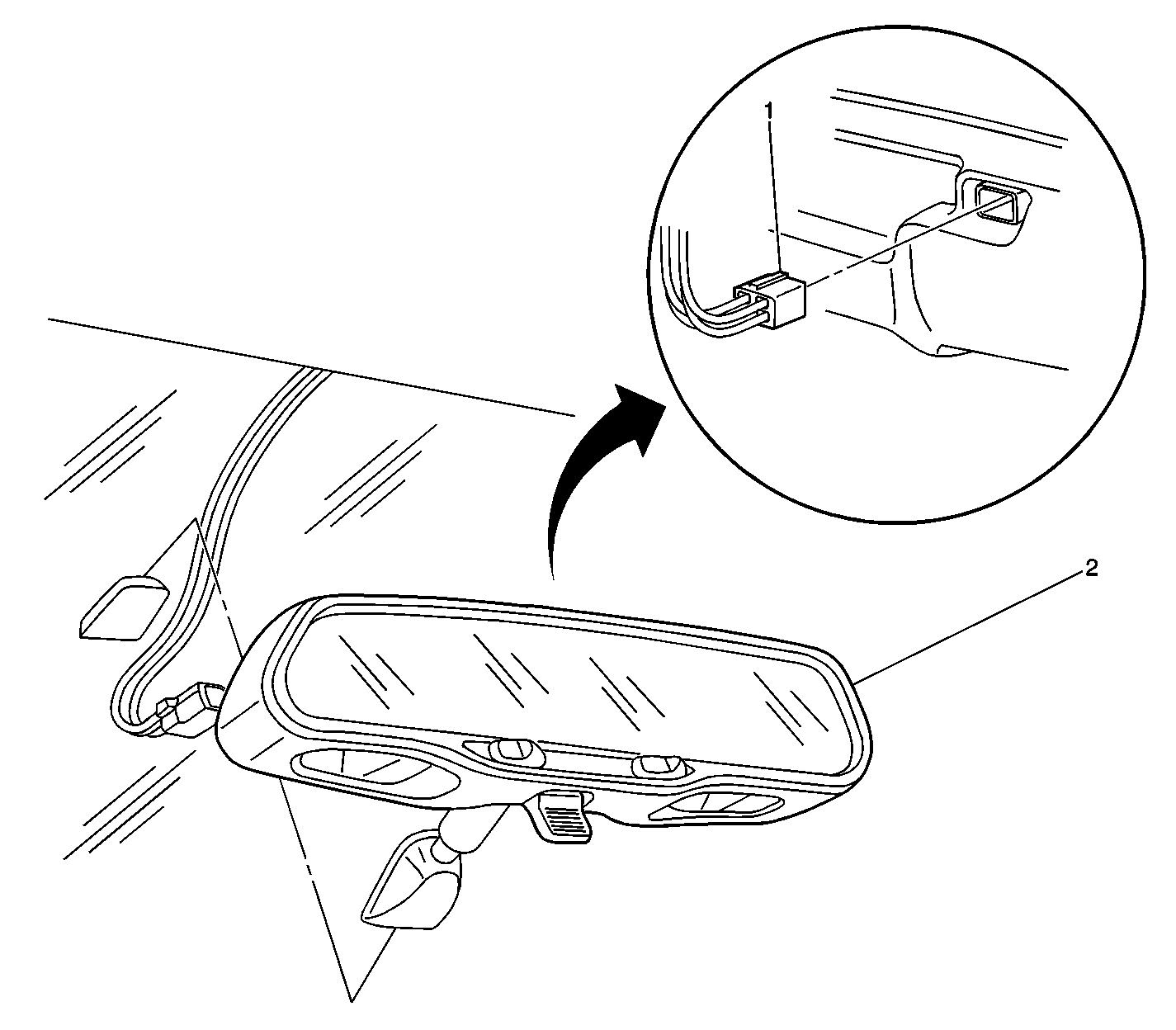

Figure 17:

Forward Center of Interior Compartment


(1)	Inside Rearview Mirror Connector
(2)	Inside Rearview Mirror

Figure 18:

Inside Rear Compartment, Under Package Shelf


(1)	Rear Compartment Courtesy Lamp

Figure 19:

Inside Rear Compartment Lid


(1)	Rear Compartment Courtesy Lamp Switch, Connector
(2)	Rear Compartment Lid Lock Release Actuator, Connector
(3)	Rear Compartment Key Cylinder Lock Switch, Connector (W/UA6)
(4)	Rear Deck Lid Harness
(5)	C430

Figure 20:

RH Side of Headliner (2-Door)


(1)	Roof Rail Courtesy/Reading Lamp

Figure 21:

RH Side of Headliner (4-Door)


(1)	Roof Rail Reading/Courtesy Lamp

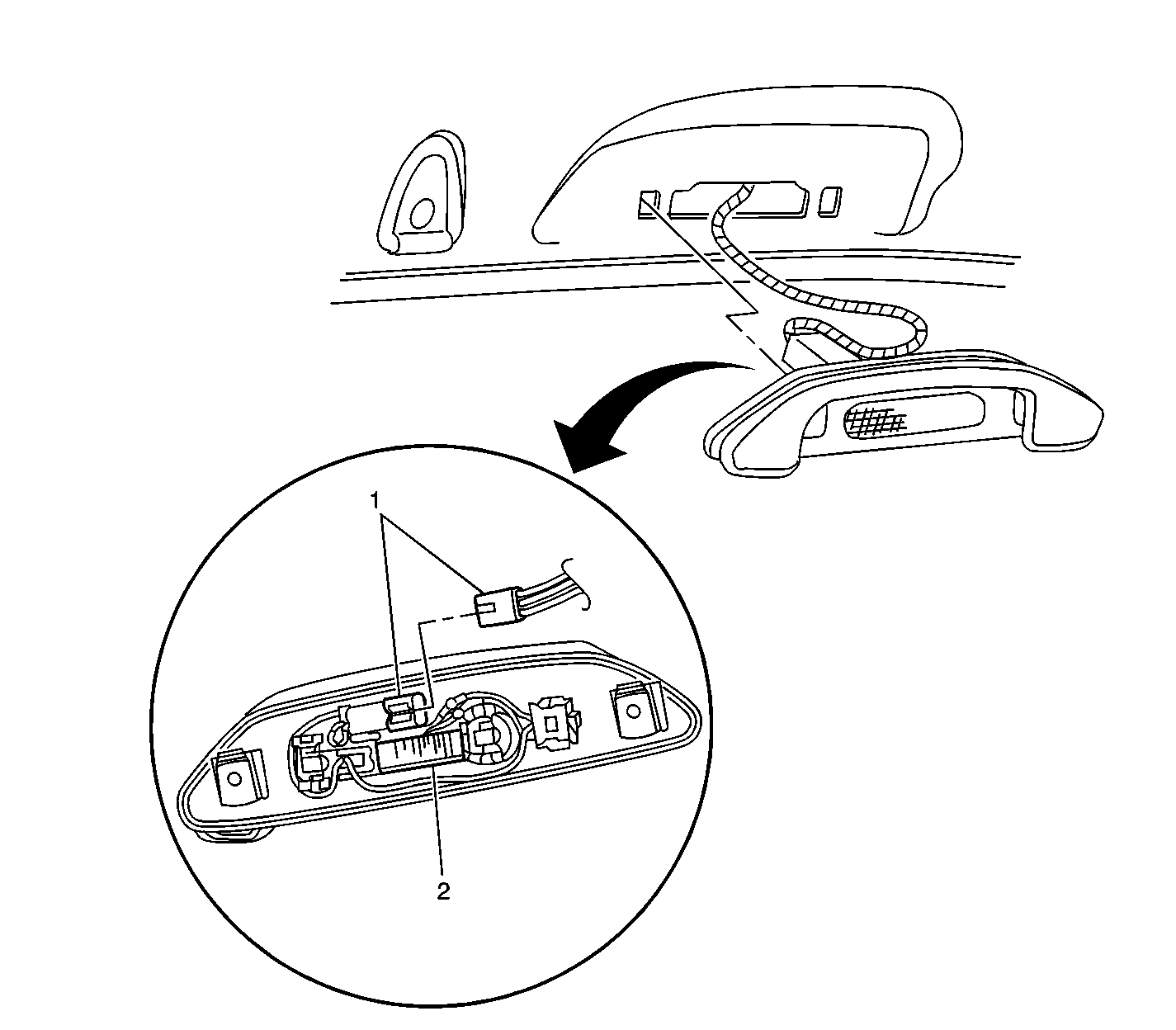

Figure 22:

RH Side of Headliner


(1)	Roof Rail Reading/Courtesy Lamp Harness Connector
(2)	Roof Rail Reading/Courtesy Lamp

Figure 23:

Above Brake Pedal


(1)	Cruise Control Release Switch
(2)	Stop Lamp Switch C2
(3)	Stop Lamp Switch C1
(4)	Stop Lamp Switch

Figure 24:

Interior Roof


(1)	Vanity Mirror Lamp -- Right, Connector (Left Side Similar)

Figure 25:

Multifunction Turn Signal Lever


(1)	Multifunction Turn Signal Lever

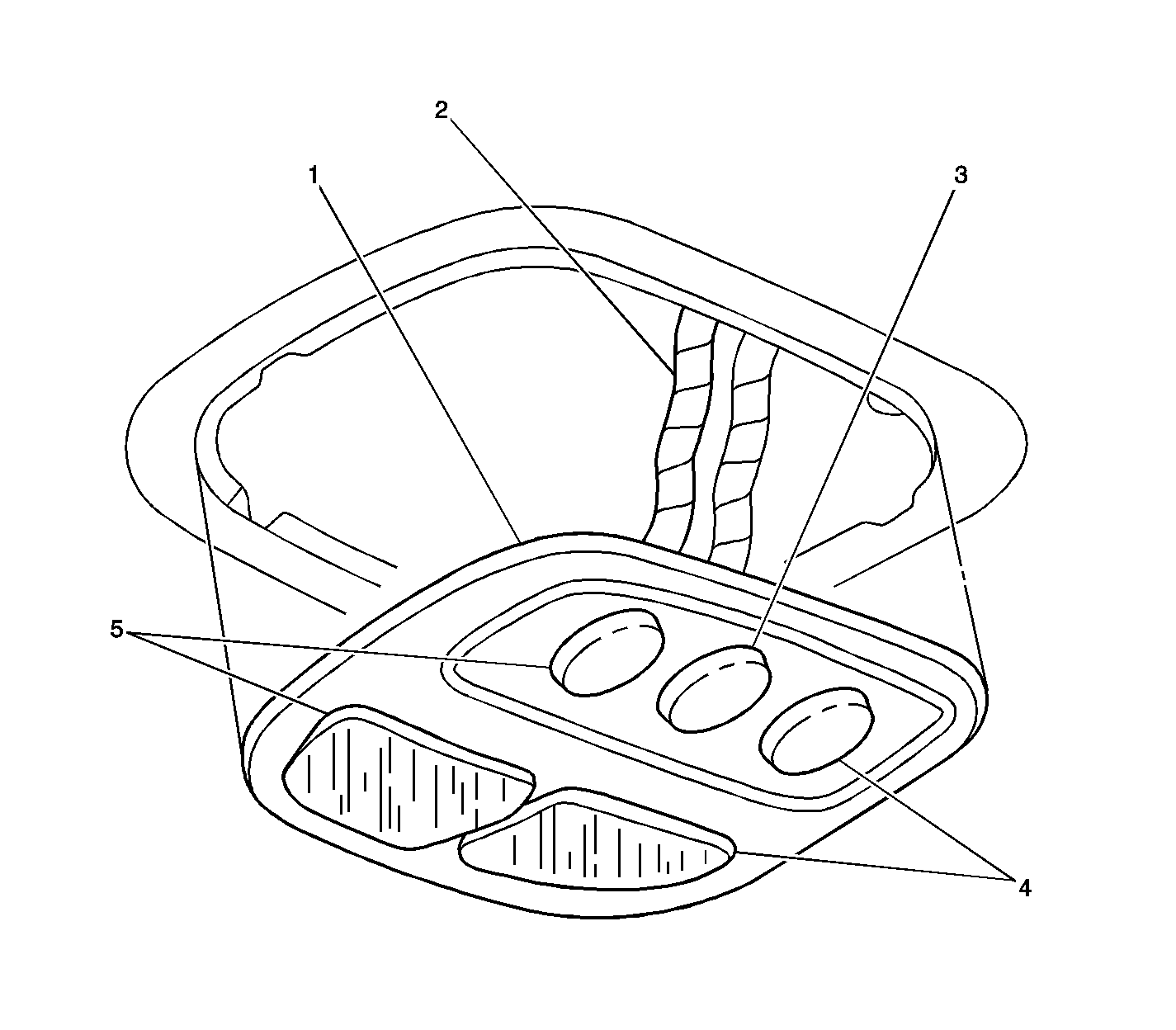

Figure 26:

Front Center of Roof


(1)	Courtesy/Reading Lamps -- Front
(2)	Roof Harness
(3)	Sunroof Switch (W/CF5)
(4)	RH Courtesy/Reading Lamp
(5)	LH Courtesy/Reading Lamp

Figure 27:

Rear Fascia


(1)	License Lamp
