HVAC Connector End Views. Pontiac Solstice 2006

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2006 🢒 Solstice 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 HVAC Connector End Views

Connector 1:	A/C Compressor Clutch (C60)
Connector 2:	A/C Refrigerant Pressure Sensor (C60)
Connector 3:	Air Temperature Actuator - Left
Connector 4:	Air Temperature Actuator - Right
Connector 5:	Blower Motor
Connector 6:	Blower Motor Resistor Assembly
Connector 7:	Evaporator Temperature Sensor (C60)
Connector 8:	High Speed Blower Motor Relay
Connector 9:	HVAC Control Module C1
Connector 10:	HVAC Control Module C2
Connector 11:	HVAC Control Module C3
Connector 12:	Mode Actuator
Connector 13:	Recirculation Actuator

A/C Compressor Clutch (C60)

Connector Part Information

OEM: 12052644
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

A/C Compressor Clutch (C60)

Pin	Wire Color	Circuit No.	Function
A	BK	250	Ground
B	D-GN	59	A/C Compressor Clutch Supply Voltage

A/C Refrigerant Pressure Sensor (C60)

Connector Part Information

OEM: 15477863
Service: 88988301
Description: 3-Way F GT 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

A/C Refrigerant Pressure Sensor (C60)

Pin	Wire Color	Circuit No.	Function
1	BK/WH	2751	Low Reference
2	GY	2700	5-Volt Reference
3	OG/BK	380	A/C Refrigerant Pressure Sensor Signal

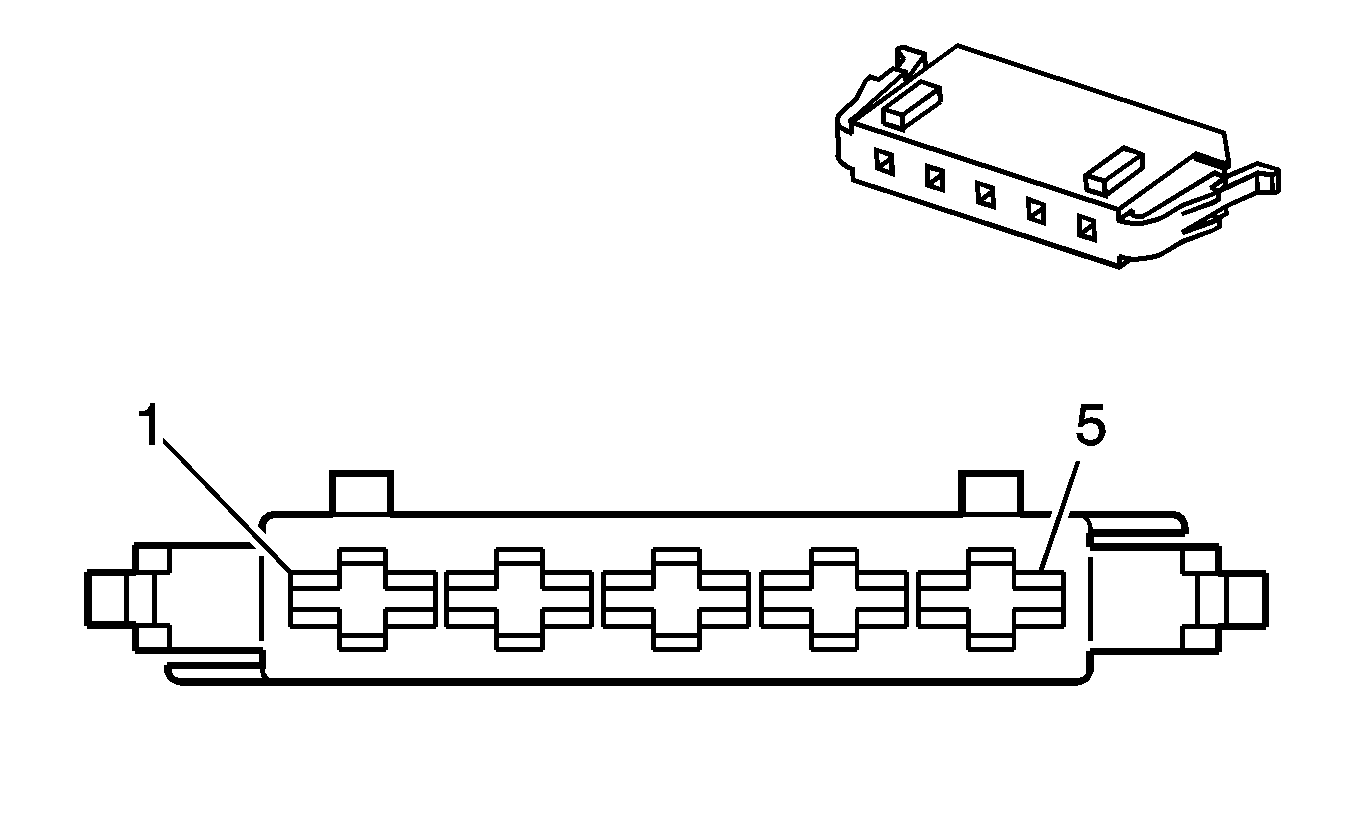

Air Temperature Actuator - Left

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Air Temperature Actuator - Left

Pin	Wire Color	Circuit No.	Function
1	YE	1791	Low Reference
2	L-BU	733	Air Temperature Door Position Signal
3	L-BU/BK	1688	5-Volt Reference
4	D-BU	1199	Air Temperature Door Control
5	TN/BK	1647	Recirculation Door Control B

Air Temperature Actuator - Right

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Air Temperature Actuator - Right

Pin	Wire Color	Circuit No.	Function
1	YE	1791	Air Temperature Door Control Low Reference
2	D-BU	1646	Passenger Air Temperature Door Position Signal
3	L-BU/BK	1688	5-Volt Reference
4	L-GN/BK	1647	Open Recirculation Door Control
5	TN	2273	Mode Door Control

Blower Motor

Connector Part Information

OEM: 7283-5590-40
Service: 88988702
Description: 2-Way F YESC/USCAR Class III Series (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Blower Motor

Pin	Wire Color	Circuit No.	Function
1	OG	52	Blower Motor High Control
2	BN	141	Ignition 3 Voltage

Blower Motor Resistor Assembly

Connector Part Information

OEM: 12059296
Service: 12059296
Description: 5-Way F Metri-Pack 480 Series (RD)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Blower Motor Resistor Assembly

Pin	Wire Color	Circuit No.	Function
A	OG	52	Blower Motor High Control
B	YE	60	Blower Motor Low Control
C	TN	63	Blower Motor Medium 1 Control
D	L-BU	72	Medium 2 Blower Motor Control
E	OG	52	Blower Motor High Control

Evaporator Temperature Sensor (C60)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Evaporator Temperature Sensor (C60)

Pin	Wire Color	Circuit No.	Function
A	YE	1791	Low Reference
B	GY	6137	Evaporator Core Temperature Sensor Signal

High Speed Blower Motor Relay

Connector Part Information

OEM: 12034003
Service: 88987189
Description: 5-Way F Special Metri-Pack 630 Conn (BK)

Terminal Part Information

Pins: 1, 2, 4, 5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

High Speed Blower Motor Relay

Pin	Wire Color	Circuit No.	Function
1	BK	2050	Ground
2	BN	141	Ignition 3 Voltage
3	--	--	Not Used
4	OG	52	Blower Motor High Control
5	OG	52	Blower Motor High Control

HVAC Control Module C1

Connector Part Information

OEM: 15118642
Service: 88988350
Description: 5-Way F (BK)

Terminal Part Information

Pins: 1, 5
Terminal/Tray: 964328-1/25
Core/Insulation Crimp: 4/B
Release Tool/Test Probe: 12093647/J-35616-40 (BU)

Pins: 2, 3, 4
Terminal/Tray: 927837-1/25
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12093647/J-35616-40 (BU)

HVAC Control Module C1

Pin	Wire Color	Circuit No.	Function
1	OG	52	Blower Motor High Control
2	L-BU	72	Medium 2 Blower Motor Control
3	TN	63	Blower Motor Medium Control (1)
4	YE	60	Blower Motor Low Control
5	BK	550	Ground

HVAC Control Module C2

Connector Part Information

OEM: 15336594
Service: 15336594
Description: 12-Way F Micro-Pack 100 Series (GY)

Terminal Part Information

Pins: B, C, D, F, G, J, K, L
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

HVAC Control Module C2

Pin	Wire Color	Circuit No.	Function
A	--	--	Not Used
B	RD/WH	340	Battery Positive Voltage
C	BK	550	Ground
D	GY	8	Instrument Panel Lamp Supply Voltage
E	--	--	Not Used
F	WH	193	Rear Defog Relay Control
G	D-GN/WH	762	A/C Request Signal (C60)
H	--	--	Not Used
J	L-BU	292	Rear Defog Switch Signal
K	PK	339	Ignition 1 Voltage
L	BK/WH	651	Ground
M	--	--	Not Used

HVAC Control Module C3

Connector Part Information

OEM: 12064799
Service: 15305996
Description: 12-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

HVAC Control Module C3

Pin	Wire Color	Circuit No.	Function
A	YE	1791	Low Reference
B	L-GN/BK	2276	Defrost Door Position Signal
C	GY	6137	Evaporator Core Temperature Sensor Signal (C60)
D	D-BU	1646	Auxiliary Air Temperature Door Position Signal
E	L-BU	733	Air Temperature Door Position Signal
F	L-BU/BK	1688	5-Volt Reference
G	D-GN	1614	Recirculation Door Control (C60)
H	TN/BK	2274	Recirculation Door Control Circuit (C60)
J	L-GN	2275	Mode Door Position Signal
K	TN	2273	Mode Door Control
L	L-GN/BK	1647	Recirculation Door Control B
M	D-BU	1199	Air Temperature Door Control

Mode Actuator

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Mode Actuator

Pin	Wire Color	Circuit No.	Function
1	YE	1791	Low Reference
2	L-GN/BK	2276	Defrost Door Position Signal
3	L-BU/BK	1688	5-Volt Reference
4	TN	2273	Mode Door Control
5	L-GN	2275	Mode Door Position Signal

Recirculation Actuator

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Pins: 4, 5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Recirculation Actuator

Pin	Wire Color	Circuit No.	Function
1-3	--	--	Not Used
4	L-BU	1614	Recirculation Door Control
5	L-GN	2274	Recirculation Door Control Circuit
