Engine Controls Connector End Views. Pontiac Solstice 2006

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2006 🢒 Solstice 🢒 Body 🢒 Wiring Systems 🢒 Engine Controls Connector End Views

Connector 1:	Accelerator Pedal Position (APP) Sensor
Connector 2:	Camshaft Position (CMP) Actuator Solenoid - Exhaust
Connector 3:	Camshaft Position (CMP) Actuator Solenoid - Intake
Connector 4:	Camshaft Position (CMP) Sensor - Exhaust
Connector 5:	Camshaft Position (CMP) Sensor - Intake
Connector 6:	Crankshaft Position (CKP) Sensor
Connector 7:	Engine Coolant Temperature (ECT) Sensor
Connector 8:	Evaporative Emission (EVAP) Canister Purge Solenoid
Connector 9:	Evaporative Emission (EVAP) Canister Vent Solenoid
Connector 10:	Fuel Injector 1
Connector 11:	Fuel Injector 2
Connector 12:	Fuel Injector 3
Connector 13:	Fuel Injector 4
Connector 14:	Fuel Pump and Sender Assembly
Connector 15:	Fuel Tank Pressure (FTP) Sensor
Connector 16:	Heated Oxygen Sensor (HO2S) 1
Connector 17:	Heated Oxygen Sensor (HO2S) 2
Connector 18:	Ignition Coil 1
Connector 19:	Ignition Coil 2
Connector 20:	Ignition Coil 3
Connector 21:	Ignition Coil 4
Connector 22:	Knock Sensor
Connector 23:	Manifold Absolute Pressure (MAP) Sensor
Connector 24:	Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
Connector 25:	Throttle Body

Accelerator Pedal Position (APP) Sensor

Connector Part Information

OEM: 15326829
Service: 88953153
Description: 6-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Accelerator Pedal Position (APP) Sensor

Pin	Wire Color	Circuit No.	Function
A	PU	1272	Low Reference
B	L-BU	1162	APP Sensor 2 Signal
C	TN	1274	5-Volt Reference
D	BN	1271	Low Reference
E	D-BU	1161	APP Sensor 1 Signal
F	WH/BK	1164	5-Volt Reference

Camshaft Position (CMP) Actuator Solenoid - Exhaust

Connector Part Information

OEM: 15336004
Service: 15306187
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid - Exhaust

Pin	Wire Color	Circuit No.	Function
A	TN	452	Low Reference
B	L-GN	5282	Camshaft Phaser Exhaust Solenoid (1)

Camshaft Position (CMP) Actuator Solenoid - Intake

Connector Part Information

OEM: 15335987
Service: 15306430
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid - Intake

Pin	Wire Color	Circuit No.	Function
A	PU	5284	Camshaft Phaser Intake Solenoid (1)
B	TN	2199	Low Reference

Camshaft Position (CMP) Sensor - Exhaust

Connector Part Information

OEM: 15326808
Service: See Catalog
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Sensor - Exhaust

Pin	Wire Color	Circuit No.	Function
A	YE/BK	5297	5-Volt Reference
B	GY	5296	Low Reference
C	D-GN	5273	Camshaft Position Exhaust Sensor (1)

Camshaft Position (CMP) Sensor - Intake

Connector Part Information

OEM: 15326808
Service: See Catalog
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Camshaft Position (CMP) Sensor - Intake

Pin	Wire Color	Circuit No.	Function
A	D-BU	5300	5-Volt Reference
B	TN	5301	Low Reference
C	OG	5275	Camshaft Position Intake Sensor (1)

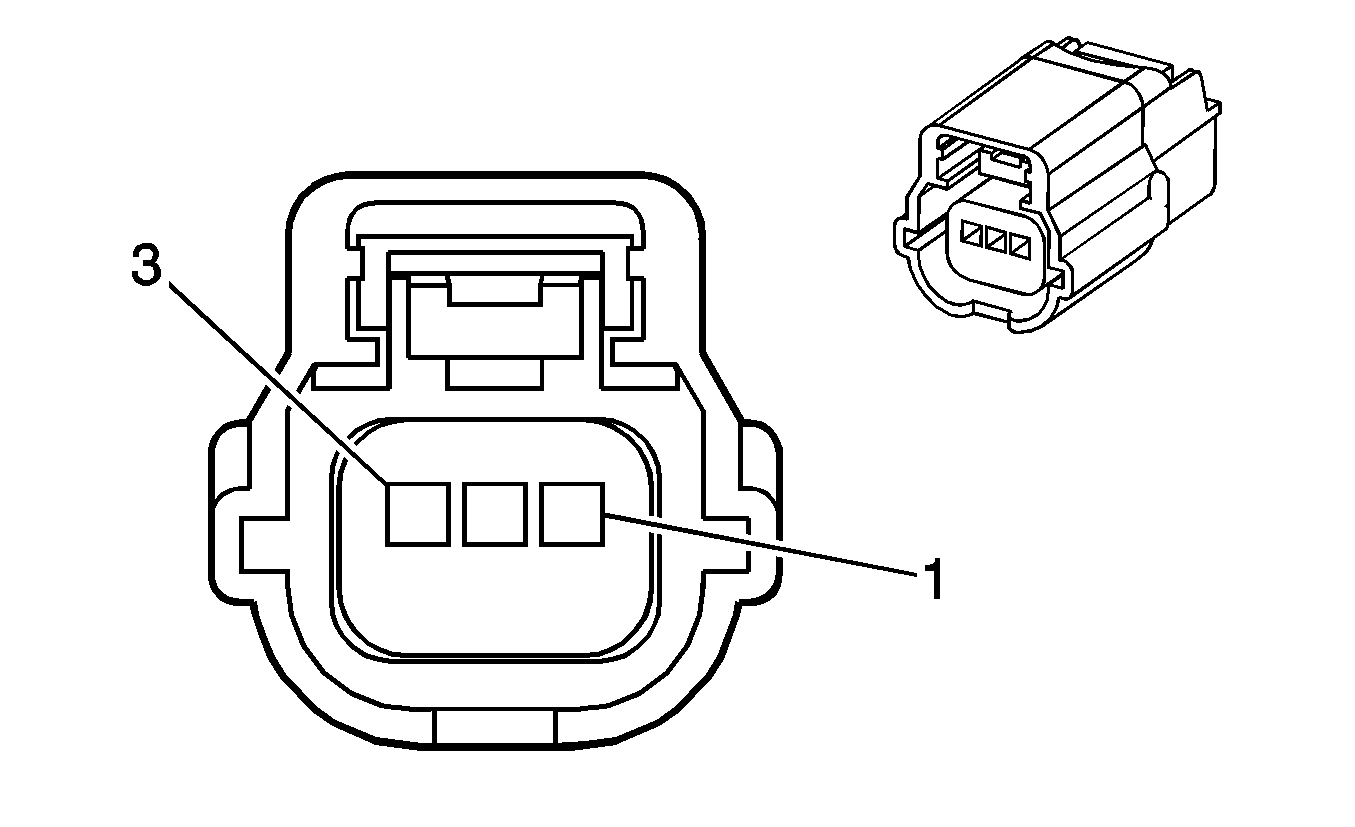

Crankshaft Position (CKP) Sensor

Connector Part Information

OEM: 31403-3700
Service: 88988337
Description: 3-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Crankshaft Position (CKP) Sensor

Pin	Wire Color	Circuit No.	Function
1	L-GN	2867	5-Volt Reference
2	PU	574	Low Reference
3	YE	573	CKP Sensor 1 Signal

Engine Coolant Temperature (ECT) Sensor

Connector Part Information

OEM: 15336024
Service: 88987978
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Engine Coolant Temperature (ECT) Sensor

Pin	Wire Color	Circuit No.	Function
1	TN	2761	Low Reference
2	YE	410	ECT Sensor Signal

Evaporative Emission (EVAP) Canister Purge Solenoid

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Purge Solenoid

Pin	Wire Color	Circuit No.	Function
A	PK/BK	5291	Ignition 1 Voltage
B	D-GN/WH	428	EVAP Canister Purge Solenoid Control

Evaporative Emission (EVAP) Canister Vent Solenoid

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Vent Solenoid

Pin	Wire Color	Circuit No.	Function
A	RD/WH	140	Battery Positive Voltage
B	WH	1310	EVAP Canister Vent Solenoid Control

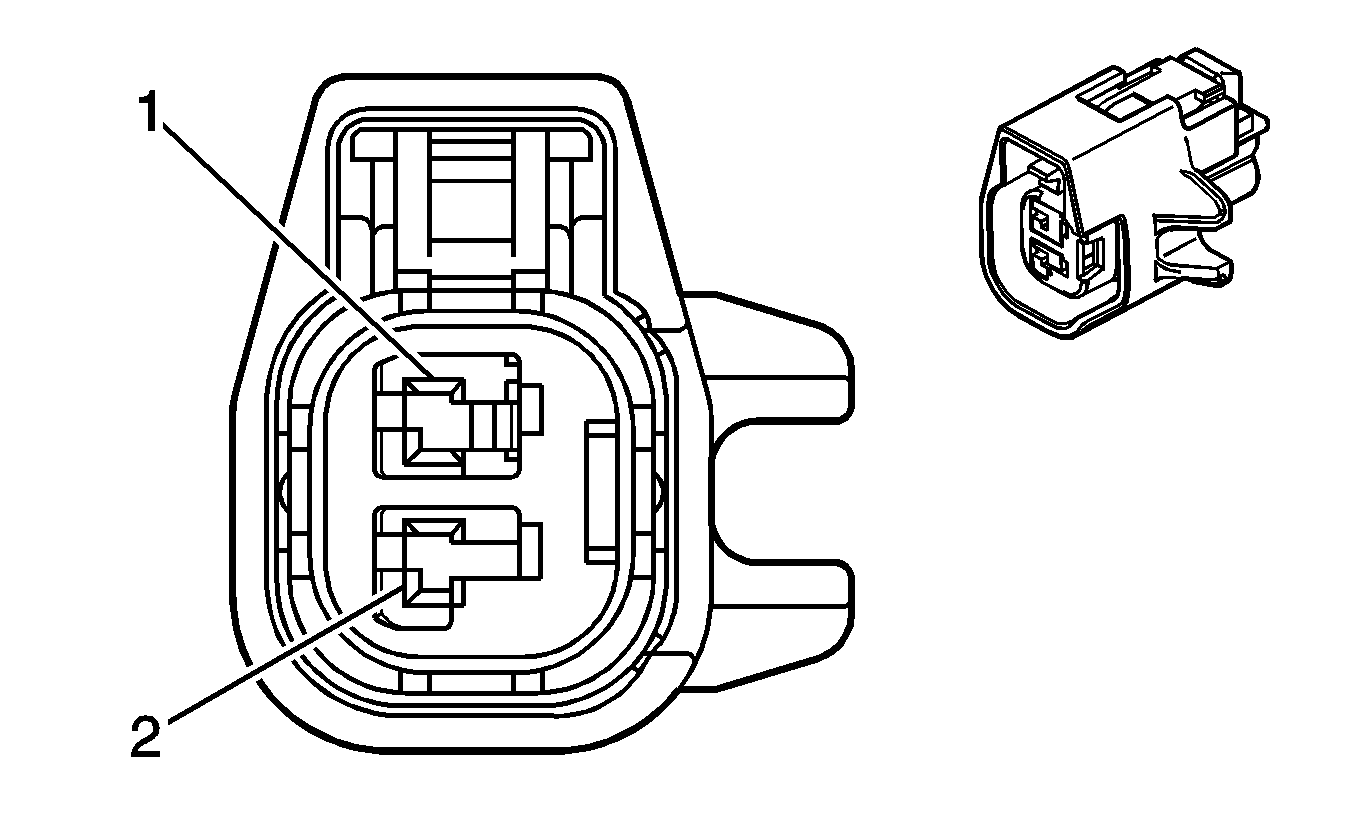

Fuel Injector 1

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 1

Pin	Wire Color	Circuit No.	Function
1	PK	139	Ignition 1 Voltage
2	BK	1744	Fuel Injector 1 Control

Fuel Injector 2

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 2

Pin	Wire Color	Circuit No.	Function
1	PK	139	Ignition 1 Voltage
2	L-GN/BK	1745	Fuel Injector 2 Control

Fuel Injector 3

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 3

Pin	Wire Color	Circuit No.	Function
1	PK	139	Ignition 1 Voltage
2	PK/BK	1746	Fuel Injector 3 Control

Fuel Injector 4

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 4

Pin	Wire Color	Circuit No.	Function
1	PK	139	Ignition 1 Voltage
2	BU/BK	844	Fuel Injector 4 Control

Fuel Pump and Sender Assembly

Connector Part Information

OEM: 15326631
Service: 15306360
Description: 4-Way F GT 280 Series Sealed (BK)

Terminal Part Information

Pins: A, D, B, C
Terminal/Tray: 15304719/19
Core/Insulation Crimp: Pins A, D - 2/5
Core/Insulation Crimp: Pins B, C - E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Fuel Pump and Sender Assembly

Pin	Wire Color	Circuit No.	Function
A	BK	750	Ground
B	PU	1589	Fuel Level Sensor Signal
C	TN	2759	Low Reference
D	GY	120	Fuel Pump Supply Voltage

Fuel Tank Pressure (FTP) Sensor

Connector Part Information

OEM: 12059595
Service: 88986451
Description: 3-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fuel Tank Pressure (FTP) Sensor

Pin	Wire Color	Circuit No.	Function
A	TN	2759	Low Reference
B	D-GN	890	Fuel Tank Pressure Sensor Signal
C	GY	2709	5-Volt Reference

Heated Oxygen Sensor (HO2S) 1

Connector Part Information

OEM: 12176897
Service: 15305960
Description: 4-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Heated Oxygen Sensor (HO2S) 1

Pin	Wire Color	Circuit No.	Function
A	TN/WH	3111	HO2S Low Reference Sensor 1
B	PU/WH	3110	HO2S Reference Voltage Sensor 1
C	GY/WH	3113	HO2S Heater Low Control Sensor 1
D	PK/BK	5291	Ignition 1 Voltage

Heated Oxygen Sensor (HO2S) 2

Connector Part Information

OEM: 12160825
Service: 15305801
Description: 4-Way M Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Oxygen Sensor (HO2S) 2

Pin	Wire Color	Circuit No.	Function
A	TN/WH	1669	HO2S Low Signal Sensor 2
B	PU/WH	1668	HO2S High Signal Sensor 2
C	GY/WH	3122	HO2S Heater Low Control Sensor 2
D	PK/BK	5291	Ignition 1 Voltage

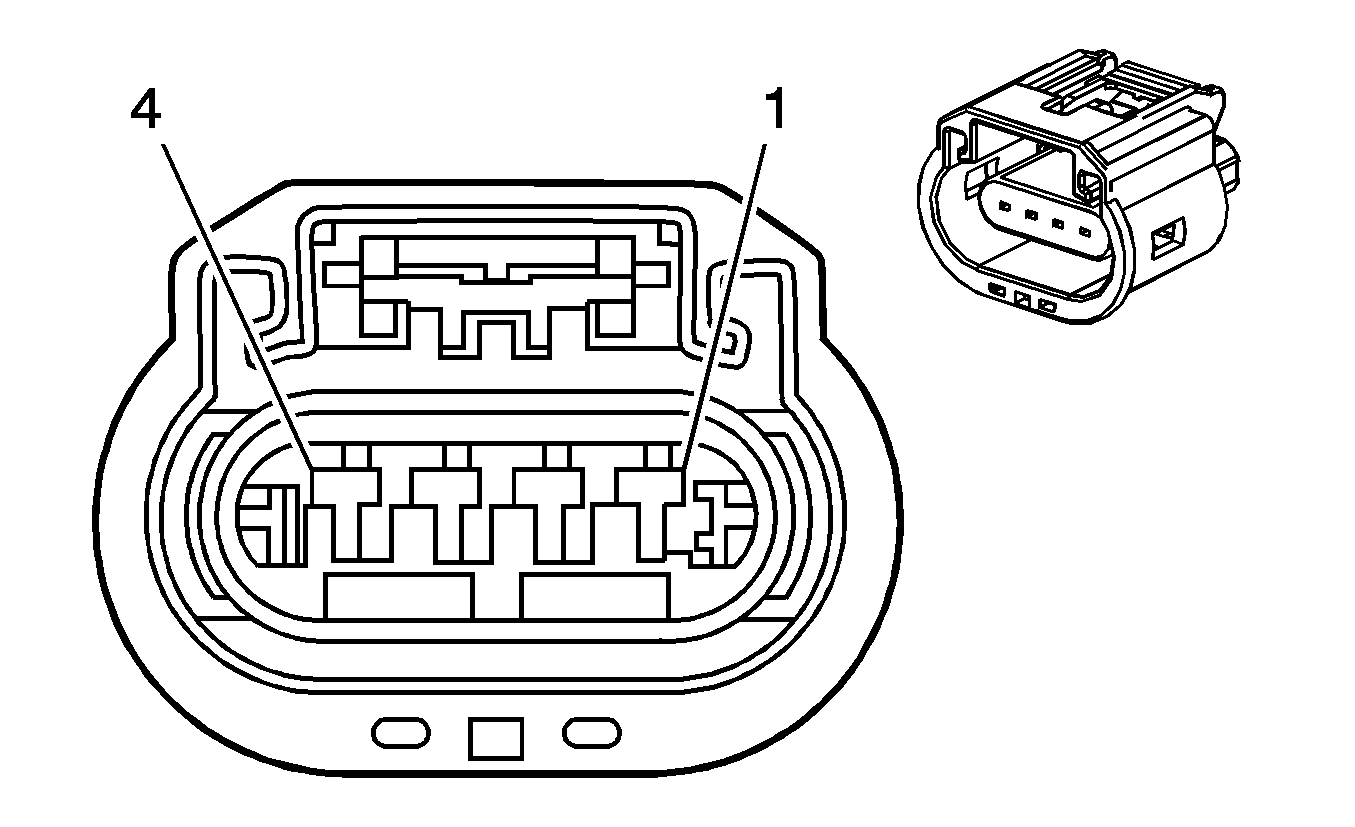

Ignition Coil 1

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 1

Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground
2	BN	2129	Low Reference
3	PU	2121	IC 1 Control
4	PK/BK	5292	Ignition 1 Voltage

Ignition Coil 2

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 2

Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground
2	BN	2129	Low Reference
3	OG/WH	2122	IC 2 Control
4	PK/BK	5292	Ignition 1 Voltage

Ignition Coil 3

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 3

Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground
2	BN	2129	Low Reference
3	L-BU	2123	IC 3 Control
4	PK/BK	5292	Ignition 1 Voltage

Ignition Coil 4

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 4

Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground
2	BN	2129	Low Reference
3	D-GN/WH	2124	IC 4 Control
4	PK/BK	5292	Ignition 1 Voltage

Knock Sensor

Connector Part Information

OEM: 12077900
Service: 12116247
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Knock Sensor

Pin	Wire Color	Circuit No.	Function
A	D-BU	496	Knock Sensor 1 Signal
B	GY	1716	Knock Sensor Signal Return

Manifold Absolute Pressure (MAP) Sensor

Connector Part Information

OEM: 12129946
Service: 88987997
Description: 3-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Manifold Absolute Pressure (MAP) Sensor

Pin	Wire Color	Circuit No.	Function
A	OG/BK	469	Low Reference
B	L-GN	432	MAP Sensor Signal
C	GY	2704	5-Volt Reference

Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor

Connector Part Information

OEM: 15326822
Service: 88987186
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor

Pin	Wire Color	Circuit No.	Function
A	YE	492	MAF Sensor Signal
B	BK/WH	451	Ground
C	PK/BK	5291	Ignition 1 Voltage
D	BK	2760	Low Reference
E	TN	472	IAT Sensor Signal

Throttle Body

Connector Part Information

OEM: 15326835
Service: 88986452
Description: 8-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Throttle Body

Pin	Wire Color	Circuit No.	Function
A	D-GN	485	TP Sensor 1 Signal
B	TN/WH	1704	Low Reference
C	GY	2701	5-Volt Reference
D	PU	486	TP Sensor 2 Signal
E	BN	582	TAC Motor Control - 2
F	YE	581	TAC Motor Control - 1
G	TN	2752	Low Reference
H	L-BU/BK	1688	5-Volt Reference
