Radio/Audio System Schematics. Pontiac Sunfire 2001

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2001 🢒 Sunfire 🢒 Body and Accessories 🢒 Body Control System 🢒 Radio/Audio System Schematics

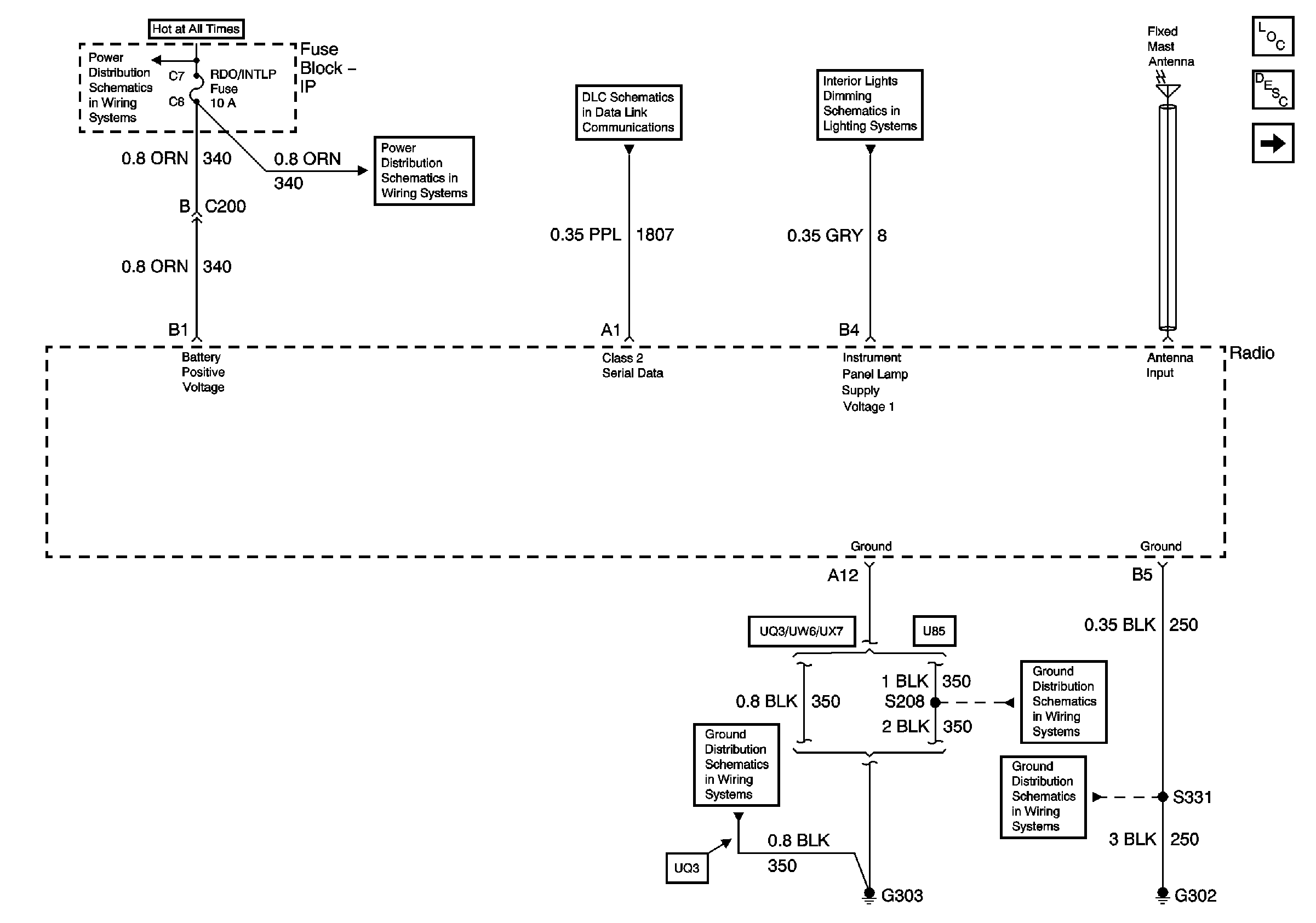

Figure 1:	Power, Ground and Antenna Master Electrical Component List Speakers (U79) Dimmer Controls Data Link Connector Underhood Fuse Block BATT 1 Fuse and IP Fuse Block MIRROR, RT HDLP, FLS/PASS, RDO/INTLP, RFA BATT, and AMPL Fuses G302

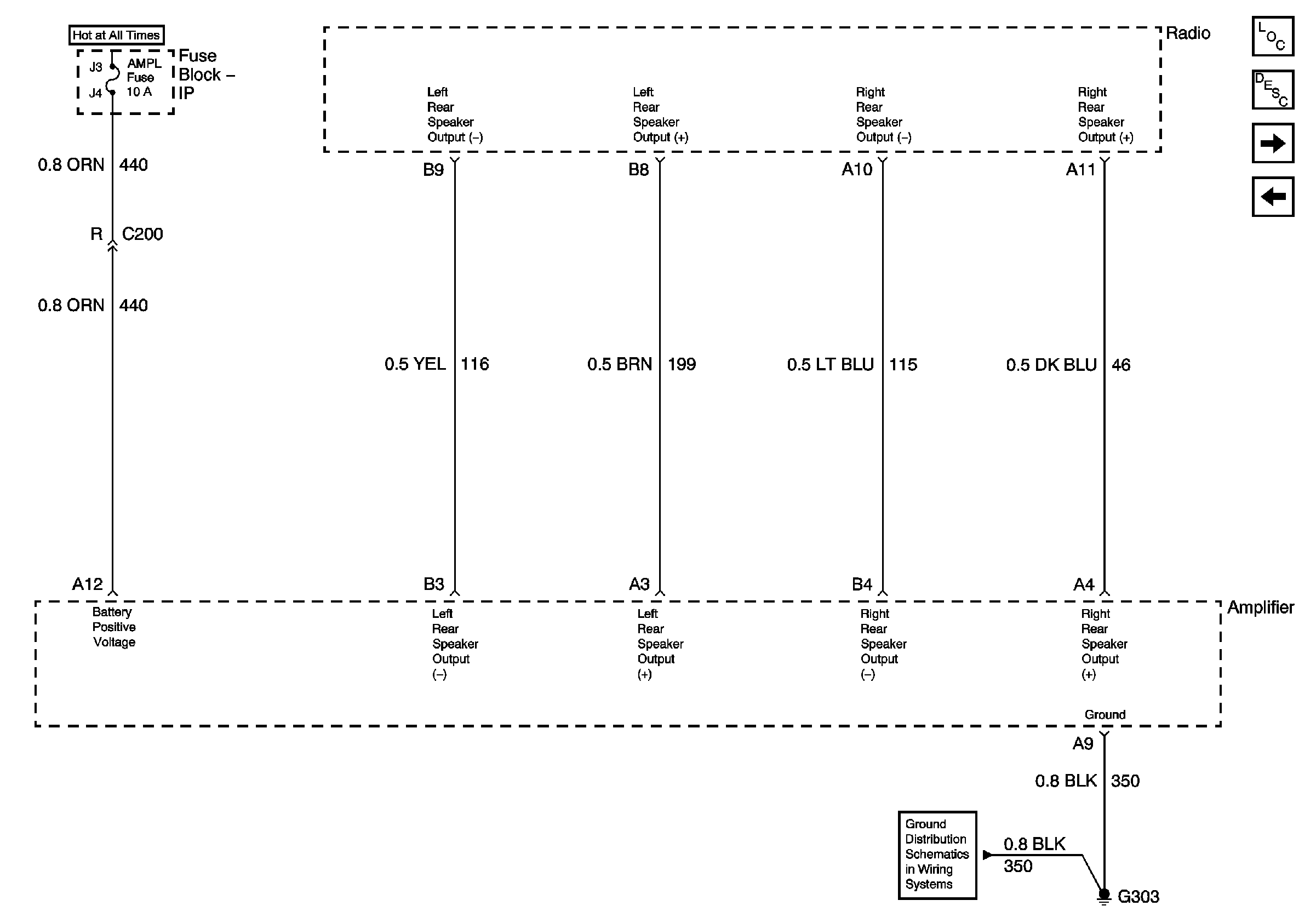

Figure 2:	Amplifier Power, Ground, and Outputs (JQ3) Master Electrical Component List Rear Speakers (UQ3) Speakers (U79) Rear Speakers (UQ3) Rear Speakers (UQ3) Rear Speakers (UQ3) Rear Speakers (UQ3) G102 2 of 2, G201 and G303

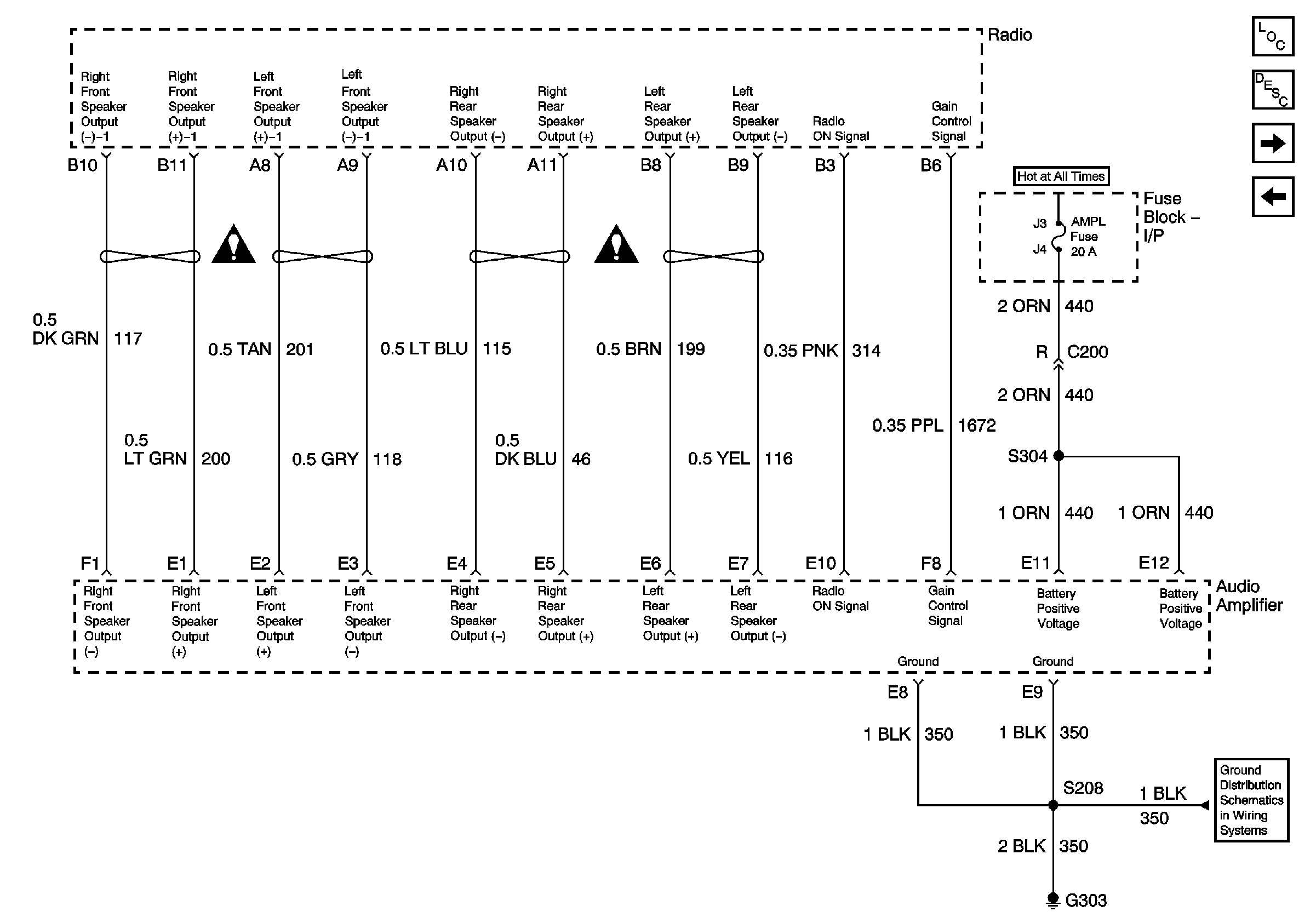

Figure 3:	Amplifier Power, Ground, and Outputs (U85) Master Electrical Component List Speakers - Rear (U85) Speakers - Front (U85) Power, Ground and Serial Data G302 Dimmer Controls Dimmer Controls
Figure 4:	Speakers (U79) Master Electrical Component List Amplifier IPower, Ground, and Outputs (JQ3) Power, Ground and Antenna
Figure 5:	Speakers-Front (UX7/UW6/UQ3) Speakers-Rear (UX7/UW6)

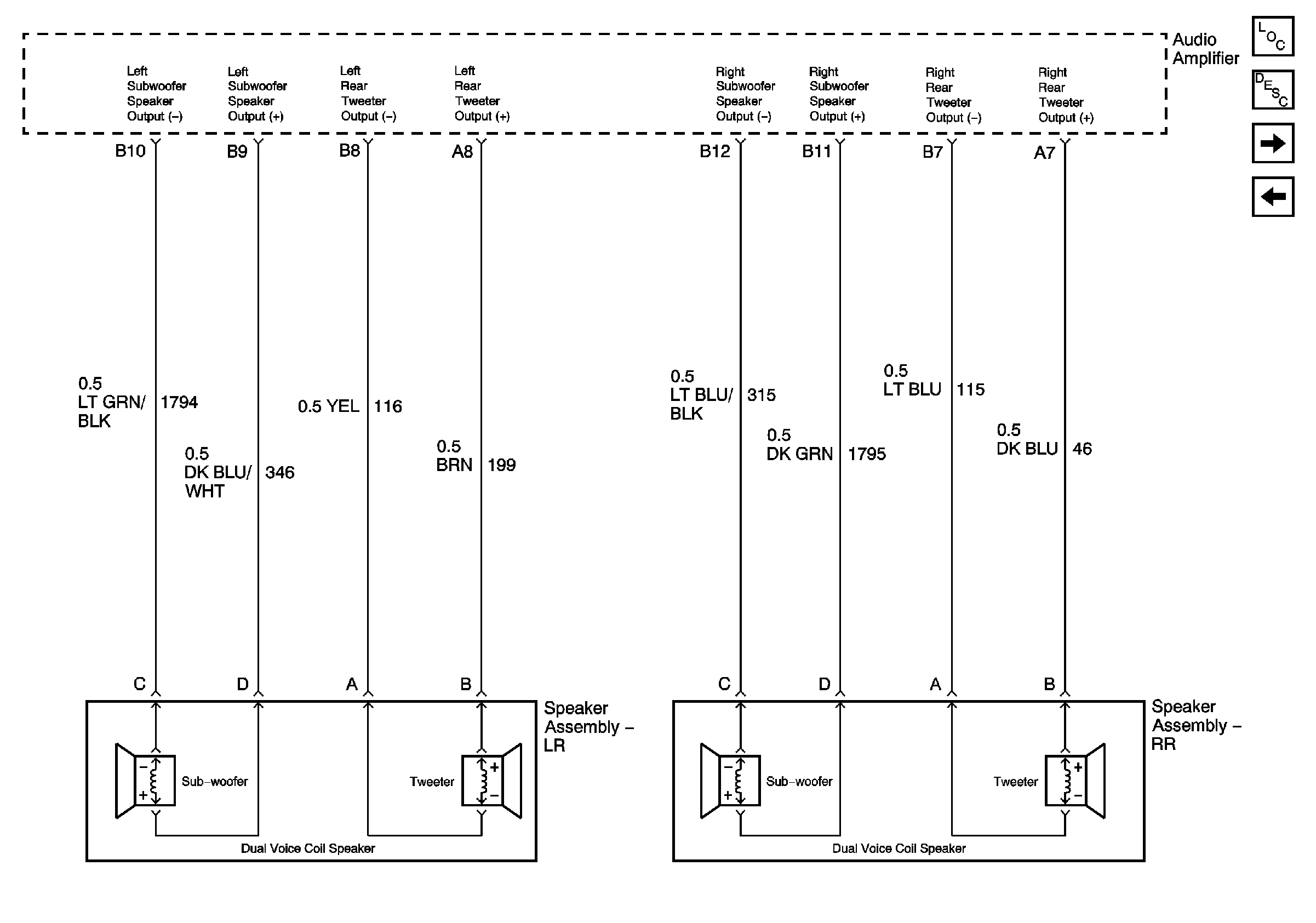

Figure 6:	Rear Speakers (UQ3) Master Electrical Component List Speakers - Front (U85) Amplifier IPower, Ground, and Outputs (JQ3) Amplifier IPower, Ground, and Outputs (JQ3) Amplifier IPower, Ground, and Outputs (JQ3) Amplifier IPower, Ground, and Outputs (JQ3) Amplifier IPower, Ground, and Outputs (JQ3)
Figure 7:	Speakers -- Front (U85) Master Electrical Component List Amplifier Power, Ground, and Outputs (U85) Rear Speakers (UQ3)
Figure 8:	Speakers -- Rear (U85) Master Electrical Component List Amplifier Power, Ground, and Outputs (U85)
