Ground Distribution Schematics. Pontiac Vibe

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2003 🢒 Vibe - FWD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

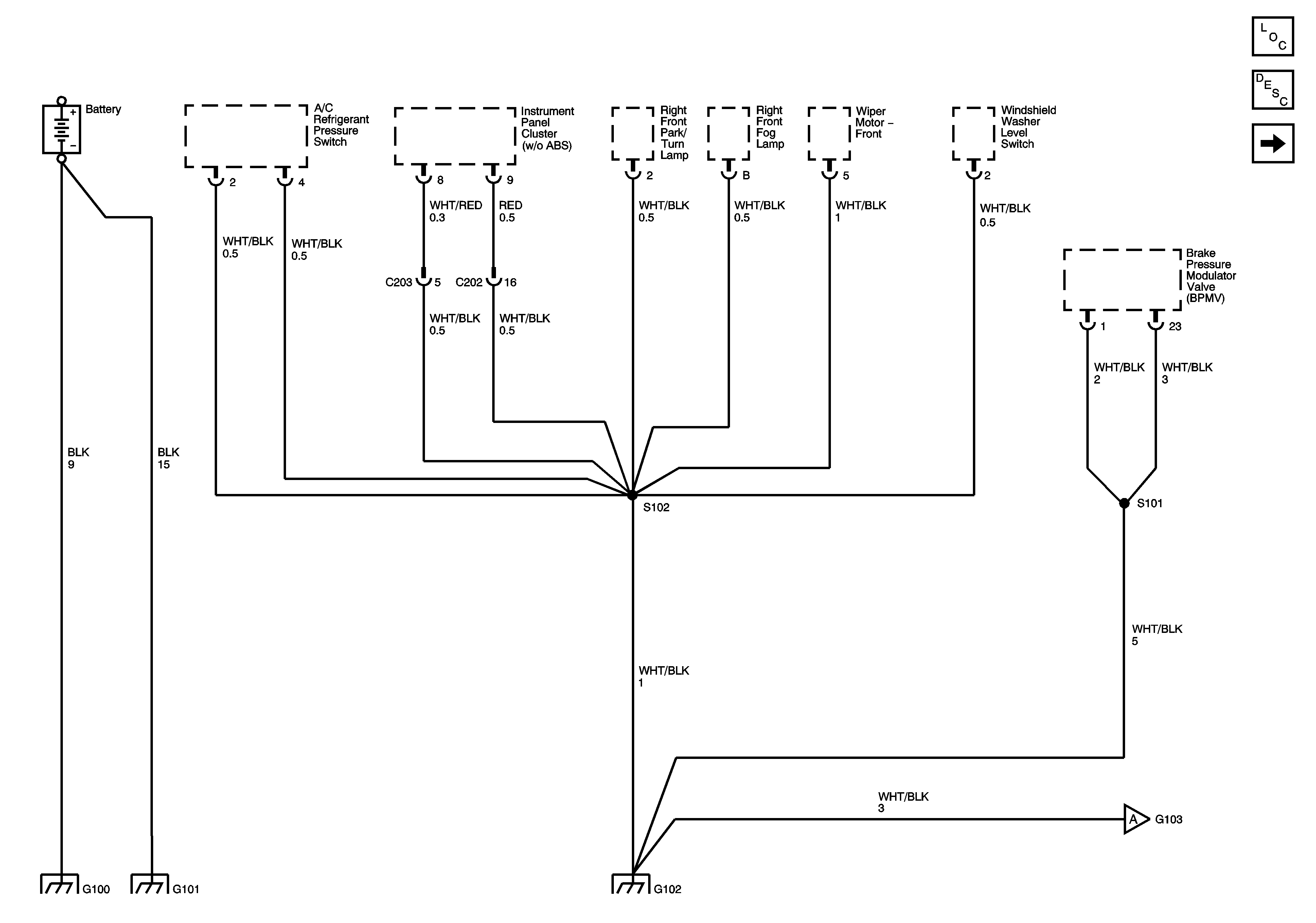

Figure 1:	G100, G101, G102 and G103 Master Electrical Component List S103 and G103
Figure 2:	S103 and G103 Master Electrical Component List SP107, SP108 and G104 G100, G101, G102 and G103
Figure 3:	SP107, SP108 and G104 Master Electrical Component List S105, SP107, G105 and G106 S103 and G103

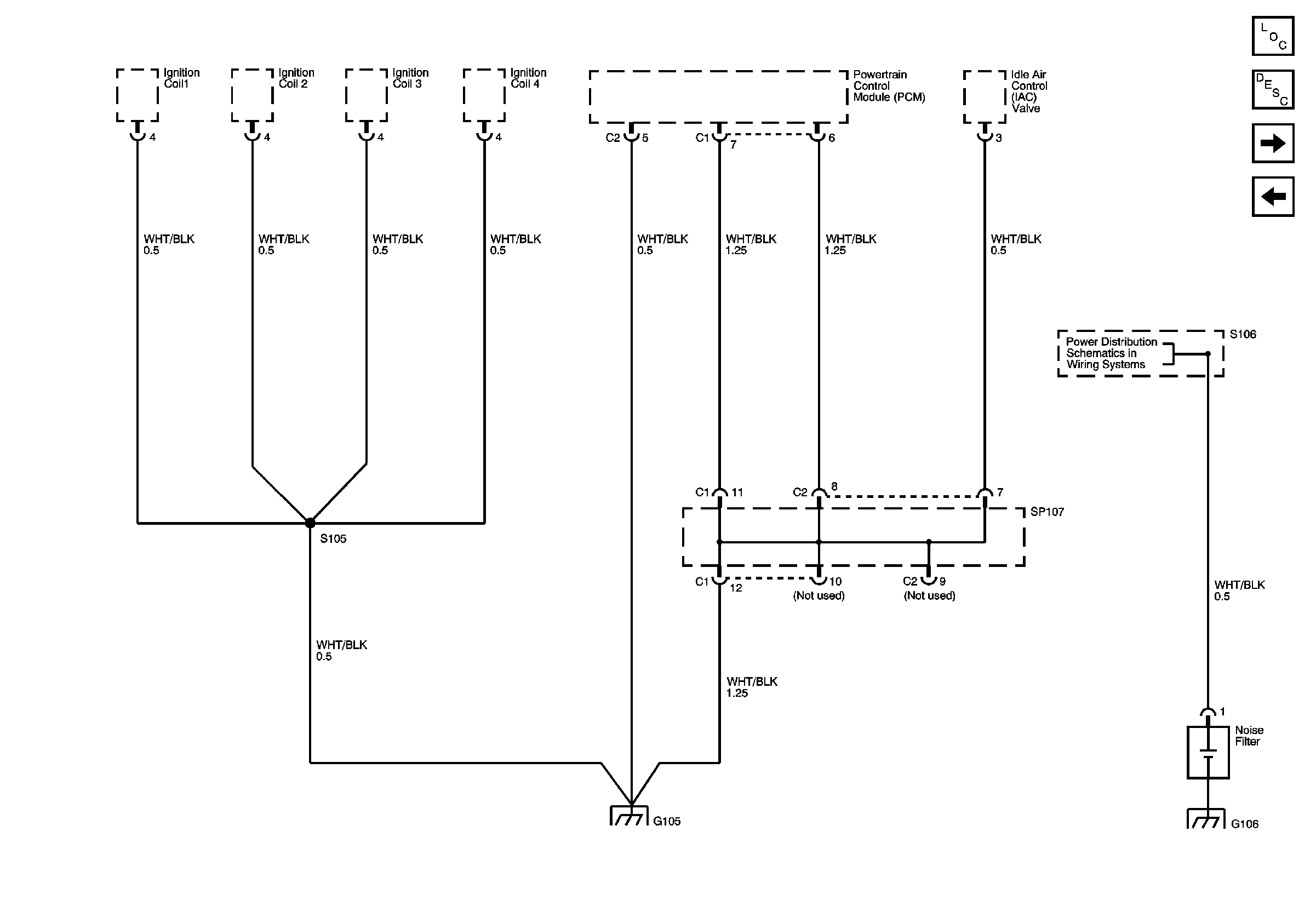

Figure 4:	S105, SP107, G105 and G106 Master Electrical Component List SP200 and G200 SP107, SP108 and G104
Figure 5:	SP200 and G200 Master Electrical Component List Left Instrument Panel Junction Block S105, SP107, G105 and G106

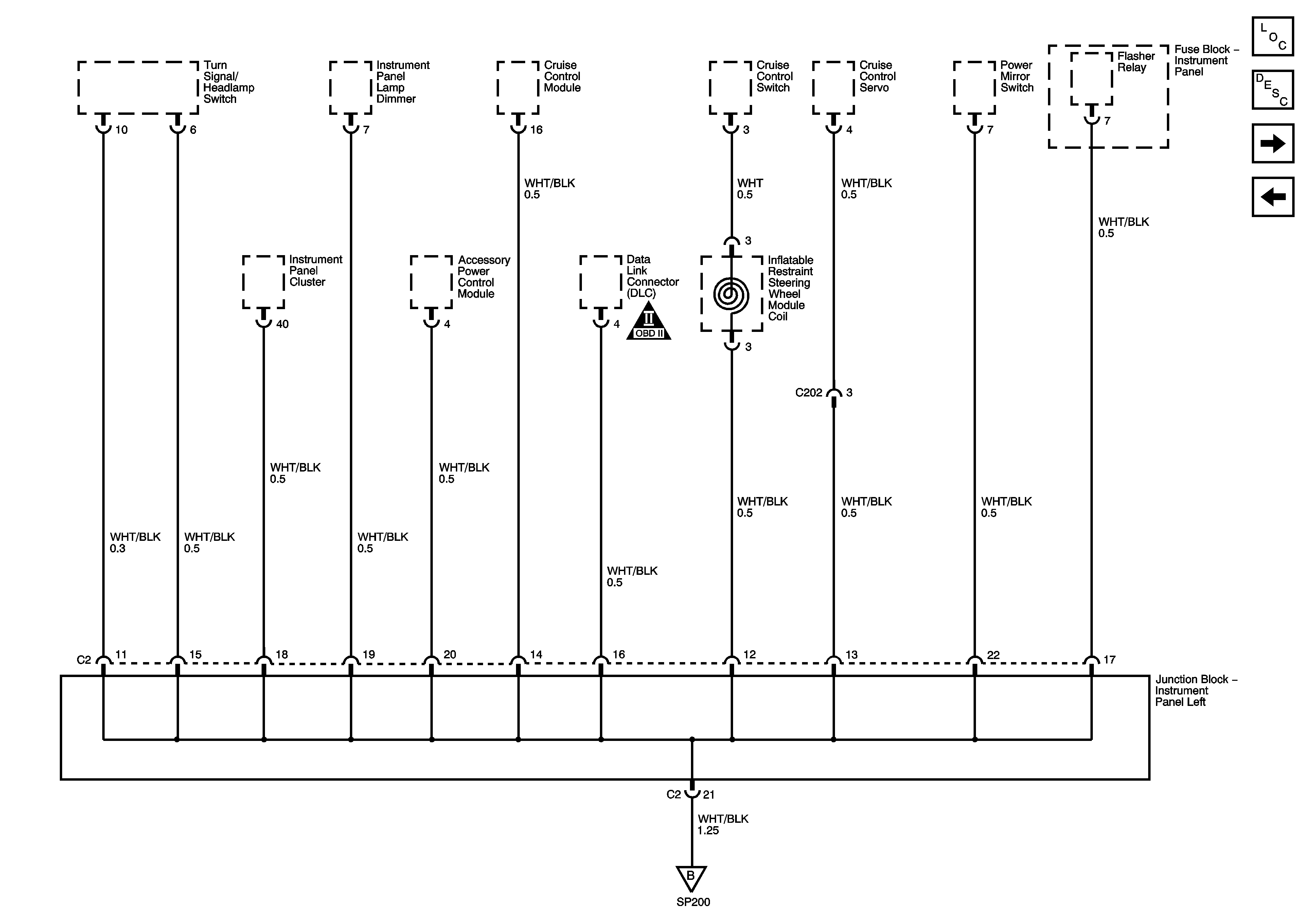

Figure 6:	Left Instrument Panel Junction Block Master Electrical Component List S221 SP200 and G200
Figure 7:	S221 Master Electrical Component List Instrument Panel Fuse Block Left Instrument Panel Junction Block
Figure 8:	Instrument Panel Fuse Block Master Electrical Component List SP201 and G201 S221

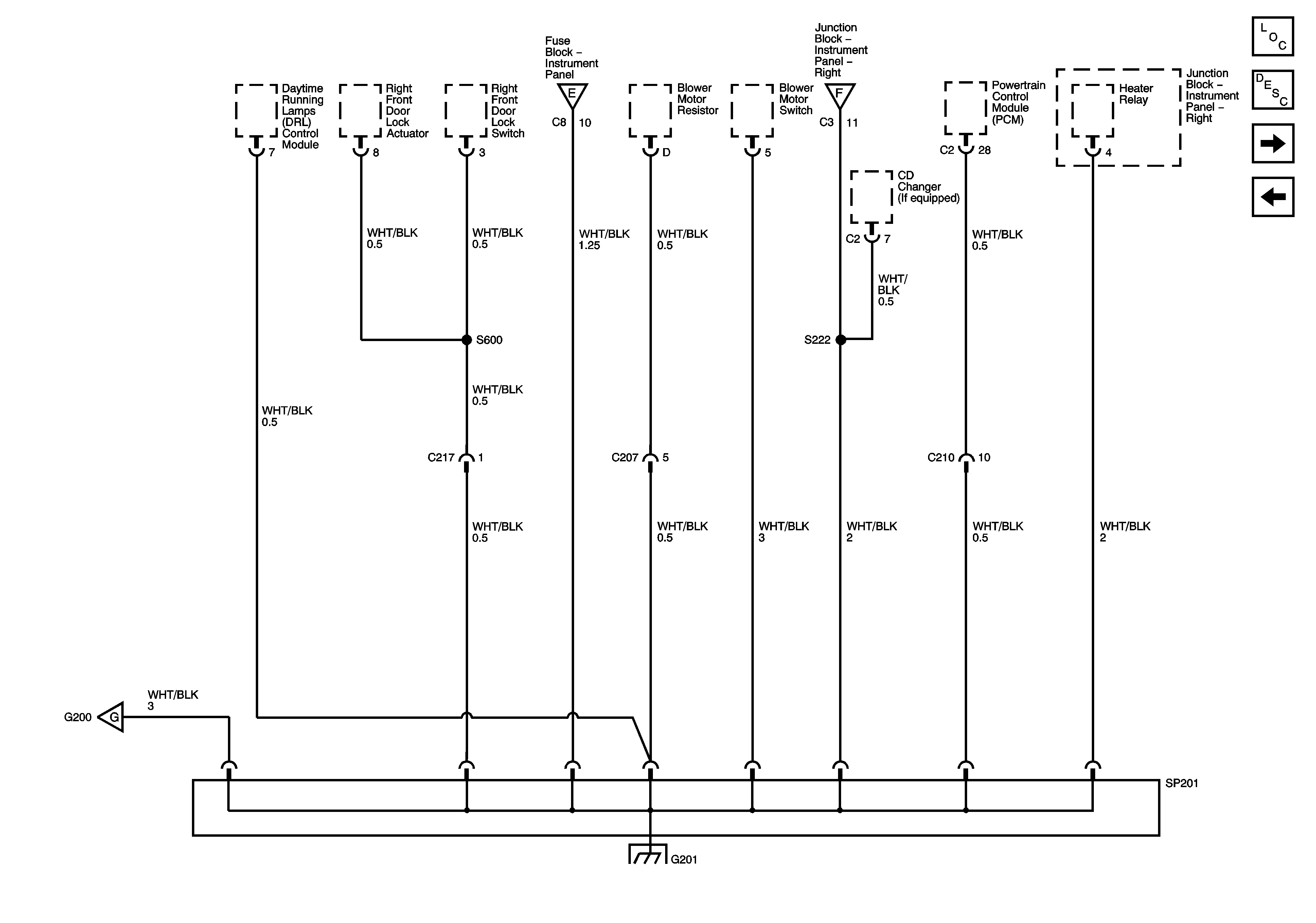

Figure 9:	SP201 and G201 Master Electrical Component List Right Instrument Panel Junction Block Instrument Panel Fuse Block SP200 and G200
Figure 10:	Right Instrument Panel Junction Block Master Electrical Component List G202, G300 and G301 SP201 and G201

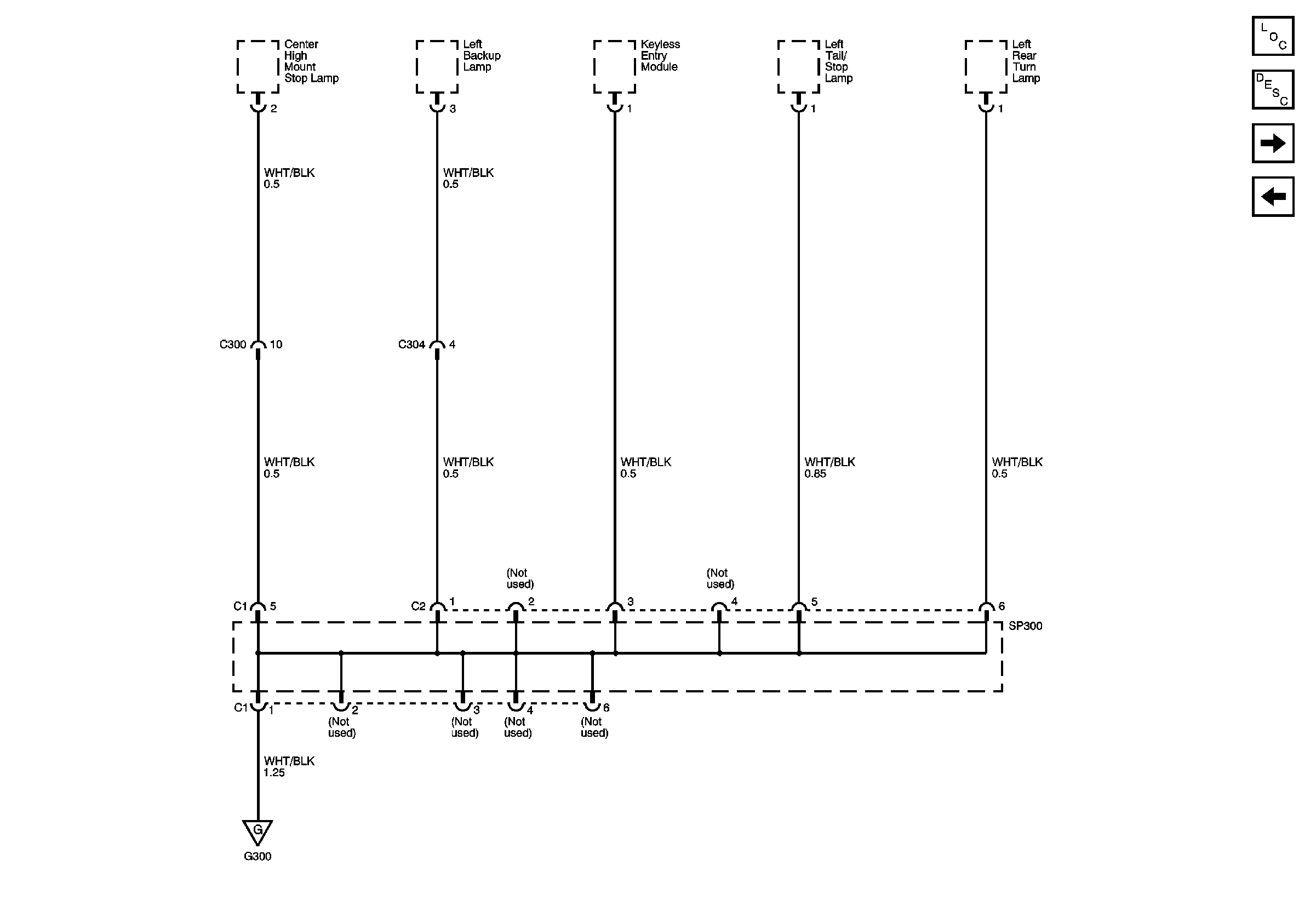

Figure 11:	G202, G300 and G301 Master Electrical Component List SP300 Right Instrument Panel Junction Block
Figure 12:	SP300 Master Electrical Component List SP400 G202, G300 and G301
Figure 13:	SP400 Master Electrical Component List SP300
