Power and Grounding Connector End Views. Pontiac Vibe

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2003 🢒 Vibe - FWD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power and Grounding Connector End Views

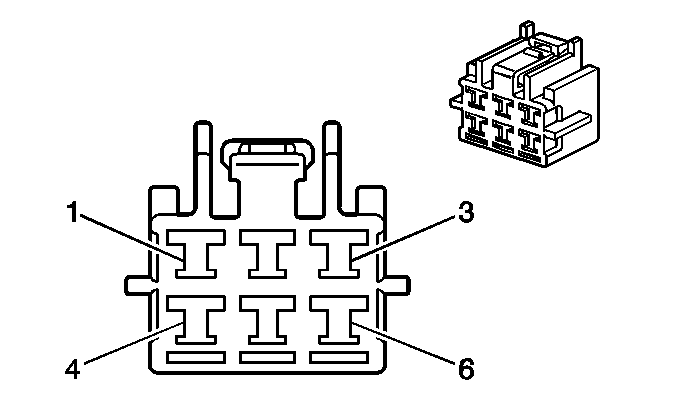

Connector 1:

Pin	Wire Color	Circuit No.	Function
1	WHT	--	Battery Positive Voltage
2	BLK/YEL	--	Ignition 1 Voltage
3	BLU/RED	--	Accessory Voltage
4	RED	--	Ignition Positive Voltage
5	BLK	--	Battery Positive Voltage
6	BLK/WHT	--	Ignition 1 Voltage
6	BLK/WHT	--	Ignition 1 Voltage
