Lighting Systems Connector End Views. Saturn SKY 2007

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2007 🢒 SKY 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Lighting Systems Connector End Views

Connector 1:	Ambient Light Sensor
Connector 2:	Backup Lamp (Early)
Connector 3:	Backup Lamp (Late)
Connector 4:	Backup Lamp Switch (MA5)
Connector 5:	Brake Pedal Position Sensor
Connector 6:	Center High Mounted Stop Lamp (CHMSL)
Connector 7:	Fog Lamp - Left Front
Connector 8:	Fog Lamp - Right Front
Connector 9:	Fog Lamp Switch
Connector 10:	Hazard Switch
Connector 11:	Headlamp - High Beam - Left
Connector 12:	Headlamp - High Beam - Right
Connector 13:	Headlamp - Low Beam - Left
Connector 14:	Headlamp - Low Beam - Right
Connector 15:	I/P Dimmer Switch
Connector 16:	License Lamp
Connector 17:	Marker Lamp - Left Front
Connector 18:	Marker Lamp - Right Front
Connector 19:	Park Lamp - Left Front
Connector 20:	Park Lamp - Right Front
Connector 21:	Park/Turn Lamp - Left Front
Connector 22:	Park/Turn Lamp - Right Front
Connector 23:	Rear Compartment Lamp
Connector 24:	Tail/Stop and Turn Signal Lamp - Left
Connector 25:	Tail/Stop and Turn Signal Lamp - Right
Connector 26:	Turn Signal/Multifunction Switch C1
Connector 27:	Turn Signal/Multifunction Switch C2

Ambient Light Sensor

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ambient Light Sensor

Pin	Wire Color	Circuit No.	Function
A	L-GN/BK	1137	DRL Ambient Light Sensor Signal
B	YE/BK	1138	DRL Ambient Light Sensor Low Reference

Backup Lamp (Early)

Connector Part Information

OEM: 15435155
Service: See Catalog
Description: 3-Way F Socket Wedge (NA)

Terminal Part Information

Terminal/Tray:7114-4102-08/9
Core/Insulation Crimp:0.35 E/1
Release Tool/Test Probe:12094430/J-35616-3 (GY)

Backup Lamp (Early)

Pin	Wire Color	Circuit No.	Function
A	L-GN	24	Backup Lamp Supply Voltage
B	--	--	Not Used
G	BK	750	Ground

Backup Lamp (Late)

Connector Part Information

OEM: 15326801
Service: See Catalog
Description: 2-Way F GTISO Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp (Late)

Pin	Wire Color	Circuit No.	Function
A	L-GN	24	Backup Lamp Supply Voltage
B	BK	750	Ground

Backup Lamp Switch (MA5)

Connector Part Information

OEM: 12103584
Service: 12085485
Description: 2-Way M Weather Pack (BK)

Terminal Part Information

Terminal/Tray: 12089040/3
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12014012-1/J-35616-9 (OG)

Backup Lamp Switch (MA5)

Pin	Wire Color	Circuit No.	Function
A	PK	539	Ignition 1 Voltage (MA5)
B	L-GN	24	Backup Lamp Supply Voltage (MA5)

Brake Pedal Position Sensor

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position Sensor

Pin	Wire Color	Circuit No.	Function
A	WH	5359	5-Volt Reference
B	YE	5361	Brake Pedal Position Sensor Signal
C	BN	5360	Low Reference

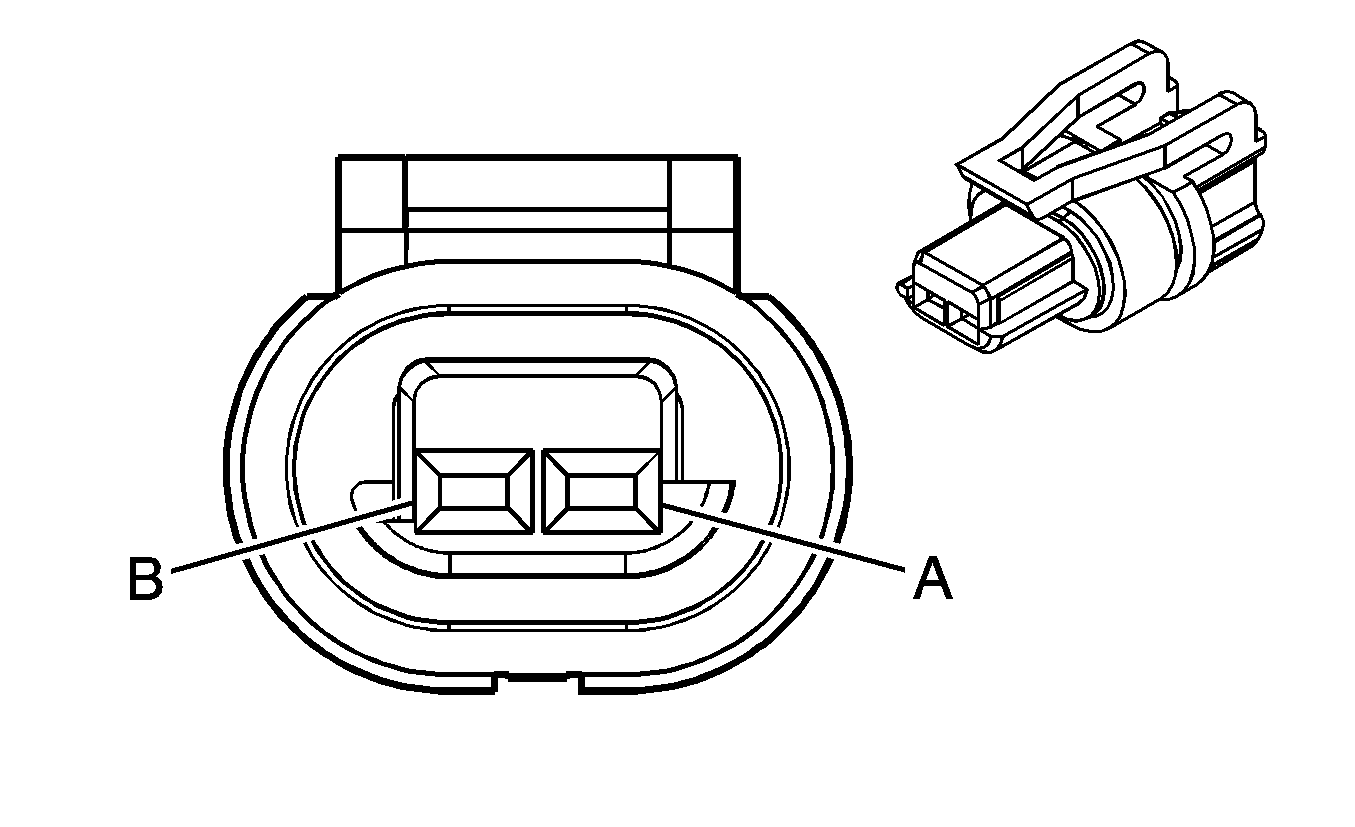

Center High Mounted Stop Lamp (CHMSL)

Connector Part Information

OEM: 15449029
Service: 88987993
Description: 2-Way F GT 150 Series, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Center High Mounted Stop Lamp (CHMSL)

Pin	Wire Color	Circuit No.	Function
A	L-BU	20	Stop Lamp Supply Voltage
B	BK	750	Ground

Fog Lamp - Left Front

Connector Part Information

OEM: 12124819
Service: 12101877
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - Left Front

Pin	Wire Color	Circuit No.	Function
A	PK	2234	Front Fog Lamp Supply Voltage
B	BK	150	Ground

Fog Lamp - Right Front

Connector Part Information

OEM: 12124819
Service: 12101877
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - Right Front

Pin	Wire Color	Circuit No.	Function
A	PK	2234	Front Fog Lamp Supply Voltage
B	BK	250	Ground

Fog Lamp Switch

Connector Part Information

OEM: 15419483
Service: 89046742
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fog Lamp Switch

Pin	Wire Color	Circuit No.	Function
A	BK	550	Ground
B	--	--	Not Used
C	OG	192	Front Fog Lamp Switch Signal
D	GY	8	Instrument Panel Lamp Supply Voltage

Hazard Switch

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack ISO Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Hazard Switch

Pin	Wire Color	Circuit No.	Function
A	GY	8	Instrument Panel Lamp Supply Voltage
B	BK	550	Ground
C	WH	111	Hazard Switch Signal

Headlamp - High Beam - Left

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - High Beam - Left

Pin	Wire Color	Circuit No.	Function
A	BK	--	Left Headlamp High Beam Supply Voltage
B	BK	--	Ground

Headlamp - High Beam - Right

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - High Beam - Right

Pin	Wire Color	Circuit No.	Function
A	BK	--	Right Headlamp High Beam Supply Voltage
B	BK	--	Ground

Headlamp - Low Beam - Left

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (GY)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Low Beam - Left

Pin	Wire Color	Circuit No.	Function
A	RD	--	Left Headlamp Low Beam Supply Voltage
B	RD	--	Ground

Headlamp - Low Beam - Right

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (GY)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Low Beam - Right

Pin	Wire Color	Circuit No.	Function
A	RD	--	Right Headlamp Low Beam Supply Voltage
B	RD	--	Ground

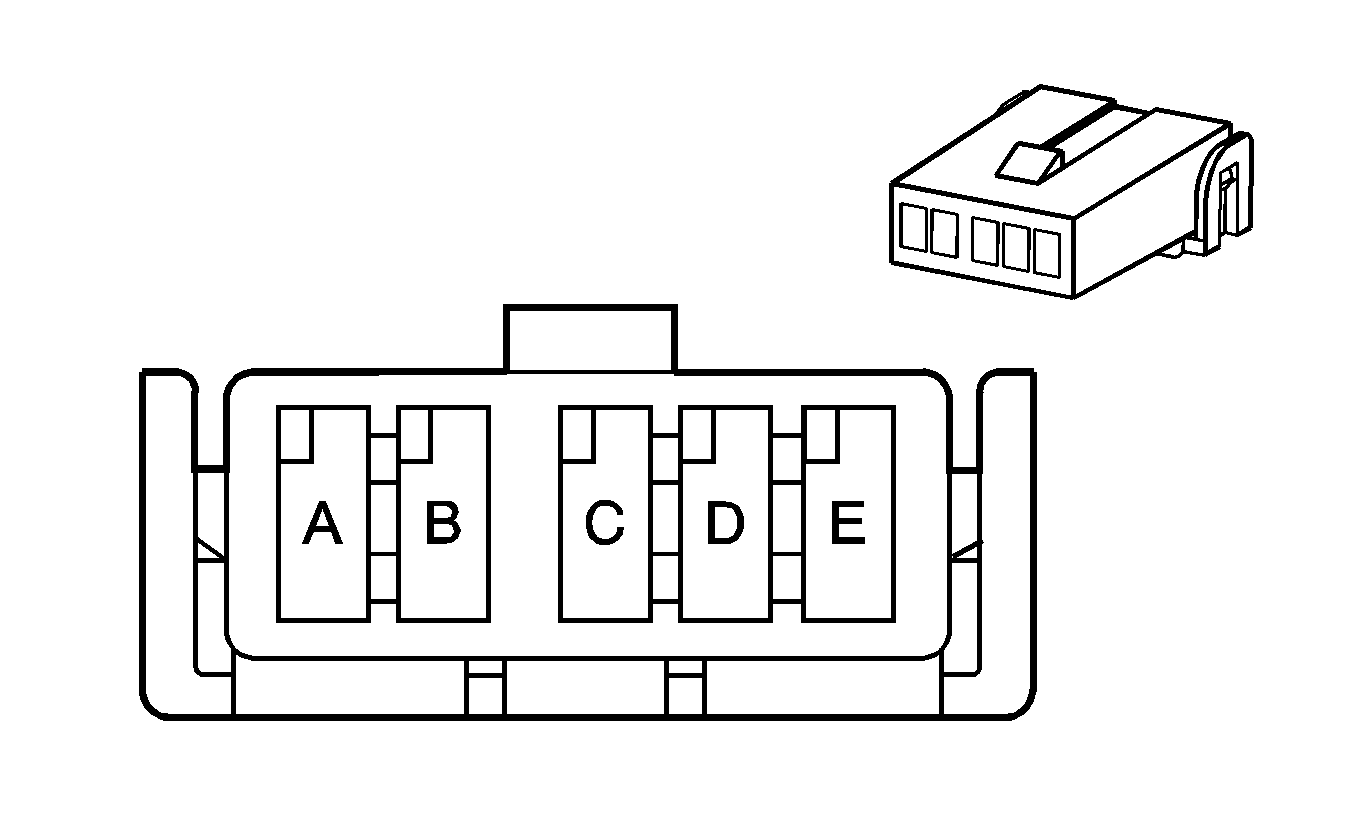

I/P Dimmer Switch

Connector Part Information

OEM: 12020299
Service: See Catalog
Description: 5-Way F P/C Edgeboard-Standard (NA)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

I/P Dimmer Switch

Pin	Wire Color	Circuit No.	Function
A	--	--	Not Used
B	PU	719	Sensor Low Reference
C	D-GN	44	Instrument Panel Lamp Dimmer Switch Signal
D-E	--	--	Not Used

License Lamp

Connector Part Information

OEM: 12162000
Service: 12167120
Description: 2-Way M Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

License Lamp

Pin	Wire Color	Circuit No.	Function
A	BN	9	Tail/License Lamps Supply Voltage
B	BK	750	Ground

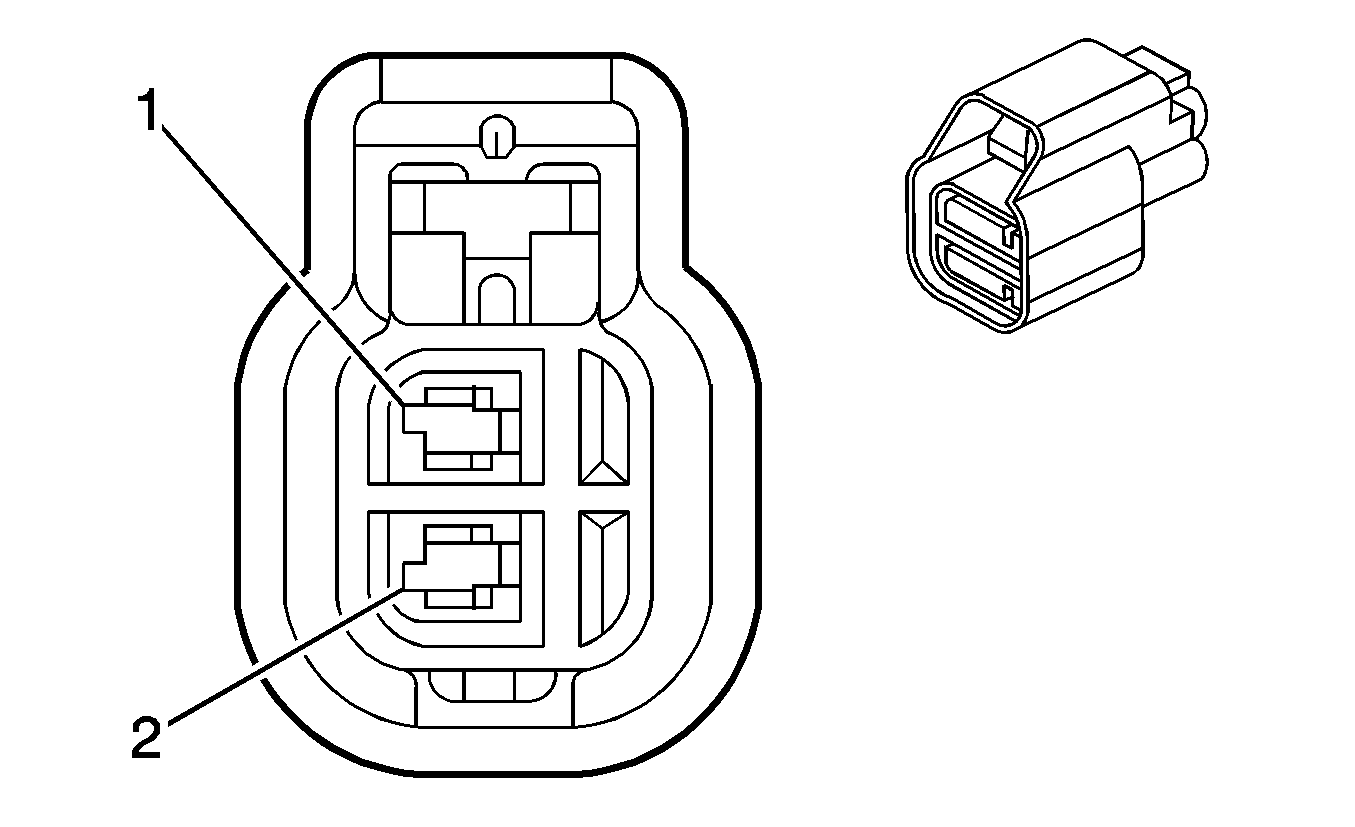

Marker Lamp - Left Front

Connector Part Information

OEM: 7223-1324-60
Service: 88988460
Description: 2-Way F 090 Series (GN)

Terminal Part Information

Terminal: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Left Front

Pin	Wire Color	Circuit No.	Function
1	BN	9	Park Lamp Supply Voltage
2	BK	150	Ground

Marker Lamp - Right Front

Connector Part Information

OEM: 7223-1324-60
Service: 88988460
Description: 2-Way F 090 Series (GN)

Terminal Part Information

Terminal: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Right Front

Pin	Wire Color	Circuit No.	Function
1	BN	9	Park Lamp Supply Voltage
2	BK	250	Ground

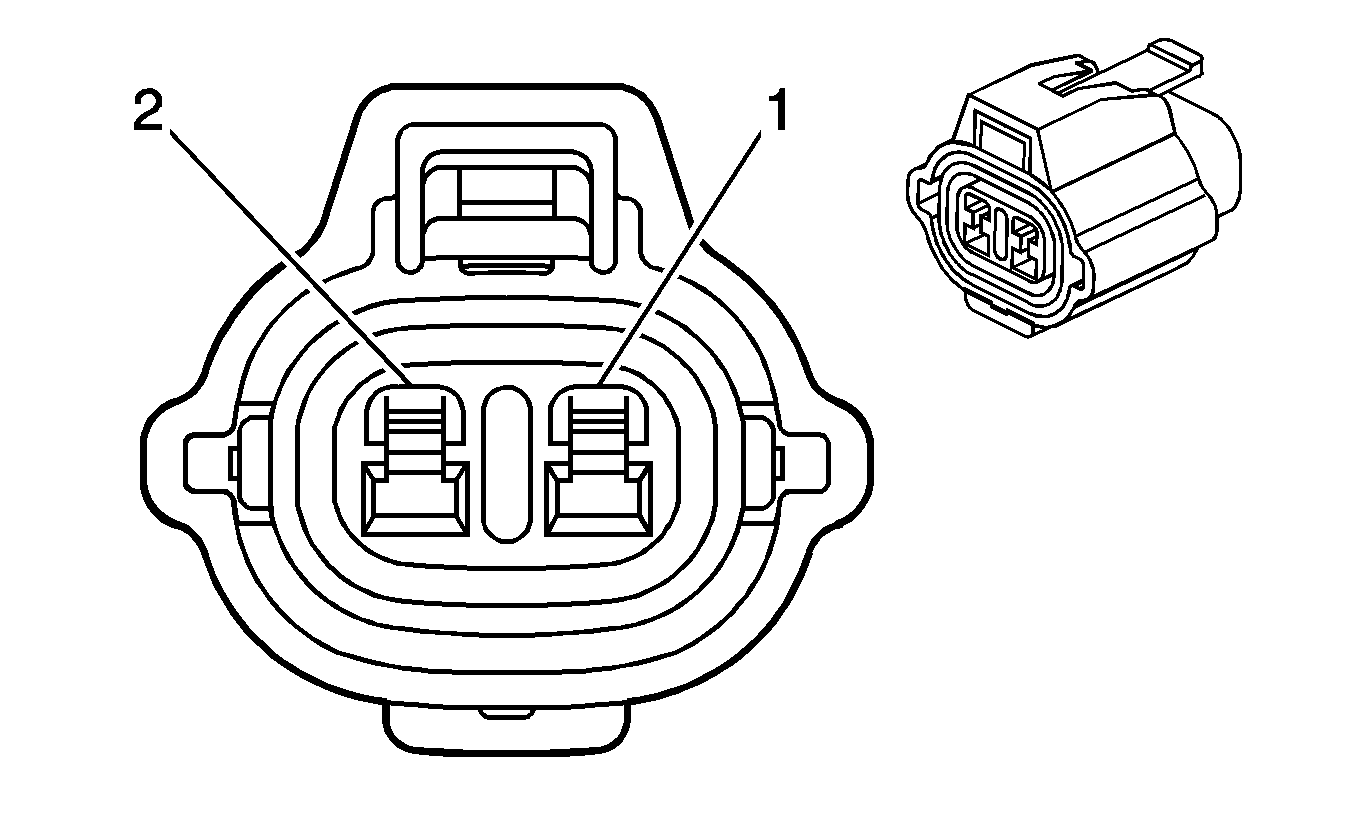

Park Lamp - Left Front

Connector Part Information

OEM: E-3550-000
Service: 89046838
Description: 2-Way F 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal: Pin 1: 7116-4102-08/9Pin 2: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Park Lamp - Left Front

Pin	Wire Color	Circuit No.	Function
1	BN	9	Park Lamp Supply Voltage
2	BK	150	Ground

Park Lamp - Right Front

Connector Part Information

OEM: E-3550-000
Service: 89046838
Description: 2-Way F 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal: Pin 1: 7116-4102-08/9Pin 2: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Park Lamp - Right Front

Pin	Wire Color	Circuit No.	Function
1	BN	9	Park Lamp Supply Voltage
2	BK	250	Ground

Park/Turn Lamp - Left Front

Connector Part Information

OEM: 15324084
Service: See Catalog
Description: 3-Way F Bulb Type W3, Right Angle (BN)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Turn Lamp - Left Front

Pin	Wire Color	Circuit No.	Function
A	L-BU	14	Left Turn Signal Lamps Supply Voltage
B	BN	9	Tail/License Lamps Supply Voltage
G	BK	150	Ground (T96)

Park/Turn Lamp - Right Front

Connector Part Information

OEM: 15324084
Service: See Catalog
Description: 3-Way F Bulb Type W3, Right Angle (BN)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Turn Lamp - Right Front

Pin	Wire Color	Circuit No.	Function
A	D-BU	15	Right Turn Signal Lamps Supply Voltage
B	BN	9	Tail/License Lamps Supply Voltage
G	BK	250	Ground (T96)

Rear Compartment Lamp

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Rear Compartment Lamp

Pin	Wire Color	Circuit No.	Function
A	BK	750	Ground
B	OG/BK	737	Rear Compartment Lamp Control

Tail/Stop and Turn Signal Lamp - Left

Connector Part Information

OEM: 7822-2945-A22
Service: See Catalog
Description: 3-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail/Stop and Turn Signal Lamp - Left

Pin	Wire Color	Circuit No.	Function
A	YE	18	Left Rear Stop/Turn Lamp Supply Voltage
B	BN	9	Tail/License Lamps Supply Voltage
G	BK	1050	Ground

Tail/Stop and Turn Signal Lamp - Right

Connector Part Information

OEM: 7822-2945-A22
Service: See Catalog
Description: 3-Way F (BK)

Terminal Part Information

Terminal/Tray: Terminal Repair Kit
Core/Insulation Crimp: Terminal Repair Kit
Release Tool/Test Probe: Terminal Repair Kit

Tail/Stop and Turn Signal Lamp - Right

Pin	Wire Color	Circuit No.	Function
A	D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
B	BN	9	Tail/License Lamps Supply Voltage
G	BK	750	Ground

Turn Signal/Multifunction Switch C1

Connector Part Information

OEM: 15411425
Service: 88987843
Description: 8-Way F Misc (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C1

Pin	Wire Color	Circuit No.	Function
1	BK/WH	651	Ground
2	WH	103	Headlamp Switch Headlamps On Signal
3	BN/WH	301	Park Lamp Switch On Signal
4	PU/WH	549	Headlamp Switch Headlamps Off Signal
5-8	--	--	Not Used

Turn Signal/Multifunction Switch C2

Connector Part Information

OEM: 15393435
Service: 88986438
Description: 10-Way F Micro-Pack 64 (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C2

Pin	Wire Color	Circuit No.	Function
A	--	--	Not Used
B	BK/WH	651	Ground
C	BN	1356	Flash To Pass Switch Signal
D	PU	524	Headlamp Dimmer Switch High Beam Signal
E	--	--	Not Used
F	PK/BK	1970	Headlamp Low Beam Relay Control
G	YE/BK	1418	Left Rear Turn Signal Switch Signal
H	D-GN/WH	1419	Right Rear Turn Signal Switch Signal
J-K	--	--	Not Used
