Radio/Navigation System Schematics. Saturn SKY 2009

For 1990-2009 cars only

Makes 🢒 Saturn 🢒 2009 🢒 SKY 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Radio/Navigation System Schematics

Figure 1:	Radio, Speakers (UW5)

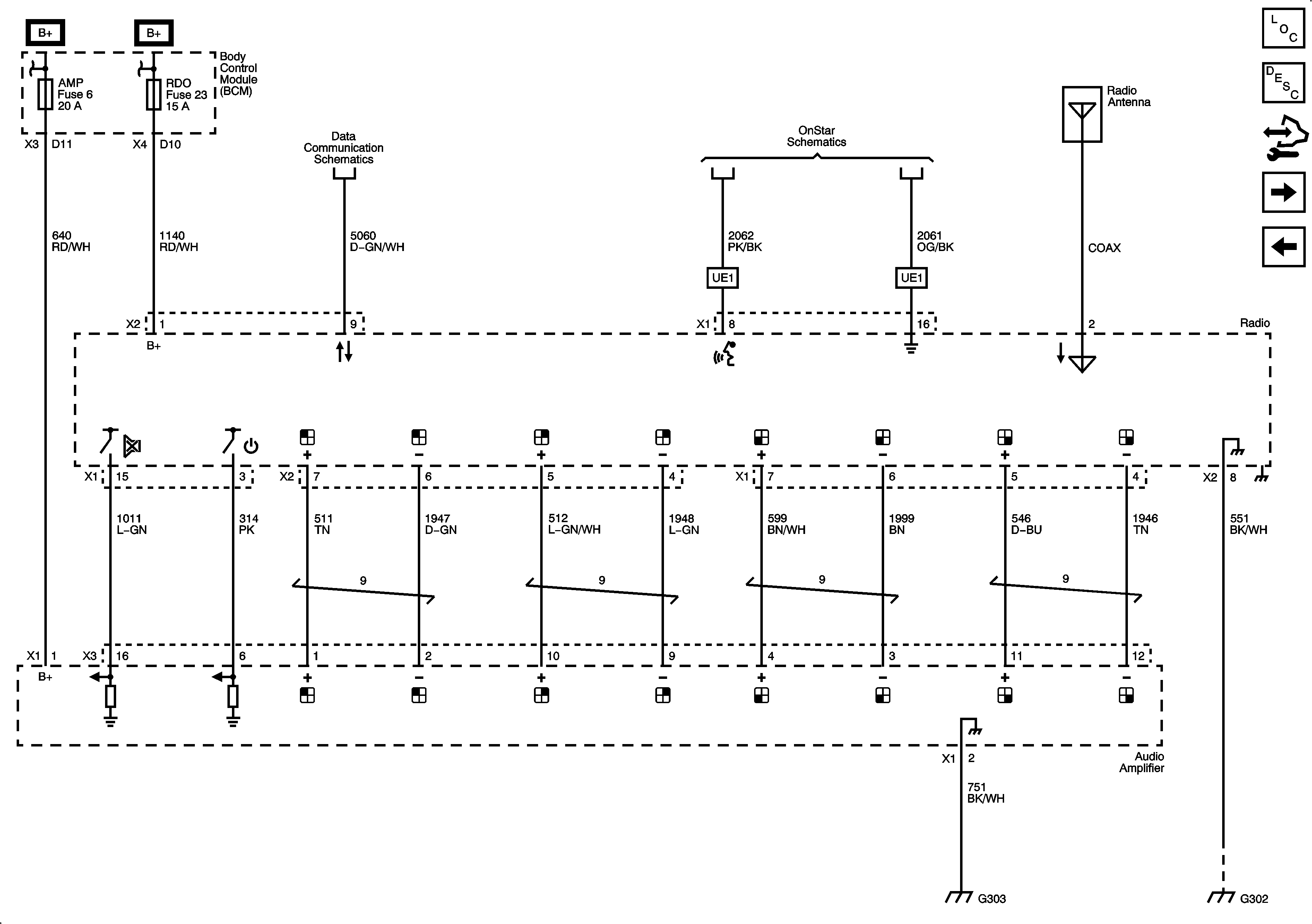

Figure 2:	Amplifier Power, Speakers (UQ3) (1 of 2)
Figure 3:	Amplifier Power, Speakers (UQ3) (2 of 2)

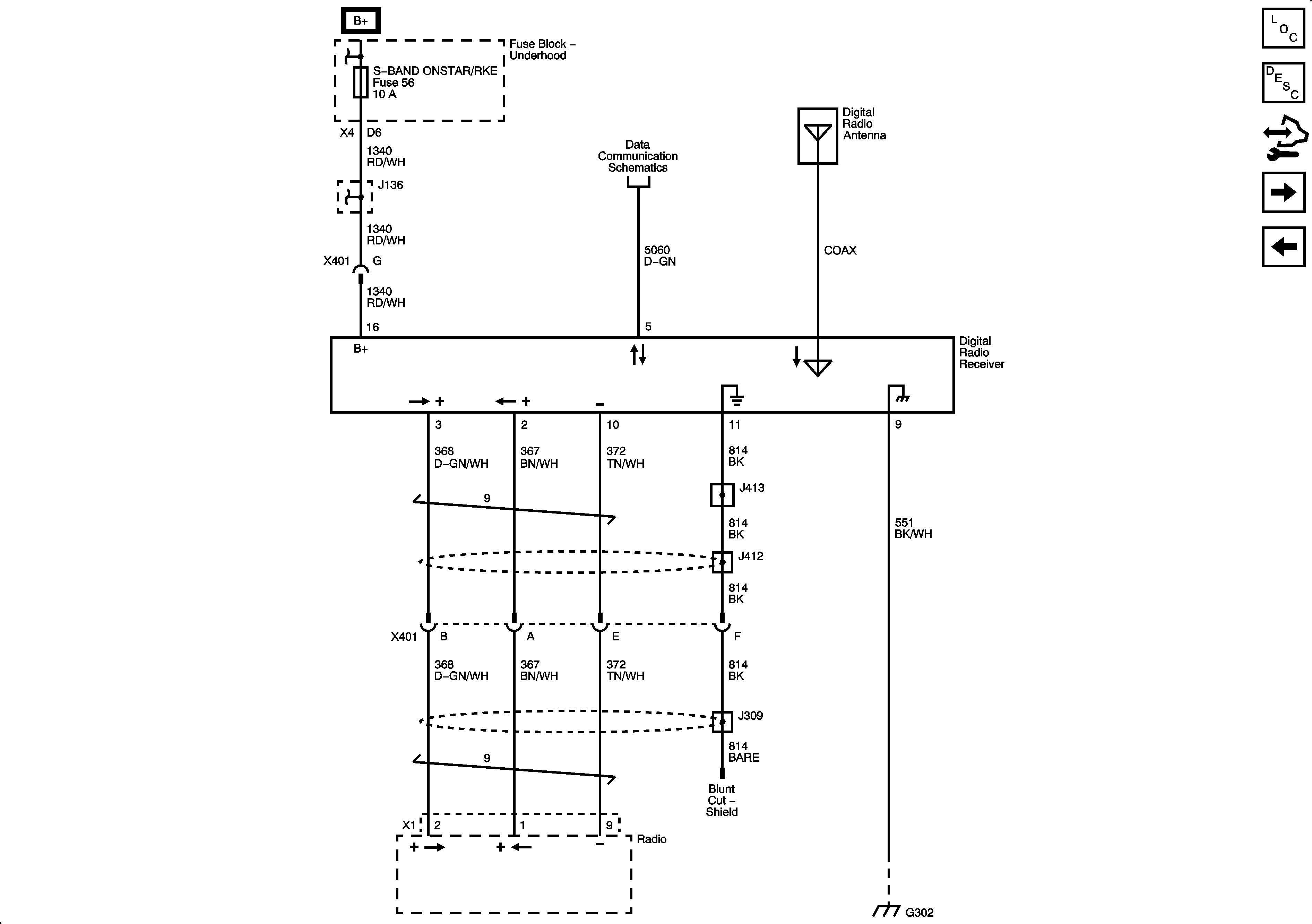

Figure 4:	Digital Radio Receiver (U2K)

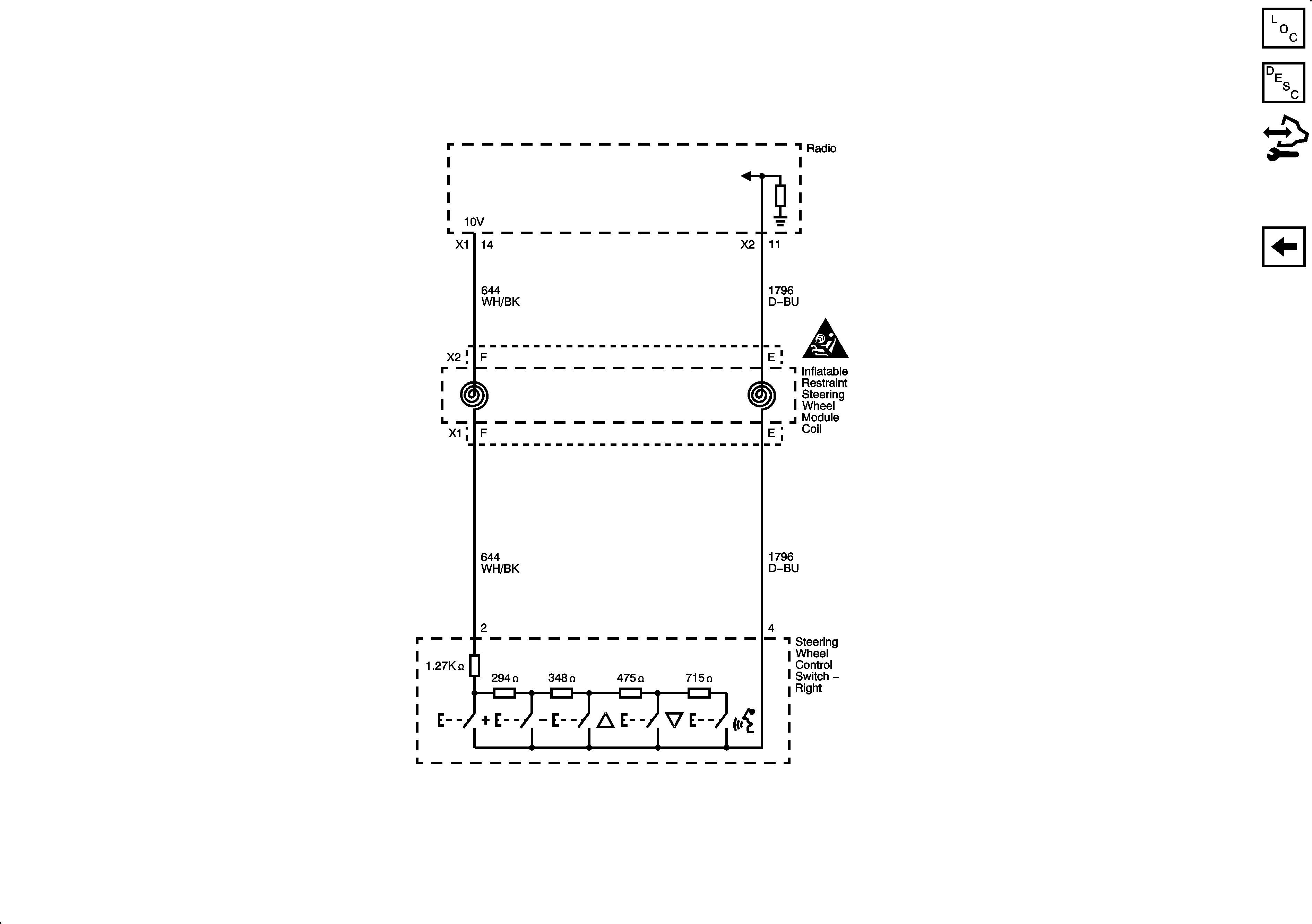

Figure 5:	Redundant Radio Controls
