Front Bumper Fascia Replacement Sky Base


Object Number: 1716949 Size: MF

Callout

Component Name

1

Front Fascia Retainer (Qty: 16)

2

Front Fascia Screw (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2 N·m (18 lb in)

3

Front Fascia Bracket Screw (Qty: 4)

Tighten
2 N·m (18 lb in)

4

Front Fascia Center Bracket Retainer

5

Front Fascia

Tip
Disconnect the lamp connectors.

Front Bumper Fascia Replacement Sky Turbo


Object Number: 1716949 Size: MF

Callout

Component Name

Preliminary Procedure

Disconnect the brake cooling duct retainer. Refer to Front Brake Caliper Cooling Duct Replacement.

1

Front Fascia Retainer (Qty: 16)

2

Front Fascia Screw (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2 N·m (18 lb in)

3

Front Fascia Bracket Screw (Qty: 4)

Tighten
2 N·m (18 lb in)

4

Front Fascia Center Bracket Retainer

5

Front Fascia

Tip
Disconnect the lamp connectors.

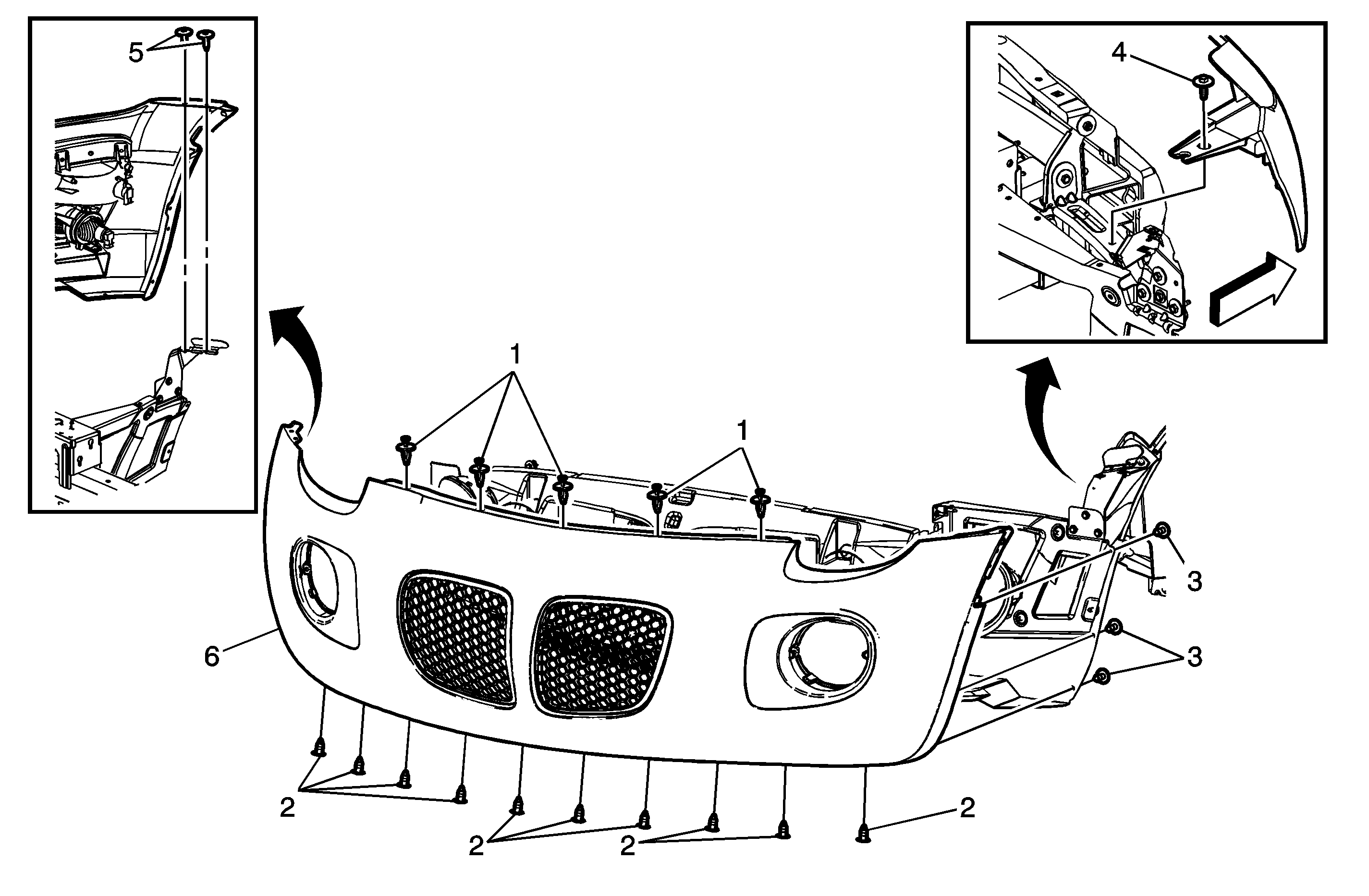

Front Bumper Fascia Replacement Solstice Base


Object Number: 1580205 Size: MF

Callout

Component Name

1

Front Fascia Retainers (Qty: 5)

2

Front Fascia Retainers (Qty: 10)

3

Wheelhouse Liner Screws (Qty: 6)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2 N·m (18 lb in)

4

Front Fascia Bolts (Qty: 2)

Tighten
10 N·m (89 lb in)

5

Front Fascia Bolts (Qty: 2)

Tighten
10 N·m (89 lb in)

6

Front Fascia

Tip
Disconnect all electrical connectors.

Front Bumper Fascia Replacement Solstice Turbo


Object Number: 1580205 Size: MF

Callout

Component Name

Preliminary Procedure

Disconnect the brake cooling duct retainer. Refer to Front Brake Caliper Cooling Duct Replacement.

1

Front Fascia Retainers (Qty: 5)

2

Front Fascia Retainers (Qty: 6)

3

Wheelhouse Liner Screws (Qty: 6)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2 N·m (18 lb in)

4

Front Fascia Bolts (Qty: 2)

Tighten
10 N·m (89 lb in)

5

Front Fascia Bolts (Qty: 4)

Tighten
10 N·m (89 lb in)

6

Front Fascia

Tip
Disconnect all electrical connectors.
