Mobile Telephone Microphone Replacement. Suzuki XL-7 AWD 2008

For 1990-2009 cars only

Makes 🢒 Suzuki 🢒 2008 🢒 XL-7 AWD 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Mobile Telephone Microphone Replacement

Mobile Telephone Microphone Replacement Without CF5

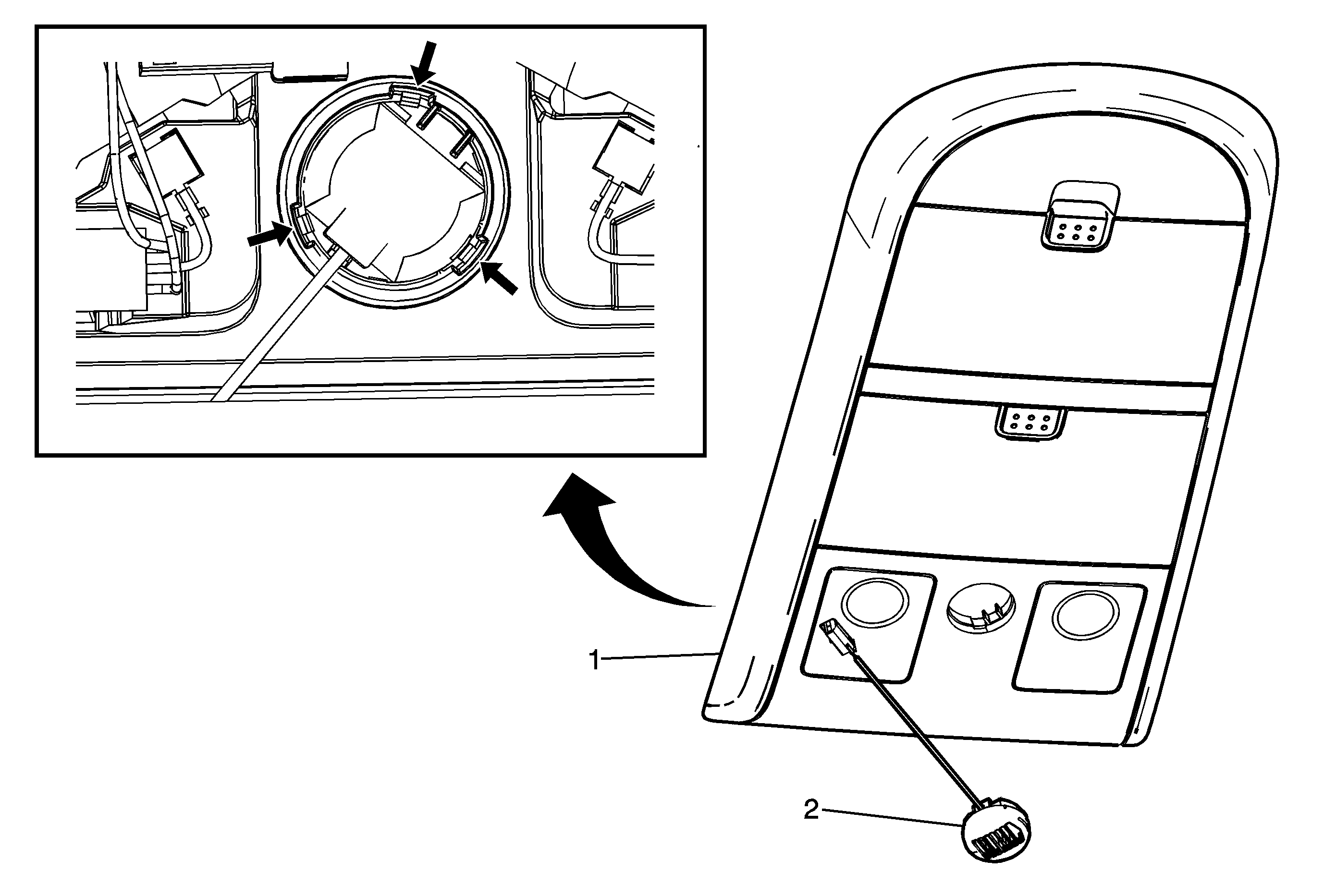

Callout	Component Name
1	Roof Console Assembly Refer to Roof Console Replacement .
2	Mobile Telephone Microphone Assembly Procedure Disconnect the microphone electrical connector. From the top side of the overhead console remove the microphone by releasing the 3 clips and pushing the microphone through the bottom of the console.

Callout

Component Name

Roof Console Assembly

Mobile Telephone Microphone Assembly

Disconnect the microphone electrical connector.
From the top side of the overhead console remove the microphone by releasing the 3 clips and pushing the microphone through the bottom of the console.

Callout	Component Name
1	Roof Console Assembly Refer to Roof Console Replacement .
2	Mobile Telephone Microphone Assembly Procedure Disconnect the microphone electrical connector. From the top side of the overhead console remove the microphone by releasing the 3 clips and pushing the microphone through the bottom of the console.

Callout

Component Name

Roof Console Assembly

Mobile Telephone Microphone Assembly

Disconnect the microphone electrical connector.
From the top side of the overhead console remove the microphone by releasing the 3 clips and pushing the microphone through the bottom of the console.
