Liftgate Strut Ball Stud Replacement. Suzuki XL-7 AWD 2008

For 1990-2009 cars only

Makes 🢒 Suzuki 🢒 2008 🢒 XL-7 AWD 🢒 Body Repair 🢒 Bolted Exterior Body Panels and Closures 🢒 Liftgate Strut Ball Stud Replacement

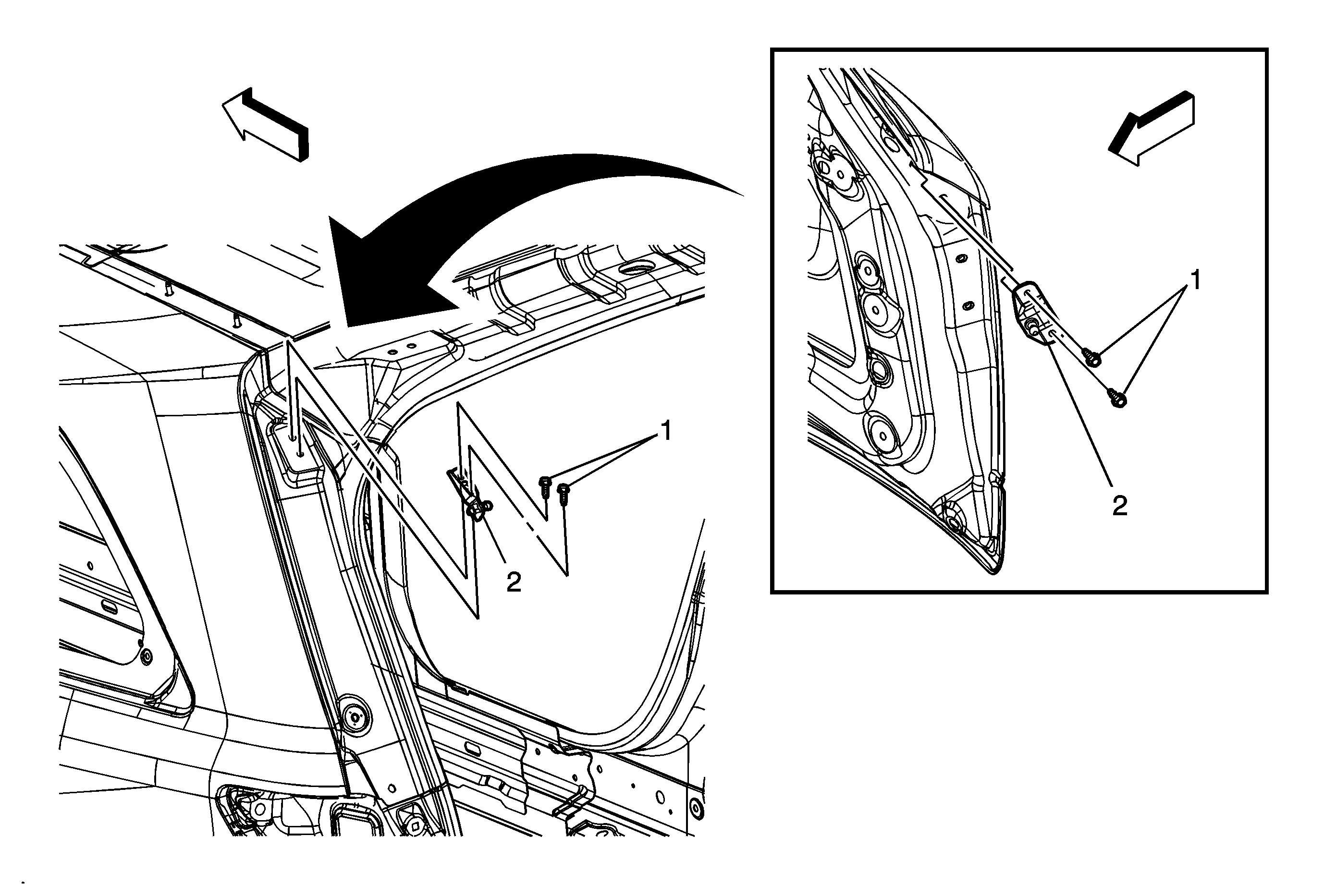

Callout	Component Name
Preliminary Procedure Remove the liftgate strut. Refer to Liftgate Strut Replacement .
1	Liftgate Strut Ball Stud Bolts (Qty: 2) Notice: Refer to Fastener Notice in the Preface section. Tighten 10 N·m (89 lb in)
2	Liftgate Strut Ball Stud

Callout

Component Name

Remove the liftgate strut. Refer to Liftgate Strut Replacement .

Liftgate Strut Ball Stud Bolts (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
10 N·m (89 lb in)

Liftgate Strut Ball Stud
