Front of Vehicle/Engine Compartment Component Views. Suzuki XL-7 AWD 2008

For 1990-2009 cars only

Makes 🢒 Suzuki 🢒 2008 🢒 XL-7 AWD 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Front of Vehicle/Engine Compartment Component Views

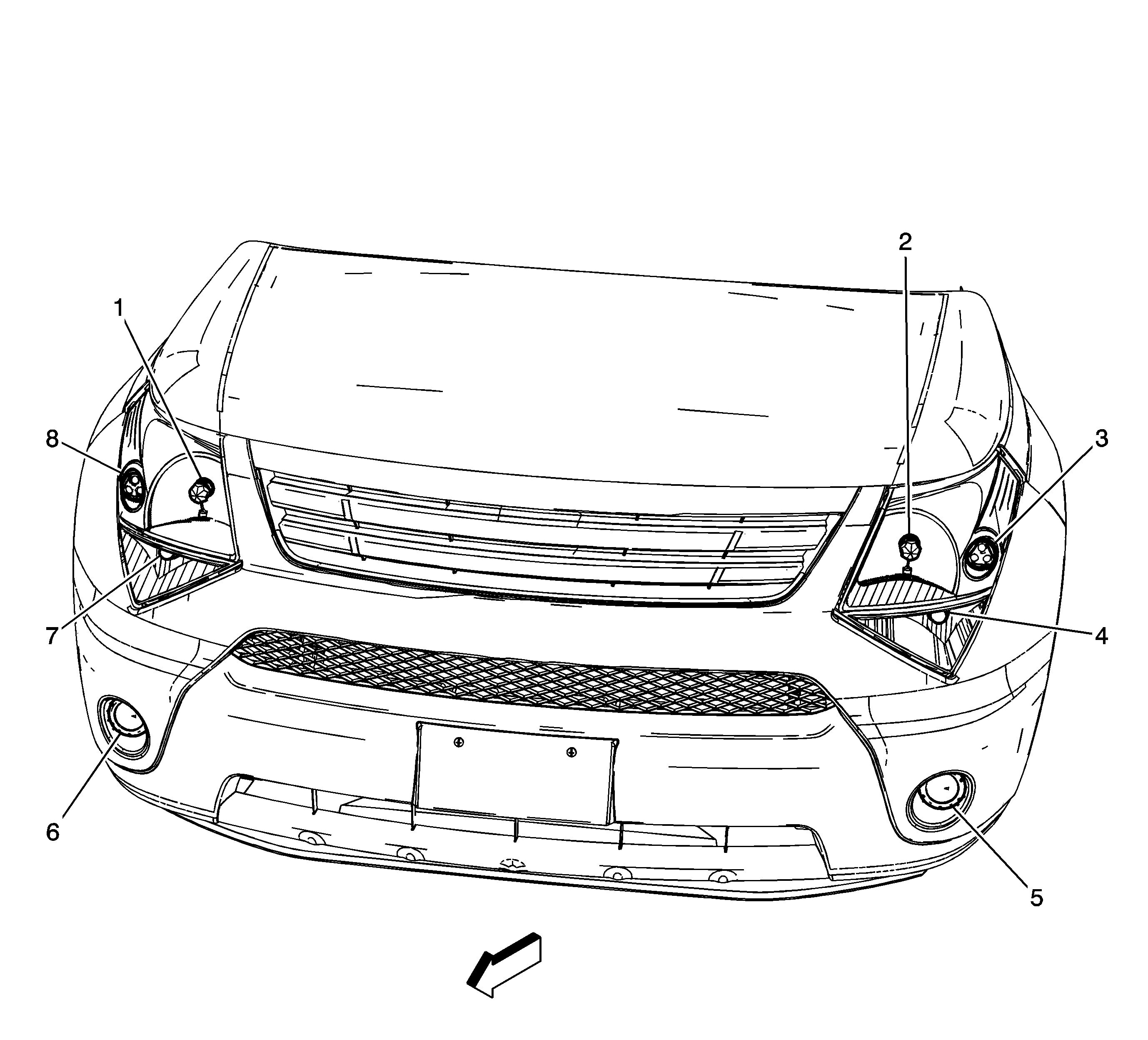

Figure 1:

Front Exterior Lighting Components


(1)	Headlamp - Right
(2)	Headlamp - Left
(3)	Marker Lamp - Left Front
(4)	Park/Turn Signal Lamp - Left Front
(5)	Fog Lamp - Left Front (T96)
(6)	Fog Lamp - Right Front (T96)
(7)	Park/Turn Signal Lamp - Right Front
(8)	Marker Lamp - Right Front

Figure 2:

Left Front Frame Rail Components


(1)	Horn

Figure 3:

Front Engine Compartment Components


(1)	Fuse Block - Underhood
(2)	Battery
(3)	Engine Cooling Fan - Left
(4)	Engine Cooling Fan - Right

Figure 4:

Left Front Engine Compartment Components 1 of 2


(1)	Left Front Strut Tower
(2)	G103
(3)	Windshield Washer Fluid Pump
(4)	Battery Current Sensor

Figure 5:

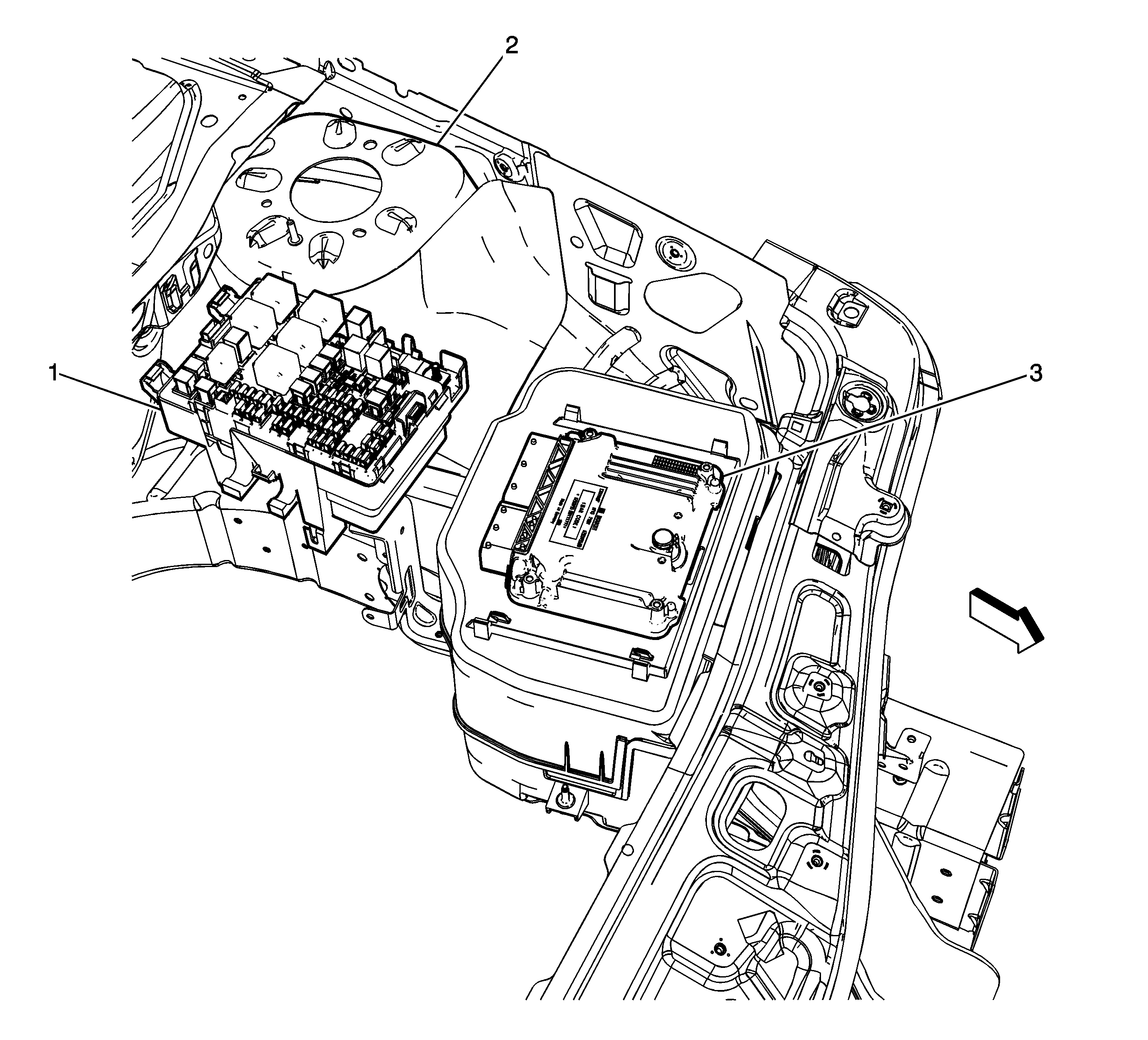

Left Front Engine Compartment Components 2 of 2


(1)	Fuse Block - Underhood
(2)	Left Front Strut Tower
(3)	Engine Control Module (ECM)

Figure 6:

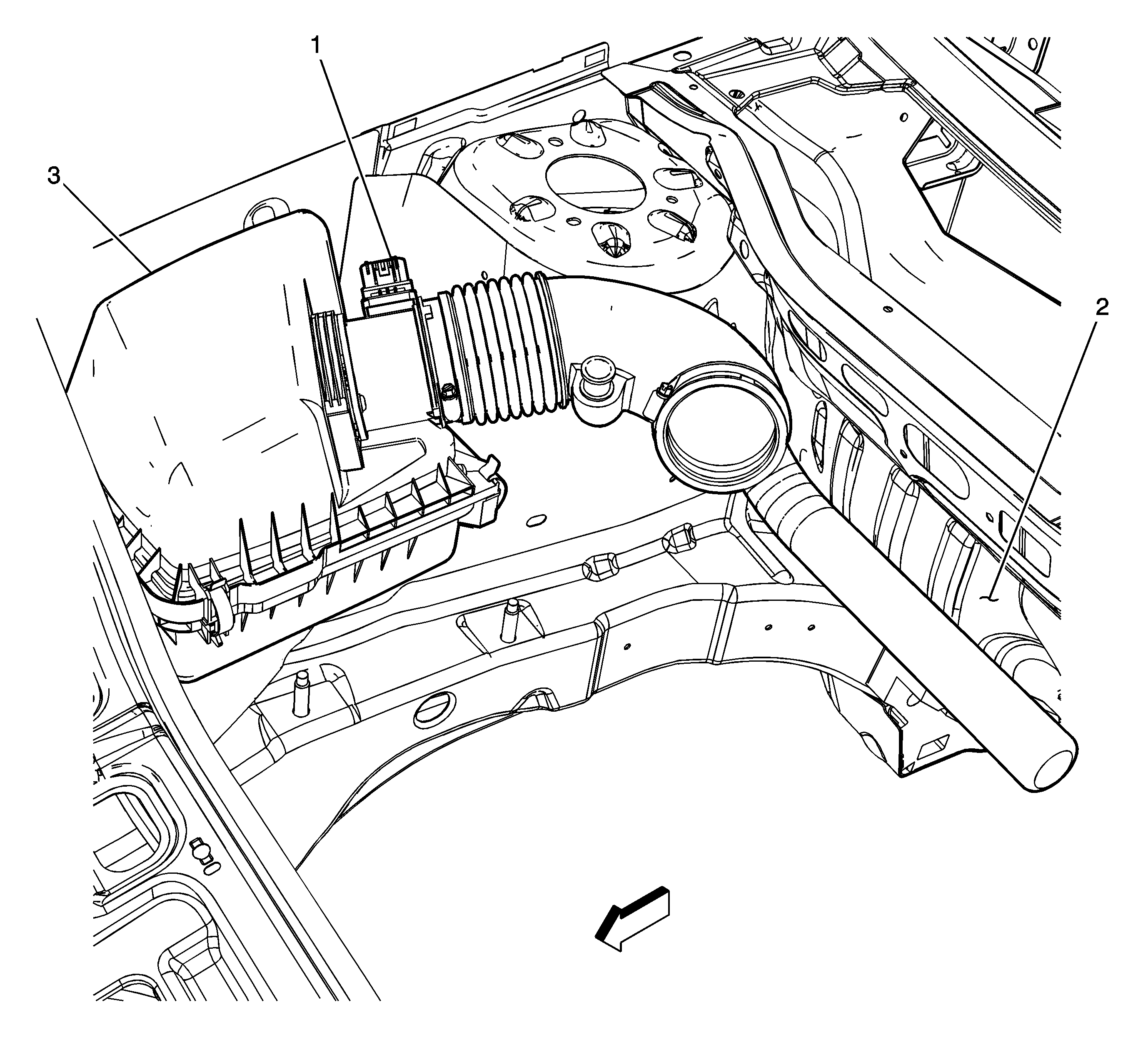

Right Front Engine Compartment Components


(1)	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
(2)	Cowl
(3)	Air Cleaner Assembly

Figure 7:

Windshield Components


(1)	Inside Rearview Mirror (ISRVM)
(2)	Hood

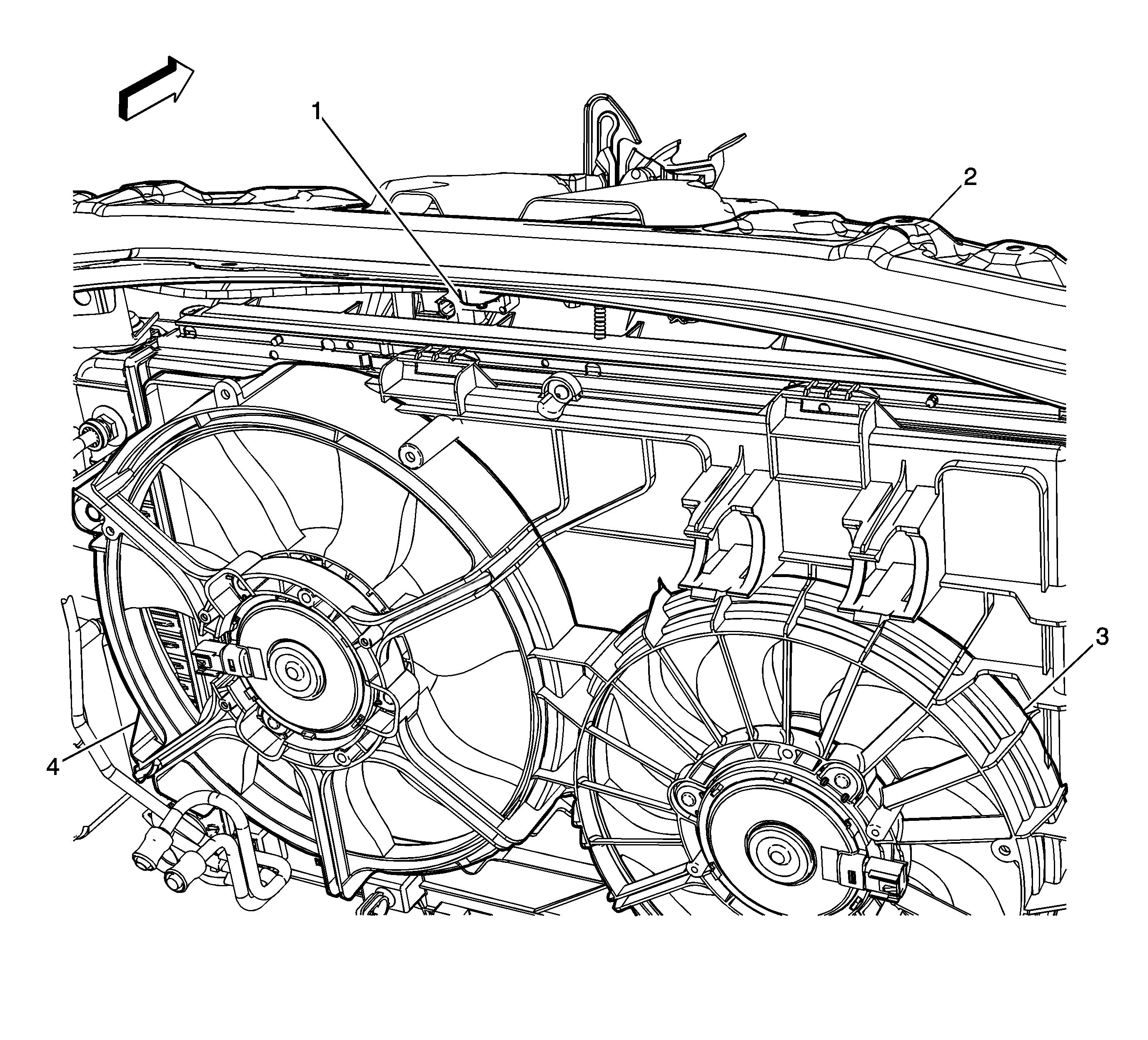

Figure 8:

Core Support Components


(1)	Inflatable Restraint Front End Sensor - Left
(2)	Radiator Core Support
(3)	Engine Cooling Fan - Right
(4)	Engine Cooling Fan - Left

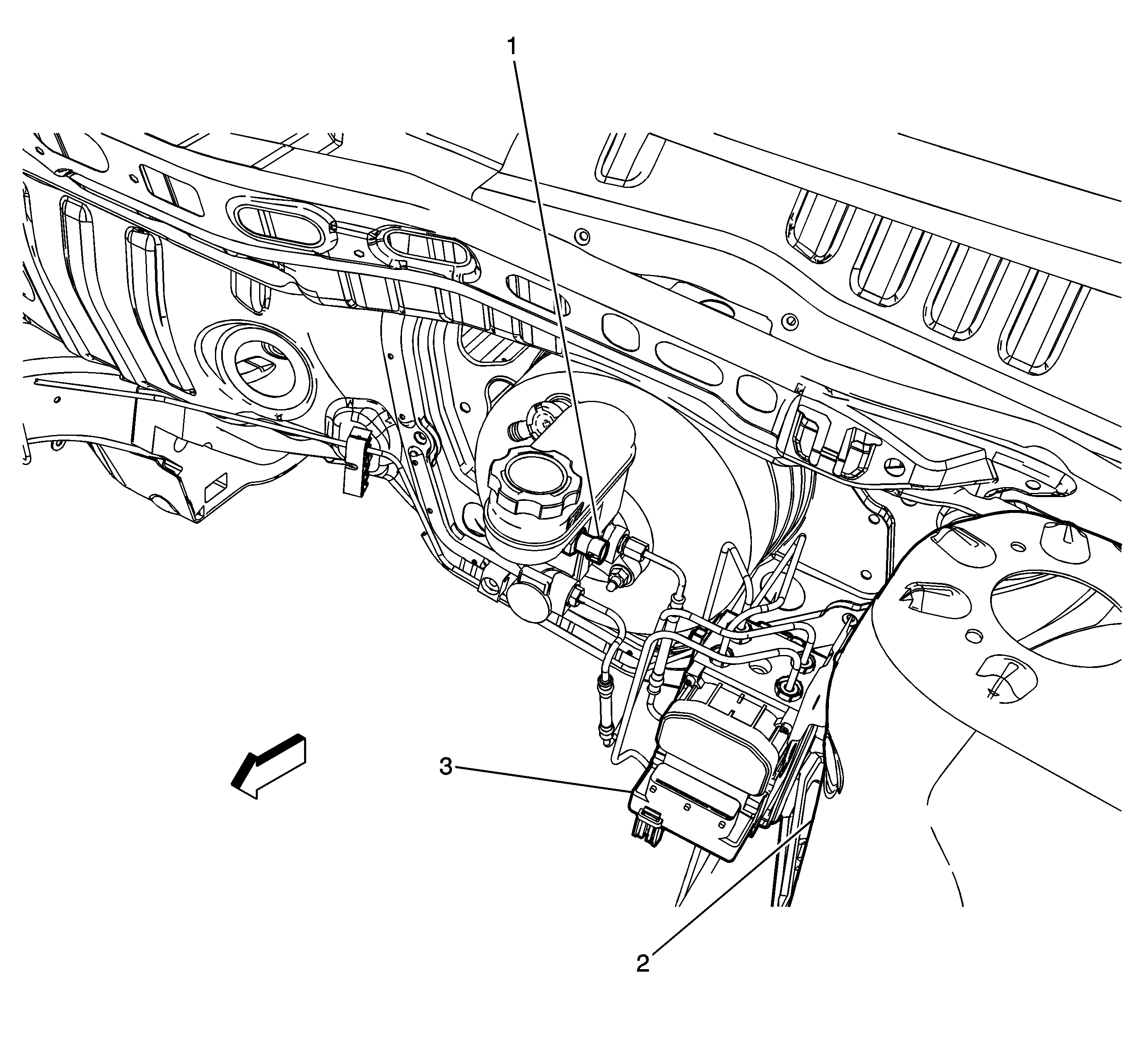

Figure 9:

Left Front Cowl Components


(1)	Brake Fluid Level Switch
(2)	Left Front Strut Tower
(3)	Electronic Brake Control Module (EBCM)
