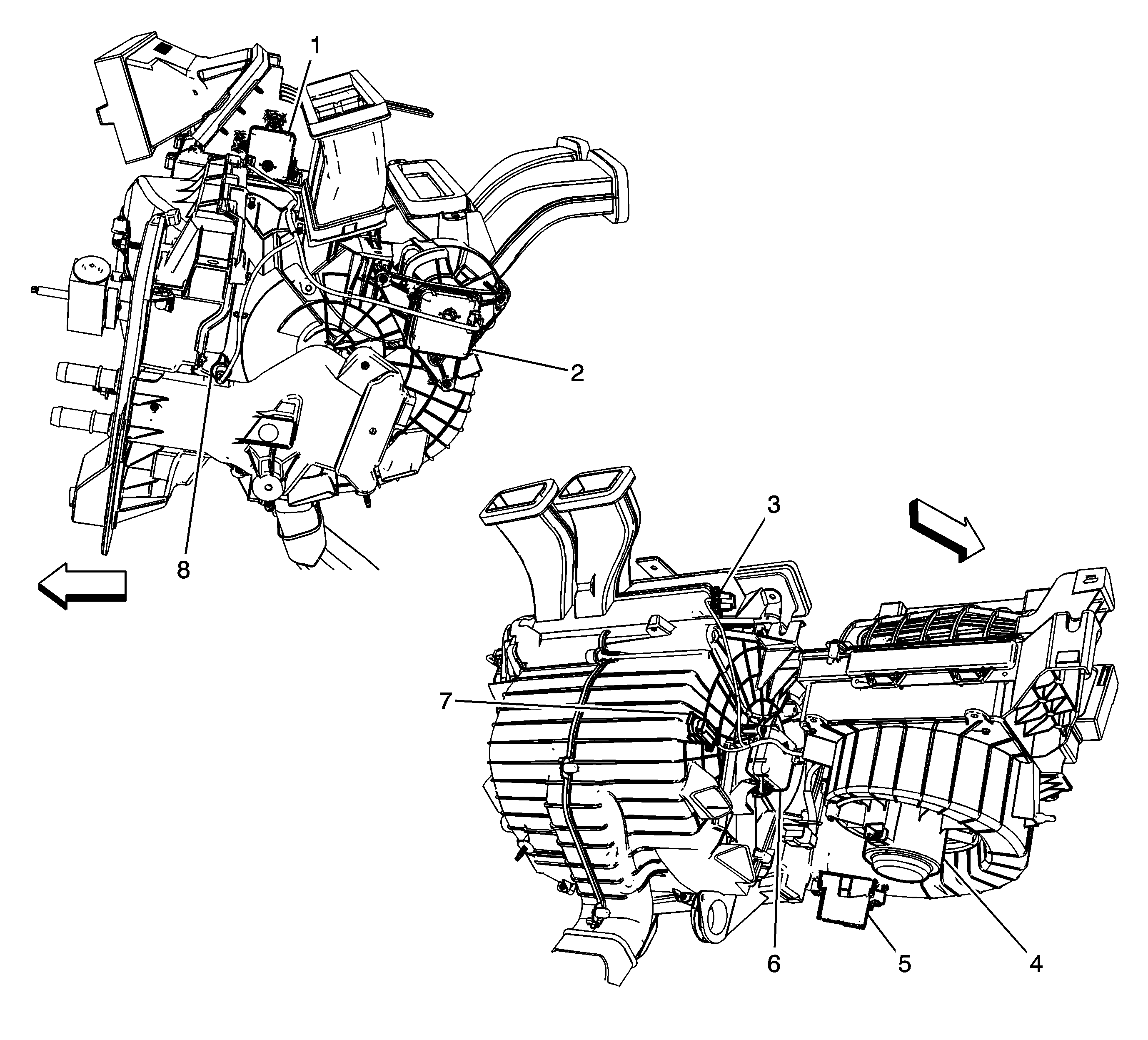

Figure 1:

Front HVAC Module Components


(1)	Recirculation Actuator
(2)	Mode Actuator
(3)	Air Temperature Sensor - Upper
(4)	Blower Motor
(5)	Blower Motor Control Module
(6)	Air Temperature Actuator
(7)	Air Temperature Sensor - Lower
(8)	Evaporator Temperature Sensor

Figure 2:

Lower Left Side Instrument Panel Components


(1)	JX200
(2)	Instrument Panel Harness
(3)	Data Link Connector (DLC)

Figure 3:

Lower Center Instrument Panel Components


(1)	Body Control Module (BCM)
(2)	Instrument Panel Harness
(3)	Center Instrument Panel Support

Figure 4:

Pedal Assembly Components


(1)	Brake Pedal Position (BPP) Sensor
(2)	Accelerator Pedal Position (APP) Sensor

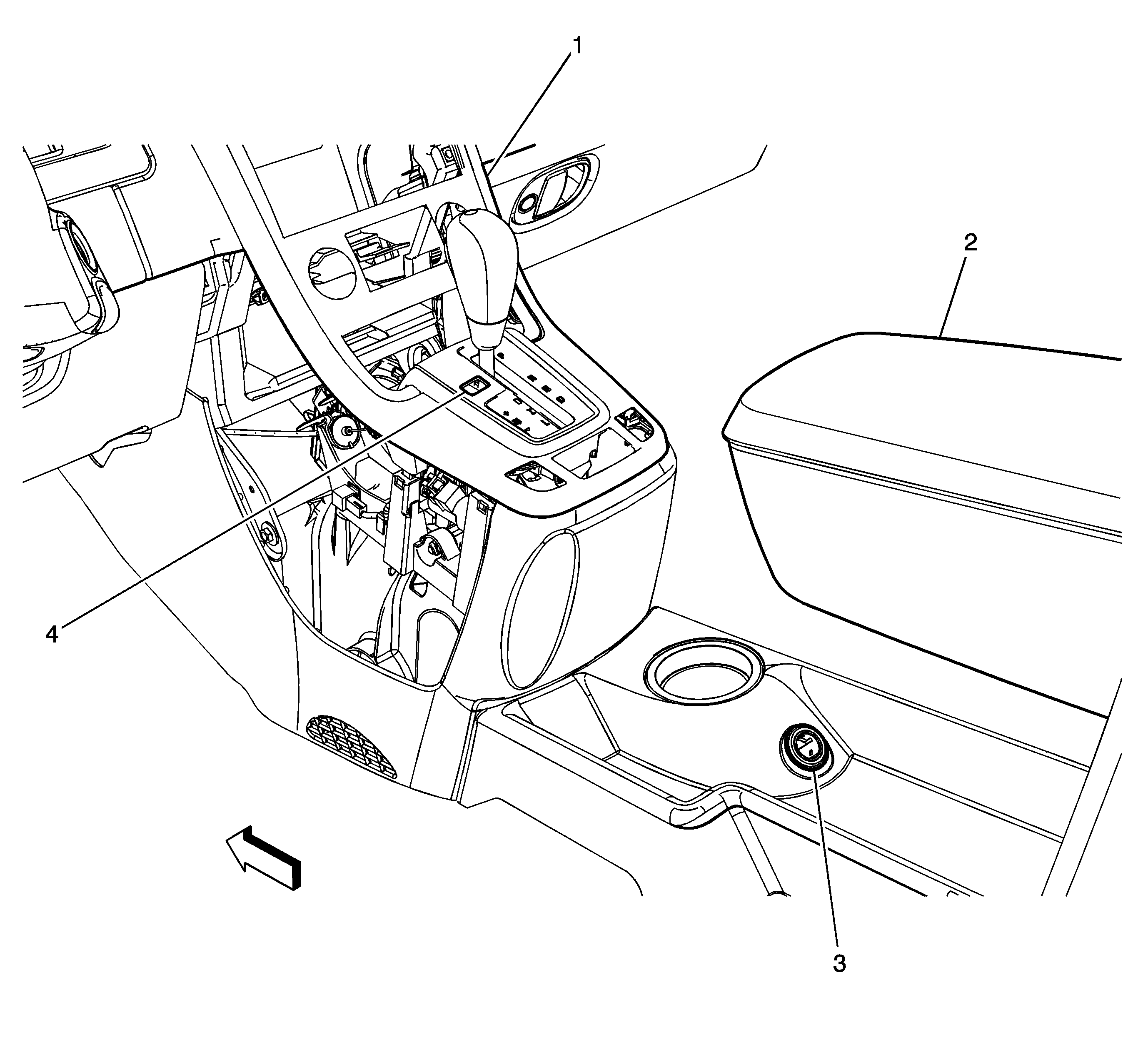

Figure 5:

Shift Lever Components


(1)	Instrument Panel Trim
(2)	Console Arm Rest
(3)	Accessory Power Outlet - Center Console 1
(4)	Automatic Transmission Shift Lock Control Solenoid

Figure 6:

Instrument Panel and Console Components


(1)	Instrument Panel Cluster (IPC)
(2)	Ambient Light Sensor
(3)	Hazard Switch
(4)	Radio
(5)	HVAC Control Module
(6)	Cigar Lighter
(7)	Transmission Range Indicator
(8)	Window Switch - Passenger
(9)	HVAC Control Module - Auxiliary (C69)
(10)	Audio/Video Adaptor (UUC)
(11)	Accessory Power Outlet - Center Console 2
(12)	Window Switch - Driver
(13)	Traction Control Switch (TCS)
(14)	Rear Window Wiper/Washer/Fog Lamp Switch
(15)	Inflatable Restraint I/P Module Indicator
(16)	Inside Air Temperature Sensor
(17)	Headlamp Dimmer Switch
(18)	Outside Rearview Mirror Switch
(19)	Inflatable Restraint Steering Wheel Module Coil

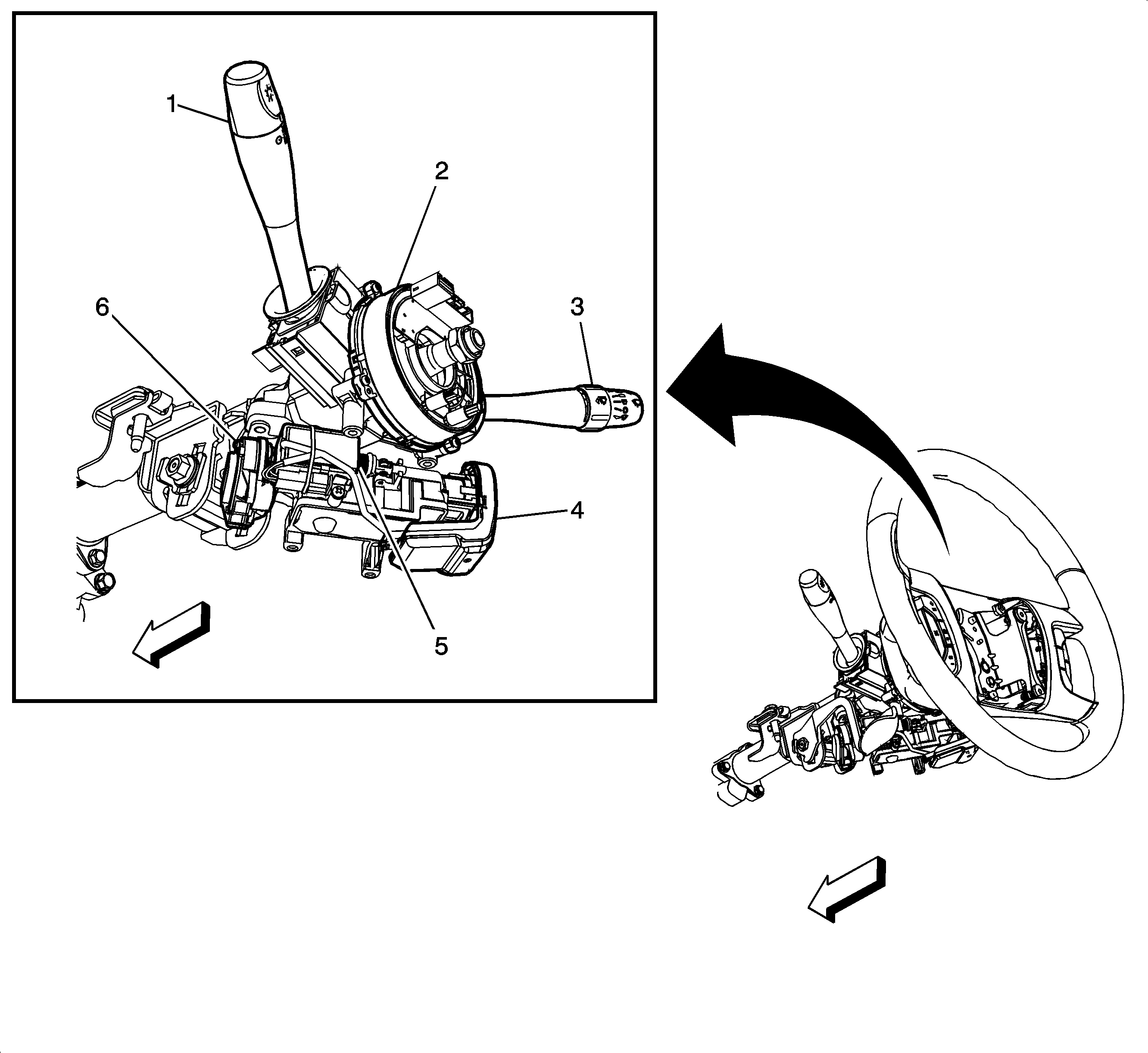

Figure 7:

Steering Column Components


(1)	Turn Signal/Multifunction Switch
(2)	Inflatable Restraint Steering Wheel Module Coil
(3)	Windshield Wiper/Washer Switch
(4)	Theft Deterent Module (TDM)
(5)	Ignition Lock Cylinder Control Solenoid
(6)	Ignition Switch

Figure 8:

Steering Wheel Components 1 of 2


(1)	Horn Switch
(2)	Steering Wheel Control Switch - Right (UK3)
(3)	Steering Wheel Control Switch - Left (K34)
