Rear Storage Compartment Replacement. Suzuki XL-7 AWD 2008

For 1990-2009 cars only

Makes 🢒 Suzuki 🢒 2008 🢒 XL-7 AWD 🢒 Seats 🢒 Seat Hardware, Trim, and Upholstery 🢒 Rear Storage Compartment Replacement

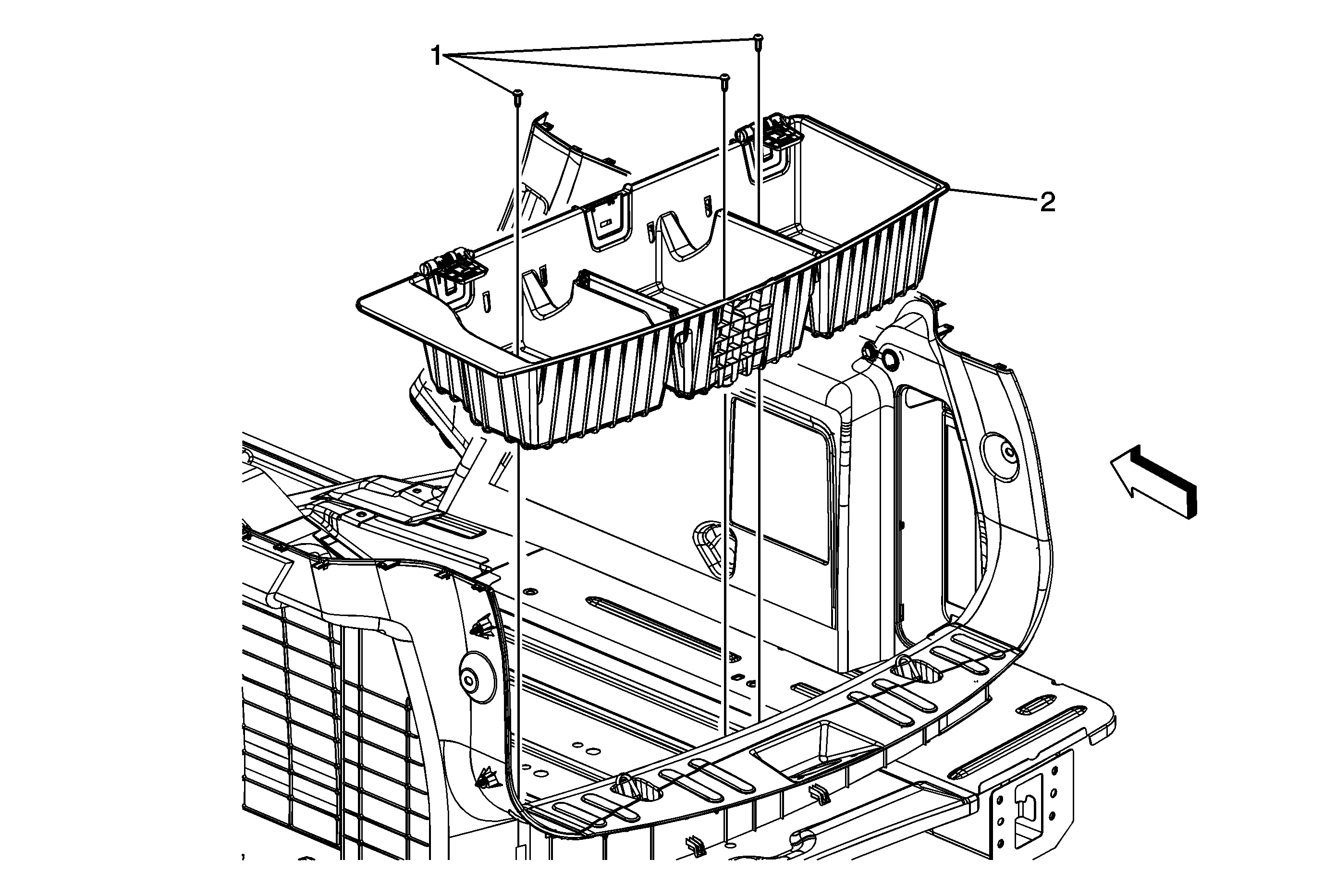

Callout	Component Name
Preliminary Procedure Open rear compartment stowage tray assembly lid.
1	Rear Compartment Stowage Tray Bolt (Qty: 3) Tighten 7 N·m (62 lb in) Notice: Refer to Fastener Notice in the Preface section.
2	Rear Compartment Stowage Tray Assembly

Callout

Component Name

Open rear compartment stowage tray assembly lid.

Rear Compartment Stowage Tray Bolt (Qty: 3)

Tighten
7 N·m (62 lb in)

Notice: Refer to Fastener Notice in the Preface section.

Rear Compartment Stowage Tray Assembly
