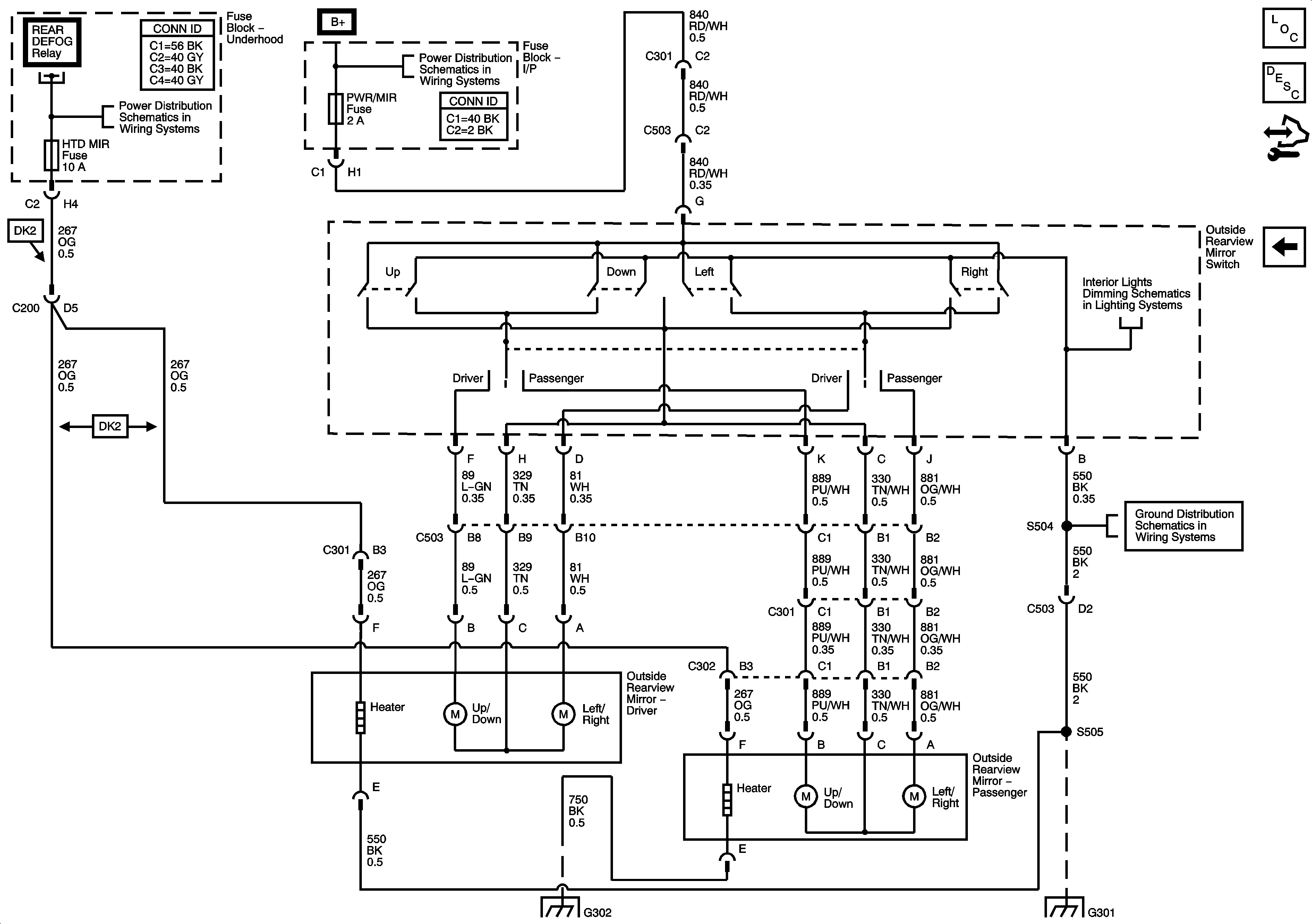

Outside Rearview Mirror Schematics for Chevrolet Monte Carlo 2006
Figure
1:
Coupe
Master Electrical Component List
Outside Mirror Description and Operation
Control Module References
Sedan
Fuse Block - Underhood Bussing
Fuse Block - Underhood Bussing
BATT 2, HTD/SEAT, AIRBAG, PWR/MIR Fuses, and PWR/SEAT Circuit Breaker
BATT 2, HTD/SEAT, AIRBAG, PWR/MIR Fuses, and PWR/SEAT Circuit Breaker
Coupe
G302
G301
Figure
2:
Sedan
Master Electrical Component List
Outside Mirror Description and Operation
Control Module References
Coupe
Fuse Block - Underhood Bussing
Fuse Block - Underhood Bussing
BATT 2, HTD/SEAT, AIRBAG, PWR/MIR Fuses, and PWR/SEAT Circuit Breaker
BATT 2, HTD/SEAT, AIRBAG, PWR/MIR Fuses, and PWR/SEAT Circuit Breaker
Sedan
G301
G302 (Sedan)
G301
