Front Bumper Fascia Energy Absorber Replacement SKY

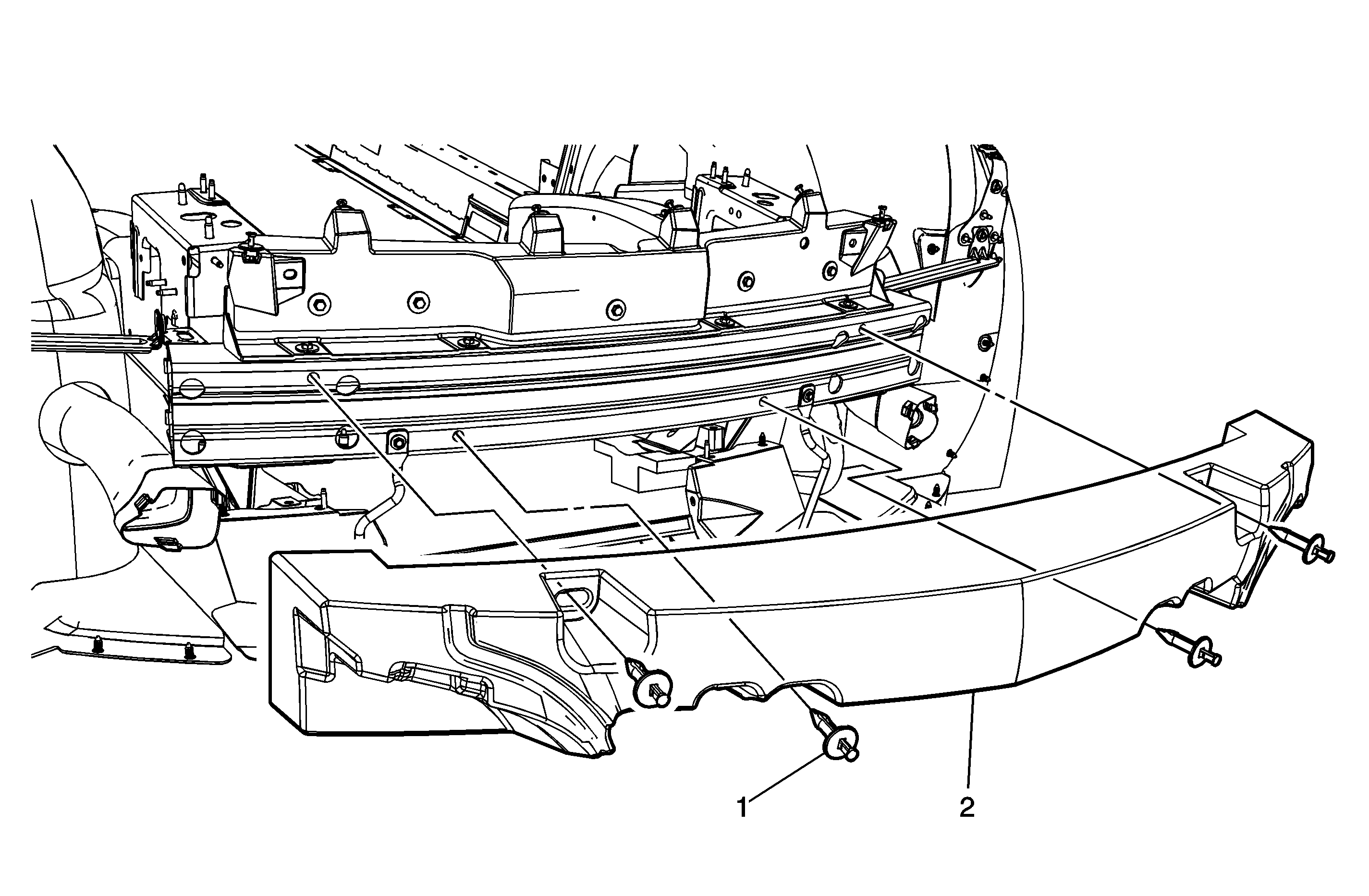

Object Number: 1717467 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the front fascia. Refer to Front Bumper Fascia Replacement .

1

Energy Absorber Retainer (Qty: 4)

2

Energy Absorber

Front Bumper Fascia Energy Absorber Replacement Solstice


Object Number: 1580216 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the front fascia. Refer to Front Bumper Fascia Replacement

1

Front Fascia Absorber Retainers (Qty: 4)

2

Front Fascia Absorber
